BaseStream Class Reference

Base class for all Streams. It relies on write(const uint8_t *buffer, size_t size) and readBytes(uint8_t *buffer, size_t length). More...

#include <CodecOpusOgg.h>

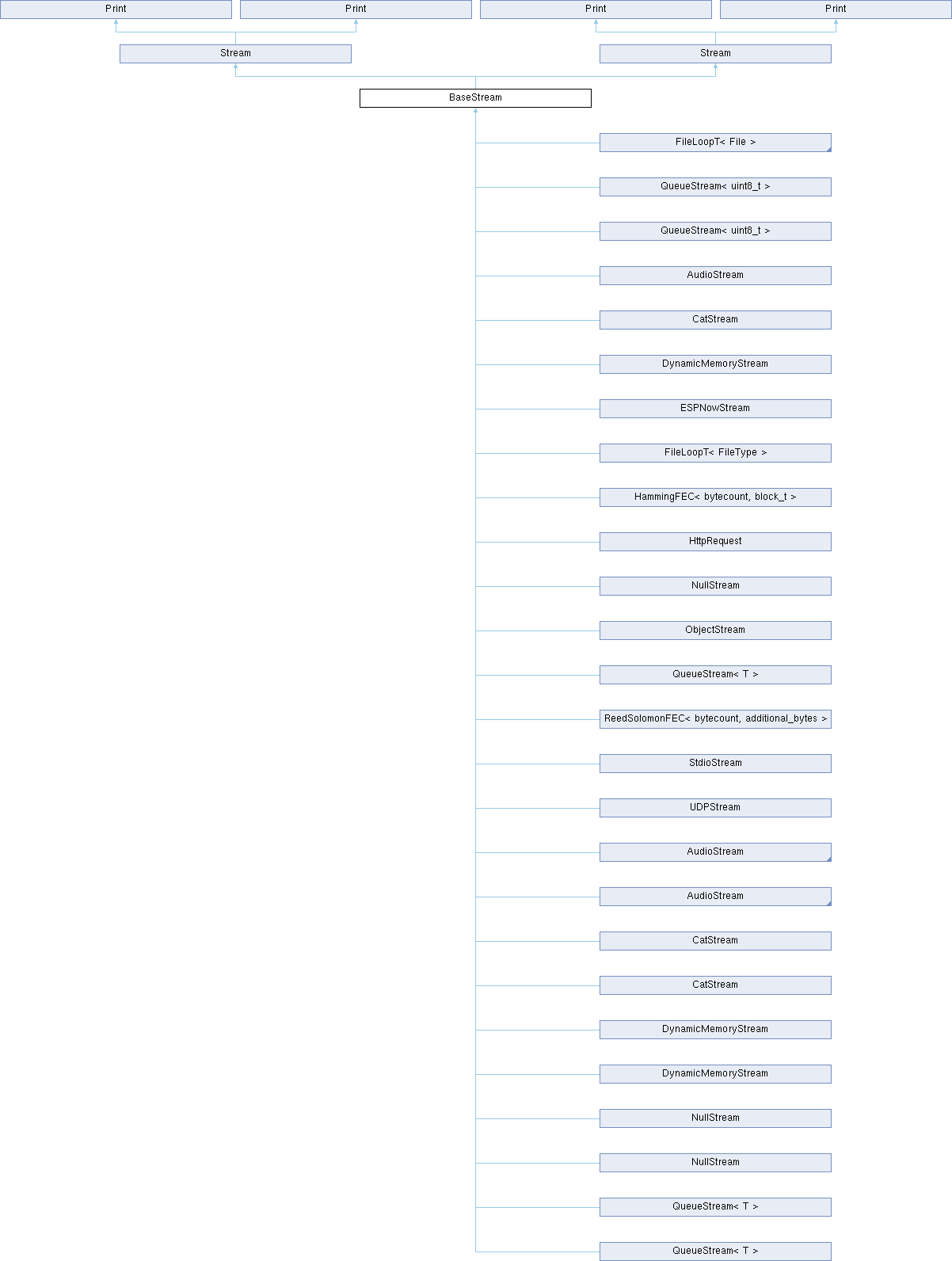

Inheritance diagram for BaseStream:

Public Member Functions
	BaseStream ()=default
	BaseStream ()=default
	BaseStream (BaseStream &)=default
	BaseStream (BaseStream &)=default
virtual	~BaseStream ()=default
virtual	~BaseStream ()=default
virtual int	available () override
virtual int	available () override
virtual int	availableForWrite () override
virtual int	availableForWrite () override
virtual bool	begin ()
virtual bool	begin ()
virtual void	end ()
virtual void	end ()
virtual void	flush () override
virtual void	flush () override
	operator bool ()
	operator bool ()
BaseStream &	operator= (BaseStream &)=default
BaseStream &	operator= (BaseStream &)=default
virtual size_t	readBytes (uint8_t *data, size_t len)=0
virtual size_t	readBytes (uint8_t *data, size_t len)=0
void	setWriteBufferSize (int size)
void	setWriteBufferSize (int size)
virtual size_t	write (const uint8_t *data, size_t len) override=0
virtual size_t	write (const uint8_t *data, size_t len) override=0
virtual size_t	write (uint8_t ch) override
virtual size_t	write (uint8_t ch) override

Protected Member Functions
void	refillReadBuffer ()
	Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read().
void	refillReadBuffer ()
	Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read().

Protected Attributes
int	_timeout = 10
RingBuffer< uint8_t >	tmp_in {0}
RingBuffer< uint8_t >	tmp_out {0}
int	write_buffer_size = 8

Detailed Description

Base class for all Streams. It relies on write(const uint8_t *buffer, size_t size) and readBytes(uint8_t *buffer, size_t length).

Author

Phil Schatzmann

Copyright

GPLv3

Constructor & Destructor Documentation

BaseStream() [1/4]

BaseStream ( )

default

~BaseStream() [1/2]

virtual ~BaseStream ( )

virtualdefault

BaseStream() [2/4]

BaseStream ( BaseStream & )

default

BaseStream() [3/4]

BaseStream ( )

default

~BaseStream() [2/2]

virtual ~BaseStream ( )

virtualdefault

BaseStream() [4/4]

BaseStream ( BaseStream & )

default

Member Function Documentation

available() [1/2]

virtual int available ( )

inlineoverridevirtual

Reimplemented from Stream.

Reimplemented in A2DPStream, AnalogAudioStream, AudioStreamWrapper, AudioStreamWrapper, BufferedStream, BufferedStream, CallbackStream, CallbackStream, CatStream, CatStream, ConverterStream< T >, ConverterStream< T >, DynamicMemoryStream, DynamicMemoryStream, FilteredStream< T, TF >, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, GeneratedSoundStream< T >, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, InputMerge< T >, InputMerge< T >, InputMixer< T, SumT >, InputMixer< T, SumT >, MemoryStream, MemoryStream, ProgressStream, ProgressStream, QueueStream< T >, QueueStream< T >, QueueStream< uint8_t >, ReformatBaseStream, RingBufferStream, RingBufferStream, Throttle, Throttle, TimedStream, AudioBLEClient, AudioBLEClient, AudioBLEServer, AudioBLEServer, AudioEffectStream, AudioEffectStreamT< T >, AudioFFTBase, AudioKitStream, AudioLoRa, AudioMP34DT05, AudioStreamWrapper, AutomaticGainControlStream, BufferedStream, BufferedTaskStream, CallbackStream, CatStream, ChannelFormatConverterStream, ChannelFormatConverterStreamT< T >, ConverterStream< T >, DynamicMemoryStream, Equalizer3BandsPerChannelT< T >, Equalizer3BandsPerChannelT< float >, Equalizer3BandsT< T >, Equalizer3BandsT< float >, ESPNowStream, FadeStream, FaustStream< DSP >, FileLoopT< FileType >, FileLoopT< File >, FilteredStream< T, TF >, FrequencyDetectorAutoCorrelation, FrequencyDetectorZeroCrossing, GeneratedSoundStream< T >, HammingFEC< bytecount, block_t >, HLSStreamT< URLStream >, HLSStreamT< URLStreamESP32 >, HttpRequest, I2SCodecStream, I2SStream, ICYStreamT< T >, ICYStreamT< URLStream >, ICYStreamT< URLStreamESP32 >, InputMerge< T >, InputMixer< T, SumT >, MeasuringStream, MemoryStream, MiniAudioStream, NRF24Stream, NumberFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, Pipeline, Pipeline::ModifyingStreamAdapter, ProgressStream, QualityAnalysisStream, QueueStream< T >, ReedSolomonFEC< bytecount, additional_bytes >, ReformatBaseStream, RingBufferStream, SPIAudioSlave, StdioStream, SupportedRatesStream, TfLiteAudioStream, Throttle, TimedStream, UDPStream, URLStream, URLStreamBufferedT< T >, URLStreamBufferedT< ICYStream >, URLStreamBufferedT< ICYStreamESP32 >, URLStreamBufferedT< URLStream >, URLStreamBufferedT< URLStreamESP32 >, USBAudioStreamBase, VBANStream, and VolumeStream.

available() [2/2]

virtual int available ( )

inlineoverridevirtual

Reimplemented from Stream.

Reimplemented in A2DPStream, AnalogAudioStream, AudioStreamWrapper, AudioStreamWrapper, BufferedStream, BufferedStream, CallbackStream, CallbackStream, CatStream, CatStream, ConverterStream< T >, ConverterStream< T >, DynamicMemoryStream, DynamicMemoryStream, FilteredStream< T, TF >, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, GeneratedSoundStream< T >, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, InputMerge< T >, InputMerge< T >, InputMixer< T, SumT >, InputMixer< T, SumT >, MemoryStream, MemoryStream, ProgressStream, ProgressStream, QueueStream< T >, QueueStream< T >, QueueStream< uint8_t >, ReformatBaseStream, RingBufferStream, RingBufferStream, Throttle, Throttle, TimedStream, AudioBLEClient, AudioBLEClient, AudioBLEServer, AudioBLEServer, AudioEffectStream, AudioEffectStreamT< T >, AudioFFTBase, AudioKitStream, AudioLoRa, AudioMP34DT05, AudioStreamWrapper, AutomaticGainControlStream, BufferedStream, BufferedTaskStream, CallbackStream, CatStream, ChannelFormatConverterStream, ChannelFormatConverterStreamT< T >, ConverterStream< T >, DynamicMemoryStream, Equalizer3BandsPerChannelT< T >, Equalizer3BandsPerChannelT< float >, Equalizer3BandsT< T >, Equalizer3BandsT< float >, ESPNowStream, FadeStream, FaustStream< DSP >, FileLoopT< FileType >, FileLoopT< File >, FilteredStream< T, TF >, FrequencyDetectorAutoCorrelation, FrequencyDetectorZeroCrossing, GeneratedSoundStream< T >, HammingFEC< bytecount, block_t >, HLSStreamT< URLStream >, HLSStreamT< URLStreamESP32 >, HttpRequest, I2SCodecStream, I2SStream, ICYStreamT< T >, ICYStreamT< URLStream >, ICYStreamT< URLStreamESP32 >, InputMerge< T >, InputMixer< T, SumT >, MeasuringStream, MemoryStream, MiniAudioStream, NRF24Stream, NumberFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, Pipeline, Pipeline::ModifyingStreamAdapter, ProgressStream, QualityAnalysisStream, QueueStream< T >, ReedSolomonFEC< bytecount, additional_bytes >, ReformatBaseStream, RingBufferStream, SPIAudioSlave, StdioStream, SupportedRatesStream, TfLiteAudioStream, Throttle, TimedStream, UDPStream, URLStream, URLStreamBufferedT< T >, URLStreamBufferedT< ICYStream >, URLStreamBufferedT< ICYStreamESP32 >, URLStreamBufferedT< URLStream >, URLStreamBufferedT< URLStreamESP32 >, USBAudioStreamBase, VBANStream, and VolumeStream.

availableForWrite() [1/2]

virtual int availableForWrite ( )

inlineoverridevirtual

Reimplemented from Print.

Reimplemented in A2DPStream, AbstractURLStream, AnalogAudioStream, AudioStreamWrapper, AudioStreamWrapper, ConverterStream< T >, ConverterStream< T >, DynamicMemoryStream, DynamicMemoryStream, EncodedAudioStream, FilteredStream< T, TF >, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, MemoryStream, MemoryStream, ProgressStream, ProgressStream, QueueStream< T >, QueueStream< T >, QueueStream< uint8_t >, ReformatBaseStream, RingBufferStream, RingBufferStream, Throttle, Throttle, TimedStream, AudioBLEClient, AudioBLEClient, AudioBLEServer, AudioBLEServer, AudioEffectStream, AudioEffectStreamT< T >, AudioFFTBase, AudioLoRa, AudioStreamWrapper, AutomaticGainControlStream, ChannelFormatConverterStream, ChannelFormatConverterStreamT< T >, ConverterStream< T >, DynamicMemoryStream, EncodedAudioStream, Equalizer3BandsPerChannelT< T >, Equalizer3BandsPerChannelT< float >, Equalizer3BandsT< T >, Equalizer3BandsT< float >, ESPNowStream, FadeStream, FaustStream< DSP >, FilteredStream< T, TF >, FrequencyDetectorAutoCorrelation, FrequencyDetectorZeroCrossing, HammingFEC< bytecount, block_t >, I2SCodecStream, I2SStream, MeasuringStream, MemoryStream, MiniAudioStream, NRF24Stream, NumberFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, Pipeline, ProgressStream, QualityAnalysisStream, QueueStream< T >, ReedSolomonFEC< bytecount, additional_bytes >, ReformatBaseStream, RingBufferStream, SPIAudioSlave, StdioStream, SupportedRatesStream, Throttle, TimedStream, UDPStream, URLStreamESP32, USBAudioStreamBase, VBANStream, and VolumeStream.

availableForWrite() [2/2]

virtual int availableForWrite ( )

inlineoverridevirtual

Reimplemented from Print.

Reimplemented in A2DPStream, AbstractURLStream, AnalogAudioStream, AudioStreamWrapper, AudioStreamWrapper, ConverterStream< T >, ConverterStream< T >, DynamicMemoryStream, DynamicMemoryStream, EncodedAudioStream, FilteredStream< T, TF >, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, MemoryStream, MemoryStream, ProgressStream, ProgressStream, QueueStream< T >, QueueStream< T >, QueueStream< uint8_t >, ReformatBaseStream, RingBufferStream, RingBufferStream, Throttle, Throttle, TimedStream, AudioBLEClient, AudioBLEClient, AudioBLEServer, AudioBLEServer, AudioEffectStream, AudioEffectStreamT< T >, AudioFFTBase, AudioLoRa, AudioStreamWrapper, AutomaticGainControlStream, ChannelFormatConverterStream, ChannelFormatConverterStreamT< T >, ConverterStream< T >, DynamicMemoryStream, EncodedAudioStream, Equalizer3BandsPerChannelT< T >, Equalizer3BandsPerChannelT< float >, Equalizer3BandsT< T >, Equalizer3BandsT< float >, ESPNowStream, FadeStream, FaustStream< DSP >, FilteredStream< T, TF >, FrequencyDetectorAutoCorrelation, FrequencyDetectorZeroCrossing, HammingFEC< bytecount, block_t >, I2SCodecStream, I2SStream, MeasuringStream, MemoryStream, MiniAudioStream, NRF24Stream, NumberFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, Pipeline, ProgressStream, QualityAnalysisStream, QueueStream< T >, ReedSolomonFEC< bytecount, additional_bytes >, ReformatBaseStream, RingBufferStream, SPIAudioSlave, StdioStream, SupportedRatesStream, Throttle, TimedStream, UDPStream, URLStreamESP32, USBAudioStreamBase, VBANStream, and VolumeStream.

begin() [1/2]

virtual bool begin ( )

inlinevirtual

Reimplemented in AdapterAudioOutputToAudioStream, AdaptiveResamplingStream, AnalogAudioStream, AdapterAudioOutputToAudioStream, AudioInputMonitor, AudioInputMonitor, AudioStreamWrapper, AudioStreamWrapper, AudioTimeSourceStream, CallbackStream, CallbackStream, CatStream, CatStream, DynamicMemoryStream, DynamicMemoryStream, EncodedAudioStream, FilteredStream< T, TF >, FilteredStream< T, TF >, GeneratedSoundStream< T >, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, InputMerge< T >, InputMerge< T >, MemoryStream, MemoryStream, ProgressStream, ProgressStream, QueueStream< T >, QueueStream< T >, QueueStream< uint8_t >, Throttle, Throttle, TimedStream, TimerCallbackAudioStream, TimerCallbackAudioStream, VolumeMeter, VolumeMeter, AudioBoardStream, AudioEffectStream, AudioEffectStreamT< T >, AudioFFTBase, AudioInputMonitor, AudioKitStream, AudioLoRa, AudioMP34DT05, AudioOutputWithCallback, AudioStreamWrapper, AudioTimeSourceStream, AutomaticGainControlStream, CallbackStream, CatStream, ChannelFormatConverterStream, ChannelFormatConverterStreamT< T >, DynamicMemoryStream, EncodedAudioStream, Equalizer3BandsPerChannelT< T >, Equalizer3BandsPerChannelT< float >, Equalizer3BandsT< T >, Equalizer3BandsT< float >, EqualizerNBands< SampleT, AccT, NUM_TAPS, NUM_BANDS >, ESPNowStream, FileLoopT< FileType >, FileLoopT< File >, FilteredStream< T, TF >, FormatConverterStream, FrequencyDetectorAutoCorrelation, GeneratedSoundStream< T >, GoertzelStream, HLSStreamT< URLStream >, HLSStreamT< URLStreamESP32 >, I2SCodecStream, I2SStream, InputMerge< T >, MeasuringStream, MemoryStream, MiniAudioStream, MozziStream, NRF24Stream, NumberFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, Pipeline, Pipeline::ModifyingStreamAdapter, PortAudioStream, ProgressStream, PureDataStream, QualityAnalysisStream, QueueStream< T >, ResampleStream, ResampleStreamT< TInterpolator >, SPDIFOutput, StdioStream, SupportedRatesStream, Throttle, TimedStream, TimerCallbackAudioStream, USBAudioDeviceBase, USBAudioHostBase, VBANStream, VolumeMeter, VolumeStream, VS1053Stream, and WM8960Stream.

begin() [2/2]

virtual bool begin ( )

inlinevirtual

Reimplemented in AdapterAudioOutputToAudioStream, AdaptiveResamplingStream, AnalogAudioStream, AdapterAudioOutputToAudioStream, AudioInputMonitor, AudioInputMonitor, AudioStreamWrapper, AudioStreamWrapper, AudioTimeSourceStream, CallbackStream, CallbackStream, CatStream, CatStream, DynamicMemoryStream, DynamicMemoryStream, EncodedAudioStream, FilteredStream< T, TF >, FilteredStream< T, TF >, GeneratedSoundStream< T >, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, InputMerge< T >, InputMerge< T >, MemoryStream, MemoryStream, ProgressStream, ProgressStream, QueueStream< T >, QueueStream< T >, QueueStream< uint8_t >, Throttle, Throttle, TimedStream, TimerCallbackAudioStream, TimerCallbackAudioStream, VolumeMeter, VolumeMeter, AudioBoardStream, AudioEffectStream, AudioEffectStreamT< T >, AudioFFTBase, AudioInputMonitor, AudioKitStream, AudioLoRa, AudioMP34DT05, AudioOutputWithCallback, AudioStreamWrapper, AudioTimeSourceStream, AutomaticGainControlStream, CallbackStream, CatStream, ChannelFormatConverterStream, ChannelFormatConverterStreamT< T >, DynamicMemoryStream, EncodedAudioStream, Equalizer3BandsPerChannelT< T >, Equalizer3BandsPerChannelT< float >, Equalizer3BandsT< T >, Equalizer3BandsT< float >, EqualizerNBands< SampleT, AccT, NUM_TAPS, NUM_BANDS >, ESPNowStream, FileLoopT< FileType >, FileLoopT< File >, FilteredStream< T, TF >, FormatConverterStream, FrequencyDetectorAutoCorrelation, GeneratedSoundStream< T >, GoertzelStream, HLSStreamT< URLStream >, HLSStreamT< URLStreamESP32 >, I2SCodecStream, I2SStream, InputMerge< T >, MeasuringStream, MemoryStream, MiniAudioStream, MozziStream, NRF24Stream, NumberFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, Pipeline, Pipeline::ModifyingStreamAdapter, PortAudioStream, ProgressStream, PureDataStream, QualityAnalysisStream, QueueStream< T >, ResampleStream, ResampleStreamT< TInterpolator >, SPDIFOutput, StdioStream, SupportedRatesStream, Throttle, TimedStream, TimerCallbackAudioStream, USBAudioDeviceBase, USBAudioHostBase, VBANStream, VolumeMeter, VolumeStream, VS1053Stream, and WM8960Stream.

end() [1/2]

virtual void end ( )

inlinevirtual

Reimplemented in A2DPStream, AbstractURLStream, AdapterAudioOutputToAudioStream, AdaptiveResamplingStream, AnalogAudioStream, AdapterAudioOutputToAudioStream, AudioStreamWrapper, AudioStreamWrapper, CallbackStream, CallbackStream, CatStream, CatStream, DynamicMemoryStream, DynamicMemoryStream, EncodedAudioStream, FilteredStream< T, TF >, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, GeneratedSoundStream< T >, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, InputMerge< T >, InputMerge< T >, InputMixer< T, SumT >, InputMixer< T, SumT >, MemoryStream, MemoryStream, QueueStream< T >, QueueStream< T >, QueueStream< uint8_t >, ReformatBaseStream, TimerCallbackAudioStream, TimerCallbackAudioStream, AudioBLEClient, AudioBLEClient, AudioBLEServer, AudioBLEServer, AudioBLEStream, AudioEffectStream, AudioEffectStreamT< T >, AudioFFTBase, AudioKitStream, AudioLoRa, AudioMP34DT05, AudioStreamWrapper, AutomaticGainControlStream, BufferedTaskStream, CallbackStream, CatStream, ChannelFormatConverterStream, DynamicMemoryStream, EncodedAudioStream, Equalizer3BandsPerChannelT< T >, Equalizer3BandsPerChannelT< float >, Equalizer3BandsT< T >, Equalizer3BandsT< float >, EqualizerNBands< SampleT, AccT, NUM_TAPS, NUM_BANDS >, ESPNowStream, FaustStream< DSP >, FileLoopT< FileType >, FileLoopT< File >, FilteredStream< T, TF >, FormatConverterStream, GeneratedSoundStream< T >, GoertzelStream, HLSStreamT< URLStream >, HLSStreamT< URLStreamESP32 >, HttpRequest, I2SCodecStream, I2SStream, ICYStreamT< T >, ICYStreamT< URLStream >, ICYStreamT< URLStreamESP32 >, InputMerge< T >, InputMixer< T, SumT >, MemoryStream, MiniAudioStream, MozziStream, NRF24Stream, NumberFormatConverterStream, Pipeline, Pipeline::ModifyingStreamAdapter, PortAudioStream, PureDataStream, QueueStream< T >, ReformatBaseStream, SPDIFOutput, SPIAudioSlave, StdioStream, SupportedRatesStream, TimerCallbackAudioStream, URLStream, URLStreamBufferedT< T >, URLStreamBufferedT< ICYStream >, URLStreamBufferedT< ICYStreamESP32 >, URLStreamBufferedT< URLStream >, URLStreamBufferedT< URLStreamESP32 >, URLStreamESP32, USBAudioDeviceBase, USBAudioHostBase, VolumeStream, VS1053Stream, and WM8960Stream.

end() [2/2]

virtual void end ( )

inlinevirtual

Reimplemented in A2DPStream, AbstractURLStream, AdapterAudioOutputToAudioStream, AdaptiveResamplingStream, AnalogAudioStream, AdapterAudioOutputToAudioStream, AudioStreamWrapper, AudioStreamWrapper, CallbackStream, CallbackStream, CatStream, CatStream, DynamicMemoryStream, DynamicMemoryStream, EncodedAudioStream, FilteredStream< T, TF >, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, GeneratedSoundStream< T >, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, InputMerge< T >, InputMerge< T >, InputMixer< T, SumT >, InputMixer< T, SumT >, MemoryStream, MemoryStream, QueueStream< T >, QueueStream< T >, QueueStream< uint8_t >, ReformatBaseStream, TimerCallbackAudioStream, TimerCallbackAudioStream, AudioBLEClient, AudioBLEClient, AudioBLEServer, AudioBLEServer, AudioBLEStream, AudioEffectStream, AudioEffectStreamT< T >, AudioFFTBase, AudioKitStream, AudioLoRa, AudioMP34DT05, AudioStreamWrapper, AutomaticGainControlStream, BufferedTaskStream, CallbackStream, CatStream, ChannelFormatConverterStream, DynamicMemoryStream, EncodedAudioStream, Equalizer3BandsPerChannelT< T >, Equalizer3BandsPerChannelT< float >, Equalizer3BandsT< T >, Equalizer3BandsT< float >, EqualizerNBands< SampleT, AccT, NUM_TAPS, NUM_BANDS >, ESPNowStream, FaustStream< DSP >, FileLoopT< FileType >, FileLoopT< File >, FilteredStream< T, TF >, FormatConverterStream, GeneratedSoundStream< T >, GoertzelStream, HLSStreamT< URLStream >, HLSStreamT< URLStreamESP32 >, HttpRequest, I2SCodecStream, I2SStream, ICYStreamT< T >, ICYStreamT< URLStream >, ICYStreamT< URLStreamESP32 >, InputMerge< T >, InputMixer< T, SumT >, MemoryStream, MiniAudioStream, MozziStream, NRF24Stream, NumberFormatConverterStream, Pipeline, Pipeline::ModifyingStreamAdapter, PortAudioStream, PureDataStream, QueueStream< T >, ReformatBaseStream, SPDIFOutput, SPIAudioSlave, StdioStream, SupportedRatesStream, TimerCallbackAudioStream, URLStream, URLStreamBufferedT< T >, URLStreamBufferedT< ICYStream >, URLStreamBufferedT< ICYStreamESP32 >, URLStreamBufferedT< URLStream >, URLStreamBufferedT< URLStreamESP32 >, URLStreamESP32, USBAudioDeviceBase, USBAudioHostBase, VolumeStream, VS1053Stream, and WM8960Stream.

flush() [1/2]

virtual void flush ( )

inlineoverridevirtual

Reimplemented from Print.

Reimplemented in AudioStreamWrapper, AudioStreamWrapper, BufferedStream, BufferedStream, EncodedAudioStream, FilteredStream< T, TF >, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, GeneratedSoundStream< T >, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, MemoryStream, MemoryStream, QueueStream< T >, QueueStream< T >, QueueStream< uint8_t >, ReformatBaseStream, RingBufferStream, RingBufferStream, TimedStream, AudioEffectStream, AudioEffectStreamT< T >, AudioStreamWrapper, AutomaticGainControlStream, BufferedStream, BufferedTaskStream, EncodedAudioStream, Equalizer3BandsPerChannelT< T >, Equalizer3BandsPerChannelT< float >, Equalizer3BandsT< T >, Equalizer3BandsT< float >, EqualizerNBands< SampleT, AccT, NUM_TAPS, NUM_BANDS >, FadeStream, FilteredStream< T, TF >, GeneratedSoundStream< T >, I2SStream, MeasuringStream, MemoryStream, Pipeline::ModifyingStreamAdapter, PureDataStream, QualityAnalysisStream, QueueStream< T >, ReformatBaseStream, ResampleStream, RingBufferStream, SupportedRatesStream, TimedStream, URLStream, URLStreamBufferedT< T >, URLStreamBufferedT< ICYStream >, URLStreamBufferedT< ICYStreamESP32 >, URLStreamBufferedT< URLStream >, URLStreamBufferedT< URLStreamESP32 >, and VolumeStream.

flush() [2/2]

virtual void flush ( )

inlineoverridevirtual

Reimplemented from Print.

Reimplemented in AudioStreamWrapper, AudioStreamWrapper, BufferedStream, BufferedStream, EncodedAudioStream, FilteredStream< T, TF >, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, GeneratedSoundStream< T >, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, MemoryStream, MemoryStream, QueueStream< T >, QueueStream< T >, QueueStream< uint8_t >, ReformatBaseStream, RingBufferStream, RingBufferStream, TimedStream, AudioEffectStream, AudioEffectStreamT< T >, AudioStreamWrapper, AutomaticGainControlStream, BufferedStream, BufferedTaskStream, EncodedAudioStream, Equalizer3BandsPerChannelT< T >, Equalizer3BandsPerChannelT< float >, Equalizer3BandsT< T >, Equalizer3BandsT< float >, EqualizerNBands< SampleT, AccT, NUM_TAPS, NUM_BANDS >, FadeStream, FilteredStream< T, TF >, GeneratedSoundStream< T >, I2SStream, MeasuringStream, MemoryStream, Pipeline::ModifyingStreamAdapter, PureDataStream, QualityAnalysisStream, QueueStream< T >, ReformatBaseStream, ResampleStream, RingBufferStream, SupportedRatesStream, TimedStream, URLStream, URLStreamBufferedT< T >, URLStreamBufferedT< ICYStream >, URLStreamBufferedT< ICYStreamESP32 >, URLStreamBufferedT< URLStream >, URLStreamBufferedT< URLStreamESP32 >, and VolumeStream.

operator bool() [1/2]

operator bool ( )

inlineinherited

operator bool() [2/2]

operator bool ( )

inlineinherited

operator=() [1/2]

BaseStream & operator= ( BaseStream & )

default

operator=() [2/2]

BaseStream & operator= ( BaseStream & )

default

readBytes() [1/2]

virtual size_t readBytes ( uint8_t * data, size_t len )

pure virtual

Reimplemented from Stream.

Implemented in A2DPStream, AdaptiveResamplingStream, AnalogAudioStream, AnalogDriverESP32V1::IO16Bit, AnalogDriverESP32V2::IO16Bit, AudioInputMonitor, AudioInputMonitor, AudioStream, AudioStream, AudioStreamWrapper, AudioStreamWrapper, AudioTimeSourceStream, BufferedStream, BufferedStream, CallbackStream, CallbackStream, CatStream, CatStream, ConverterStream< T >, ConverterStream< T >, DynamicMemoryStream, DynamicMemoryStream, EncodedAudioStream, FilteredStream< T, TF >, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, GeneratedSoundStream< T >, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, InputMerge< T >, InputMerge< T >, InputMixer< T, SumT >, InputMixer< T, SumT >, MemoryStream, MemoryStream, NullStream, NullStream, ProgressStream, ProgressStream, QueueStream< T >, QueueStream< T >, QueueStream< uint8_t >, ReformatBaseStream, RingBufferStream, RingBufferStream, Throttle, Throttle, TimedStream, VolumeMeter, VolumeMeter, AudioBLEClient, AudioBLEClient, AudioBLEServer, AudioBLEServer, AudioEffectStream, AudioEffectStreamT< T >, AudioFFTBase, AudioInputMonitor, AudioKitStream, AudioLoRa, AudioMP34DT05, AudioStream, AudioStreamWrapper, AudioTimeSourceStream, AutomaticGainControlStream, BufferedStream, BufferedTaskStream, CallbackStream, CatStream, ChannelFormatConverterStream, ChannelFormatConverterStreamT< T >, ConverterStream< T >, DynamicMemoryStream, EncodedAudioStream, Equalizer3BandsPerChannelT< T >, Equalizer3BandsPerChannelT< float >, Equalizer3BandsT< T >, Equalizer3BandsT< float >, EqualizerNBands< SampleT, AccT, NUM_TAPS, NUM_BANDS >, ESPNowStream, FadeStream, FaustStream< DSP >, FileLoopT< FileType >, FileLoopT< File >, FilteredStream< T, TF >, FrequencyDetectorAutoCorrelation, FrequencyDetectorZeroCrossing, GeneratedSoundStream< T >, GoertzelStream, HammingFEC< bytecount, block_t >, HLSStreamT< URLStream >, HLSStreamT< URLStreamESP32 >, HttpRequest, I2SCodecStream, I2SStream, ICYStreamT< T >, ICYStreamT< URLStream >, ICYStreamT< URLStreamESP32 >, InputMerge< T >, InputMixer< T, SumT >, LMSEchoCancellationStream< T >, MDFEchoCancellationStream< T, SampleType >, MeasuringStream, MemoryStream, MiniAudioStream, MozziStream, NRF24Stream, NullStream, NumberFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, Pipeline, PortAudioStream, ProgressStream, PureDataStream, QualityAnalysisStream, QueueStream< T >, ReedSolomonFEC< bytecount, additional_bytes >, ReformatBaseStream, RingBufferStream, SPIAudioSlave, StdioStream, SupportedRatesStream, TfLiteAudioStream, Throttle, TimedStream, UDPStream, URLStream, URLStreamBufferedT< T >, URLStreamBufferedT< ICYStream >, URLStreamBufferedT< ICYStreamESP32 >, URLStreamBufferedT< URLStream >, URLStreamBufferedT< URLStreamESP32 >, URLStreamESP32, USBAudioStreamBase, VBANStream, VolumeMeter, VolumeStream, and WM8960Stream.

readBytes() [2/2]

virtual size_t readBytes ( uint8_t * data, size_t len )

pure virtual

Reimplemented from Stream.

Implemented in A2DPStream, AdaptiveResamplingStream, AnalogAudioStream, AnalogDriverESP32V1::IO16Bit, AnalogDriverESP32V2::IO16Bit, AudioInputMonitor, AudioInputMonitor, AudioStream, AudioStream, AudioStreamWrapper, AudioStreamWrapper, AudioTimeSourceStream, BufferedStream, BufferedStream, CallbackStream, CallbackStream, CatStream, CatStream, ConverterStream< T >, ConverterStream< T >, DynamicMemoryStream, DynamicMemoryStream, EncodedAudioStream, FilteredStream< T, TF >, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, GeneratedSoundStream< T >, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, InputMerge< T >, InputMerge< T >, InputMixer< T, SumT >, InputMixer< T, SumT >, MemoryStream, MemoryStream, NullStream, NullStream, ProgressStream, ProgressStream, QueueStream< T >, QueueStream< T >, QueueStream< uint8_t >, ReformatBaseStream, RingBufferStream, RingBufferStream, Throttle, Throttle, TimedStream, VolumeMeter, VolumeMeter, AudioBLEClient, AudioBLEClient, AudioBLEServer, AudioBLEServer, AudioEffectStream, AudioEffectStreamT< T >, AudioFFTBase, AudioInputMonitor, AudioKitStream, AudioLoRa, AudioMP34DT05, AudioStream, AudioStreamWrapper, AudioTimeSourceStream, AutomaticGainControlStream, BufferedStream, BufferedTaskStream, CallbackStream, CatStream, ChannelFormatConverterStream, ChannelFormatConverterStreamT< T >, ConverterStream< T >, DynamicMemoryStream, EncodedAudioStream, Equalizer3BandsPerChannelT< T >, Equalizer3BandsPerChannelT< float >, Equalizer3BandsT< T >, Equalizer3BandsT< float >, EqualizerNBands< SampleT, AccT, NUM_TAPS, NUM_BANDS >, ESPNowStream, FadeStream, FaustStream< DSP >, FileLoopT< FileType >, FileLoopT< File >, FilteredStream< T, TF >, FrequencyDetectorAutoCorrelation, FrequencyDetectorZeroCrossing, GeneratedSoundStream< T >, GoertzelStream, HammingFEC< bytecount, block_t >, HLSStreamT< URLStream >, HLSStreamT< URLStreamESP32 >, HttpRequest, I2SCodecStream, I2SStream, ICYStreamT< T >, ICYStreamT< URLStream >, ICYStreamT< URLStreamESP32 >, InputMerge< T >, InputMixer< T, SumT >, LMSEchoCancellationStream< T >, MDFEchoCancellationStream< T, SampleType >, MeasuringStream, MemoryStream, MiniAudioStream, MozziStream, NRF24Stream, NullStream, NumberFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, Pipeline, PortAudioStream, ProgressStream, PureDataStream, QualityAnalysisStream, QueueStream< T >, ReedSolomonFEC< bytecount, additional_bytes >, ReformatBaseStream, RingBufferStream, SPIAudioSlave, StdioStream, SupportedRatesStream, TfLiteAudioStream, Throttle, TimedStream, UDPStream, URLStream, URLStreamBufferedT< T >, URLStreamBufferedT< ICYStream >, URLStreamBufferedT< ICYStreamESP32 >, URLStreamBufferedT< URLStream >, URLStreamBufferedT< URLStreamESP32 >, URLStreamESP32, USBAudioStreamBase, VBANStream, VolumeMeter, VolumeStream, and WM8960Stream.

refillReadBuffer() [1/2]

void refillReadBuffer ( )

inlineprotected

Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read().

refillReadBuffer() [2/2]

void refillReadBuffer ( )

inlineprotected

Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read().

setWriteBufferSize() [1/2]

void setWriteBufferSize ( int size )

inline

setWriteBufferSize() [2/2]

void setWriteBufferSize ( int size )

inline

write() [1/4]

virtual size_t write ( const uint8_t * data, size_t len )

overridepure virtual

Reimplemented from Print.

Implemented in A2DPStream, AdapterAudioOutputToAudioStream, AdaptiveResamplingStream, AnalogAudioStream, AnalogDriverESP32V1::IO16Bit, AnalogDriverESP32V2::IO16Bit, AdapterAudioOutputToAudioStream, AudioInputMonitor, AudioInputMonitor, AudioStream, AudioStream, AudioStreamWrapper, AudioStreamWrapper, AudioTimeSourceStream, BufferedStream, BufferedStream, CallbackStream, CallbackStream, CatStream, CatStream, ConverterStream< T >, ConverterStream< T >, DynamicMemoryStream, DynamicMemoryStream, EncodedAudioStream, FilteredStream< T, TF >, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, MemoryStream, MemoryStream, NullStream, NullStream, ProgressStream, ProgressStream, QueueStream< T >, QueueStream< T >, QueueStream< uint8_t >, RingBufferStream, RingBufferStream, Throttle, Throttle, TimedStream, VolumeMeter, VolumeMeter, AudioBLEClient, AudioBLEClient, AudioBLEServer, AudioBLEServer, AudioEffectStream, AudioEffectStreamT< T >, AudioFFTBase, AudioInputMonitor, AudioKitStream, AudioLoRa, AudioStream, AudioStreamWrapper, AudioTimeSourceStream, AutomaticGainControlStream, BufferedStream, BufferedTaskStream, CallbackStream, CatStream, ChannelFormatConverterStream, ChannelFormatConverterStreamT< T >, ConverterStream< T >, DynamicMemoryStream, EncodedAudioStream, Equalizer3BandsPerChannelT< T >, Equalizer3BandsPerChannelT< float >, Equalizer3BandsT< T >, Equalizer3BandsT< float >, EqualizerNBands< SampleT, AccT, NUM_TAPS, NUM_BANDS >, ESP3288AudioOutput, ESPNowStream, FadeStream, FaustStream< DSP >, FileLoopT< FileType >, FileLoopT< File >, FilteredStream< T, TF >, FormatConverterStream, FrequencyDetectorAutoCorrelation, FrequencyDetectorZeroCrossing, GoertzelStream, HammingFEC< bytecount, block_t >, HttpRequest, I2SCodecStream, I2SStream, LMSEchoCancellationStream< T >, MDFEchoCancellationStream< T, SampleType >, MeasuringStream, MemoryStream, MiniAudioStream, MozziStream, NRF24Stream, NullStream, NumberFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, Pipeline::ModifyingStreamAdapter, Pipeline, PortAudioStream, ProgressStream, PureDataStream, QualityAnalysisStream, QueueStream< T >, ReedSolomonFEC< bytecount, additional_bytes >, ResampleStream, ResampleStreamT< TInterpolator >, RingBufferStream, SPDIFOutput, SPIAudioSlave, StdioStream, SupportedRatesStream, TfLiteAudioStream, TfLiteAudioStreamBase, Throttle, TimedStream, UDPStream, URLStream, URLStreamESP32, USBAudioStreamBase, VBANStream, VolumeMeter, VolumeStream, VS1053Stream, and WM8960Stream.

write() [2/4]

virtual size_t write ( const uint8_t * data, size_t len )

overridepure virtual

Reimplemented from Print.

Implemented in A2DPStream, AdapterAudioOutputToAudioStream, AdaptiveResamplingStream, AnalogAudioStream, AnalogDriverESP32V1::IO16Bit, AnalogDriverESP32V2::IO16Bit, AdapterAudioOutputToAudioStream, AudioInputMonitor, AudioInputMonitor, AudioStream, AudioStream, AudioStreamWrapper, AudioStreamWrapper, AudioTimeSourceStream, BufferedStream, BufferedStream, CallbackStream, CallbackStream, CatStream, CatStream, ConverterStream< T >, ConverterStream< T >, DynamicMemoryStream, DynamicMemoryStream, EncodedAudioStream, FilteredStream< T, TF >, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, MemoryStream, MemoryStream, NullStream, NullStream, ProgressStream, ProgressStream, QueueStream< T >, QueueStream< T >, QueueStream< uint8_t >, RingBufferStream, RingBufferStream, Throttle, Throttle, TimedStream, VolumeMeter, VolumeMeter, AudioBLEClient, AudioBLEClient, AudioBLEServer, AudioBLEServer, AudioEffectStream, AudioEffectStreamT< T >, AudioFFTBase, AudioInputMonitor, AudioKitStream, AudioLoRa, AudioStream, AudioStreamWrapper, AudioTimeSourceStream, AutomaticGainControlStream, BufferedStream, BufferedTaskStream, CallbackStream, CatStream, ChannelFormatConverterStream, ChannelFormatConverterStreamT< T >, ConverterStream< T >, DynamicMemoryStream, EncodedAudioStream, Equalizer3BandsPerChannelT< T >, Equalizer3BandsPerChannelT< float >, Equalizer3BandsT< T >, Equalizer3BandsT< float >, EqualizerNBands< SampleT, AccT, NUM_TAPS, NUM_BANDS >, ESP3288AudioOutput, ESPNowStream, FadeStream, FaustStream< DSP >, FileLoopT< FileType >, FileLoopT< File >, FilteredStream< T, TF >, FormatConverterStream, FrequencyDetectorAutoCorrelation, FrequencyDetectorZeroCrossing, GoertzelStream, HammingFEC< bytecount, block_t >, HttpRequest, I2SCodecStream, I2SStream, LMSEchoCancellationStream< T >, MDFEchoCancellationStream< T, SampleType >, MeasuringStream, MemoryStream, MiniAudioStream, MozziStream, NRF24Stream, NullStream, NumberFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, Pipeline::ModifyingStreamAdapter, Pipeline, PortAudioStream, ProgressStream, PureDataStream, QualityAnalysisStream, QueueStream< T >, ReedSolomonFEC< bytecount, additional_bytes >, ResampleStream, ResampleStreamT< TInterpolator >, RingBufferStream, SPDIFOutput, SPIAudioSlave, StdioStream, SupportedRatesStream, TfLiteAudioStream, TfLiteAudioStreamBase, Throttle, TimedStream, UDPStream, URLStream, URLStreamESP32, USBAudioStreamBase, VBANStream, VolumeMeter, VolumeStream, VS1053Stream, and WM8960Stream.

write() [3/4]

virtual size_t write ( uint8_t ch )

inlineoverridevirtual

Reimplemented in AudioStreamWrapper, AudioStreamWrapper, BufferedStream, BufferedStream, MemoryStream, MemoryStream, RingBufferStream, RingBufferStream, AudioStreamWrapper, BufferedStream, BufferedTaskStream, MemoryStream, RingBufferStream, and URLStream.

write() [4/4]

virtual size_t write ( uint8_t ch )

inlineoverridevirtual

Reimplemented in AudioStreamWrapper, AudioStreamWrapper, BufferedStream, BufferedStream, MemoryStream, MemoryStream, RingBufferStream, RingBufferStream, AudioStreamWrapper, BufferedStream, BufferedTaskStream, MemoryStream, RingBufferStream, and URLStream.

Member Data Documentation

_timeout

int _timeout = 10

protectedinherited

tmp_in

RingBuffer< uint8_t > tmp_in {0}

protected

tmp_out

RingBuffer< uint8_t > tmp_out {0}

protected

write_buffer_size

int write_buffer_size = 8

protected

---

The documentation for this class was generated from the following files:

• src/AudioTools/AudioCodecs/CodecOpusOgg.h
• src/AudioTools/AudioCodecs/CodecTSDemux.h
