Icecast/Shoutcast audio stream that separates ICY metadata from audio bytes. More...

#include <ICYStreamT.h>

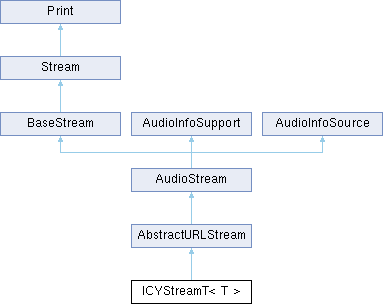

Inheritance diagram for ICYStreamT< T >:

Public Member Functions
	ICYStreamT (Client &clientPar, int readBufferSize=DEFAULT_BUFFER_SIZE)

	ICYStreamT (const char ssid, const char password, int readBufferSize=DEFAULT_BUFFER_SIZE)
	Default constructor.

	ICYStreamT (int readBufferSize=DEFAULT_BUFFER_SIZE)

virtual void	addNotifyAudioChange (AudioInfoSupport &bi)
	Adds target to be notified about audio changes.

void	addRequestHeader (const char key, const char value) override
	Adds/Updates a request header.

virtual AudioInfo	audioInfo () override
	provides the actual input AudioInfo

virtual AudioInfo	audioInfoOut ()

virtual int	available () override
	Delegates available() from the underlying stream.

int	availableForWrite () override
	Writes are not supported.

virtual bool	begin ()

virtual bool	begin (const char urlStr, const char acceptMime=nullptr, MethodID action=GET, const char reqMime="", const char reqData="") override

virtual void	clearNotifyAudioChange ()
	Deletes all change notify subscriptions.

int	contentLength () override
	Provides the reported data size from the http reply.

virtual void	end () override
	Ends the processing.

virtual void	flush () override

const char *	getReplyHeader (const char *key) override
	Provides reply header info.

virtual HttpRequest &	httpRequest () override
	provides access to the HttpRequest

bool	isNotifyActive ()
	Checks if the automatic AudioInfo update is active.

MetaDataICY &	metaDataICY ()

const char *	mime () override
	Provides the MIME type for the current stream.

	operator bool ()
	True if the underlying URL stream is ready/connected.

virtual int	read () override

virtual size_t	readBytes (uint8_t *data, size_t len) override
	Reads audio bytes, stripping out any interleaved ICY metadata.

virtual size_t	readSilence (uint8_t *buffer, size_t length)
	Source to generate silence: just sets the buffer to 0.

virtual bool	removeNotifyAudioChange (AudioInfoSupport &bi)
	Removes a target in order not to be notified about audio changes.

virtual void	setAudioInfo (AudioInfo newInfo) override
	Defines the input AudioInfo.

void	setCACert (const char *cert)
	Define the Root PEM certificate for TLS/SSL.

void	setClient (Client &client) override
	(Re-)defines the client

void	setConnectionClose (bool flag) override
	Add Connection: close to request header.

virtual bool	setMetadataCallback (void(fn)(MetaDataType info, const char str, int len)) override
	Defines the metadata callback function.

void	setNotifyActive (bool flag)
	Deactivate/Reactivate automatic AudioInfo updates: (default is active)

void	setPassword (const char *password) override
	Sets the password that will be used for logging in (when calling begin)

void	setPowerSave (bool active)
	If set to true, activates power save mode at the cost of performance (ESP32 only).

void	setReadBufferSize (int readBufferSize)

void	setSSID (const char *ssid) override
	Sets the ssid that will be used for logging in (when calling begin)

void	setWriteBufferSize (int size)

size_t	totalRead () override
	Total amout of data that was consumed so far.

const char *	urlStr () override
	Provides the url as string.

bool	waitForData (int timeout) override

virtual size_t	write (const uint8_t *data, size_t len) override

virtual size_t	write (uint8_t ch) override

virtual void	writeSilence (size_t len)
	Writes len bytes of silence (=0).

Protected Member Functions
virtual int	not_supported (int out, const char *msg="")

void	notifyAudioChange (AudioInfo info)

void	refillReadBuffer ()
	Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read()

Protected Attributes
int	_timeout = 10

void(*	callback )(MetaDataType info, const char *str, int len) = nullptr

MetaDataICY	icy

AudioInfo	info

bool	is_notify_active = true

Vector< AudioInfoSupport * >	notify_vector

RingBuffer< uint8_t >	tmp_in {0}

RingBuffer< uint8_t >	tmp_out {0}

T	url

int	write_buffer_size = MAX_SINGLE_CHARS

Detailed Description

template<class T>
class audio_tools::ICYStreamT< T >

Icecast/Shoutcast audio stream that separates ICY metadata from audio bytes.

ICY/Shoutcast servers interleave metadata blocks into the audio byte stream. This wrapper enables ICY metadata handling while exposing a clean audio-only stream via the standard read/available methods. Metadata is parsed by MetaDataICY and delivered through a user-supplied callback.

The class inherits from AbstractURLStream and delegates network/HTTP work to an underlying URL-like stream instance of type T. ICY support is enabled by adding the request header "Icy-MetaData: 1" and by removing metadata bytes from the returned audio stream while forwarding metadata via the callback.

Notes

If you run into performance issues, check if the server delivers data with HTTP chunked transfer encoding. In that case, using protocol "HTTP/1.0" can sometimes improve performance.
Audio bytes returned by read()/readBytes() contain no metadata; metadata is only available through the callback.
Use the following predefined usings:
- ICYStream = ICYStreamT<URLStream>;
- BufferedICYStream = ICYStreamT<BufferedURLStream>;
- ICYStreamESP32 = ICYStreamT<URLStreamESP32>;

Template Parameters

T	Underlying URL stream type; must implement the AbstractURLStream interface (e.g., provide begin/end/read/available/httpRequest, credentials, headers, etc.).

Author: Phil Schatzmann

Copyright: GPLv3

Constructor & Destructor Documentation

◆ ICYStreamT() [1/3]

template<class T >

ICYStreamT ( int readBufferSize = DEFAULT_BUFFER_SIZE )

inline

◆ ICYStreamT() [2/3]

template<class T >

ICYStreamT	(	const char *	ssid,
		const char *	password,
		int	readBufferSize = `DEFAULT_BUFFER_SIZE`
	)

inline

Default constructor.

◆ ICYStreamT() [3/3]

template<class T >

ICYStreamT	(	Client &	clientPar,
		int	readBufferSize = `DEFAULT_BUFFER_SIZE`
	)

inline

Member Function Documentation

◆ addNotifyAudioChange()

virtual void addNotifyAudioChange ( AudioInfoSupport & bi )

inlinevirtualinherited

Adds target to be notified about audio changes.

Reimplemented in CodecNOP, EncodedAudioOutput, EncodedAudioStream, AACDecoderFDK, DecoderBasic, CodecChain, MP3DecoderHelix, MP3DecoderMAD, OggContainerDecoder, RTSPClient< TcpClient, UdpSocket >, Pipeline, and Pipeline::ModifyingStreamAdapter.

◆ addRequestHeader()

template<class T >

void addRequestHeader	(	const char *	key,
		const char *	value
	)

inlineoverridevirtual

Adds/Updates a request header.

Implements AbstractURLStream.

◆ audioInfo()

virtual AudioInfo audioInfo ( )

inlineoverridevirtualinherited

provides the actual input AudioInfo

Implements AudioInfoSupport.

Reimplemented in JupyterAudioT< T >, MozziStream, TimerCallbackAudioStream, EncodedAudioStream, PureDataStream, AdapterAudioOutputToAudioStream, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, and InputMerge< T >.

◆ audioInfoOut()

virtual AudioInfo audioInfoOut ( )

inlinevirtualinherited

provides the actual output AudioInfo: this is usually the same as audioInfo() unless we use a transforming stream

Reimplemented in MP3EncoderShine, PureDataStream, PWMAudioOutput< PWMDriverT >, ChannelFormatConverterStreamT< T >, ChannelFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, NumberFormatConverterStream, FormatConverterStream, Pipeline, ResampleStream, and ResampleStreamT< TInterpolator >.

◆ available()

template<class T >

virtual int available ( )

inlineoverridevirtual

Delegates available() from the underlying stream.

Reimplemented from BaseStream.

◆ availableForWrite()

int availableForWrite ( )

inlineoverridevirtualinherited

Writes are not supported.

Reimplemented from BaseStream.

Reimplemented in URLStreamESP32.

◆ begin() [1/2]

virtual bool begin ( )

inlinevirtualinherited

Reimplemented in AudioOutputWithCallback, AudioMP34DT05, I2SCodecStream, MozziStream, PureDataStream, SPDIFOutput, VS1053Stream, WM8960Stream, AdaptiveResamplingStream, AudioLoRa, ESPNowStream, USBAudioDeviceBase, VBANStream, AudioEffectStreamT< T >, AudioEffectStream, Equalizer3Bands, Equalizer3BandsPerChannel, I2SStream, AudioStreamWrapper, TimerCallbackAudioStream, FrequencyDetectorAutoCorrelation, GoertzelStream, ResampleStreamT< TInterpolator >, FileLoopT< FileType >, FileLoopT< File >, EncodedAudioStream, AudioBoardStream, AudioKitStream, MiniAudioStream, PortAudioStream, StdioStream, HLSStreamT< URLStream >, NRF24Stream, AnalogAudioStream, AdapterAudioOutputToAudioStream, TimedStream, MemoryStream, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, MeasuringStream, ProgressStream, Throttle, InputMerge< T >, CallbackStream, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, VolumeMeter, AudioInputMonitor, ChannelFormatConverterStreamT< T >, ChannelFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, NumberFormatConverterStream, FormatConverterStream, CatStream, QueueStream< T >, QueueStream< uint8_t >, DynamicMemoryStream, Pipeline, Pipeline::ModifyingStreamAdapter, QualityAnalysisStream, ResampleStream, VolumeStream, AudioFFTBase, and EqualizerNBands< SampleT, AccT, NUM_TAPS, NUM_BANDS >.

◆ begin() [2/2]

template<class T >

virtual bool begin	(	const char *	urlStr,
		const char *	acceptMime = `nullptr`,
		MethodID	action = `GET`,
		const char *	reqMime = `""`,
		const char *	reqData = `""`
	)

inlineoverridevirtual

Implements AbstractURLStream.

◆ clearNotifyAudioChange()

virtual void clearNotifyAudioChange ( )

inlinevirtualinherited

Deletes all change notify subscriptions.

Reimplemented in RTSPClient< TcpClient, UdpSocket >.

◆ contentLength()

template<class T >

int contentLength ( )

inlineoverridevirtual

Provides the reported data size from the http reply.

Implements AbstractURLStream.

◆ end()

template<class T >

virtual void end ( )

inlineoverridevirtual

Ends the processing.

Implements AbstractURLStream.

◆ flush()

virtual void flush ( )

inlineoverridevirtualinherited

Reimplemented from Print.

Reimplemented in PureDataStream, URLStreamBufferedT< T >, URLStreamBufferedT< ICYStream >, ReformatBaseStream, AudioStreamWrapper, ResampleStream, EncodedAudioStream, URLStream, BufferedTaskStream, I2SStream, MemoryStream, RingBufferStream, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, and BufferedStream.

◆ getReplyHeader()

template<class T >

const char * getReplyHeader ( const char * key )

inlineoverridevirtual

Provides reply header info.

Implements AbstractURLStream.

◆ httpRequest()

template<class T >

virtual HttpRequest & httpRequest ( )

inlineoverridevirtual

provides access to the HttpRequest

Implements AbstractURLStream.

◆ isNotifyActive()

bool isNotifyActive ( )

inlineinherited

Checks if the automatic AudioInfo update is active.

◆ metaDataICY()

template<class T >

MetaDataICY & metaDataICY ( )

inline

◆ mime()

const char * mime ( )

inlineoverridevirtualinherited

Provides the MIME type for the current stream.

Implements MimeSource.

◆ not_supported()

virtual int not_supported	(	int	out,
		const char *	msg = `""`
	)

inlineprotectedvirtualinherited

◆ notifyAudioChange()

void notifyAudioChange ( AudioInfo info )

inlineprotectedinherited

◆ operator bool()

template<class T >

operator bool ( )

inlinevirtual

True if the underlying URL stream is ready/connected.

Reimplemented from AudioStream.

◆ read()

template<class T >

virtual int read ( )

inlineoverridevirtual

◆ readBytes()

template<class T >

virtual size_t readBytes	(	uint8_t *	data,
		size_t	len
	)

inlineoverridevirtual

Reads audio bytes, stripping out any interleaved ICY metadata.

Reimplemented from AudioStream.

◆ readSilence()

virtual size_t readSilence	(	uint8_t *	buffer,
		size_t	length
	)

inlinevirtualinherited

Source to generate silence: just sets the buffer to 0.

◆ refillReadBuffer()

void refillReadBuffer ( )

inlineprotectedinherited

Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read()

◆ removeNotifyAudioChange()

virtual bool removeNotifyAudioChange ( AudioInfoSupport & bi )

inlinevirtualinherited

Removes a target in order not to be notified about audio changes.

Reimplemented in RTSPClient< TcpClient, UdpSocket >.

◆ setAudioInfo()

virtual void setAudioInfo ( AudioInfo info )

inlineoverridevirtualinherited

Defines the input AudioInfo.

Implements AudioInfoSupport.

Reimplemented in VS1053Stream, WM8960Stream, ChannelFormatConverterStreamT< T >, ChannelFormatConverterStream, VolumeStream, MiniAudioStream, PortAudioStream, I2SCodecStream, MozziStream, SPDIFOutput, AudioLoRa, AnalogAudioStream, I2SStream, TimerCallbackAudioStream, AudioBLEStream, MDFEchoCancellationStream< T, SampleType >, AudioKitStream, NRF24Stream, SPIAudioSlave, USBAudioDeviceBase, VBANStream, Equalizer3Bands, Equalizer3BandsPerChannel, AdapterAudioOutputToAudioStream, TimedStream, MeasuringStream, ProgressStream, CallbackStream, VolumeMeter, AudioInputMonitor, FormatConverterStream, FadeStream, GoertzelStream, Pipeline::ModifyingStreamAdapter, QualityAnalysisStream, AudioFFTBase, EncodedAudioStream, PureDataStream, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, NumberFormatConverterStreamT< TFrom, TTo >, NumberFormatConverterStream, Pipeline, ResampleStream, and ResampleStreamT< TInterpolator >.

◆ setCACert()

template<class T >

void setCACert ( const char * cert )

inlinevirtual

Define the Root PEM certificate for TLS/SSL.

Implements AbstractURLStream.

◆ setClient()

template<class T >

void setClient ( Client & client )

inlineoverridevirtual

(Re-)defines the client

Implements AbstractURLStream.

◆ setConnectionClose()

template<class T >

void setConnectionClose ( bool flag )

inlineoverridevirtual

Add Connection: close to request header.

Implements AbstractURLStream.

◆ setMetadataCallback()

template<class T >

virtual bool setMetadataCallback ( void(*)(MetaDataType info, const char *str, int len) fn )

inlineoverridevirtual

Defines the metadata callback function.

Reimplemented from AbstractURLStream.

◆ setNotifyActive()

void setNotifyActive ( bool flag )

inlineinherited

Deactivate/Reactivate automatic AudioInfo updates: (default is active)

◆ setPassword()

template<class T >

void setPassword ( const char * password )

inlineoverridevirtual

Sets the password that will be used for logging in (when calling begin)

Implements AbstractURLStream.

◆ setPowerSave()

template<class T >

void setPowerSave ( bool active )

inlinevirtual

If set to true, activates power save mode at the cost of performance (ESP32 only).

Implements AbstractURLStream.

◆ setReadBufferSize()

template<class T >

void setReadBufferSize ( int readBufferSize )

inline

◆ setSSID()

template<class T >

void setSSID ( const char * ssid )

inlineoverridevirtual

Sets the ssid that will be used for logging in (when calling begin)

Implements AbstractURLStream.

◆ setWriteBufferSize()

void setWriteBufferSize ( int size )

inlineinherited

◆ totalRead()

template<class T >

size_t totalRead ( )

inlineoverridevirtual

Total amout of data that was consumed so far.

Implements AbstractURLStream.

◆ urlStr()

template<class T >

const char * urlStr ( )

inlineoverridevirtual

Provides the url as string.

Implements AbstractURLStream.

◆ waitForData()

template<class T >

bool waitForData ( int timeout )

inlineoverridevirtual

Waits the indicated time for the data to be available waits for some data - returns false if the request has failed

Implements AbstractURLStream.

◆ write() [1/2]

virtual size_t write	(	const uint8_t *	data,
		size_t	len
	)

inlineoverridevirtualinherited

Implements BaseStream.

Reimplemented in URLStream, LMSEchoCancellationStream< T >, MDFEchoCancellationStream< T, SampleType >, AudioBLEServer, ESP3288AudioOutput, I2SCodecStream, MozziStream, PureDataStream, SPDIFOutput, AudioLoRa, USBAudioDeviceBase, I2SStream, AudioStreamWrapper, ConverterStream< T >, EncodedAudioStream, FaustStream< DSP >, AudioKitStream, MiniAudioStream, PortAudioStream, TfLiteAudioStream, VS1053Stream, A2DPStream, AdaptiveResamplingStream, BufferedTaskStream, URLStreamESP32, NRF24Stream, SPIAudioSlave, VBANStream, AnalogAudioStream, AudioEffectStreamT< T >, AudioEffectStream, Equalizer3Bands, Equalizer3BandsPerChannel, AdapterAudioOutputToAudioStream, TimedStream, MemoryStream, RingBufferStream, BufferedStream, MeasuringStream, ProgressStream, Throttle, CallbackStream, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, VolumeMeter, AudioInputMonitor, ChannelFormatConverterStreamT< T >, ChannelFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, NumberFormatConverterStream, FormatConverterStream, FadeStream, FrequencyDetectorAutoCorrelation, FrequencyDetectorZeroCrossing, GoertzelStream, Pipeline, Pipeline::ModifyingStreamAdapter, QualityAnalysisStream, ResampleStream, ResampleStreamT< TInterpolator >, VolumeStream, AudioFFTBase, AudioBLEClient, AudioBLEClient, AudioBLEServer, EqualizerNBands< SampleT, AccT, NUM_TAPS, NUM_BANDS >, TfLiteAudioStreamBase, WM8960Stream, AnalogDriverESP32V1::IO16Bit, and AnalogDriverESP32V2::IO16Bit.

◆ write() [2/2]

virtual size_t write ( uint8_t ch )

inlineoverridevirtualinherited

Reimplemented in MemoryStream, AudioStreamWrapper, BufferedTaskStream, RingBufferStream, BufferedStream, and URLStream.

◆ writeSilence()

virtual void writeSilence ( size_t len )

inlinevirtualinherited

Writes len bytes of silence (=0).

Member Data Documentation

◆ _timeout

int _timeout = 10

protectedinherited

◆ callback

template<class T >

void(* callback) (MetaDataType info, const char *str, int len) = nullptr

protected

◆ icy

template<class T >

MetaDataICY icy

protected

◆ info

AudioInfo info

protectedinherited

◆ is_notify_active

bool is_notify_active = true

protectedinherited

◆ notify_vector

Vector<AudioInfoSupport*> notify_vector

protectedinherited

◆ tmp_in

RingBuffer<uint8_t> tmp_in {0}

protectedinherited

◆ tmp_out

RingBuffer<uint8_t> tmp_out {0}

protectedinherited

◆ url

template<class T >

T url

protected

◆ write_buffer_size

int write_buffer_size = MAX_SINGLE_CHARS

protectedinherited

The documentation for this class was generated from the following file:

src/AudioTools/Communication/HTTP/ICYStreamT.h

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ICYStreamT() [1/3]

◆ ICYStreamT() [2/3]

◆ ICYStreamT() [3/3]

Member Function Documentation

◆ addNotifyAudioChange()

◆ addRequestHeader()

◆ audioInfo()

◆ audioInfoOut()

◆ available()

◆ availableForWrite()

◆ begin() [1/2]

◆ begin() [2/2]

◆ clearNotifyAudioChange()

◆ contentLength()

◆ end()

◆ flush()

◆ getReplyHeader()

◆ httpRequest()

◆ isNotifyActive()

◆ metaDataICY()

◆ mime()

◆ not_supported()

◆ notifyAudioChange()

◆ operator bool()

◆ read()

◆ readBytes()

◆ readSilence()

◆ refillReadBuffer()

◆ removeNotifyAudioChange()

◆ setAudioInfo()

◆ setCACert()

◆ setClient()

◆ setConnectionClose()

◆ setMetadataCallback()

◆ setNotifyActive()

◆ setPassword()

◆ setPowerSave()

◆ setReadBufferSize()

◆ setSSID()

◆ setWriteBufferSize()

◆ totalRead()

◆ urlStr()

◆ waitForData()

◆ write() [1/2]

◆ write() [2/2]

◆ writeSilence()

Member Data Documentation

◆ _timeout

◆ callback

◆ icy

◆ info

◆ is_notify_active

◆ notify_vector

◆ tmp_in

◆ tmp_out

◆ url

◆ write_buffer_size
