QueueStream< T > Class Template Reference

Stream class which stores the data in a temporary queue buffer. The queue can be consumed e.g. by a callback function by calling readBytes();. More...

#include <CodecOpusOgg.h>

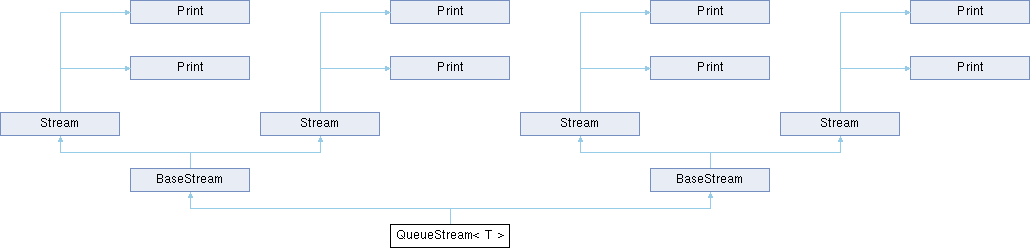

Inheritance diagram for QueueStream< T >:

Public Member Functions
	QueueStream ()=default
	Empty Constructor: call setBuffer() to set the buffer.
	QueueStream ()=default
	Empty Constructor: call setBuffer() to set the buffer.
	QueueStream (BaseBuffer< T > &buffer)
	Create stream from any BaseBuffer subclass.
	QueueStream (BaseBuffer< T > &buffer)
	Create stream from any BaseBuffer subclass.
	QueueStream (int bufferSize, int bufferCount, bool autoRemoveOldestDataIfFull=false)
	Default constructor.
	QueueStream (int bufferSize, int bufferCount, bool autoRemoveOldestDataIfFull=false)
	Default constructor.
virtual	~QueueStream ()
virtual	~QueueStream ()
int	available () override
int	available () override
int	availableForWrite () override
int	availableForWrite () override
virtual bool	begin () override
	Activates the output.
virtual bool	begin () override
	Activates the output.
virtual bool	begin (size_t activeWhenPercentFilled)
	Activate only when filled buffer reached %.
virtual bool	begin (size_t activeWhenPercentFilled)
	Activate only when filled buffer reached %.
void	clear ()
	Clears the data in the buffer.
void	clear ()
	Clears the data in the buffer.
virtual void	end () override
	stops the processing
virtual void	end () override
	stops the processing
void	flush () override
	Clears the data in the buffer and resets the state.
void	flush () override
	Clears the data in the buffer and resets the state.
int	levelPercent ()
	Returns the fill level in percent.
int	levelPercent ()
	Returns the fill level in percent.
	operator bool ()
	Returns true if active.
	operator bool ()
	Returns true if active.
int	peek () override
int	peek () override
int	read () override
int	read () override
virtual size_t	readBytes (uint8_t *data, size_t len) override
virtual size_t	readBytes (uint8_t *data, size_t len) override
bool	resize (size_t size)
	Resize the buffer.
bool	resize (size_t size)
	Resize the buffer.
bool	resize (size_t size, int count)
	Resize the buffer by indicating the size and count.
bool	resize (size_t size, int count)
	Resize the buffer by indicating the size and count.
void	setBuffer (BaseBuffer< T > &buffer)
void	setBuffer (BaseBuffer< T > &buffer)
void	setWriteBufferSize (int size)
void	setWriteBufferSize (int size)
virtual size_t	write (uint8_t ch) override
virtual size_t	write (const uint8_t *data, size_t len) override
virtual size_t	write (const uint8_t *data, size_t len) override

Protected Member Functions
void	refillReadBuffer ()
	Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read().
void	refillReadBuffer ()
	Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read().

Protected Attributes
int	_timeout = 10
bool	active = false
size_t	active_limit = 0
bool	owns_buffer = false
BaseBuffer< T > *	p_buffer
bool	remove_oldest_data = false
RingBuffer< uint8_t >	tmp_in {0}
RingBuffer< uint8_t >	tmp_out {0}
size_t	total_written = 0
int	write_buffer_size = 8

Detailed Description

template<class T>
class audio_tools::audio_tools::QueueStream< T >

Stream class which stores the data in a temporary queue buffer. The queue can be consumed e.g. by a callback function by calling readBytes();.

Author

Phil Schatzmann

Copyright

GPLv3

Constructor & Destructor Documentation

QueueStream() [1/6]

template<class T>

QueueStream ( )

default

Empty Constructor: call setBuffer() to set the buffer.

QueueStream() [2/6]

template<class T>

QueueStream ( int bufferSize, int bufferCount, bool autoRemoveOldestDataIfFull = false )

inline

Default constructor.

QueueStream() [3/6]

template<class T>

QueueStream ( BaseBuffer< T > & buffer )

inline

Create stream from any BaseBuffer subclass.

~QueueStream() [1/2]

template<class T>

virtual ~QueueStream ( )

inlinevirtual

QueueStream() [4/6]

template<class T>

QueueStream ( )

default

Empty Constructor: call setBuffer() to set the buffer.

QueueStream() [5/6]

template<class T>

QueueStream ( int bufferSize, int bufferCount, bool autoRemoveOldestDataIfFull = false )

inline

Default constructor.

QueueStream() [6/6]

template<class T>

QueueStream ( BaseBuffer< T > & buffer )

inline

Create stream from any BaseBuffer subclass.

~QueueStream() [2/2]

template<class T>

virtual ~QueueStream ( )

inlinevirtual

Member Function Documentation

available() [1/2]

template<class T>

int available ( )

inlineoverridevirtual

Reimplemented from BaseStream.

available() [2/2]

template<class T>

int available ( )

inlineoverridevirtual

Reimplemented from BaseStream.

availableForWrite() [1/2]

template<class T>

int availableForWrite ( )

inlineoverridevirtual

Reimplemented from BaseStream.

availableForWrite() [2/2]

template<class T>

int availableForWrite ( )

inlineoverridevirtual

Reimplemented from BaseStream.

begin() [1/4]

template<class T>

virtual bool begin ( )

inlineoverridevirtual

Activates the output.

Reimplemented from BaseStream.

begin() [2/4]

template<class T>

virtual bool begin ( )

inlineoverridevirtual

Activates the output.

Reimplemented from BaseStream.

begin() [3/4]

template<class T>

virtual bool begin ( size_t activeWhenPercentFilled )

inlinevirtual

Activate only when filled buffer reached %.

begin() [4/4]

template<class T>

virtual bool begin ( size_t activeWhenPercentFilled )

inlinevirtual

Activate only when filled buffer reached %.

clear() [1/2]

template<class T>

void clear ( )

inline

Clears the data in the buffer.

clear() [2/2]

template<class T>

void clear ( )

inline

Clears the data in the buffer.

end() [1/2]

template<class T>

virtual void end ( )

inlineoverridevirtual

stops the processing

Reimplemented from BaseStream.

end() [2/2]

template<class T>

virtual void end ( )

inlineoverridevirtual

stops the processing

Reimplemented from BaseStream.

flush() [1/2]

template<class T>

void flush ( )

inlineoverridevirtual

Clears the data in the buffer and resets the state.

Reimplemented from BaseStream.

flush() [2/2]

template<class T>

void flush ( )

inlineoverridevirtual

Clears the data in the buffer and resets the state.

Reimplemented from BaseStream.

levelPercent() [1/2]

template<class T>

int levelPercent ( )

inline

Returns the fill level in percent.

levelPercent() [2/2]

template<class T>

int levelPercent ( )

inline

Returns the fill level in percent.

operator bool() [1/2]

template<class T>

operator bool ( )

inline

Returns true if active.

operator bool() [2/2]

template<class T>

operator bool ( )

inline

Returns true if active.

peek() [1/2]

template<class T>

int peek ( )

inlineoverride

peek() [2/2]

template<class T>

int peek ( )

inlineoverride

read() [1/2]

template<class T>

int read ( )

inlineoverride

read() [2/2]

template<class T>

int read ( )

inlineoverride

readBytes() [1/2]

template<class T>

virtual size_t readBytes ( uint8_t * data, size_t len )

inlineoverridevirtual

Implements BaseStream.

readBytes() [2/2]

template<class T>

virtual size_t readBytes ( uint8_t * data, size_t len )

inlineoverridevirtual

Implements BaseStream.

refillReadBuffer() [1/2]

void refillReadBuffer ( )

inlineprotectedinherited

Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read().

refillReadBuffer() [2/2]

void refillReadBuffer ( )

inlineprotectedinherited

Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read().

resize() [1/4]

template<class T>

bool resize ( size_t size )

inline

Resize the buffer.

resize() [2/4]

template<class T>

bool resize ( size_t size )

inline

Resize the buffer.

resize() [3/4]

template<class T>

bool resize ( size_t size, int count )

inline

Resize the buffer by indicating the size and count.

resize() [4/4]

template<class T>

bool resize ( size_t size, int count )

inline

Resize the buffer by indicating the size and count.

setBuffer() [1/2]

template<class T>

void setBuffer ( BaseBuffer< T > & buffer )

inline

setBuffer() [2/2]

template<class T>

void setBuffer ( BaseBuffer< T > & buffer )

inline

setWriteBufferSize() [1/2]

void setWriteBufferSize ( int size )

inlineinherited

setWriteBufferSize() [2/2]

void setWriteBufferSize ( int size )

inlineinherited

write() [1/3]

virtual size_t write ( uint8_t ch )

inlineoverridevirtualinherited

Reimplemented in AudioStreamWrapper, AudioStreamWrapper, BufferedStream, BufferedStream, MemoryStream, MemoryStream, RingBufferStream, RingBufferStream, AudioStreamWrapper, BufferedStream, BufferedTaskStream, MemoryStream, RingBufferStream, and URLStream.

write() [2/3]

template<class T>

virtual size_t write ( const uint8_t * data, size_t len )

inlineoverridevirtual

Implements BaseStream.

write() [3/3]

template<class T>

virtual size_t write ( const uint8_t * data, size_t len )

inlineoverridevirtual

Implements BaseStream.

Member Data Documentation

_timeout

int _timeout = 10

protectedinherited

active

template<class T>

bool active = false

protected

active_limit

template<class T>

size_t active_limit = 0

protected

owns_buffer

template<class T>

bool owns_buffer = false

protected

p_buffer

template<class T>

BaseBuffer< T > * p_buffer

protected

remove_oldest_data

template<class T>

bool remove_oldest_data = false

protected

tmp_in

RingBuffer< uint8_t > tmp_in {0}

protectedinherited

tmp_out

RingBuffer< uint8_t > tmp_out {0}

protectedinherited

total_written

template<class T>

size_t total_written = 0

protected

write_buffer_size

int write_buffer_size = 8

protectedinherited

---

The documentation for this class was generated from the following files:

• src/AudioTools/AudioCodecs/CodecOpusOgg.h
• src/AudioTools/AudioCodecs/CodecTSDemux.h
