CatStream Class Reference

Provides data from a concatenation of Streams. Please note that the provided Streams can be played only once! You will need to reset them (e.g. moving the file pointer to the beginning) and read them back if you want to process them a second time. The default timeout on the available() method is set to 0. This might be too small if you use e.g. a URLStream. If you set beginReset to true in the constructor, the system will automatically reset the streams when begin() is called. More...

#include <CodecOpusOgg.h>

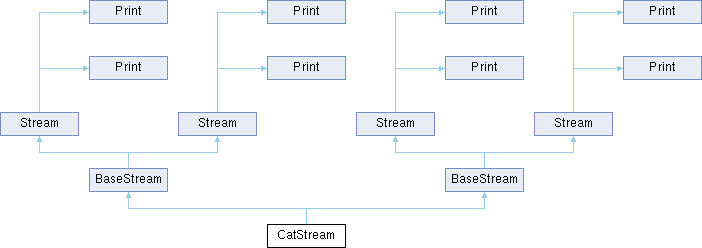

Inheritance diagram for CatStream:

Public Member Functions
	CatStream (bool beginReset=false)
	CatStream (bool beginReset=false)
void	add (Stream &stream)
void	add (Stream &stream)
void	add (Stream *stream)
void	add (Stream *stream)
int	available () override
int	available () override
virtual int	availableForWrite () override
virtual int	availableForWrite () override
bool	begin () override
bool	begin () override
void	clear ()
	clear
void	clear ()
	clear
void	end () override
void	end () override
virtual void	flush () override
virtual void	flush () override
	operator bool ()
	Returns true if active and we still have data.
	operator bool ()
	Returns true if active and we still have data.
size_t	readBytes (uint8_t *data, size_t len) override
size_t	readBytes (uint8_t *data, size_t len) override
void	setAvailableCallback (int(*callback)(Stream *stream))
	Defines the callback used to determine available bytes for a stream.
void	setAvailableCallback (int(*callback)(Stream *stream))
	Defines the callback used to determine available bytes for a stream.
void	setOnBeginCallback (void(*callback)(Stream *stream))
	Defines the callback which is called when a new stream is started.
void	setOnBeginCallback (void(*callback)(Stream *stream))
	Defines the callback which is called when a new stream is started.
void	setOnEndCallback (void(*callback)(Stream *stream))
	Defines the callback which is called when a stream is finished.
void	setOnEndCallback (void(*callback)(Stream *stream))
	Defines the callback which is called when a stream is finished.
void	setTimeout (size_t t)
	Defines the timout in ms the system waits for data when moving to the next stream.
void	setTimeout (size_t t)
	Defines the timout in ms the system waits for data when moving to the next stream.
void	setWriteBufferSize (int size)
void	setWriteBufferSize (int size)
virtual size_t	write (uint8_t ch) override
size_t	write (const uint8_t *data, size_t size) override
	not supported
size_t	write (const uint8_t *data, size_t size) override
	not supported

Protected Member Functions
int	availableWithTimeout ()
int	availableWithTimeout ()
bool	moveToNextStreamOnEnd (bool force_next_stream=false)
bool	moveToNextStreamOnEnd (bool force_next_stream=false)
void	refillReadBuffer ()
	Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read().
void	refillReadBuffer ()
	Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read().
int	streamAvailable (Stream *stream)
int	streamAvailable (Stream *stream)

Protected Attributes
int	_timeout = 10
Vector< Stream * >	all_streams
int(*	available_callback )(Stream *stream) = nullptr
void(*	begin_callback )(Stream *stream) = nullptr
bool	begin_reset = false
void(*	end_callback )(Stream *stream) = nullptr
Vector< Stream * >	input_streams
bool	is_active = false
Stream *	p_current_stream = nullptr
RingBuffer< uint8_t >	tmp_in {0}
RingBuffer< uint8_t >	tmp_out {0}
int	write_buffer_size = 8

Detailed Description

Provides data from a concatenation of Streams. Please note that the provided Streams can be played only once! You will need to reset them (e.g. moving the file pointer to the beginning) and read them back if you want to process them a second time. The default timeout on the available() method is set to 0. This might be too small if you use e.g. a URLStream. If you set beginReset to true in the constructor, the system will automatically reset the streams when begin() is called.

Author

Phil Schatzmann

Copyright

GPLv3

Constructor & Destructor Documentation

CatStream() [1/2]

CatStream ( bool beginReset = false )

inline

CatStream() [2/2]

CatStream ( bool beginReset = false )

inline

Member Function Documentation

add() [1/4]

void add ( Stream & stream )

inline

add() [2/4]

void add ( Stream & stream )

inline

add() [3/4]

void add ( Stream * stream )

inline

add() [4/4]

void add ( Stream * stream )

inline

available() [1/2]

int available ( )

inlineoverridevirtual

Reimplemented from BaseStream.

available() [2/2]

int available ( )

inlineoverridevirtual

Reimplemented from BaseStream.

availableForWrite() [1/2]

virtual int availableForWrite ( )

inlineoverridevirtualinherited

Reimplemented from Print.

Reimplemented in A2DPStream, AbstractURLStream, AnalogAudioStream, AudioStreamWrapper, AudioStreamWrapper, ConverterStream< T >, ConverterStream< T >, DynamicMemoryStream, DynamicMemoryStream, EncodedAudioStream, FilteredStream< T, TF >, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, MemoryStream, MemoryStream, ProgressStream, ProgressStream, QueueStream< T >, QueueStream< T >, QueueStream< uint8_t >, ReformatBaseStream, RingBufferStream, RingBufferStream, Throttle, Throttle, TimedStream, AudioBLEClient, AudioBLEClient, AudioBLEServer, AudioBLEServer, AudioEffectStream, AudioEffectStreamT< T >, AudioFFTBase, AudioLoRa, AudioStreamWrapper, AutomaticGainControlStream, ChannelFormatConverterStream, ChannelFormatConverterStreamT< T >, ConverterStream< T >, DynamicMemoryStream, EncodedAudioStream, Equalizer3BandsPerChannelT< T >, Equalizer3BandsPerChannelT< float >, Equalizer3BandsT< T >, Equalizer3BandsT< float >, ESPNowStream, FadeStream, FaustStream< DSP >, FilteredStream< T, TF >, FrequencyDetectorAutoCorrelation, FrequencyDetectorZeroCrossing, HammingFEC< bytecount, block_t >, I2SCodecStream, I2SStream, MeasuringStream, MemoryStream, MiniAudioStream, NRF24Stream, NumberFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, Pipeline, ProgressStream, QualityAnalysisStream, QueueStream< T >, ReedSolomonFEC< bytecount, additional_bytes >, ReformatBaseStream, RingBufferStream, SPIAudioSlave, StdioStream, SupportedRatesStream, Throttle, TimedStream, UDPStream, URLStreamESP32, USBAudioStreamBase, VBANStream, and VolumeStream.

availableForWrite() [2/2]

virtual int availableForWrite ( )

inlineoverridevirtualinherited

Reimplemented from Print.

Reimplemented in A2DPStream, AbstractURLStream, AnalogAudioStream, AudioStreamWrapper, AudioStreamWrapper, ConverterStream< T >, ConverterStream< T >, DynamicMemoryStream, DynamicMemoryStream, EncodedAudioStream, FilteredStream< T, TF >, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, MemoryStream, MemoryStream, ProgressStream, ProgressStream, QueueStream< T >, QueueStream< T >, QueueStream< uint8_t >, ReformatBaseStream, RingBufferStream, RingBufferStream, Throttle, Throttle, TimedStream, AudioBLEClient, AudioBLEClient, AudioBLEServer, AudioBLEServer, AudioEffectStream, AudioEffectStreamT< T >, AudioFFTBase, AudioLoRa, AudioStreamWrapper, AutomaticGainControlStream, ChannelFormatConverterStream, ChannelFormatConverterStreamT< T >, ConverterStream< T >, DynamicMemoryStream, EncodedAudioStream, Equalizer3BandsPerChannelT< T >, Equalizer3BandsPerChannelT< float >, Equalizer3BandsT< T >, Equalizer3BandsT< float >, ESPNowStream, FadeStream, FaustStream< DSP >, FilteredStream< T, TF >, FrequencyDetectorAutoCorrelation, FrequencyDetectorZeroCrossing, HammingFEC< bytecount, block_t >, I2SCodecStream, I2SStream, MeasuringStream, MemoryStream, MiniAudioStream, NRF24Stream, NumberFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, Pipeline, ProgressStream, QualityAnalysisStream, QueueStream< T >, ReedSolomonFEC< bytecount, additional_bytes >, ReformatBaseStream, RingBufferStream, SPIAudioSlave, StdioStream, SupportedRatesStream, Throttle, TimedStream, UDPStream, URLStreamESP32, USBAudioStreamBase, VBANStream, and VolumeStream.

availableWithTimeout() [1/2]

int availableWithTimeout ( )

inlineprotected

availableWithTimeout() [2/2]

int availableWithTimeout ( )

inlineprotected

begin() [1/2]

bool begin ( )

inlineoverridevirtual

Reimplemented from BaseStream.

begin() [2/2]

bool begin ( )

inlineoverridevirtual

Reimplemented from BaseStream.

clear() [1/2]

void clear ( )

inline

clear

clear() [2/2]

void clear ( )

inline

clear

end() [1/2]

void end ( )

inlineoverridevirtual

Reimplemented from BaseStream.

end() [2/2]

void end ( )

inlineoverridevirtual

Reimplemented from BaseStream.

flush() [1/2]

virtual void flush ( )

inlineoverridevirtualinherited

Reimplemented from Print.

Reimplemented in AudioStreamWrapper, AudioStreamWrapper, BufferedStream, BufferedStream, EncodedAudioStream, FilteredStream< T, TF >, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, GeneratedSoundStream< T >, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, MemoryStream, MemoryStream, QueueStream< T >, QueueStream< T >, QueueStream< uint8_t >, ReformatBaseStream, RingBufferStream, RingBufferStream, TimedStream, AudioEffectStream, AudioEffectStreamT< T >, AudioStreamWrapper, AutomaticGainControlStream, BufferedStream, BufferedTaskStream, EncodedAudioStream, Equalizer3BandsPerChannelT< T >, Equalizer3BandsPerChannelT< float >, Equalizer3BandsT< T >, Equalizer3BandsT< float >, EqualizerNBands< SampleT, AccT, NUM_TAPS, NUM_BANDS >, FadeStream, FilteredStream< T, TF >, GeneratedSoundStream< T >, I2SStream, MeasuringStream, MemoryStream, Pipeline::ModifyingStreamAdapter, PureDataStream, QualityAnalysisStream, QueueStream< T >, ReformatBaseStream, ResampleStream, RingBufferStream, SupportedRatesStream, TimedStream, URLStream, URLStreamBufferedT< T >, URLStreamBufferedT< ICYStream >, URLStreamBufferedT< ICYStreamESP32 >, URLStreamBufferedT< URLStream >, URLStreamBufferedT< URLStreamESP32 >, and VolumeStream.

flush() [2/2]

virtual void flush ( )

inlineoverridevirtualinherited

Reimplemented from Print.

Reimplemented in AudioStreamWrapper, AudioStreamWrapper, BufferedStream, BufferedStream, EncodedAudioStream, FilteredStream< T, TF >, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, GeneratedSoundStream< T >, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, MemoryStream, MemoryStream, QueueStream< T >, QueueStream< T >, QueueStream< uint8_t >, ReformatBaseStream, RingBufferStream, RingBufferStream, TimedStream, AudioEffectStream, AudioEffectStreamT< T >, AudioStreamWrapper, AutomaticGainControlStream, BufferedStream, BufferedTaskStream, EncodedAudioStream, Equalizer3BandsPerChannelT< T >, Equalizer3BandsPerChannelT< float >, Equalizer3BandsT< T >, Equalizer3BandsT< float >, EqualizerNBands< SampleT, AccT, NUM_TAPS, NUM_BANDS >, FadeStream, FilteredStream< T, TF >, GeneratedSoundStream< T >, I2SStream, MeasuringStream, MemoryStream, Pipeline::ModifyingStreamAdapter, PureDataStream, QualityAnalysisStream, QueueStream< T >, ReformatBaseStream, ResampleStream, RingBufferStream, SupportedRatesStream, TimedStream, URLStream, URLStreamBufferedT< T >, URLStreamBufferedT< ICYStream >, URLStreamBufferedT< ICYStreamESP32 >, URLStreamBufferedT< URLStream >, URLStreamBufferedT< URLStreamESP32 >, and VolumeStream.

moveToNextStreamOnEnd() [1/2]

bool moveToNextStreamOnEnd ( bool force_next_stream = false )

inlineprotected

moves to the next stream if necessary: returns true if we still have a valid stream

moveToNextStreamOnEnd() [2/2]

bool moveToNextStreamOnEnd ( bool force_next_stream = false )

inlineprotected

moves to the next stream if necessary: returns true if we still have a valid stream

operator bool() [1/2]

operator bool ( )

inline

Returns true if active and we still have data.

operator bool() [2/2]

operator bool ( )

inline

Returns true if active and we still have data.

readBytes() [1/2]

size_t readBytes ( uint8_t * data, size_t len )

inlineoverridevirtual

Implements BaseStream.

readBytes() [2/2]

size_t readBytes ( uint8_t * data, size_t len )

inlineoverridevirtual

Implements BaseStream.

refillReadBuffer() [1/2]

void refillReadBuffer ( )

inlineprotectedinherited

Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read().

refillReadBuffer() [2/2]

void refillReadBuffer ( )

inlineprotectedinherited

Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read().

setAvailableCallback() [1/2]

void setAvailableCallback ( int(* callback )(Stream *stream) )

inline

Defines the callback used to determine available bytes for a stream.

setAvailableCallback() [2/2]

void setAvailableCallback ( int(* callback )(Stream *stream) )

inline

Defines the callback used to determine available bytes for a stream.

setOnBeginCallback() [1/2]

void setOnBeginCallback ( void(* callback )(Stream *stream) )

inline

Defines the callback which is called when a new stream is started.

setOnBeginCallback() [2/2]

void setOnBeginCallback ( void(* callback )(Stream *stream) )

inline

Defines the callback which is called when a new stream is started.

setOnEndCallback() [1/2]

void setOnEndCallback ( void(* callback )(Stream *stream) )

inline

Defines the callback which is called when a stream is finished.

setOnEndCallback() [2/2]

void setOnEndCallback ( void(* callback )(Stream *stream) )

inline

Defines the callback which is called when a stream is finished.

setTimeout() [1/2]

void setTimeout ( size_t t )

inline

Defines the timout in ms the system waits for data when moving to the next stream.

setTimeout() [2/2]

void setTimeout ( size_t t )

inline

Defines the timout in ms the system waits for data when moving to the next stream.

setWriteBufferSize() [1/2]

void setWriteBufferSize ( int size )

inlineinherited

setWriteBufferSize() [2/2]

void setWriteBufferSize ( int size )

inlineinherited

streamAvailable() [1/2]

int streamAvailable ( Stream * stream )

inlineprotected

streamAvailable() [2/2]

int streamAvailable ( Stream * stream )

inlineprotected

write() [1/3]

virtual size_t write ( uint8_t ch )

inlineoverridevirtualinherited

Reimplemented in AudioStreamWrapper, AudioStreamWrapper, BufferedStream, BufferedStream, MemoryStream, MemoryStream, RingBufferStream, RingBufferStream, AudioStreamWrapper, BufferedStream, BufferedTaskStream, MemoryStream, RingBufferStream, and URLStream.

write() [2/3]

size_t write ( const uint8_t * data, size_t size )

inlineoverridevirtual

not supported

Implements BaseStream.

write() [3/3]

size_t write ( const uint8_t * data, size_t size )

inlineoverridevirtual

not supported

Implements BaseStream.

Member Data Documentation

_timeout

int _timeout = 10

protectedinherited

all_streams

Vector< Stream * > all_streams

protected

available_callback

int(* available_callback)(Stream *stream) = nullptr

protected

begin_callback

void(* begin_callback)(Stream *stream) = nullptr

protected

begin_reset

bool begin_reset = false

protected

end_callback

void(* end_callback)(Stream *stream) = nullptr

protected

input_streams

Vector< Stream * > input_streams

protected

is_active

bool is_active = false

protected

p_current_stream

Stream * p_current_stream = nullptr

protected

tmp_in

RingBuffer< uint8_t > tmp_in {0}

protectedinherited

tmp_out

RingBuffer< uint8_t > tmp_out {0}

protectedinherited

write_buffer_size

int write_buffer_size = 8

protectedinherited

---

The documentation for this class was generated from the following files:

• src/AudioTools/AudioCodecs/CodecOpusOgg.h
• src/AudioTools/AudioCodecs/CodecTSDemux.h
