URLStreamESP32 Class Reference

URLStream using the ESP32 IDF API. More...

#include <URLStreamESP32.h>

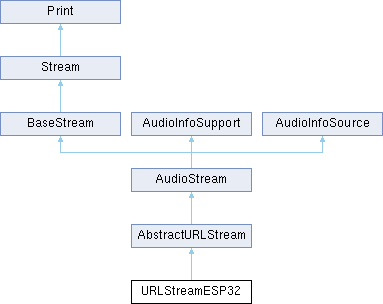

Inheritance diagram for URLStreamESP32:

Public Member Functions
	URLStreamESP32 ()
	URLStreamESP32 (const char *ssid, const char *pwd)
	~URLStreamESP32 ()
virtual void	addNotifyAudioChange (AudioInfoSupport &bi)
	Adds target to be notified about audio changes.
void	addRequestHeader (const char *key, const char *value) override
	Adds/Updates a request header.
virtual AudioInfo	audioInfo () override
	provides the actual input AudioInfo
virtual AudioInfo	audioInfoOut ()
virtual int	available () override
int	availableForWrite () override
	Writes are not supported.
virtual bool	begin ()
virtual bool	begin (const char *urlStr, const char *acceptMime="", MethodID action=GET, const char *reqMime="", const char *reqData="")
virtual void	clearNotifyAudioChange ()
	Deletes all change notify subscriptions.
int	contentLength () override
	Provides the reported data size from the http reply.
virtual void	end () override
virtual void	flush () override
const char *	getReplyHeader (const char *key) override
	Provides a header entry.
HttpRequest &	httpRequest () override
	Used for request and reply header parameters.
bool	isNotifyActive ()
	Checks if the automatic AudioInfo update is active.
const char *	mime () override
	Provides the MIME type for the current stream.
virtual	operator bool ()
size_t	readBytes (uint8_t *data, size_t len) override
virtual size_t	readSilence (uint8_t *buffer, size_t length)
	Source to generate silence: just sets the buffer to 0.
virtual bool	removeNotifyAudioChange (AudioInfoSupport &bi)
	Removes a target in order not to be notified about audio changes.
virtual void	setAudioInfo (AudioInfo newInfo) override
	Defines the input AudioInfo.
void	setCACert (const char *cert) override
void	setCACert (esp_err_t(*cb)(void *conf))
void	setClient (Client &client) override
	Does nothing.
void	setConnectionClose (bool flag) override
	Not used.
virtual bool	setMetadataCallback (void(*fn)(MetaDataType info, const char *str, int len))
void	setNotifyActive (bool flag)
	Deactivate/Reactivate automatic AudioInfo updates: (default is active)
virtual void	setPassword (const char *password)
	Sets the password that will be used for logging in (when calling begin)
virtual void	setPowerSave (bool ps)
	Sets the power save mode (default false)!
void	setReadBufferSize (int size)
	Defines the read buffer size.
virtual void	setSSID (const char *ssid)
	Sets the ssid that will be used for logging in (when calling begin)
void	setWriteBufferSize (int size)
size_t	totalRead () override
	Total amout of data that was consumed so far.
const char *	urlStr () override
	Provides the url as string.
virtual bool	waitForData (int timeout) override
	Not used.
size_t	write (const uint8_t *data, size_t len) override
virtual size_t	write (uint8_t ch) override
virtual void	writeSilence (size_t len)
	Writes len bytes of silence (=0).

Protected Member Functions
virtual int	not_supported (int out, const char *msg="")
void	notifyAudioChange (AudioInfo info)
void	refillReadBuffer ()
	Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read()
void	setCACert (const uint8_t *cert, int len)

Static Protected Member Functions
static esp_err_t	http_event_handler (esp_http_client_event_t *evt)

Protected Attributes
int	_timeout = 10
int	buffer_size = DEFAULT_BUFFER_SIZE
esp_http_client_handle_t	client_handle = nullptr
int	content_length = 0
esp_err_t(*	crt_bundle_attach )(void *conf) = nullptr
int	id = 0
AudioInfo	info
bool	is_notify_active = true
bool	is_power_save = false
Vector< AudioInfoSupport * >	notify_vector
const char *	password = nullptr
const uint8_t *	pem_cert = nullptr
int	pem_cert_len = 0
HttpRequest	request
const char *	ssid = nullptr
RingBuffer< uint8_t >	tmp_in {0}
RingBuffer< uint8_t >	tmp_out {0}
size_t	total_read = 0
const char *	url_str = nullptr
int	write_buffer_size = MAX_SINGLE_CHARS

Detailed Description

URLStream using the ESP32 IDF API.

For Https you need to provide the certificate. Execute: openssl s_client -showcerts -connect www.howsmyssl.com:443 </dev/null

To completely disable the certificate check, you will need to go to ESP-TLS in menuconfig, enable "Allow potentially insecure options" and then enable "Skip server certificate verification by default" (accepting risks).

This is unfortunately not an option when using Arduino!

Author

Phil Schatzmann

Copyright

GPLv3

Constructor & Destructor Documentation

URLStreamESP32() [1/2]

URLStreamESP32 ( const char *  ssid, const char *  pwd  )

inline

URLStreamESP32() [2/2]

URLStreamESP32 ( )

inline

~URLStreamESP32()

~URLStreamESP32 ( )

inline

Member Function Documentation

addNotifyAudioChange()

virtual void addNotifyAudioChange ( AudioInfoSupport &  bi )

inlinevirtualinherited

Adds target to be notified about audio changes.

Reimplemented in CodecNOP, EncodedAudioOutput, EncodedAudioStream, AACDecoderFDK, DecoderBasic, CodecChain, MP3DecoderHelix, MP3DecoderMAD, OggContainerDecoder, RTSPClient< TcpClient, UdpSocket >, Pipeline, and Pipeline::ModifyingStreamAdapter.

addRequestHeader()

void addRequestHeader ( const char *  key, const char *  value  )

inlineoverridevirtual

Adds/Updates a request header.

Implements AbstractURLStream.

audioInfo()

virtual AudioInfo audioInfo ( )

inlineoverridevirtualinherited

provides the actual input AudioInfo

Implements AudioInfoSupport.

Reimplemented in JupyterAudioT< T >, MozziStream, TimerCallbackAudioStream, EncodedAudioStream, PureDataStream, AdapterAudioOutputToAudioStream, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, and InputMerge< T >.

audioInfoOut()

virtual AudioInfo audioInfoOut ( )

inlinevirtualinherited

provides the actual output AudioInfo: this is usually the same as audioInfo() unless we use a transforming stream

Reimplemented in PureDataStream, PWMAudioOutput, ChannelFormatConverterStreamT< T >, ChannelFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, NumberFormatConverterStream, FormatConverterStream, Pipeline, ResampleStream, and ResampleStreamT< TInterpolator >.

available()

virtual int available ( )

inlineoverridevirtualinherited

Reimplemented from Stream.

Reimplemented in AudioKitStream, AudioLoRa, URLStreamBufferedT< T >, URLStreamBufferedT< ICYStream >, VBANStream, AudioStreamWrapper, LoRaStream, FaustStream< DSP >, AudioFFTBase, AudioMP34DT05, I2SCodecStream, MiniAudioStream, StdioStream, TfLiteAudioStream, A2DPStream, ESPNowStream, HammingFEC< bytecount, block_t >, HLSStreamT< URLStream >, HttpRequest, ICYStreamT< T >, URLStream, BufferedTaskStream, ReedSolomonFEC< bytecount, additional_bytes >, SPIAudioSlave, UDPStream, AnalogAudioArduino, AnalogAudioStream, AudioEffectStreamT< T >, Equalizer3Bands, Equalizer3BandsPerChannel, I2SStream, ReformatBaseStream, TimedStream, MemoryStream, RingBufferStream, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, BufferedStream, ConverterStream< T >, MeasuringStream, ProgressStream, Throttle, InputMerge< T >, CallbackStream, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, ChannelFormatConverterStreamT< T >, ChannelFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, NumberFormatConverterStream, CatStream, QueueStream< T >, QueueStream< uint8_t >, DynamicMemoryStream, FadeStream, FrequencyDetectorAutoCorrelation, FrequencyDetectorZeroCrossing, Pipeline, Pipeline::ModifyingStreamAdapter, VolumeStream, FileLoopT< FileType >, FileLoopT< File >, AudioBLEClient, AudioBLEClient, AudioBLEServer, and AudioBLEServer.

availableForWrite()

int availableForWrite ( )

inlineoverridevirtual

Writes are not supported.

Reimplemented from AbstractURLStream.

begin() [1/2]

virtual bool begin ( )

inlinevirtualinherited

Reimplemented in AudioOutputWithCallback, AudioMP34DT05, I2SCodecStream, MozziStream, PureDataStream, SPDIFOutput, VS1053Stream, WM8960Stream, AdaptiveResamplingStream, AudioLoRa, ESPNowStream, VBANStream, AudioEffectStreamT< T >, Equalizer3Bands, Equalizer3BandsPerChannel, I2SStream, AudioStreamWrapper, TimerCallbackAudioStream, FrequencyDetectorAutoCorrelation, GoertzelStream, ResampleStreamT< TInterpolator >, FileLoopT< FileType >, FileLoopT< File >, LoRaStream, EncodedAudioStream, AudioBoardStream, AudioFFTBase, AudioKitStream, MiniAudioStream, PortAudioStream, StdioStream, HLSStreamT< URLStream >, AnalogAudioArduino, AnalogAudioStream, AdapterAudioOutputToAudioStream, TimedStream, MemoryStream, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, MeasuringStream, ProgressStream, Throttle, InputMerge< T >, CallbackStream, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, VolumeMeter, AudioInputMonitor, ChannelFormatConverterStreamT< T >, ChannelFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, NumberFormatConverterStream, FormatConverterStream, CatStream, QueueStream< T >, QueueStream< uint8_t >, DynamicMemoryStream, Pipeline, Pipeline::ModifyingStreamAdapter, ResampleStream, VolumeStream, and EqualizerNBands< SampleT, AccT, NUM_TAPS, NUM_BANDS >.

begin() [2/2]

virtual bool begin ( const char *  urlStr, const char *  acceptMime = "", MethodID  action = GET, const char *  reqMime = "", const char *  reqData = ""  )

inlinevirtual

Implements AbstractURLStream.

clearNotifyAudioChange()

virtual void clearNotifyAudioChange ( )

inlinevirtualinherited

Deletes all change notify subscriptions.

Reimplemented in RTSPClient< TcpClient, UdpSocket >.

contentLength()

int contentLength ( )

inlineoverridevirtual

Provides the reported data size from the http reply.

Implements AbstractURLStream.

end()

virtual void end ( )

inlineoverridevirtual

Implements AbstractURLStream.

flush()

virtual void flush ( )

inlineoverridevirtualinherited

Reimplemented from Print.

Reimplemented in PureDataStream, URLStreamBufferedT< T >, URLStreamBufferedT< ICYStream >, ReformatBaseStream, AudioStreamWrapper, ResampleStream, EncodedAudioStream, URLStream, BufferedTaskStream, I2SStream, MemoryStream, RingBufferStream, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, and BufferedStream.

getReplyHeader()

const char * getReplyHeader ( const char *  key )

inlineoverridevirtual

Provides a header entry.

Implements AbstractURLStream.

http_event_handler()

static esp_err_t http_event_handler ( esp_http_client_event_t *  evt )

inlinestaticprotected

httpRequest()

HttpRequest & httpRequest ( )

inlineoverridevirtual

Used for request and reply header parameters.

Implements AbstractURLStream.

isNotifyActive()

bool isNotifyActive ( )

inlineinherited

Checks if the automatic AudioInfo update is active.

mime()

const char * mime ( )

inlineoverridevirtualinherited

Provides the MIME type for the current stream.

Implements MimeSource.

not_supported()

virtual int not_supported ( int  out, const char *  msg = ""  )

inlineprotectedvirtualinherited

notifyAudioChange()

void notifyAudioChange ( AudioInfo  info )

inlineprotectedinherited

operator bool()

virtual operator bool ( )

inlinevirtualinherited

Reimplemented in A2DPStream, ICYStreamT< T >, AudioBLEStream, AudioFFTBase, PortAudioStream, URLStream, I2SStream, AdapterAudioOutputToAudioStream, TimedStream, MemoryStream, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, and Pipeline.

readBytes()

size_t readBytes ( uint8_t *  data, size_t  len  )

inlineoverridevirtual

Reimplemented from AudioStream.

readSilence()

virtual size_t readSilence ( uint8_t *  buffer, size_t  length  )

inlinevirtualinherited

Source to generate silence: just sets the buffer to 0.

refillReadBuffer()

void refillReadBuffer ( )

inlineprotectedinherited

Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read()

removeNotifyAudioChange()

virtual bool removeNotifyAudioChange ( AudioInfoSupport &  bi )

inlinevirtualinherited

Removes a target in order not to be notified about audio changes.

Reimplemented in RTSPClient< TcpClient, UdpSocket >.

setAudioInfo()

virtual void setAudioInfo ( AudioInfo  info )

inlineoverridevirtualinherited

Defines the input AudioInfo.

Implements AudioInfoSupport.

Reimplemented in VS1053Stream, WM8960Stream, ChannelFormatConverterStreamT< T >, ChannelFormatConverterStream, VolumeStream, MiniAudioStream, PortAudioStream, I2SCodecStream, MozziStream, SPDIFOutput, AudioLoRa, AnalogAudioStream, I2SStream, TimerCallbackAudioStream, AudioBLEStream, LoRaStream, AudioFFTBase, AudioKitStream, SPIAudioSlave, VBANStream, AnalogAudioArduino, Equalizer3Bands, Equalizer3BandsPerChannel, AdapterAudioOutputToAudioStream, TimedStream, MeasuringStream, ProgressStream, CallbackStream, VolumeMeter, AudioInputMonitor, FormatConverterStream, FadeStream, GoertzelStream, Pipeline::ModifyingStreamAdapter, MDFEchoCancellationStream< Allocator >, EncodedAudioStream, PureDataStream, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, NumberFormatConverterStreamT< TFrom, TTo >, NumberFormatConverterStream, Pipeline, ResampleStream, and ResampleStreamT< TInterpolator >.

setCACert() [1/3]

void setCACert ( const char *  cert )

inlineoverridevirtual

Define the Root PEM Certificate for SSL: Method compatible with Arduino WiFiClientSecure API

Implements AbstractURLStream.

setCACert() [2/3]

void setCACert ( const uint8_t *  cert, int  len  )

inlineprotected

Define the Root PEM Certificate for SSL: the last byte must be null, the len is including the ending null

setCACert() [3/3]

void setCACert ( esp_err_t(*)(void *conf)  cb )

inline

Attach and enable use of a bundle for certificate verification e.g. esp_crt_bundle_attach or arduino_esp_crt_bundle_attach

setClient()

void setClient ( Client &  client )

inlineoverridevirtual

Does nothing.

Implements AbstractURLStream.

setConnectionClose()

void setConnectionClose ( bool  flag )

inlineoverridevirtual

Not used.

Implements AbstractURLStream.

setMetadataCallback()

virtual bool setMetadataCallback ( void(*)(MetaDataType info, const char *str, int len)  fn )

inlinevirtualinherited

Reimplemented in ICYStreamBuffered, and ICYStreamT< T >.

setNotifyActive()

void setNotifyActive ( bool  flag )

inlineinherited

Deactivate/Reactivate automatic AudioInfo updates: (default is active)

setPassword()

virtual void setPassword ( const char *  password )

inlinevirtual

Sets the password that will be used for logging in (when calling begin)

Implements AbstractURLStream.

setPowerSave()

virtual void setPowerSave ( bool  ps )

inlinevirtual

Sets the power save mode (default false)!

Implements AbstractURLStream.

setReadBufferSize()

void setReadBufferSize ( int  size )

inline

Defines the read buffer size.

setSSID()

virtual void setSSID ( const char *  ssid )

inlinevirtual

Sets the ssid that will be used for logging in (when calling begin)

Implements AbstractURLStream.

setWriteBufferSize()

void setWriteBufferSize ( int  size )

inlineinherited

totalRead()

size_t totalRead ( )

inlineoverridevirtual

Total amout of data that was consumed so far.

Implements AbstractURLStream.

urlStr()

const char * urlStr ( )

inlineoverridevirtual

Provides the url as string.

Implements AbstractURLStream.

waitForData()

virtual bool waitForData ( int  timeout )

inlineoverridevirtual

Not used.

Implements AbstractURLStream.

write() [1/2]

size_t write ( const uint8_t *  data, size_t  len  )

inlineoverridevirtual

Reimplemented from AudioStream.

write() [2/2]

virtual size_t write ( uint8_t  ch )

inlineoverridevirtualinherited

Reimplemented in MemoryStream, AudioStreamWrapper, BufferedTaskStream, RingBufferStream, BufferedStream, and URLStream.

writeSilence()

virtual void writeSilence ( size_t  len )

inlinevirtualinherited

Writes len bytes of silence (=0).

Member Data Documentation

_timeout

int _timeout = 10

protectedinherited

buffer_size

int buffer_size = DEFAULT_BUFFER_SIZE

protected

client_handle

esp_http_client_handle_t client_handle = nullptr

protected

content_length

int content_length = 0

protected

crt_bundle_attach

esp_err_t(* crt_bundle_attach) (void *conf) = nullptr

protected

id

int id = 0

protected

info

AudioInfo info

protectedinherited

is_notify_active

bool is_notify_active = true

protectedinherited

is_power_save

bool is_power_save = false

protected

notify_vector

Vector<AudioInfoSupport*> notify_vector

protectedinherited

password

const char* password = nullptr

protected

pem_cert

const uint8_t* pem_cert = nullptr

protected

pem_cert_len

int pem_cert_len = 0

protected

request

HttpRequest request

protected

ssid

const char* ssid = nullptr

protected

tmp_in

RingBuffer<uint8_t> tmp_in {0}

protectedinherited

tmp_out

RingBuffer<uint8_t> tmp_out {0}

protectedinherited

total_read

size_t total_read = 0

protected

url_str

const char* url_str = nullptr

protected

write_buffer_size

int write_buffer_size = MAX_SINGLE_CHARS

protectedinherited

---

The documentation for this class was generated from the following file:

• src/AudioTools/Communication/HTTP/URLStreamESP32.h
