USB Audio Class (UAC1 and UAC2) host: reads PCM audio from an attached USB microphone and/or writes PCM audio to an attached USB speaker or headset, using the same API as the USB Audio device (USBAudioStream). More...

#include <USBAudioHostBase.h>

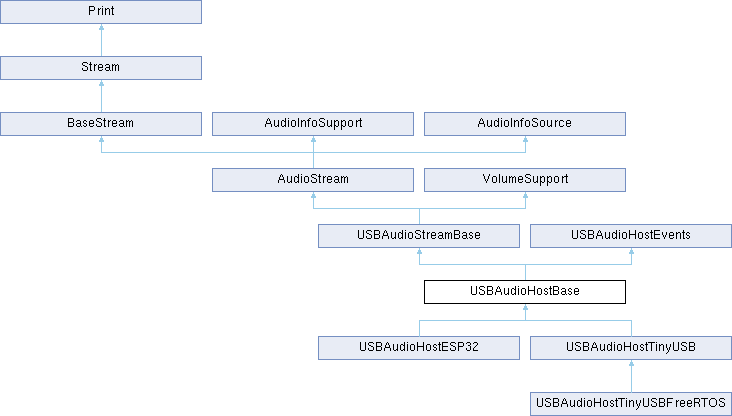

Inheritance diagram for USBAudioHostBase:

Classes
struct	AltSetting
	One alternate setting of an audio streaming interface. More...

struct	Entity
	Audio Control entity (terminal, unit or clock) for the topology walk. More...

struct	RateRange
	Range of supported sample rates (UAC2 clock source GET_RANGE) More...

struct	Stream
	State of one direction (microphone or speaker) More...

Public Member Functions
	USBAudioHostBase ()=default

	USBAudioHostBase (USBAudioConfig cfg)
	Constructor which provides the configuration at construction time.

virtual void	addNotifyAudioChange (AudioInfoSupport &bi)
	Adds target to be notified about audio changes.

virtual AudioInfo	audioInfo () override
	provides the actual input AudioInfo

virtual AudioInfo	audioInfoOut ()

AudioInfo	audioInfoRx () const
	Negotiated format of the microphone stream (readBytes())

AudioInfo	audioInfoTx () const
	Negotiated format of the speaker stream (write())

uint16_t	audioPacketSize () const

int	available () override
	Bytes of received audio waiting in the RX buffer.

int	availableForWrite () override
	Bytes of free space in the TX buffer.

bool	begin ()
	Start the USB host stack with the current config. The attached device is opened as soon as it has been enumerated.

bool	begin (const USBAudioConfig &cfg)
	Apply a config and start the USB audio host.

virtual BaseBuffer< uint8_t > &	bufferRx ()=0
	Returns the RX audio buffer. Must be overridden by subclasses.

virtual BaseBuffer< uint8_t > &	bufferTx ()=0
	Returns the TX audio buffer. Must be overridden by subclasses.

virtual void	clearNotifyAudioChange ()
	Deletes all change notify subscriptions.

const USBAudioConfig &	config () const
	Provides the active configuration.

USBAudioConfig	defaultConfig (RxTxMode mode=RXTX_MODE)
	Returns a default configuration for the requested direction. RX_MODE reads from a USB microphone, TX_MODE writes to a USB speaker, RXTX_MODE does both (headset).

void	end ()
	Stop the streams and clear the buffers. The host stack keeps running, so the device is opened again with the next begin().

virtual void	flush () override

virtual int	getActualCore () const
	Returns the actual core on which the call is running (for RP2040)

uint32_t	getRxDroppedBytes () const
	Bytes discarded because bufferRx() was full.

uint32_t	getRxTotalBytes () const
	Total bytes received from the microphone.

uint32_t	getRxXferCount () const

uint32_t	getTxUnderflowBytes () const
	Bytes of silence which were sent because bufferTx() was empty.

uint32_t	getTxXferCount () const
	Number of isochronous OUT packets which were provided to the speaker.

bool	hasMicrophone () const
	True if the attached device provides a microphone (RX)

bool	hasSpeaker () const
	True if the attached device provides a speaker (TX)

bool	isEpInEnabled () const
	Returns true if the IN endpoint is enabled.

bool	isEpOutEnabled () const
	Returns true if the OUT endpoint is enabled.

bool	isMute (uint8_t channel=0) const
	Returns the current mute state for the given channel.

bool	isNotifyActive ()
	Checks if the automatic AudioInfo update is active.

bool	isStreamingActive () const
	Returns true if either the TX or RX stream is open.

bool	isStreamingActiveRx () const override
	Returns true if the microphone stream (used by readBytes()) is open.

bool	isStreamingActiveTx () const override
	Returns true if the speaker stream (used by write()) is open.

bool	mounted () override
	Returns true if an audio device is attached and configured.

	operator bool () override

uint16_t	pid () const
	Product id of the attached device (0 if none)

size_t	readBytes (uint8_t *buffer, size_t bufsize)
	Receive audio data from the USB peer. Until bufferRx() has filled past config.rx_start_fill_percent at least once after begin(), no data is returned. This is a one-shot startup prime only – once reached, readBytes() keeps draining normally for the rest of the session and is not gated again by later underruns.

virtual size_t	readSilence (uint8_t *buffer, size_t length)
	Source to generate silence: just sets the buffer to 0.

virtual bool	removeNotifyAudioChange (AudioInfoSupport &bi)
	Removes a target in order not to be notified about audio changes.

virtual void	serviceUSB ()=0
	Process pending USB events on platforms where the application drives the stack. No-op where a dedicated task runs the stack.

void	setAudioInfo (AudioInfo info) override
	Defines the audio format. Before begin() all fields can be changed; once started, a new sample rate is re-negotiated with the attached device.

bool	setMute (bool m, uint8_t channel=0)
	Set the mute state for a channel and notify the USB peer.

void	setMuteCallback (std::function< void(bool, uint8_t)> cb)
	Register a callback invoked when the mute state changes.

void	setNotifyActive (bool flag)
	Deactivate/Reactivate automatic AudioInfo updates: (default is active)

void	setSampleRateCallback (std::function< void(uint32_t)> cb)
	Register a callback invoked when the sample rate changes.

void	setStreamingStateCallback (std::function< void(bool, bool)> cb)
	Register a callback invoked when the streaming state changes (a streaming interface was opened or closed).

bool	setVolume (float vol, uint8_t channel)
	Set the volume for a channel and notify the USB peer.

bool	setVolume (float volume) override
	sets the volume for the master channel (channel 0)

void	setVolumeCallback (std::function< void(float, uint8_t)> cb)
	Register a callback invoked when the volume changes.

void	setWriteBufferSize (int size)

uint8_t	uacVersion () const
	USB Audio Class version of the attached device: 1 or 2 (0 if none)

uint16_t	vid () const
	Vendor id of the attached device (0 if none)

float	volume () override
	gets the volume for the master channel (channel 0)

float	volume (uint8_t channel)
	Returns the current volume for the given channel.

size_t	write (const uint8_t *data, size_t len)
	Send audio data to the USB peer. Silently discards data while the TX stream is not open so StreamCopy doesn't report write errors before streaming starts.

virtual size_t	write (uint8_t ch) override

virtual void	writeSilence (size_t len)
	Writes len bytes of silence (=0).

Protected Types
enum class	Step : uint8_t { Idle , StopRx , StopTx , ClockRangeHeaderRx , ClockRangeRx , ClockRangeHeaderTx , ClockRangeTx , Select , SetClockRx , SetInterfaceRx , OpenRx , SetEpRateRx , VolumeRangeRx , VolumeMaxRx , SetClockTx , SetInterfaceTx , OpenTx , SetEpRateTx , VolumeRangeTx , VolumeMaxTx , Done }
	Steps of the (re)configuration state machine. More...

Protected Member Functions
virtual USBAudioHostBackend &	backend ()=0
	Returns the backend used for all USB host stack calls.

bool	beginUSB () override
	Override in platform subclasses to start the USB stack.

bool	clockRange (Stream &s, std::vector< RateRange > &ranges, Step following)

bool	clockRangeHeader (Stream &s, std::vector< RateRange > &ranges, Step on_success, Step skip)

uint32_t	closestRate (const AltSetting &a, const std::vector< RateRange > &clock, uint32_t wanted)
	Supported sample rate which is closest to the wanted rate (0 if none)

bool	configChanged (const USBAudioConfig &n)

bool	executeStep ()

Entity *	findEntity (uint8_t id)

void	finishMount ()

void	finishRuntimeRequest ()

bool	fitsBandwidth (const AltSetting &a, uint32_t rate)

float	getVolumeExt (uint8_t channel) const
	Returns the effective volume for a per-channel index (1-based). Combines master volume (index 0) with per-channel volume and mute.

bool	issueControl (uint8_t request_type, uint8_t request, uint16_t value, uint16_t index, uint16_t length)

bool	issueSetInterface (uint8_t itf, uint8_t alt)

void	next (Step s)
	Advance to the next step.

virtual int	not_supported (int out, const char *msg="")

void	notifyAudioChange (AudioInfo info)

void	notifyStreamingState ()

uint16_t	onAttach (uint8_t daddr, uint16_t vid, uint16_t pid, const uint8_t *desc, uint16_t len) override

void	onConfigured (uint8_t daddr) override

void	onControlComplete (bool ok, uint16_t len) override

void	onDetach (uint8_t daddr) override
	The device was removed.

void	onFeedback (const uint8_t *data, uint16_t len)
	Explicit feedback from the speaker: samples per packet.

void	onIsoIn (UsbHostStreamRole role, const uint8_t *data, uint16_t len) override
	One isochronous IN packet was received (RxData or Feedback).

uint16_t	onIsoOut (uint8_t *data, uint16_t max) override

void	onMuteChanged (uint8_t channel) override

void	onVolumeChanged (uint8_t channel) override

void	openStream (Stream &s, bool is_rx)

uint16_t	packetsPerSecond (const AltSetting &a)

void	parseAcDescriptor (const uint8_t *p)
	Audio Control interface: header, terminals, units and clocks.

void	parseAsDescriptor (AltSetting &a, const uint8_t *p)
	Audio Streaming interface: AS_GENERAL and FORMAT_TYPE descriptors.

void	parseClockRange (std::vector< RateRange > &ranges)
	Parses a UAC2 GET_RANGE (layout 3: 32 bit) response for the clock.

uint16_t	parseConfiguration (const uint8_t *desc, uint16_t len)

void	parseFeatureUnitControls (Entity &e, const uint8_t *p, bool v2)
	Determines which channels provide a host programmable mute / volume.

void	poll ()
	Called regularly from the USB stack context.

void	processUSB ()

template<typename T >
void	processVolume (T *data, size_t sample_count)

void	processVolume (uint8_t *data, size_t len)
	Process audio data for volume control.

void	refillReadBuffer ()
	Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read()

bool	requestClockRange (Stream &s, uint16_t len)

bool	requestFeature (Stream &s, uint8_t selector, uint8_t ch, int16_t value)

bool	requestSetClock (Stream &s)

bool	requestSetEpRate (Stream &s)

bool	requestVolumeRange (Stream &s, bool max)

void	resetDevice ()

virtual void	resizeBuffers ()=0
	Resize the platform audio buffers.

uint8_t	resolveClock (uint8_t id)
	Follow clock selectors and multipliers to the clock source.

void	resolveTopology (Stream &s, bool is_rx)

void	run ()
	Runs the state machine until a control request is in flight.

bool	selectAlt (Stream &s, const std::vector< RateRange > &clock, AudioInfo &negotiated)
	Selects the alternate setting which matches the requested format best.

bool	sendFeature (bool is_volume, uint8_t ch)

bool	sendFeatureFor (Stream &s)

bool	sendFeatureNextStream ()

bool	setClock (Stream &s, Step following)

void	setConfig (const USBAudioConfig &cfg)
	Set the USB audio configuration (use begin(cfg) instead).

bool	setEpRate (Stream &s, Step following)

bool	setInterface (Stream &s, Step on_success, Step skip)

void	setupVolumeState ()
	(Re)sizes the volume and mute state: master (index 0) + one per channel

void	startRuntimeRequest ()
	Sends the next queued volume or mute change.

bool	stopStream (Stream &s, Step following)
	Stop streaming before a reconfiguration: select alt 0.

bool	supportsRate (const AltSetting &a, const std::vector< RateRange > &clock, uint32_t rate)
	True if the alternate setting supports the sample rate.

void	updateBufferSize ()

bool	volumeRange (Stream &s, bool max, Step on_success, Step skip)

Static Protected Member Functions
static uint32_t	descU24 (const uint8_t *p)

static int16_t	floatToUac2 (float vol)
	Convert linear volume (0.0–1.0) to UAC2 int16 (1/256 dB). Linear mapping: 0.0 → -100 dB (min), 1.0 → 0 dB (max).

static bool	isValidBitsPerSample (uint8_t bps)

static uint16_t	packetSizeFor (const AudioInfo &info)
	Bytes of one 1 ms packet for the indicated format (+1 sample margin)

static int16_t	toDeviceVolume (const Stream &s, float vol)
	Linear mapping of 0.0..1.0 to the volume range of the device.

static float	uac2ToFloat (int16_t v)
	Convert UAC2 int16 (1/256 dB) to linear volume (0.0–1.0). Linear mapping within the -100..0 dB range reported by GET_RANGE.

static uint8_t	volumeRangeChannel (const Stream &s)
	Channel used to determine the volume range.

Protected Attributes
int	_timeout = 10

volatile bool	attached_ = false

uint16_t	buffer_bytes_ = 0

std::vector< RateRange >	clock_ranges_rx_

std::vector< RateRange >	clock_ranges_tx_

USBAudioConfig	config_

volatile bool	configured_ = false

int	core = -1

uint8_t	ctrl_buf_ [kCtrlBufSize] = {}

bool	ctrl_busy_ = false

uint16_t	ctrl_len_ = 0

bool	ctrl_ok_ = false

uint32_t	ctrl_start_ms_ = 0

uint8_t	daddr_ = 0

std::vector< Entity >	entities_

bool	in_run_ = false

AudioInfo	info

bool	is_active_ = false

bool	is_notify_active = true

bool	is_started_ = false

uint8_t	itf_num_ac_ = 0

volatile bool	mounted_ = false

std::vector< bool >	mute_

std::function< void(bool, uint8_t)>	mute_cb_

std::vector< uint8_t >	mute_pending_

Vector< AudioInfoSupport * >	notify_vector

uint8_t	pending_channel_ = 0

bool	pending_is_volume_ = false

Stream *	pending_stream_ = nullptr

uint16_t	pid_ = 0

volatile bool	reconfigure_pending_ = false

bool	reconfiguring_ = false

bool	restart_pending_ = false

bool	run_again_ = false

Stream	rx_

AudioInfo	rx_info_

bool	rx_primed_ = false

std::function< void(uint32_t)>	sample_rate_cb_

UsbSetupPacket	setup_

Step	step_ = Step::Idle

bool	step_done_ = false

std::function< void(bool, bool)>	streaming_state_cb_

RingBuffer< uint8_t >	tmp_in {0}

RingBuffer< uint8_t >	tmp_out {0}

Stream	tx_

AudioInfo	tx_info_

uint8_t	uac_version_ = 0

bool	usb_task_active_ = false

uint16_t	vid_ = 0

std::vector< float >	volume_

std::function< void(float, uint8_t)>	volume_cb_

std::vector< uint8_t >	volume_pending_

float	volume_value = 1.0f

int	write_buffer_size = MAX_SINGLE_CHARS

Static Protected Attributes
static constexpr uint16_t	kCtrlBufSize = 2 + 12 * 24

static constexpr uint8_t	kMaxChannels = 8

static constexpr uint8_t	kMaxRates = 16

static constexpr uint8_t	kReqInItf = 0xA1

static constexpr uint8_t	kReqOutEp = 0x22

static constexpr uint8_t	kReqOutItf = 0x21

static constexpr int16_t	kVolumeMinDb256 = -25600
	Convert AudioTools volume (0.0–1.0) to UAC2 int16 (1/256 dB). 0.0 maps to 0x8000 (silence), 1.0 maps to 0 (0 dB).

Detailed Description

USB Audio Class (UAC1 and UAC2) host: reads PCM audio from an attached USB microphone and/or writes PCM audio to an attached USB speaker or headset, using the same API as the USB Audio device (USBAudioStream).

Directions (the RxTxMode is used the same way as for the device):

RX_MODE: readBytes() provides the audio of the attached microphone (isochronous IN endpoint of the device, config.enable_ep_in)
TX_MODE: write() sends audio to the attached speaker (isochronous OUT endpoint of the device, config.enable_ep_out)
RXTX_MODE: both, e.g. for a headset

The requested sample_rate, channels and bits_per_sample are matched against the alternate settings of the attached device. When the device can not provide the requested format and config.host_apply_device_format is true, the closest format is used, stored in the configuration and reported to the subscribed listeners (setAudioInfo()). In RXTX_MODE the format of the RX stream is reported; use audioInfoTx() for the TX format.

setVolume() and setMute() are forwarded to the Feature Unit of the attached device (all active directions); setAudioInfo() with a new sample rate re-negotiates the streams. When config.volume_active is true, the volume is in addition applied in software.

This class implements the USB stack independent UAC logic: the stack calls are delegated to a USBAudioHostBackend.

Note: Use the USBAudioHostStream type alias instead of this class.

Author: Phil Schatzmann

Copyright: GPLv3

Member Enumeration Documentation

◆ Step

enum class Step : uint8_t

strongprotected

Steps of the (re)configuration state machine.

Enumerator
Idle
StopRx
StopTx
ClockRangeHeaderRx
ClockRangeRx
ClockRangeHeaderTx
ClockRangeTx
Select
SetClockRx
SetInterfaceRx
OpenRx
SetEpRateRx
VolumeRangeRx
VolumeMaxRx
SetClockTx
SetInterfaceTx
OpenTx
SetEpRateTx
VolumeRangeTx
VolumeMaxTx
Done

Constructor & Destructor Documentation

◆ USBAudioHostBase() [1/2]

USBAudioHostBase ( )

default

◆ USBAudioHostBase() [2/2]

USBAudioHostBase ( USBAudioConfig cfg )

inline

Constructor which provides the configuration at construction time.

Member Function Documentation

◆ addNotifyAudioChange()

virtual void addNotifyAudioChange ( AudioInfoSupport & bi )

inlinevirtualinherited

Adds target to be notified about audio changes.

Reimplemented in CodecNOP, EncodedAudioOutput, EncodedAudioStream, AACDecoderFDK, DecoderBasic, CodecChain, MP3DecoderHelix, MP3DecoderMAD, OggContainerDecoder, RTSPClient< TcpClient, UdpSocket >, Pipeline, and Pipeline::ModifyingStreamAdapter.

◆ audioInfo()

virtual AudioInfo audioInfo ( )

inlineoverridevirtualinherited

provides the actual input AudioInfo

Implements AudioInfoSupport.

Reimplemented in JupyterAudioT< T >, MozziStream, TimerCallbackAudioStream, EncodedAudioStream, PureDataStream, AdapterAudioOutputToAudioStream, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, and InputMerge< T >.

◆ audioInfoOut()

virtual AudioInfo audioInfoOut ( )

inlinevirtualinherited

provides the actual output AudioInfo: this is usually the same as audioInfo() unless we use a transforming stream

Reimplemented in MP3EncoderShine, PureDataStream, PWMAudioOutput< PWMDriverT >, ChannelFormatConverterStreamT< T >, ChannelFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, NumberFormatConverterStream, FormatConverterStream, Pipeline, ResampleStream, ResampleStreamT< TInterpolator >, and SupportedRatesStream.

◆ audioInfoRx()

AudioInfo audioInfoRx ( ) const

inline

Negotiated format of the microphone stream (readBytes())

◆ audioInfoTx()

AudioInfo audioInfoTx ( ) const

inline

Negotiated format of the speaker stream (write())

◆ audioPacketSize()

uint16_t audioPacketSize ( ) const

inline

One isochronous packet (1 ms at full speed) of the largest stream in bytes

◆ available()

int available ( )

inlineoverridevirtualinherited

Bytes of received audio waiting in the RX buffer.

Reimplemented from BaseStream.

◆ availableForWrite()

int availableForWrite ( )

inlineoverridevirtualinherited

Bytes of free space in the TX buffer.

Reimplemented from BaseStream.

◆ backend()

virtual USBAudioHostBackend & backend ( )

protectedpure virtual

Returns the backend used for all USB host stack calls.

Implemented in USBAudioHostESP32, and USBAudioHostTinyUSB.

◆ begin() [1/2]

bool begin ( )

inlinevirtual

Start the USB host stack with the current config. The attached device is opened as soon as it has been enumerated.

Reimplemented from BaseStream.

◆ begin() [2/2]

bool begin ( const USBAudioConfig & cfg )

inline

Apply a config and start the USB audio host.

Returns: true on success.

◆ beginUSB()

bool beginUSB ( )

inlineoverrideprotectedvirtual

Override in platform subclasses to start the USB stack.

Implements USBAudioStreamBase.

Reimplemented in USBAudioHostESP32, and USBAudioHostTinyUSBFreeRTOS.

◆ bufferRx()

virtual BaseBuffer< uint8_t > & bufferRx ( )

pure virtualinherited

Returns the RX audio buffer. Must be overridden by subclasses.

Implemented in USBAudioDeviceESP32, USBAudioDeviceRenesas, USBAudioDeviceTinyUSB, USBAudioDeviceTinyUSBFreeRTOS, USBAudioHostESP32, USBAudioHostTinyUSB, and USBAudioHostTinyUSBFreeRTOS.

◆ bufferTx()

virtual BaseBuffer< uint8_t > & bufferTx ( )

pure virtualinherited

Returns the TX audio buffer. Must be overridden by subclasses.

Implemented in USBAudioDeviceESP32, USBAudioDeviceRenesas, USBAudioDeviceTinyUSB, USBAudioDeviceTinyUSBFreeRTOS, USBAudioHostESP32, USBAudioHostTinyUSB, and USBAudioHostTinyUSBFreeRTOS.

◆ clearNotifyAudioChange()

virtual void clearNotifyAudioChange ( )

inlinevirtualinherited

Deletes all change notify subscriptions.

Reimplemented in RTSPClient< TcpClient, UdpSocket >.

◆ clockRange()

bool clockRange	(	Stream &	s,
		std::vector< RateRange > &	ranges,
		Step	following
	)

inlineprotected

◆ clockRangeHeader()

bool clockRangeHeader	(	Stream &	s,
		std::vector< RateRange > &	ranges,
		Step	on_success,
		Step	skip
	)

inlineprotected

◆ closestRate()

uint32_t closestRate	(	const AltSetting &	a,
		const std::vector< RateRange > &	clock,
		uint32_t	wanted
	)

inlineprotected

Supported sample rate which is closest to the wanted rate (0 if none)

◆ config()

const USBAudioConfig & config ( ) const

inlineinherited

Provides the active configuration.

◆ configChanged()

bool configChanged ( const USBAudioConfig & n )

inlineprotectedinherited

◆ defaultConfig()

USBAudioConfig defaultConfig ( RxTxMode mode = RXTX_MODE )

inline

Returns a default configuration for the requested direction. RX_MODE reads from a USB microphone, TX_MODE writes to a USB speaker, RXTX_MODE does both (headset).

◆ descU24()

static uint32_t descU24 ( const uint8_t * p )

inlinestaticprotected

◆ end()

void end ( )

inlinevirtual

Stop the streams and clear the buffers. The host stack keeps running, so the device is opened again with the next begin().

Reimplemented from BaseStream.

◆ executeStep()

bool executeStep ( )

inlineprotected

Executes the current step. Returns false if the step could not be started and needs to be retried later.

◆ findEntity()

Entity * findEntity ( uint8_t id )

inlineprotected

◆ finishMount()

void finishMount ( )

inlineprotected

◆ finishRuntimeRequest()

void finishRuntimeRequest ( )

inlineprotected

◆ fitsBandwidth()

bool fitsBandwidth	(	const AltSetting &	a,
		uint32_t	rate
	)

inlineprotected

◆ floatToUac2()

static int16_t floatToUac2 ( float vol )

inlinestaticprotectedinherited

Convert linear volume (0.0–1.0) to UAC2 int16 (1/256 dB). Linear mapping: 0.0 → -100 dB (min), 1.0 → 0 dB (max).

◆ flush()

virtual void flush ( )

inlineoverridevirtualinherited

◆ getActualCore()

virtual int getActualCore ( ) const

inlinevirtualinherited

Returns the actual core on which the call is running (for RP2040)

Reimplemented in USBAudioDeviceBase, USBAudioDeviceESP32, USBAudioDeviceTinyUSB, and USBAudioHostESP32.

◆ getRxDroppedBytes()

uint32_t getRxDroppedBytes ( ) const

inline

Bytes discarded because bufferRx() was full.

◆ getRxTotalBytes()

uint32_t getRxTotalBytes ( ) const

inline

Total bytes received from the microphone.

◆ getRxXferCount()

uint32_t getRxXferCount ( ) const

inline

Number of isochronous IN packets which were received from the microphone

◆ getTxUnderflowBytes()

uint32_t getTxUnderflowBytes ( ) const

inline

Bytes of silence which were sent because bufferTx() was empty.

◆ getTxXferCount()

uint32_t getTxXferCount ( ) const

inline

Number of isochronous OUT packets which were provided to the speaker.

◆ getVolumeExt()

float getVolumeExt ( uint8_t channel ) const

inlineprotectedinherited

Returns the effective volume for a per-channel index (1-based). Combines master volume (index 0) with per-channel volume and mute.

◆ hasMicrophone()

bool hasMicrophone ( ) const

inline

True if the attached device provides a microphone (RX)

◆ hasSpeaker()

bool hasSpeaker ( ) const

inline

True if the attached device provides a speaker (TX)

◆ isEpInEnabled()

bool isEpInEnabled ( ) const

inlineinherited

Returns true if the IN endpoint is enabled.

◆ isEpOutEnabled()

bool isEpOutEnabled ( ) const

inlineinherited

Returns true if the OUT endpoint is enabled.

◆ isMute()

bool isMute ( uint8_t channel = 0 ) const

inlineinherited

Returns the current mute state for the given channel.

Parameters

channel 0 = master, 1..N = per-channel.

◆ isNotifyActive()

bool isNotifyActive ( )

inlineinherited

Checks if the automatic AudioInfo update is active.

◆ isStreamingActive()

bool isStreamingActive ( ) const

inlineinherited

Returns true if either the TX or RX stream is open.

◆ isStreamingActiveRx()

bool isStreamingActiveRx ( ) const

inlineoverridevirtual

Returns true if the microphone stream (used by readBytes()) is open.

Implements USBAudioStreamBase.

◆ isStreamingActiveTx()

bool isStreamingActiveTx ( ) const

inlineoverridevirtual

Returns true if the speaker stream (used by write()) is open.

Implements USBAudioStreamBase.

◆ issueControl()

bool issueControl	(	uint8_t	request_type,
		uint8_t	request,
		uint16_t	value,
		uint16_t	index,
		uint16_t	length
	)

inlineprotected

◆ issueSetInterface()

bool issueSetInterface	(	uint8_t	itf,
		uint8_t	alt
	)

inlineprotected

◆ isValidBitsPerSample()

static bool isValidBitsPerSample ( uint8_t bps )

inlinestaticprotectedinherited

◆ mounted()

bool mounted ( )

inlineoverridevirtual

Returns true if an audio device is attached and configured.

Implements USBAudioStreamBase.

◆ next()

void next ( Step s )

inlineprotected

Advance to the next step.

◆ not_supported()

virtual int not_supported	(	int	out,
		const char *	msg = `""`
	)

inlineprotectedvirtualinherited

◆ notifyAudioChange()

void notifyAudioChange ( AudioInfo info )

inlineprotectedinherited

◆ notifyStreamingState()

void notifyStreamingState ( )

inlineprotectedinherited

◆ onAttach()

uint16_t onAttach	(	uint8_t	daddr,
		uint16_t	vid,
		uint16_t	pid,
		const uint8_t *	desc,
		uint16_t	len
	)

inlineoverrideprotectedvirtual

A device was enumerated: desc points to the descriptors starting with an Audio Control interface descriptor and len is the number of bytes which are available after it. Returns the number of bytes which belong to the audio function (0 if the interface was not accepted).

Implements USBAudioHostEvents.

◆ onConfigured()

void onConfigured ( uint8_t daddr )

inlineoverrideprotectedvirtual

The device configuration is active: the class logic can start to select the alternate settings and open the streaming endpoints.

Implements USBAudioHostEvents.

◆ onControlComplete()

void onControlComplete	(	bool	ok,
		uint16_t	len
	)

inlineoverrideprotectedvirtual

Completion of control() or setInterface(). For IN requests len is the number of bytes which were received into the request buffer.

Implements USBAudioHostEvents.

◆ onDetach()

void onDetach ( uint8_t daddr )

inlineoverrideprotectedvirtual

The device was removed.

Implements USBAudioHostEvents.

◆ onFeedback()

void onFeedback	(	const uint8_t *	data,
		uint16_t	len
	)

inlineprotected

Explicit feedback from the speaker: samples per packet.

◆ onIsoIn()

void onIsoIn	(	UsbHostStreamRole	role,
		const uint8_t *	data,
		uint16_t	len
	)

inlineoverrideprotectedvirtual

One isochronous IN packet was received (RxData or Feedback).

Implements USBAudioHostEvents.

◆ onIsoOut()

uint16_t onIsoOut	(	uint8_t *	data,
		uint16_t	max
	)

inlineoverrideprotectedvirtual

Provide the next isochronous OUT packet (TxData): fill at most max bytes into data and return the packet length.

Implements USBAudioHostEvents.

◆ onMuteChanged()

void onMuteChanged ( uint8_t )

inlineoverrideprotectedvirtual

Called by setMute() after the state was updated: propagate the change to the USB peer.

Reimplemented from USBAudioStreamBase.

◆ onVolumeChanged()

void onVolumeChanged ( uint8_t )

inlineoverrideprotectedvirtual

Called by setVolume() after the state was updated: propagate the change to the USB peer.

Reimplemented from USBAudioStreamBase.

◆ openStream()

void openStream	(	Stream &	s,
		bool	is_rx
	)

inlineprotected

◆ operator bool()

operator bool ( )

inlineoverridevirtualinherited

Returns true when begin() has been called and the USB connection is established.

Reimplemented from AudioStream.

◆ packetSizeFor()

static uint16_t packetSizeFor ( const AudioInfo & info )

inlinestaticprotected

Bytes of one 1 ms packet for the indicated format (+1 sample margin)

◆ packetsPerSecond()

uint16_t packetsPerSecond ( const AltSetting & a )

inlineprotected

◆ parseAcDescriptor()

void parseAcDescriptor ( const uint8_t * p )

inlineprotected

Audio Control interface: header, terminals, units and clocks.

◆ parseAsDescriptor()

void parseAsDescriptor	(	AltSetting &	a,
		const uint8_t *	p
	)

inlineprotected

Audio Streaming interface: AS_GENERAL and FORMAT_TYPE descriptors.

◆ parseClockRange()

void parseClockRange ( std::vector< RateRange > & ranges )

inlineprotected

Parses a UAC2 GET_RANGE (layout 3: 32 bit) response for the clock.

◆ parseConfiguration()

uint16_t parseConfiguration	(	const uint8_t *	desc,
		uint16_t	len
	)

inlineprotected

Parses the audio function which starts with the AC interface at desc. Returns the number of bytes which belong to the audio function.

◆ parseFeatureUnitControls()

void parseFeatureUnitControls	(	Entity &	e,
		const uint8_t *	p,
		bool	v2
	)

inlineprotected

Determines which channels provide a host programmable mute / volume.

◆ pid()

uint16_t pid ( ) const

inline

Product id of the attached device (0 if none)

◆ poll()

void poll ( )

inlineprotected

Called regularly from the USB stack context.

◆ processUSB()

void processUSB ( )

inlineprotected

Pump the USB stack and process queued requests: called by the platform specific serviceUSB() or USB task.

◆ processVolume() [1/2]

template<typename T >

void processVolume	(	T *	data,
		size_t	sample_count
	)

inlineprotectedinherited

◆ processVolume() [2/2]

void processVolume	(	uint8_t *	data,
		size_t	len
	)

inlineprotectedinherited

Process audio data for volume control.

◆ readBytes()

size_t readBytes	(	uint8_t *	buffer,
		size_t	bufsize
	)

inlinevirtualinherited

Receive audio data from the USB peer. Until bufferRx() has filled past config.rx_start_fill_percent at least once after begin(), no data is returned. This is a one-shot startup prime only – once reached, readBytes() keeps draining normally for the rest of the session and is not gated again by later underruns.

Reimplemented from AudioStream.

◆ readSilence()

virtual size_t readSilence	(	uint8_t *	buffer,
		size_t	length
	)

inlinevirtualinherited

Source to generate silence: just sets the buffer to 0.

◆ refillReadBuffer()

void refillReadBuffer ( )

inlineprotectedinherited

Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read()

◆ removeNotifyAudioChange()

virtual bool removeNotifyAudioChange ( AudioInfoSupport & bi )

inlinevirtualinherited

Removes a target in order not to be notified about audio changes.

Reimplemented in RTSPClient< TcpClient, UdpSocket >.

◆ requestClockRange()

bool requestClockRange	(	Stream &	s,
		uint16_t	len
	)

inlineprotected

◆ requestFeature()

bool requestFeature	(	Stream &	s,
		uint8_t	selector,
		uint8_t	ch,
		int16_t	value
	)

inlineprotected

◆ requestSetClock()

bool requestSetClock ( Stream & s )

inlineprotected

◆ requestSetEpRate()

bool requestSetEpRate ( Stream & s )

inlineprotected

◆ requestVolumeRange()

bool requestVolumeRange	(	Stream &	s,
		bool	max
	)

inlineprotected

◆ resetDevice()

void resetDevice ( )

inlineprotected

◆ resizeBuffers()

virtual void resizeBuffers ( )

protectedpure virtualinherited

Resize the platform audio buffers.

Implemented in USBAudioDeviceESP32, USBAudioDeviceRenesas, USBAudioDeviceTinyUSB, USBAudioDeviceTinyUSBFreeRTOS, USBAudioHostESP32, USBAudioHostTinyUSB, and USBAudioHostTinyUSBFreeRTOS.

◆ resolveClock()

uint8_t resolveClock ( uint8_t id )

inlineprotected

Follow clock selectors and multipliers to the clock source.

◆ resolveTopology()

void resolveTopology	(	Stream &	s,
		bool	is_rx
	)

inlineprotected

Finds the Feature Unit and the Clock Source of a stream by following the entity links of its USB streaming terminal.

◆ run()

void run ( )

inlineprotected

Runs the state machine until a control request is in flight.

◆ selectAlt()

bool selectAlt	(	Stream &	s,
		const std::vector< RateRange > &	clock,
		AudioInfo &	negotiated
	)

inlineprotected

Selects the alternate setting which matches the requested format best.

◆ sendFeature()

bool sendFeature	(	bool	is_volume,
		uint8_t	ch
	)

inlineprotected

Sends the volume or mute of a channel to the next stream which supports it. Returns true if a request was issued.

◆ sendFeatureFor()

bool sendFeatureFor ( Stream & s )

inlineprotected

◆ sendFeatureNextStream()

bool sendFeatureNextStream ( )

inlineprotected

◆ serviceUSB()

virtual void serviceUSB ( )

pure virtualinherited

Process pending USB events on platforms where the application drives the stack. No-op where a dedicated task runs the stack.

Implemented in USBAudioDeviceESP32, USBAudioDeviceRenesas, USBAudioDeviceTinyUSB, USBAudioHostESP32, USBAudioHostTinyUSB, and USBAudioDeviceBase.

◆ setAudioInfo()

void setAudioInfo ( AudioInfo info )

inlineoverridevirtual

Defines the audio format. Before begin() all fields can be changed; once started, a new sample rate is re-negotiated with the attached device.

Reimplemented from AudioStream.

◆ setClock()

bool setClock	(	Stream &	s,
		Step	following
	)

inlineprotected

◆ setConfig()

void setConfig ( const USBAudioConfig & cfg )

inlineprotectedinherited

Set the USB audio configuration (use begin(cfg) instead).

◆ setEpRate()

bool setEpRate	(	Stream &	s,
		Step	following
	)

inlineprotected

◆ setInterface()

bool setInterface	(	Stream &	s,
		Step	on_success,
		Step	skip
	)

inlineprotected

◆ setMute()

bool setMute	(	bool	m,
		uint8_t	channel = `0`
	)

inlineinherited

Set the mute state for a channel and notify the USB peer.

Parameters

m	true = muted, false = unmuted.
channel	0 = master, 1..N = per-channel.

Returns: true if the channel index was valid.

◆ setMuteCallback()

void setMuteCallback ( std::function< void(bool, uint8_t)> cb )

inlineinherited

Register a callback invoked when the mute state changes.

Parameters

cb	Callback receiving (bool muted, uint8_t channel).

◆ setNotifyActive()

void setNotifyActive ( bool flag )

inlineinherited

Deactivate/Reactivate automatic AudioInfo updates: (default is active)

◆ setSampleRateCallback()

void setSampleRateCallback ( std::function< void(uint32_t)> cb )

inlineinherited

Register a callback invoked when the sample rate changes.

Parameters

cb	Callback receiving the new rate in Hz.

◆ setStreamingStateCallback()

void setStreamingStateCallback ( std::function< void(bool, bool)> cb )

inlineinherited

Register a callback invoked when the streaming state changes (a streaming interface was opened or closed).

Parameters

cb	Callback receiving (bool active_tx, bool active_rx).

◆ setupVolumeState()

void setupVolumeState ( )

inlineprotectedinherited

(Re)sizes the volume and mute state: master (index 0) + one per channel

◆ setVolume() [1/2]

bool setVolume	(	float	vol,
		uint8_t	channel
	)

inlineinherited

Set the volume for a channel and notify the USB peer.

Parameters

vol	Volume as a float 0.0 (silence) to 1.0 (0 dB).
channel	0 = master, 1..N = per-channel.

Returns: true if the channel index was valid.

◆ setVolume() [2/2]

bool setVolume ( float volume )

inlineoverridevirtualinherited

sets the volume for the master channel (channel 0)

Reimplemented from VolumeSupport.

◆ setVolumeCallback()

void setVolumeCallback ( std::function< void(float, uint8_t)> cb )

inlineinherited

Register a callback invoked when the volume changes.

Parameters

cb	Callback receiving (float volume, uint8_t channel).

◆ setWriteBufferSize()

void setWriteBufferSize ( int size )

inlineinherited

◆ startRuntimeRequest()

void startRuntimeRequest ( )

inlineprotected

Sends the next queued volume or mute change.

◆ stopStream()

bool stopStream	(	Stream &	s,
		Step	following
	)

inlineprotected

Stop streaming before a reconfiguration: select alt 0.

◆ supportsRate()

bool supportsRate	(	const AltSetting &	a,
		const std::vector< RateRange > &	clock,
		uint32_t	rate
	)

inlineprotected

True if the alternate setting supports the sample rate.

◆ toDeviceVolume()

static int16_t toDeviceVolume	(	const Stream &	s,
		float	vol
	)

inlinestaticprotected

Linear mapping of 0.0..1.0 to the volume range of the device.

◆ uac2ToFloat()

static float uac2ToFloat ( int16_t v )

inlinestaticprotectedinherited

Convert UAC2 int16 (1/256 dB) to linear volume (0.0–1.0). Linear mapping within the -100..0 dB range reported by GET_RANGE.

◆ uacVersion()

uint8_t uacVersion ( ) const

inline

USB Audio Class version of the attached device: 1 or 2 (0 if none)

◆ updateBufferSize()

void updateBufferSize ( )

inlineprotected

Make sure that the buffers can hold fifo_packets packets of the negotiated format

◆ vid()

uint16_t vid ( ) const

inline

Vendor id of the attached device (0 if none)

◆ volume() [1/2]

float volume ( )

inlineoverridevirtualinherited

gets the volume for the master channel (channel 0)

Reimplemented from VolumeSupport.

◆ volume() [2/2]

float volume ( uint8_t channel )

inlineinherited

Returns the current volume for the given channel.

Parameters

channel 0 = master, 1..N = per-channel.

Returns: Volume as a float in the range 0.0 (silence) to 1.0 (0 dB).

◆ volumeRange()

bool volumeRange	(	Stream &	s,
		bool	max,
		Step	on_success,
		Step	skip
	)

inlineprotected

◆ volumeRangeChannel()

static uint8_t volumeRangeChannel ( const Stream & s )

inlinestaticprotected

Channel used to determine the volume range.

◆ write() [1/2]

size_t write	(	const uint8_t *	data,
		size_t	len
	)

inlinevirtualinherited

Send audio data to the USB peer. Silently discards data while the TX stream is not open so StreamCopy doesn't report write errors before streaming starts.

Reimplemented from AudioStream.

◆ write() [2/2]

virtual size_t write ( uint8_t ch )

inlineoverridevirtualinherited

Reimplemented in MemoryStream, AudioStreamWrapper, BufferedTaskStream, RingBufferStream, BufferedStream, and URLStream.

◆ writeSilence()

virtual void writeSilence ( size_t len )

inlinevirtualinherited

Writes len bytes of silence (=0).

Member Data Documentation

◆ _timeout

int _timeout = 10

protectedinherited

◆ attached_

volatile bool attached_ = false

protected

◆ buffer_bytes_

uint16_t buffer_bytes_ = 0

protected

◆ clock_ranges_rx_

std::vector<RateRange> clock_ranges_rx_

protected

◆ clock_ranges_tx_

std::vector<RateRange> clock_ranges_tx_

protected

◆ config_

USBAudioConfig config_

protectedinherited

◆ configured_

volatile bool configured_ = false

protected

◆ core

int core = -1

protectedinherited

◆ ctrl_buf_

uint8_t ctrl_buf_[kCtrlBufSize] = {}

protected

◆ ctrl_busy_

bool ctrl_busy_ = false

protected

◆ ctrl_len_

uint16_t ctrl_len_ = 0

protected

◆ ctrl_ok_

bool ctrl_ok_ = false

protected

◆ ctrl_start_ms_

uint32_t ctrl_start_ms_ = 0

protected

◆ daddr_

uint8_t daddr_ = 0

protected

◆ entities_

std::vector<Entity> entities_

protected

◆ in_run_

bool in_run_ = false

protected

◆ info

AudioInfo info

protectedinherited

◆ is_active_

bool is_active_ = false

protectedinherited

◆ is_notify_active

bool is_notify_active = true

protectedinherited

◆ is_started_

bool is_started_ = false

protectedinherited

◆ itf_num_ac_

uint8_t itf_num_ac_ = 0

protected

◆ kCtrlBufSize

constexpr uint16_t kCtrlBufSize = 2 + 12 * 24

staticconstexprprotected

◆ kMaxChannels

constexpr uint8_t kMaxChannels = 8

staticconstexprprotected

◆ kMaxRates

constexpr uint8_t kMaxRates = 16

staticconstexprprotected

◆ kReqInItf

constexpr uint8_t kReqInItf = 0xA1

staticconstexprprotected

◆ kReqOutEp

constexpr uint8_t kReqOutEp = 0x22

staticconstexprprotected

◆ kReqOutItf

constexpr uint8_t kReqOutItf = 0x21

staticconstexprprotected

◆ kVolumeMinDb256

constexpr int16_t kVolumeMinDb256 = -25600

staticconstexprprotectedinherited

Convert AudioTools volume (0.0–1.0) to UAC2 int16 (1/256 dB). 0.0 maps to 0x8000 (silence), 1.0 maps to 0 (0 dB).

◆ mounted_

volatile bool mounted_ = false

protected

◆ mute_

std::vector<bool> mute_

protectedinherited

◆ mute_cb_

std::function<void(bool, uint8_t)> mute_cb_

protectedinherited

◆ mute_pending_

std::vector<uint8_t> mute_pending_

protected

◆ notify_vector

Vector<AudioInfoSupport*> notify_vector

protectedinherited

◆ pending_channel_

uint8_t pending_channel_ = 0

protected

◆ pending_is_volume_

bool pending_is_volume_ = false

protected

◆ pending_stream_

Stream* pending_stream_ = nullptr

protected

◆ pid_

uint16_t pid_ = 0

protected

◆ reconfigure_pending_

volatile bool reconfigure_pending_ = false

protected

◆ reconfiguring_

bool reconfiguring_ = false

protected

◆ restart_pending_

bool restart_pending_ = false

protected

◆ run_again_

bool run_again_ = false

protected

◆ rx_

Stream rx_

protected

◆ rx_info_

AudioInfo rx_info_

protected

◆ rx_primed_

bool rx_primed_ = false

protectedinherited

◆ sample_rate_cb_

std::function<void(uint32_t)> sample_rate_cb_

protectedinherited

◆ setup_

UsbSetupPacket setup_

protected

◆ step_

Step step_ = Step::Idle

protected

◆ step_done_

bool step_done_ = false

protected

◆ streaming_state_cb_

std::function<void(bool, bool)> streaming_state_cb_

protectedinherited

◆ tmp_in

RingBuffer<uint8_t> tmp_in {0}

protectedinherited

◆ tmp_out

RingBuffer<uint8_t> tmp_out {0}

protectedinherited

◆ tx_

Stream tx_

protected

◆ tx_info_

AudioInfo tx_info_

protected

◆ uac_version_

uint8_t uac_version_ = 0

protected

◆ usb_task_active_

bool usb_task_active_ = false

protectedinherited

◆ vid_

uint16_t vid_ = 0

protected

◆ volume_

std::vector<float> volume_

protectedinherited

◆ volume_cb_

std::function<void(float, uint8_t)> volume_cb_

protectedinherited

◆ volume_pending_

std::vector<uint8_t> volume_pending_

protected

◆ volume_value

float volume_value = 1.0f

protectedinherited

◆ write_buffer_size

int write_buffer_size = MAX_SINGLE_CHARS

protectedinherited

The documentation for this class was generated from the following file:

src/AudioTools/Communication/USB/USBAudioHostBase.h

Classes

Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ Step

Constructor & Destructor Documentation

◆ USBAudioHostBase() [1/2]

◆ USBAudioHostBase() [2/2]

Member Function Documentation

◆ addNotifyAudioChange()

◆ audioInfo()

◆ audioInfoOut()

◆ audioInfoRx()

◆ audioInfoTx()

◆ audioPacketSize()

◆ available()

◆ availableForWrite()

◆ backend()

◆ begin() [1/2]

◆ begin() [2/2]

◆ beginUSB()

◆ bufferRx()

◆ bufferTx()

◆ clearNotifyAudioChange()

◆ clockRange()

◆ clockRangeHeader()

◆ closestRate()

◆ config()

◆ configChanged()

◆ defaultConfig()

◆ descU24()

◆ end()

◆ executeStep()

◆ findEntity()

◆ finishMount()

◆ finishRuntimeRequest()

◆ fitsBandwidth()

◆ floatToUac2()

◆ flush()

◆ getActualCore()

◆ getRxDroppedBytes()

◆ getRxTotalBytes()

◆ getRxXferCount()

◆ getTxUnderflowBytes()

◆ getTxXferCount()

◆ getVolumeExt()

◆ hasMicrophone()

◆ hasSpeaker()

◆ isEpInEnabled()

◆ isEpOutEnabled()

◆ isMute()

◆ isNotifyActive()

◆ isStreamingActive()

◆ isStreamingActiveRx()

◆ isStreamingActiveTx()

◆ issueControl()

◆ issueSetInterface()

◆ isValidBitsPerSample()

◆ mounted()

◆ next()

◆ not_supported()

◆ notifyAudioChange()

◆ notifyStreamingState()

◆ onAttach()

◆ onConfigured()

◆ onControlComplete()

◆ onDetach()

◆ onFeedback()

◆ onIsoIn()

◆ onIsoOut()

◆ onMuteChanged()

◆ onVolumeChanged()

◆ openStream()

◆ operator bool()

◆ packetSizeFor()
