FrequencyDetectorAutoCorrelation Class Reference

Detects frequency using autocorrelation on audio samples. More...

#include <FrequencyDetectorAutoCorrelation.h>

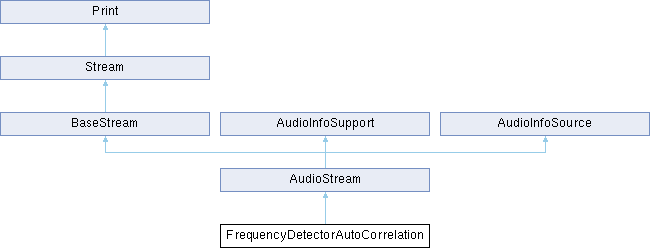

Inheritance diagram for FrequencyDetectorAutoCorrelation:

Public Member Functions
	FrequencyDetectorAutoCorrelation ()=default
	Default constructor. The buffer size is auto-derived from the AudioInfo passed to begin() unless setBufferSize() is called first.
	FrequencyDetectorAutoCorrelation (int bufferSize)
	Construct with buffer size.
	FrequencyDetectorAutoCorrelation (int bufferSize, Print &out)
	Construct with buffer size and output stream.
	FrequencyDetectorAutoCorrelation (int bufferSize, Stream &in)
	Construct with buffer size and input stream.
virtual void	addNotifyAudioChange (AudioInfoSupport &bi)
	Adds target to be notified about audio changes.
virtual AudioInfo	audioInfo () override
	provides the actual input AudioInfo
virtual AudioInfo	audioInfoOut ()
int	available () override
	Returns the number of bytes available for reading.
int	availableForWrite () override
	Returns the number of bytes available for writing.
bool	begin ()
	Initialize internal buffers based on audio info.
bool	begin (AudioInfo info)
	Initialize with audio configuration.
virtual void	clearNotifyAudioChange ()
	Deletes all change notify subscriptions.
float	confidence (int channel)
	Returns a tonality/periodicity confidence for the given channel, in the range 0.0 (no periodic structure - noise-like) to 1.0 (strongly periodic - tone/voiced/music-like). This is the normalized autocorrelation peak (peak correlation at the detected lag, divided by the signal energy at lag 0) and can be used to distinguish genuine tonal audio from broadband noise that merely happens to be loud.
AudioInfo	defaultConfig ()
	Returns a default AudioInfo configuration.
virtual void	end ()
virtual void	flush () override
float	frequency (int channel)
	Returns the last detected frequency for the given channel.
bool	isNotifyActive ()
	Checks if the automatic AudioInfo update is active.
bool	isTonal (int channel, float threshold=0.3f)
	Convenience check: is the given channel currently tonal (periodic) rather than noise-like, based on confidence().
virtual	operator bool ()
size_t	readBytes (uint8_t *data, size_t len) override
	Reads bytes from the input stream and processes them for frequency detection.
virtual size_t	readSilence (uint8_t *buffer, size_t length)
	Source to generate silence: just sets the buffer to 0.
virtual bool	removeNotifyAudioChange (AudioInfoSupport &bi)
	Removes a target in order not to be notified about audio changes.
virtual void	setAudioInfo (AudioInfo newInfo) override
	Defines the input AudioInfo.
void	setBufferSize (int bufferSize)
	Sets the analysis buffer size explicitly (in samples). If not called, begin() derives a size that covers the lowest detectable frequency (50Hz) for the configured sample rate.
void	setFrequencyCallback (void(*callback)(int channel, float freq))
	Sets a callback function to be called when a new frequency is detected.
void	setNotifyActive (bool flag)
	Deactivate/Reactivate automatic AudioInfo updates: (default is active)
void	setWriteBufferSize (int size)
virtual size_t	write (const uint8_t *data, size_t len) override
	Writes bytes to the output stream and processes them for frequency detection.
virtual size_t	write (uint8_t ch) override
virtual void	writeSilence (size_t len)
	Writes len bytes of silence (=0).

Protected Member Functions
template<class T >
void	detect (T *samples, size_t len)
	Detects frequency for all channels using autocorrelation.
template<class T >
float	detectFrequencyForChannel (int ch, T *samples, size_t len, float &confidenceOut)
	Performs autocorrelation to estimate frequency for a single channel.
virtual int	not_supported (int out, const char *msg="")
void	notifyAudioChange (AudioInfo info)
void	refillReadBuffer ()
	Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read()

Protected Attributes
int	_timeout = 10
SingleBuffer< uint8_t >	buffer
	Buffer for incoming audio data.
int	buffer_size = 0
	Buffer size in samples.
Vector< float >	conf
	Stores tonality confidence (0-1) for each channel.
Vector< float >	freq
	Stores detected frequency for each channel.
void(*	freq_callback )(int channel, float freq)
	Frequency callback function.
AudioInfo	info
bool	is_notify_active = true
Vector< AudioInfoSupport * >	notify_vector
Stream *	p_in = nullptr
	Input stream pointer.
Print *	p_out = nullptr
	Output stream pointer.
RingBuffer< uint8_t >	tmp_in {0}
RingBuffer< uint8_t >	tmp_out {0}
int	write_buffer_size = MAX_SINGLE_CHARS

Detailed Description

Detects frequency using autocorrelation on audio samples.

This class analyzes audio data to estimate the dominant frequency by applying the autocorrelation method. It supports multiple audio channels and different sample formats (16, 24, 32 bits).

Usage:

• Feed audio data via write() or readBytes().
• Call frequency(channel) to get the detected frequency for a channel.
• Optionally, set a callback to be notified when a new frequency is detected.

Based on: https://github.com/akellyirl/AutoCorr_Freq_detect

Constructor & Destructor Documentation

FrequencyDetectorAutoCorrelation() [1/4]

FrequencyDetectorAutoCorrelation ( )

default

Default constructor. The buffer size is auto-derived from the AudioInfo passed to begin() unless setBufferSize() is called first.

FrequencyDetectorAutoCorrelation() [2/4]

FrequencyDetectorAutoCorrelation ( int  bufferSize )

inline

Construct with buffer size.

Parameters

bufferSize

Number of samples to buffer for analysis.

FrequencyDetectorAutoCorrelation() [3/4]

FrequencyDetectorAutoCorrelation ( int  bufferSize, Print &  out  )

inline

Construct with buffer size and output stream.

Parameters

bufferSize	Number of samples to buffer for analysis.
out	Output stream for writing audio data.

FrequencyDetectorAutoCorrelation() [4/4]

FrequencyDetectorAutoCorrelation ( int  bufferSize, Stream &  in  )

inline

Construct with buffer size and input stream.

Parameters

bufferSize	Number of samples to buffer for analysis.
in	Input stream for reading audio data.

Member Function Documentation

addNotifyAudioChange()

virtual void addNotifyAudioChange ( AudioInfoSupport &  bi )

inlinevirtualinherited

Adds target to be notified about audio changes.

Reimplemented in CodecNOP, EncodedAudioOutput, EncodedAudioStream, AACDecoderFDK, DecoderBasic, CodecChain, MP3DecoderHelix, MP3DecoderMAD, OggContainerDecoder, RTSPClient< TcpClient, UdpSocket >, Pipeline, and Pipeline::ModifyingStreamAdapter.

audioInfo()

virtual AudioInfo audioInfo ( )

inlineoverridevirtualinherited

provides the actual input AudioInfo

Implements AudioInfoSupport.

Reimplemented in JupyterAudioT< T >, MozziStream, TimerCallbackAudioStream, EncodedAudioStream, PureDataStream, AdapterAudioOutputToAudioStream, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, and InputMerge< T >.

audioInfoOut()

virtual AudioInfo audioInfoOut ( )

inlinevirtualinherited

provides the actual output AudioInfo: this is usually the same as audioInfo() unless we use a transforming stream

Reimplemented in MP3EncoderShine, PureDataStream, PWMAudioOutput< PWMDriverT >, ChannelFormatConverterStreamT< T >, ChannelFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, NumberFormatConverterStream, FormatConverterStream, Pipeline, ResampleStream, ResampleStreamT< TInterpolator >, and SupportedRatesStream.

available()

int available ( )

inlineoverridevirtual

Returns the number of bytes available for reading.

Reimplemented from BaseStream.

availableForWrite()

int availableForWrite ( )

inlineoverridevirtual

Returns the number of bytes available for writing.

Reimplemented from BaseStream.

begin() [1/2]

bool begin ( )

inlinevirtual

Initialize internal buffers based on audio info.

Returns

true if initialization succeeded.

Reimplemented from BaseStream.

begin() [2/2]

bool begin ( AudioInfo  info )

inline

Initialize with audio configuration.

Parameters

info	AudioInfo structure describing the audio format.

Returns

true if initialization succeeded.

clearNotifyAudioChange()

virtual void clearNotifyAudioChange ( )

inlinevirtualinherited

Deletes all change notify subscriptions.

Reimplemented in RTSPClient< TcpClient, UdpSocket >.

confidence()

float confidence ( int  channel )

inline

Returns a tonality/periodicity confidence for the given channel, in the range 0.0 (no periodic structure - noise-like) to 1.0 (strongly periodic - tone/voiced/music-like). This is the normalized autocorrelation peak (peak correlation at the detected lag, divided by the signal energy at lag 0) and can be used to distinguish genuine tonal audio from broadband noise that merely happens to be loud.

Parameters

channel

Channel index.

Returns

Confidence in [0.0, 1.0], or 0 for an invalid channel.

defaultConfig()

AudioInfo defaultConfig ( )

inline

Returns a default AudioInfo configuration.

detect()

template<class T >

void detect ( T *  samples, size_t  len  )

inlineprotected

Detects frequency for all channels using autocorrelation.

Template Parameters

T	Sample type (int16_t, int24_t, int32_t)

Parameters

samples	Pointer to audio samples.
len	Number of samples.

detectFrequencyForChannel()

template<class T >

float detectFrequencyForChannel ( int  ch, T *  samples, size_t  len, float &  confidenceOut  )

inlineprotected

Performs autocorrelation to estimate frequency for a single channel.

Template Parameters

T	Sample type.

Parameters

ch	Channel index.
samples	Pointer to audio samples.
len	Number of samples.
confidenceOut	Set to the normalized autocorrelation peak (0.0-1.0): how periodic/tonal the block is, independent of its loudness. Values near 0 indicate noise-like (non-periodic) content; values near 1 indicate a strong tone/voiced/harmonic signal.

Returns

Detected frequency in Hz.

end()

virtual void end ( )

inlinevirtualinherited

Reimplemented in FaustStream< DSP >, AudioMP34DT05, I2SCodecStream, MozziStream, PureDataStream, SPDIFOutput, VS1053Stream, WM8960Stream, AdaptiveResamplingStream, AudioLoRa, ESPNowStream, BufferedTaskStream, URLStreamBufferedT< T >, URLStreamBufferedT< ICYStream >, USBAudioDeviceBase, GoertzelStream, Equalizer3BandsT< T >, I2SStream, AudioStreamWrapper, TimerCallbackAudioStream, FormatConverterStream, FileLoopT< FileType >, FileLoopT< File >, EqualizerNBands< SampleT, AccT, NUM_TAPS, NUM_BANDS >, EncodedAudioStream, AudioKitStream, MiniAudioStream, PortAudioStream, StdioStream, A2DPStream, HLSStreamT< URLStream >, HttpRequest, ICYStreamT< T >, URLStream, URLStreamESP32, NRF24Stream, SPIAudioSlave, AutomaticGainControlStream, VolumeStream, AnalogAudioStream, AudioEffectStreamT< T >, AudioEffectStream, Equalizer3BandsPerChannelT< T >, ReformatBaseStream, AdapterAudioOutputToAudioStream, MemoryStream, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, InputMixer< T, SumT >, InputMerge< T >, CallbackStream, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, ChannelFormatConverterStream, NumberFormatConverterStream, CatStream, QueueStream< T >, QueueStream< uint8_t >, DynamicMemoryStream, Pipeline, Pipeline::ModifyingStreamAdapter, SupportedRatesStream, AudioFFTBase, AudioBLEClient, AudioBLEClient, AudioBLEServer, AudioBLEServer, AbstractURLStream, and AudioBLEStream.

flush()

virtual void flush ( )

inlineoverridevirtualinherited

Reimplemented from Print.

Reimplemented in PureDataStream, URLStreamBufferedT< T >, URLStreamBufferedT< ICYStream >, ReformatBaseStream, AudioStreamWrapper, ResampleStream, EncodedAudioStream, URLStream, BufferedTaskStream, AutomaticGainControlStream, MeasuringStream, QualityAnalysisStream, VolumeStream, AudioEffectStreamT< T >, AudioEffectStream, Equalizer3BandsT< T >, Equalizer3BandsPerChannelT< T >, I2SStream, TimedStream, MemoryStream, RingBufferStream, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, BufferedStream, FilteredStream< T, TF >, FilteredStream< int16_t, int16_t >, QueueStream< T >, QueueStream< uint8_t >, FadeStream, Pipeline::ModifyingStreamAdapter, SupportedRatesStream, and EqualizerNBands< SampleT, AccT, NUM_TAPS, NUM_BANDS >.

frequency()

float frequency ( int  channel )

inline

Returns the last detected frequency for the given channel.

Parameters

channel

Channel index.

Returns

Detected frequency in Hz, or 0 if invalid channel.

isNotifyActive()

bool isNotifyActive ( )

inlineinherited

Checks if the automatic AudioInfo update is active.

isTonal()

bool isTonal ( int  channel, float  threshold = 0.3f  )

inline

Convenience check: is the given channel currently tonal (periodic) rather than noise-like, based on confidence().

Parameters

channel	Channel index.
threshold	Minimum confidence to be considered tonal (default 0.3).

not_supported()

virtual int not_supported ( int  out, const char *  msg = ""  )

inlineprotectedvirtualinherited

notifyAudioChange()

void notifyAudioChange ( AudioInfo  info )

inlineprotectedinherited

operator bool()

virtual operator bool ( )

inlinevirtualinherited

Reimplemented in A2DPStream, ICYStreamT< T >, AudioBLEStream, PortAudioStream, URLStream, USBAudioDeviceBase, I2SStream, AdapterAudioOutputToAudioStream, TimedStream, MemoryStream, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, Pipeline, and AudioFFTBase.

readBytes()

size_t readBytes ( uint8_t *  data, size_t  len  )

inlineoverridevirtual

Reads bytes from the input stream and processes them for frequency detection.

Parameters

data	Buffer to store read bytes.
len	Number of bytes to read.

Returns

Number of bytes actually read.

Reimplemented from AudioStream.

readSilence()

virtual size_t readSilence ( uint8_t *  buffer, size_t  length  )

inlinevirtualinherited

Source to generate silence: just sets the buffer to 0.

refillReadBuffer()

void refillReadBuffer ( )

inlineprotectedinherited

Refill small read buffer (e.g. 8 bytes) to avoid single byte reads when calling read()

removeNotifyAudioChange()

virtual bool removeNotifyAudioChange ( AudioInfoSupport &  bi )

inlinevirtualinherited

Removes a target in order not to be notified about audio changes.

Reimplemented in RTSPClient< TcpClient, UdpSocket >.

setAudioInfo()

virtual void setAudioInfo ( AudioInfo  info )

inlineoverridevirtualinherited

Defines the input AudioInfo.

Implements AudioInfoSupport.

Reimplemented in VS1053Stream, WM8960Stream, AutomaticGainControlStream, VolumeStream, ChannelFormatConverterStreamT< T >, ChannelFormatConverterStream, MiniAudioStream, PortAudioStream, I2SCodecStream, MozziStream, SPDIFOutput, AudioLoRa, AnalogAudioStream, I2SStream, TimerCallbackAudioStream, AudioBLEStream, MDFEchoCancellationStream< T, SampleType >, AudioKitStream, NRF24Stream, SPIAudioSlave, USBAudioDeviceBase, VBANStream, GoertzelStream, MeasuringStream, QualityAnalysisStream, Equalizer3BandsT< T >, Equalizer3BandsPerChannelT< T >, AdapterAudioOutputToAudioStream, TimedStream, ProgressStream, CallbackStream, VolumeMeter, AudioInputMonitor, FormatConverterStream, FadeStream, Pipeline::ModifyingStreamAdapter, AudioFFTBase, EncodedAudioStream, PureDataStream, GeneratedSoundStream< T >, GeneratedSoundStream< int16_t >, NumberFormatConverterStreamT< TFrom, TTo >, NumberFormatConverterStream, Pipeline, ResampleStream, ResampleStreamT< TInterpolator >, and SupportedRatesStream.

setBufferSize()

void setBufferSize ( int  bufferSize )

inline

Sets the analysis buffer size explicitly (in samples). If not called, begin() derives a size that covers the lowest detectable frequency (50Hz) for the configured sample rate.

setFrequencyCallback()

void setFrequencyCallback ( void(*)(int channel, float freq)  callback )

inline

Sets a callback function to be called when a new frequency is detected.

Parameters

callback

Function pointer: void callback(int channel, float freq)

setNotifyActive()

void setNotifyActive ( bool  flag )

inlineinherited

Deactivate/Reactivate automatic AudioInfo updates: (default is active)

setWriteBufferSize()

void setWriteBufferSize ( int  size )

inlineinherited

write() [1/2]

virtual size_t write ( const uint8_t *  data, size_t  len  )

inlineoverridevirtual

Writes bytes to the output stream and processes them for frequency detection.

Parameters

data	Buffer containing audio data.
len	Number of bytes to write.

Returns

Number of bytes actually written.

Reimplemented from AudioStream.

write() [2/2]

virtual size_t write ( uint8_t  ch )

inlineoverridevirtualinherited

Reimplemented in MemoryStream, AudioStreamWrapper, BufferedTaskStream, RingBufferStream, BufferedStream, and URLStream.

writeSilence()

virtual void writeSilence ( size_t  len )

inlinevirtualinherited

Writes len bytes of silence (=0).

Member Data Documentation

_timeout

int _timeout = 10

protectedinherited

buffer

SingleBuffer<uint8_t> buffer

protected

Buffer for incoming audio data.

buffer_size

int buffer_size = 0

protected

Buffer size in samples.

conf

Vector<float> conf

protected

Stores tonality confidence (0-1) for each channel.

freq

Vector<float> freq

protected

Stores detected frequency for each channel.

freq_callback

void(* freq_callback) (int channel, float freq)

protected

Frequency callback function.

info

AudioInfo info

protectedinherited

is_notify_active

bool is_notify_active = true

protectedinherited

notify_vector

Vector<AudioInfoSupport*> notify_vector

protectedinherited

p_in

Stream* p_in = nullptr

protected

Input stream pointer.

p_out

Print* p_out = nullptr

protected

Output stream pointer.

tmp_in

RingBuffer<uint8_t> tmp_in {0}

protectedinherited

tmp_out

RingBuffer<uint8_t> tmp_out {0}

protectedinherited

write_buffer_size

int write_buffer_size = MAX_SINGLE_CHARS

protectedinherited

---

The documentation for this class was generated from the following file:

• src/AudioTools/CoreAudio/Analysis/FrequencyDetectorAutoCorrelation.h
