A simple wrapper class that lets you use the standard Arduino Print class output commands to send audio data over a WebSocket connection. Uses https://github.com/Links2004/arduinoWebSockets. More...

#include <WebSocketOutput.h>

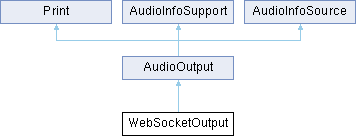

Inheritance diagram for WebSocketOutput:

Public Member Functions
	WebSocketOutput ()=default
	WebSocketOutput (WebSocketsClient &ws)
	Constructor which defines an alternative WebSocket object. By default we use WebSocket.
	WebSocketOutput (WebSocketsServer &ws)
	Constructor which defines an alternative WebSocket object. By default we use WebSocket.
virtual void	addNotifyAudioChange (AudioInfoSupport &bi)
	Adds target to be notified about audio changes.
virtual void	addNotifyAudioChange (AudioInfoSupport &bi)
	Adds target to be notified about audio changes.
virtual AudioInfo	audioInfo () override
	provides the actual input AudioInfo
virtual AudioInfo	audioInfo () override
	provides the actual input AudioInfo
virtual AudioInfo	audioInfoOut ()
virtual AudioInfo	audioInfoOut ()
virtual int	availableForWrite () override
virtual int	availableForWrite () override
virtual bool	begin ()
virtual bool	begin ()
virtual bool	begin (AudioInfo info)
virtual bool	begin (AudioInfo info)
virtual void	clearNotifyAudioChange ()
	Deletes all change notify subscriptions.
virtual void	clearNotifyAudioChange ()
	Deletes all change notify subscriptions.
virtual void	end ()
virtual void	end ()
virtual void	flush ()
virtual void	flush ()
virtual bool	isDeletable ()
	If true we need to release the related memory in the destructor.
virtual bool	isDeletable ()
	If true we need to release the related memory in the destructor.
bool	isNotifyActive ()
	Checks if the automatic AudioInfo update is active.
bool	isNotifyActive ()
	Checks if the automatic AudioInfo update is active.
virtual	operator bool ()
virtual	operator bool ()
virtual bool	removeNotifyAudioChange (AudioInfoSupport &bi)
	Removes a target in order not to be notified about audio changes.
virtual bool	removeNotifyAudioChange (AudioInfoSupport &bi)
	Removes a target in order not to be notified about audio changes.
virtual void	setAudioInfo (AudioInfo newInfo) override
	Defines the input AudioInfo.
virtual void	setAudioInfo (AudioInfo newInfo) override
	Defines the input AudioInfo.
void	setNotifyActive (bool flag)
	Deactivate/Reactivate automatic AudioInfo updates: (default is active).
void	setNotifyActive (bool flag)
	Deactivate/Reactivate automatic AudioInfo updates: (default is active).
void	setTargetNo (int clientNo)
	For WebSocketServer we can define an individual recipient!
void	setWebSocket (WebSocketsClient &ws)
	Defines an alternative WebSocket object. By default we use WebSocket.
void	setWebSocket (WebSocketsServer &ws)
	Defines an alternative WebSocket object. By default we use WebSocket.
virtual size_t	write (uint8_t ch) override
size_t	write (const uint8_t *data, size_t len) override
	Replys will be sent to the initial remote caller.
virtual void	writeSilence (size_t len)
virtual void	writeSilence (size_t len)

Protected Member Functions
void	notifyAudioChange (AudioInfo info)
void	notifyAudioChange (AudioInfo info)

Protected Attributes
int	_timeout = 10
AudioInfo	cfg
int	clientNo = -1
bool	is_active = false
bool	is_notify_active = true
Vector< AudioInfoSupport * >	notify_vector
WebSocketsClient *	p_ws = nullptr
WebSocketsServer *	p_ws_server = nullptr
SingleBuffer< uint8_t >	tmp { 8 }
int	tmpPos = 0

Detailed Description

A simple wrapper class that lets you use the standard Arduino Print class output commands to send audio data over a WebSocket connection. Uses https://github.com/Links2004/arduinoWebSockets.

Author: Phil Schatzmann

Copyright: GPLv3

Constructor & Destructor Documentation

◆ WebSocketOutput() [1/3]

WebSocketOutput ( )

default

◆ WebSocketOutput() [2/3]

WebSocketOutput ( WebSocketsClient & ws )

inline

Constructor which defines an alternative WebSocket object. By default we use WebSocket.

◆ WebSocketOutput() [3/3]

WebSocketOutput ( WebSocketsServer & ws )

inline

Constructor which defines an alternative WebSocket object. By default we use WebSocket.

Member Function Documentation

◆ addNotifyAudioChange() [1/2]

virtual void addNotifyAudioChange ( AudioInfoSupport & bi )

inlinevirtualinherited

Adds target to be notified about audio changes.

Reimplemented in CodecNOP, CodecNOP, EncodedAudioOutput, and EncodedAudioStream.

◆ addNotifyAudioChange() [2/2]

virtual void addNotifyAudioChange ( AudioInfoSupport & bi )

inlinevirtualinherited

Adds target to be notified about audio changes.

Reimplemented in CodecNOP, CodecNOP, EncodedAudioOutput, and EncodedAudioStream.

◆ audioInfo() [1/2]

virtual AudioInfo audioInfo ( )

inlineoverridevirtualinherited

provides the actual input AudioInfo

Implements AudioInfoSupport.

Reimplemented in AdapterAudioStreamToAudioOutput, AdapterPrintToAudioOutput, AdapterAudioStreamToAudioOutput, AdapterPrintToAudioOutput, EncodedAudioOutput, and EncodedAudioOutput.

◆ audioInfo() [2/2]

virtual AudioInfo audioInfo ( )

inlineoverridevirtualinherited

provides the actual input AudioInfo

Implements AudioInfoSupport.

Reimplemented in AdapterAudioStreamToAudioOutput, AdapterPrintToAudioOutput, AdapterAudioStreamToAudioOutput, AdapterPrintToAudioOutput, EncodedAudioOutput, and EncodedAudioOutput.

◆ audioInfoOut() [1/2]

virtual AudioInfo audioInfoOut ( )

inlinevirtualinherited

provides the actual output AudioInfo: this is usually the same as audioInfo() unless we use a transforming stream

Reimplemented in ChannelFormatConverterStream, ChannelFormatConverterStreamT< T >, FormatConverterStream, MP3EncoderShine, NumberFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, Pipeline, PureDataStream, PWMAudioOutput< PWMDriverT >, ResampleStream, ResampleStreamT< TInterpolator >, and SupportedRatesStream.

◆ audioInfoOut() [2/2]

virtual AudioInfo audioInfoOut ( )

inlinevirtualinherited

provides the actual output AudioInfo: this is usually the same as audioInfo() unless we use a transforming stream

Reimplemented in ChannelFormatConverterStream, ChannelFormatConverterStreamT< T >, FormatConverterStream, MP3EncoderShine, NumberFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, Pipeline, PureDataStream, PWMAudioOutput< PWMDriverT >, ResampleStream, ResampleStreamT< TInterpolator >, and SupportedRatesStream.

◆ availableForWrite() [1/2]

virtual int availableForWrite ( )

inlineoverridevirtualinherited

Reimplemented from Print.

Reimplemented in AdapterAudioStreamToAudioOutput, AdapterAudioStreamToAudioOutput, CsvOutput< T >, CsvOutput< T >, EncodedAudioOutput, MemoryOutput, MemoryOutput, AudioESP32ULP, AudioServerEx, AudioSyncWriter, CsvOutput< T >, EncodedAudioOutput, MemoryOutput, PWMAudioOutput< PWMDriverT >, RTSPOutput< Platform >, and SPIAudioMaster.

◆ availableForWrite() [2/2]

virtual int availableForWrite ( )

inlineoverridevirtualinherited

Reimplemented from Print.

Reimplemented in AdapterAudioStreamToAudioOutput, AdapterAudioStreamToAudioOutput, CsvOutput< T >, CsvOutput< T >, EncodedAudioOutput, MemoryOutput, MemoryOutput, AudioESP32ULP, AudioServerEx, AudioSyncWriter, CsvOutput< T >, EncodedAudioOutput, MemoryOutput, PWMAudioOutput< PWMDriverT >, RTSPOutput< Platform >, and SPIAudioMaster.

◆ begin() [1/4]

virtual bool begin ( )

inlinevirtualinherited

◆ begin() [2/4]

virtual bool begin ( )

inlinevirtualinherited

◆ begin() [3/4]

virtual bool begin ( AudioInfo info )

inlinevirtualinherited

Reimplemented in ChannelsSelectOutput, CsvOutput< T >, CsvOutput< T >, and EncodedAudioOutput.

◆ begin() [4/4]

virtual bool begin ( AudioInfo info )

inlinevirtualinherited

Reimplemented in ChannelsSelectOutput, CsvOutput< T >, CsvOutput< T >, and EncodedAudioOutput.

◆ clearNotifyAudioChange() [1/2]

virtual void clearNotifyAudioChange ( )

inlinevirtualinherited

Deletes all change notify subscriptions.

Reimplemented in RTSPClient< TcpClient, UdpSocket >, RTSPClient< EthernetClient, EthernetUDP >, and RTSPClient< WiFiClient, WiFiUDP >.

◆ clearNotifyAudioChange() [2/2]

virtual void clearNotifyAudioChange ( )

inlinevirtualinherited

Deletes all change notify subscriptions.

Reimplemented in RTSPClient< TcpClient, UdpSocket >, RTSPClient< EthernetClient, EthernetUDP >, and RTSPClient< WiFiClient, WiFiUDP >.

◆ end() [1/2]

virtual void end ( )

inlinevirtualinherited

Reimplemented in AdapterAudioStreamToAudioOutput, AdapterAudioStreamToAudioOutput, EncodedAudioOutput, AudioESP32ULP, AudioServerEx, AudioSyncWriter, EncodedAudioOutput, MetaDataFilter, MetaDataOutput, OggContainerOutput, OpusOggWriter, PitchShiftOutput< T, BufferT >, PWMAudioOutput< PWMDriverT >, RTSPOutput< Platform >, and SPIAudioMaster.

◆ end() [2/2]

virtual void end ( )

inlinevirtualinherited

Reimplemented in AdapterAudioStreamToAudioOutput, AdapterAudioStreamToAudioOutput, EncodedAudioOutput, AudioESP32ULP, AudioServerEx, AudioSyncWriter, EncodedAudioOutput, MetaDataFilter, MetaDataOutput, OggContainerOutput, OpusOggWriter, PitchShiftOutput< T, BufferT >, PWMAudioOutput< PWMDriverT >, RTSPOutput< Platform >, and SPIAudioMaster.

◆ flush() [1/2]

virtual void flush ( )

inlinevirtualinherited

Reimplemented from Print.

Reimplemented in HexDumpOutput, HexDumpOutput, MultiOutput, HexDumpOutput, and MultiOutput.

◆ flush() [2/2]

virtual void flush ( )

inlinevirtualinherited

Reimplemented from Print.

Reimplemented in HexDumpOutput, HexDumpOutput, MultiOutput, HexDumpOutput, and MultiOutput.

◆ isDeletable() [1/2]

virtual bool isDeletable ( )

inlinevirtualinherited

If true we need to release the related memory in the destructor.

Reimplemented in AdapterAudioStreamToAudioOutput, AdapterPrintToAudioOutput, AdapterAudioStreamToAudioOutput, and AdapterPrintToAudioOutput.

◆ isDeletable() [2/2]

virtual bool isDeletable ( )

inlinevirtualinherited

If true we need to release the related memory in the destructor.

Reimplemented in AdapterAudioStreamToAudioOutput, AdapterPrintToAudioOutput, AdapterAudioStreamToAudioOutput, and AdapterPrintToAudioOutput.

◆ isNotifyActive() [1/2]

bool isNotifyActive ( )

inlineinherited

Checks if the automatic AudioInfo update is active.

◆ isNotifyActive() [2/2]

bool isNotifyActive ( )

inlineinherited

Checks if the automatic AudioInfo update is active.

◆ notifyAudioChange() [1/2]

void notifyAudioChange ( AudioInfo info )

inlineprotectedinherited

◆ notifyAudioChange() [2/2]

void notifyAudioChange ( AudioInfo info )

inlineprotectedinherited

◆ operator bool() [1/2]

virtual operator bool ( )

inlinevirtualinherited

Reimplemented in AdapterAudioStreamToAudioOutput, AdapterAudioStreamToAudioOutput, EncodedAudioOutput, EncodedAudioOutput, and RTSPOutput< Platform >.

◆ operator bool() [2/2]

virtual operator bool ( )

inlinevirtualinherited

Reimplemented in AdapterAudioStreamToAudioOutput, AdapterAudioStreamToAudioOutput, EncodedAudioOutput, EncodedAudioOutput, and RTSPOutput< Platform >.

◆ removeNotifyAudioChange() [1/2]

virtual bool removeNotifyAudioChange ( AudioInfoSupport & bi )

inlinevirtualinherited

Removes a target in order not to be notified about audio changes.

◆ removeNotifyAudioChange() [2/2]

virtual bool removeNotifyAudioChange ( AudioInfoSupport & bi )

inlinevirtualinherited

Removes a target in order not to be notified about audio changes.

◆ setAudioInfo() [1/2]

virtual void setAudioInfo ( AudioInfo info )

inlineoverridevirtualinherited

Defines the input AudioInfo.

Implements AudioInfoSupport.

Reimplemented in AdapterAudioStreamToAudioOutput, AdapterPrintToAudioOutput, ChannelsSelectOutput, CsvOutput< T >, CsvOutput< T >, EncodedAudioOutput, and MultiOutput.

◆ setAudioInfo() [2/2]

virtual void setAudioInfo ( AudioInfo info )

inlineoverridevirtualinherited

Defines the input AudioInfo.

Implements AudioInfoSupport.

Reimplemented in AdapterAudioStreamToAudioOutput, AdapterPrintToAudioOutput, ChannelsSelectOutput, CsvOutput< T >, CsvOutput< T >, EncodedAudioOutput, and MultiOutput.

◆ setNotifyActive() [1/2]

void setNotifyActive ( bool flag )

inlineinherited

Deactivate/Reactivate automatic AudioInfo updates: (default is active).

◆ setNotifyActive() [2/2]

void setNotifyActive ( bool flag )

inlineinherited

Deactivate/Reactivate automatic AudioInfo updates: (default is active).

◆ setTargetNo()

void setTargetNo ( int clientNo )

inline

For WebSocketServer we can define an individual recipient!

◆ setWebSocket() [1/2]

void setWebSocket ( WebSocketsClient & ws )

inline

Defines an alternative WebSocket object. By default we use WebSocket.

◆ setWebSocket() [2/2]

void setWebSocket ( WebSocketsServer & ws )

inline

Defines an alternative WebSocket object. By default we use WebSocket.

◆ write() [1/2]

virtual size_t write ( uint8_t ch )

inlineoverridevirtualinherited

Reimplemented in MultiOutput, MetaDataOutput, and MultiOutput.

◆ write() [2/2]

size_t write	(	const uint8_t *	data,
		size_t	len )

inlineoverridevirtual

Replys will be sent to the initial remote caller.

Implements AudioOutput.

◆ writeSilence() [1/2]

virtual void writeSilence ( size_t len )

inlinevirtualinherited

Writes n 0 values (= silence)

Parameters

len

◆ writeSilence() [2/2]

virtual void writeSilence ( size_t len )

inlinevirtualinherited

Writes n 0 values (= silence)

Parameters

len

Member Data Documentation

◆ _timeout

int _timeout = 10

protectedinherited

◆ cfg

AudioInfo cfg

protectedinherited

◆ clientNo

int clientNo = -1

protected

◆ is_active

bool is_active = false

protectedinherited

◆ is_notify_active

bool is_notify_active = true

protectedinherited

◆ notify_vector

Vector< AudioInfoSupport * > notify_vector

protectedinherited

◆ p_ws

WebSocketsClient* p_ws = nullptr

protected

◆ p_ws_server

WebSocketsServer* p_ws_server = nullptr

protected

◆ tmp

SingleBuffer< uint8_t > tmp { 8 }

protectedinherited

◆ tmpPos

int tmpPos = 0

protectedinherited

The documentation for this class was generated from the following file:

src/AudioTools/Communication/WebSocketOutput.h

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ WebSocketOutput() [1/3]

◆ WebSocketOutput() [2/3]

◆ WebSocketOutput() [3/3]

Member Function Documentation

◆ addNotifyAudioChange() [1/2]

◆ addNotifyAudioChange() [2/2]

◆ audioInfo() [1/2]

◆ audioInfo() [2/2]

◆ audioInfoOut() [1/2]

◆ audioInfoOut() [2/2]

◆ availableForWrite() [1/2]

◆ availableForWrite() [2/2]

◆ begin() [1/4]

◆ begin() [2/4]

◆ begin() [3/4]

◆ begin() [4/4]

◆ clearNotifyAudioChange() [1/2]

◆ clearNotifyAudioChange() [2/2]

◆ end() [1/2]

◆ end() [2/2]

◆ flush() [1/2]

◆ flush() [2/2]

◆ isDeletable() [1/2]

◆ isDeletable() [2/2]

◆ isNotifyActive() [1/2]

◆ isNotifyActive() [2/2]

◆ notifyAudioChange() [1/2]

◆ notifyAudioChange() [2/2]

◆ operator bool() [1/2]

◆ operator bool() [2/2]

◆ removeNotifyAudioChange() [1/2]

◆ removeNotifyAudioChange() [2/2]

◆ setAudioInfo() [1/2]

◆ setAudioInfo() [2/2]

◆ setNotifyActive() [1/2]

◆ setNotifyActive() [2/2]

◆ setTargetNo()

◆ setWebSocket() [1/2]

◆ setWebSocket() [2/2]

◆ write() [1/2]

◆ write() [2/2]

◆ writeSilence() [1/2]

◆ writeSilence() [2/2]

Member Data Documentation

◆ _timeout

◆ cfg

◆ clientNo

◆ is_active

◆ is_notify_active

◆ notify_vector

◆ p_ws

◆ p_ws_server

◆ tmp

◆ tmpPos
