tinymodem::ModemEncoder Class Reference

Common API of the modulators (FSKEncoder, MFSKEncoder): the written data is converted to 16 bit PCM audio which is written to the output. More...

#include <ModemBase.h>

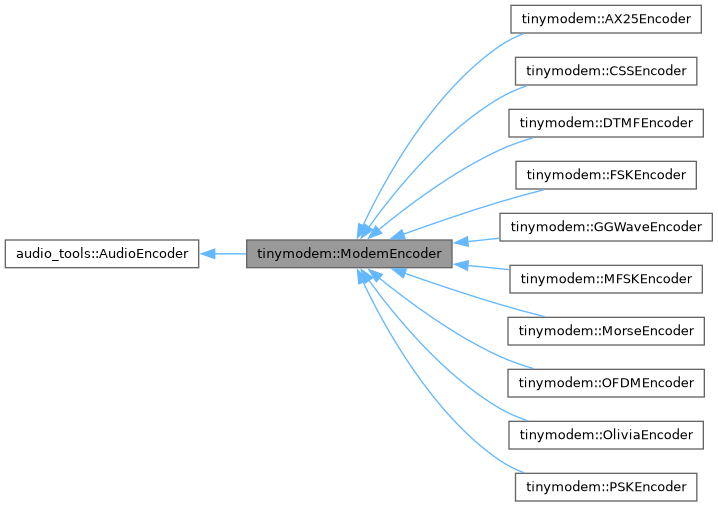

Inheritance diagram for tinymodem::ModemEncoder:

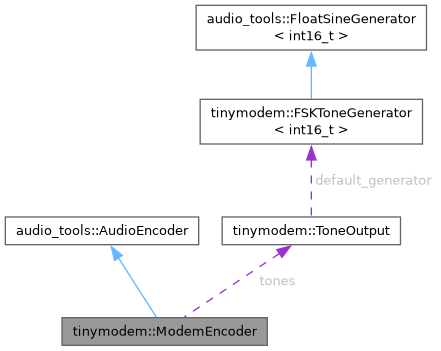

Collaboration diagram for tinymodem::ModemEncoder:

Public Member Functions
void	setOutput (Print &out) override
void	setGenerator (audio_tools::SoundGenerator< int16_t > &generator)
audio_tools::SoundGenerator< int16_t > &	getGenerator ()
	Provides the active tone generator.
virtual bool	endTransmission (size_t silence_samples=0)=0
virtual bool	isTransmitting ()=0
	true between the first character and endTransmission()
virtual bool	writeIdle (size_t nsamples)
	Sends an idle carrier: returns false if this is not supported.
void	writeSilence (size_t nsamples)
	Writes the indicated number of samples of silence.
void	writeTone (float freq, size_t nsamples)
	Writes a tone for the indicated number of samples.
void	flush ()
	Ends the transmission.
virtual float	symbolRate ()=0
	Symbols (bits for FSK) per second.
const char *	mime () override

Protected Attributes
ToneOutput	tones

Detailed Description

Common API of the modulators (FSKEncoder, MFSKEncoder): the written data is converted to 16 bit PCM audio which is written to the output.

Copyright

GPLv3

Member Function Documentation

endTransmission()

virtual bool tinymodem::ModemEncoder::endTransmission ( size_t silence_samples = 0 )

pure virtual

Ends the transmission (and adds optional silence): returns true if a transmission was ended

Implemented in tinymodem::AX25Encoder, tinymodem::CSSEncoder, tinymodem::DTMFEncoder, tinymodem::FSKEncoder, tinymodem::GGWaveEncoder, tinymodem::MFSKEncoder, tinymodem::MorseEncoder, tinymodem::OFDMEncoder, tinymodem::OliviaEncoder, and tinymodem::PSKEncoder.

flush()

void tinymodem::ModemEncoder::flush ( )

inline

Ends the transmission.

getGenerator()

audio_tools::SoundGenerator< int16_t > & tinymodem::ModemEncoder::getGenerator ( )

inline

Provides the active tone generator.

isTransmitting()

virtual bool tinymodem::ModemEncoder::isTransmitting ( )

pure virtual

true between the first character and endTransmission()

Implemented in tinymodem::AX25Encoder, tinymodem::CSSEncoder, tinymodem::DTMFEncoder, tinymodem::FSKEncoder, tinymodem::GGWaveEncoder, tinymodem::MFSKEncoder, tinymodem::MorseEncoder, tinymodem::OFDMEncoder, tinymodem::OliviaEncoder, and tinymodem::PSKEncoder.

mime()

const char * tinymodem::ModemEncoder::mime ( )

inlineoverride

setGenerator()

void tinymodem::ModemEncoder::setGenerator ( audio_tools::SoundGenerator< int16_t > & generator )

inline

Replaces the default tone generator: the generator must change the frequency immediately and keep the phase continuous in setFrequency() (e.g. the AudioTools FastIntSineGenerator). Call it before begin().

setOutput()

void tinymodem::ModemEncoder::setOutput ( Print & out )

inlineoverride

symbolRate()

virtual float tinymodem::ModemEncoder::symbolRate ( )

pure virtual

Symbols (bits for FSK) per second.

Implemented in tinymodem::AX25Encoder, tinymodem::CSSEncoder, tinymodem::DTMFEncoder, tinymodem::FSKEncoder, tinymodem::GGWaveEncoder, tinymodem::MFSKEncoder, tinymodem::MorseEncoder, tinymodem::OFDMEncoder, tinymodem::OliviaEncoder, and tinymodem::PSKEncoder.

writeIdle()

virtual bool tinymodem::ModemEncoder::writeIdle ( size_t nsamples )

inlinevirtual

Sends an idle carrier: returns false if this is not supported.

Reimplemented in tinymodem::AX25Encoder, tinymodem::DTMFEncoder, tinymodem::FSKEncoder, tinymodem::MorseEncoder, tinymodem::OliviaEncoder, and tinymodem::PSKEncoder.

writeSilence()

void tinymodem::ModemEncoder::writeSilence ( size_t nsamples )

inline

Writes the indicated number of samples of silence.

writeTone()

void tinymodem::ModemEncoder::writeTone ( float freq, size_t nsamples )

inline

Writes a tone for the indicated number of samples.

Member Data Documentation

tones

ToneOutput tinymodem::ModemEncoder::tones

protected

---

The documentation for this class was generated from the following file:

• src/modem/ModemBase.h
