ggwave compatible modulator: the written bytes are collected into messages of up to 140 bytes. A message is sent when it is full or when you call endTransmission() (or flush()). The generated audio is identical to the audio of ggwave (variable length format). More...

#include <GGWaveEncoder.h>

Inheritance diagram for tinymodem::GGWaveEncoder:

[legend]

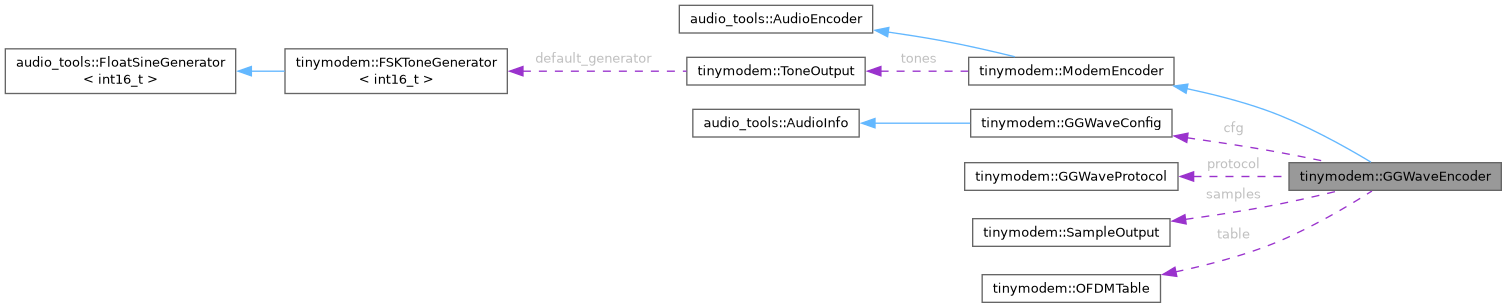

Collaboration diagram for tinymodem::GGWaveEncoder:

[legend]

Classes
struct	Tone
	a tone: FFT bin relative to freq_start and index of the phase offset More...

Public Member Functions
	GGWaveEncoder ()=default
	GGWaveEncoder (Print &out)
GGWaveConfig	defaultConfig ()
	Provides a default configuration: ggwave-fast.
void	setOutput (Print &out) override
void	setAudioInfo (audio_tools::AudioInfo info) override
	Defines the sample rate and number of channels of the generated audio.
audio_tools::AudioInfo	audioInfo () override
bool	begin (GGWaveConfig config)
	Starts the processing with the indicated configuration.
bool	begin () override
void	end () override
size_t	write (const uint8_t *data, size_t len) override
	Collects the bytes and sends full messages.
bool	endTransmission (size_t silence_samples=0) override
bool	isTransmitting () override
	true if there is data which was not sent yet
float	symbolRate () override
	Data symbols per second.
GGWaveConfig &	config ()
	The configuration which was provided in begin().
	operator bool () override
Public Member Functions inherited from tinymodem::ModemEncoder
void	setOutput (Print &out) override
void	setGenerator (audio_tools::SoundGenerator< int16_t > &generator)
audio_tools::SoundGenerator< int16_t > &	getGenerator ()
	Provides the active tone generator.
virtual bool	writeIdle (size_t nsamples)
	Sends an idle carrier: returns false if this is not supported.
void	writeSilence (size_t nsamples)
	Writes the indicated number of samples of silence.
void	writeTone (float freq, size_t nsamples)
	Writes a tone for the indicated number of samples.
void	flush ()
	Ends the transmission.
const char *	mime () override

Protected Member Functions
void	sendMessage ()
void	sendFrame (const Tone *tones, int ntones, int cycle, int frames)

Protected Attributes
GGWaveConfig	cfg
GGWaveProtocol	protocol
SampleOutput	samples
OFDMTable	table
bool	is_active = false
int	frame_size = 1024
uint8_t	message [GGWaveConfig::MAX_PAYLOAD]
int	message_len = 0
uint8_t	encoded [GGWaveConfig::LENGTH_BYTES+GGWaveConfig::MAX_PAYLOAD+2 *(GGWaveConfig::MAX_PAYLOAD/5)+3]
Protected Attributes inherited from tinymodem::ModemEncoder
ToneOutput	tones

Detailed Description

ggwave compatible modulator: the written bytes are collected into messages of up to 140 bytes. A message is sent when it is full or when you call endTransmission() (or flush()). The generated audio is identical to the audio of ggwave (variable length format).

A message consists of the start marker (16 frames), the Reed-Solomon coded length (3 bytes), the Reed-Solomon coded payload and the end marker (16 frames). Each byte is sent as 2 simultaneous tones (one of 16 tones for each nibble) and each symbol lasts GGWaveProtocol::frames_per_tx frames.

Copyright: GPLv3

Constructor & Destructor Documentation

◆ GGWaveEncoder() [1/2]

tinymodem::GGWaveEncoder::GGWaveEncoder ( )

default

◆ GGWaveEncoder() [2/2]

tinymodem::GGWaveEncoder::GGWaveEncoder ( Print & out )

inline

Member Function Documentation

◆ audioInfo()

audio_tools::AudioInfo tinymodem::GGWaveEncoder::audioInfo ( )

inlineoverride

◆ begin() [1/2]

bool tinymodem::GGWaveEncoder::begin ( )

inlineoverride

◆ begin() [2/2]

bool tinymodem::GGWaveEncoder::begin ( GGWaveConfig config )

inline

Starts the processing with the indicated configuration.

◆ config()

GGWaveConfig & tinymodem::GGWaveEncoder::config ( )

inline

The configuration which was provided in begin().

◆ defaultConfig()

GGWaveConfig tinymodem::GGWaveEncoder::defaultConfig ( )

inline

Provides a default configuration: ggwave-fast.

◆ end()

void tinymodem::GGWaveEncoder::end ( )

inlineoverride

◆ endTransmission()

bool tinymodem::GGWaveEncoder::endTransmission ( size_t silence_samples = 0 )

inlineoverridevirtual

Sends the collected bytes (and optional silence): returns true if a message was sent

Implements tinymodem::ModemEncoder.

◆ isTransmitting()

bool tinymodem::GGWaveEncoder::isTransmitting ( )

inlineoverridevirtual

true if there is data which was not sent yet

Implements tinymodem::ModemEncoder.

◆ operator bool()

tinymodem::GGWaveEncoder::operator bool ( )

inlineoverride

◆ sendFrame()

void tinymodem::GGWaveEncoder::sendFrame	(	const Tone *	tones,
		int	ntones,
		int	cycle,
		int	frames )

inlineprotected

Writes a frame with the indicated tones: the amplitude rises during the first 15% and falls during the last 15% of a cycle (symbol or marker) of frames (like ggwave's addAmplitudeSmooth())

◆ sendMessage()

void tinymodem::GGWaveEncoder::sendMessage ( )

inlineprotected

◆ setAudioInfo()

void tinymodem::GGWaveEncoder::setAudioInfo ( audio_tools::AudioInfo info )

inlineoverride

Defines the sample rate and number of channels of the generated audio.

◆ setOutput()

void tinymodem::GGWaveEncoder::setOutput ( Print & out )

inlineoverride

◆ symbolRate()

float tinymodem::GGWaveEncoder::symbolRate ( )

inlineoverridevirtual

Data symbols per second.

Implements tinymodem::ModemEncoder.

◆ write()

size_t tinymodem::GGWaveEncoder::write	(	const uint8_t *	data,
		size_t	len )

inlineoverride

Collects the bytes and sends full messages.

Member Data Documentation

◆ cfg

GGWaveConfig tinymodem::GGWaveEncoder::cfg

protected

◆ encoded

uint8_t tinymodem::GGWaveEncoder::encoded[GGWaveConfig::LENGTH_BYTES+GGWaveConfig::MAX_PAYLOAD+ 2 *(GGWaveConfig::MAX_PAYLOAD/5)+3]

protected

◆ frame_size

int tinymodem::GGWaveEncoder::frame_size = 1024

protected

◆ is_active

bool tinymodem::GGWaveEncoder::is_active = false

protected

◆ message

uint8_t tinymodem::GGWaveEncoder::message[GGWaveConfig::MAX_PAYLOAD]

protected

◆ message_len

int tinymodem::GGWaveEncoder::message_len = 0

protected

◆ protocol

GGWaveProtocol tinymodem::GGWaveEncoder::protocol

protected

◆ samples

SampleOutput tinymodem::GGWaveEncoder::samples

protected

◆ table

OFDMTable tinymodem::GGWaveEncoder::table

protected

The documentation for this class was generated from the following file:

src/modem/GGWaveEncoder.h
