tinymodem::DTMFEncoder Class Reference

DTMF (touch tone) modulator: each written character 0-9, *, #, A-D (also a-d) is sent as a tone pair of DTMFConfig::tone_ms followed by a pause of DTMFConfig::pause_ms. A ',' adds a pause of DTMFConfig::comma_ms, all other characters are ignored. The tones fade in and out within 2 ms to avoid clicks. More...

#include <DTMFEncoder.h>

Inheritance diagram for tinymodem::DTMFEncoder:

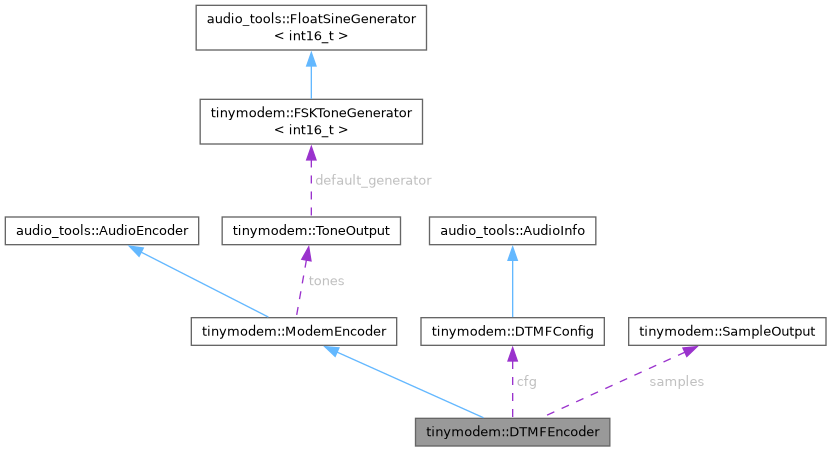

Collaboration diagram for tinymodem::DTMFEncoder:

Public Member Functions
	DTMFEncoder ()=default
	DTMFEncoder (Print &out)
DTMFConfig	defaultConfig ()
	Provides a default configuration.
void	setOutput (Print &out) override
void	setAudioInfo (audio_tools::AudioInfo info) override
	Defines the sample rate and number of channels of the generated audio.
audio_tools::AudioInfo	audioInfo () override
bool	begin (DTMFConfig config)
	Starts the processing with the indicated configuration.
bool	begin () override
void	end () override
size_t	write (const uint8_t *data, size_t len) override
	Sends the keys.
bool	writeKey (char key)
bool	endTransmission (size_t silence_samples=0) override
bool	writeIdle (size_t nsamples) override
	Sends silence for the indicated number of samples.
bool	isTransmitting () override
	true between the first key and endTransmission()
float	symbolRate () override
	Keys per second.
DTMFConfig &	config ()
	The configuration which was provided in begin().
	operator bool () override
Public Member Functions inherited from tinymodem::ModemEncoder
void	setOutput (Print &out) override
void	setGenerator (audio_tools::SoundGenerator< int16_t > &generator)
audio_tools::SoundGenerator< int16_t > &	getGenerator ()
	Provides the active tone generator.
void	writeSilence (size_t nsamples)
	Writes the indicated number of samples of silence.
void	writeTone (float freq, size_t nsamples)
	Writes a tone for the indicated number of samples.
void	flush ()
	Ends the transmission.
const char *	mime () override

Protected Member Functions
void	sendKey (int row, int column)
void	silence (int ms)

Protected Attributes
DTMFConfig	cfg
SampleOutput	samples
bool	is_active = false
bool	transmitting = false
Protected Attributes inherited from tinymodem::ModemEncoder
ToneOutput	tones

Static Protected Attributes
static constexpr float	RAMP_MS = 2.0f

Detailed Description

DTMF (touch tone) modulator: each written character 0-9, *, #, A-D (also a-d) is sent as a tone pair of DTMFConfig::tone_ms followed by a pause of DTMFConfig::pause_ms. A ',' adds a pause of DTMFConfig::comma_ms, all other characters are ignored. The tones fade in and out within 2 ms to avoid clicks.

Copyright

GPLv3

Constructor & Destructor Documentation

DTMFEncoder() [1/2]

tinymodem::DTMFEncoder::DTMFEncoder ( )

default

DTMFEncoder() [2/2]

tinymodem::DTMFEncoder::DTMFEncoder ( Print & out )

inline

Member Function Documentation

audioInfo()

audio_tools::AudioInfo tinymodem::DTMFEncoder::audioInfo ( )

inlineoverride

begin() [1/2]

bool tinymodem::DTMFEncoder::begin ( )

inlineoverride

begin() [2/2]

bool tinymodem::DTMFEncoder::begin ( DTMFConfig config )

inline

Starts the processing with the indicated configuration.

config()

DTMFConfig & tinymodem::DTMFEncoder::config ( )

inline

The configuration which was provided in begin().

defaultConfig()

DTMFConfig tinymodem::DTMFEncoder::defaultConfig ( )

inline

Provides a default configuration.

end()

void tinymodem::DTMFEncoder::end ( )

inlineoverride

endTransmission()

bool tinymodem::DTMFEncoder::endTransmission ( size_t silence_samples = 0 )

inlineoverridevirtual

Ends the transmission (and adds optional silence): returns true if a transmission was ended

Implements tinymodem::ModemEncoder.

isTransmitting()

bool tinymodem::DTMFEncoder::isTransmitting ( )

inlineoverridevirtual

true between the first key and endTransmission()

Implements tinymodem::ModemEncoder.

operator bool()

tinymodem::DTMFEncoder::operator bool ( )

inlineoverride

sendKey()

void tinymodem::DTMFEncoder::sendKey ( int row, int column )

inlineprotected

setAudioInfo()

void tinymodem::DTMFEncoder::setAudioInfo ( audio_tools::AudioInfo info )

inlineoverride

Defines the sample rate and number of channels of the generated audio.

setOutput()

void tinymodem::DTMFEncoder::setOutput ( Print & out )

inlineoverride

silence()

void tinymodem::DTMFEncoder::silence ( int ms )

inlineprotected

symbolRate()

float tinymodem::DTMFEncoder::symbolRate ( )

inlineoverridevirtual

Keys per second.

Implements tinymodem::ModemEncoder.

write()

size_t tinymodem::DTMFEncoder::write ( const uint8_t * data, size_t len )

inlineoverride

Sends the keys.

writeIdle()

bool tinymodem::DTMFEncoder::writeIdle ( size_t nsamples )

inlineoverridevirtual

Sends silence for the indicated number of samples.

Reimplemented from tinymodem::ModemEncoder.

writeKey()

bool tinymodem::DTMFEncoder::writeKey ( char key )

inline

Sends a single key (e.g. '5' or '#'): returns false if the character is not a DTMF key

Member Data Documentation

cfg

DTMFConfig tinymodem::DTMFEncoder::cfg

protected

is_active

bool tinymodem::DTMFEncoder::is_active = false

protected

RAMP_MS

float tinymodem::DTMFEncoder::RAMP_MS = 2.0f

staticconstexprprotected

samples

SampleOutput tinymodem::DTMFEncoder::samples

protected

transmitting

bool tinymodem::DTMFEncoder::transmitting = false

protected

---

The documentation for this class was generated from the following file:

• src/modem/DTMFEncoder.h
