AX.25 packet radio modulator (APRS, 1200 baud AFSK). The written data is converted to AX.25 frames, which are sent with HDLC framing (flags, bit stuffing, frame check sequence) and NRZI coding. More...

#include <AX25Encoder.h>

Inheritance diagram for tinymodem::AX25Encoder:

[legend]

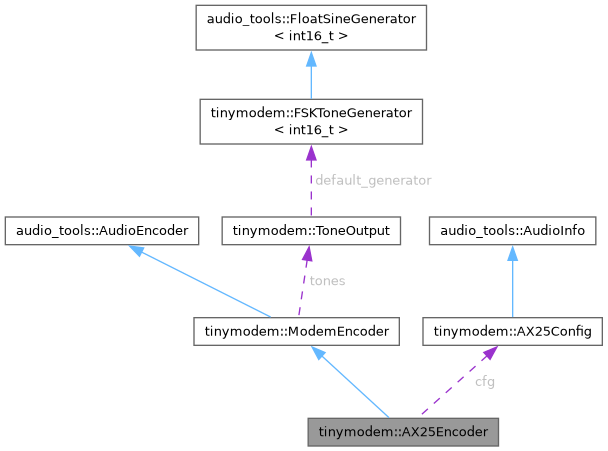

Collaboration diagram for tinymodem::AX25Encoder:

[legend]

Public Member Functions
	AX25Encoder ()=default
	AX25Encoder (Print &out)
AX25Config	defaultConfig ()
	Provides a default configuration: APRS (1200 baud AFSK).
void	setAudioInfo (audio_tools::AudioInfo info) override
	Defines the sample rate and number of channels of the generated audio.
audio_tools::AudioInfo	audioInfo () override
bool	begin (AX25Config config)
	Starts the processing with the indicated configuration.
bool	begin () override
void	end () override
size_t	write (const uint8_t *data, size_t len) override
	Provide the frames as text lines or KISS frames.
bool	writeFrame (const uint8_t *frame, size_t len)
	Sends a frame (without FCS).
bool	endTransmission (size_t silence_samples=0) override
bool	writeIdle (size_t nsamples) override
	Sends flags for the indicated number of samples.
bool	isTransmitting () override
	true between the first frame and endTransmission()
float	symbolRate () override
	Bits per second.
size_t	frameCount ()
	Number of sent frames.
AX25Config &	config ()
	The configuration which was provided in begin().
	operator bool () override
Public Member Functions inherited from tinymodem::ModemEncoder
void	setOutput (Print &out) override
void	setGenerator (audio_tools::SoundGenerator< int16_t > &generator)
audio_tools::SoundGenerator< int16_t > &	getGenerator ()
	Provides the active tone generator.
void	writeSilence (size_t nsamples)
	Writes the indicated number of samples of silence.
void	writeTone (float freq, size_t nsamples)
	Writes a tone for the indicated number of samples.
void	flush ()
	Ends the transmission.
const char *	mime () override

Protected Types
enum class	KissState { IDLE , COMMAND , DATA , ESCAPE }

Protected Member Functions
void	writeText (uint8_t ch)
void	writeKiss (uint8_t ch)
void	addKiss (uint8_t ch)
void	startTransmission ()
void	sendPreamble (int ms)
	Flags (IL2P: 0x55) for the indicated time.
bool	writeFX25 (const uint8_t *frame, size_t len)
	FX.25: correlation tag and Reed-Solomon code word (NRZI, no stuffing).
bool	writeIL2P (const uint8_t *frame, size_t len)
	IL2P: preamble, sync word and the encoded frame (no NRZI).
void	sendBits (uint8_t value)
	least significant bit first without bit stuffing (NRZI)
void	sendRawByte (uint8_t value)
	most significant bit first without NRZI: 1 = mark
void	sendFlag ()
	0x7E without bit stuffing
void	sendByte (uint8_t value)
	least significant bit first with bit stuffing
void	sendBit (int bit)
	NRZI: a 0 changes the tone, a 1 keeps it.
void	sendTone ()
	sends the current tone for one bit

Protected Attributes
AX25Config	cfg
bool	is_active = false
bool	transmitting = false
double	samples_per_bit = 40
uint64_t	bit_index = 0
bool	nrzi_tone = true
int	ones = 0
size_t	frames = 0
char	input [AX25Frame::MAX_FRAME+100]
int	input_len = 0
uint8_t	frame [AX25Frame::MAX_FRAME]
KissState	kiss_state = KissState::IDLE
bool	kiss_data_frame = false
Protected Attributes inherited from tinymodem::ModemEncoder
ToneOutput	tones

Detailed Description

AX.25 packet radio modulator (APRS, 1200 baud AFSK). The written data is converted to AX.25 frames, which are sent with HDLC framing (flags, bit stuffing, frame check sequence) and NRZI coding.

In AX25Format::TEXT each line (terminated by '
') is a frame in the monitor format SRC>DEST,DIGI1,DIGI2:info. In AX25Format::KISS the data consists of KISS frames. A frame is sent as soon as it is complete: the first frame of a transmission is preceded by tx_delay_ms of flags. Call endTransmission() (or flush()) to send the tail flags.

AX25Config::layer2 selects FX.25 (the HDLC frame is sent as data of a Reed-Solomon code word with a correlation tag) or IL2P (preamble 0x55, sync word, scrambled header and payload with Reed-Solomon parity, without NRZI) instead of standard AX.25.

Copyright: GPLv3

Member Enumeration Documentation

◆ KissState

enum class tinymodem::AX25Encoder::KissState

strongprotected

Enumerator
IDLE
COMMAND
DATA
ESCAPE

Constructor & Destructor Documentation

◆ AX25Encoder() [1/2]

tinymodem::AX25Encoder::AX25Encoder ( )

default

◆ AX25Encoder() [2/2]

tinymodem::AX25Encoder::AX25Encoder ( Print & out )

inline

Member Function Documentation

◆ addKiss()

void tinymodem::AX25Encoder::addKiss ( uint8_t ch )

inlineprotected

◆ audioInfo()

audio_tools::AudioInfo tinymodem::AX25Encoder::audioInfo ( )

inlineoverride

◆ begin() [1/2]

bool tinymodem::AX25Encoder::begin ( )

inlineoverride

◆ begin() [2/2]

bool tinymodem::AX25Encoder::begin ( AX25Config config )

inline

Starts the processing with the indicated configuration.

◆ config()

AX25Config & tinymodem::AX25Encoder::config ( )

inline

The configuration which was provided in begin().

◆ defaultConfig()

AX25Config tinymodem::AX25Encoder::defaultConfig ( )

inline

Provides a default configuration: APRS (1200 baud AFSK).

◆ end()

void tinymodem::AX25Encoder::end ( )

inlineoverride

◆ endTransmission()

bool tinymodem::AX25Encoder::endTransmission ( size_t silence_samples = 0 )

inlineoverridevirtual

Sends the tail flags (and optional silence): returns true if a transmission was ended.

Implements tinymodem::ModemEncoder.

◆ frameCount()

size_t tinymodem::AX25Encoder::frameCount ( )

inline

Number of sent frames.

◆ isTransmitting()

bool tinymodem::AX25Encoder::isTransmitting ( )

inlineoverridevirtual

true between the first frame and endTransmission()

Implements tinymodem::ModemEncoder.

◆ operator bool()

tinymodem::AX25Encoder::operator bool ( )

inlineoverride

◆ sendBit()

void tinymodem::AX25Encoder::sendBit ( int bit )

inlineprotected

NRZI: a 0 changes the tone, a 1 keeps it.

◆ sendBits()

void tinymodem::AX25Encoder::sendBits ( uint8_t value )

inlineprotected

least significant bit first without bit stuffing (NRZI)

◆ sendByte()

void tinymodem::AX25Encoder::sendByte ( uint8_t value )

inlineprotected

least significant bit first with bit stuffing

◆ sendFlag()

void tinymodem::AX25Encoder::sendFlag ( )

inlineprotected

0x7E without bit stuffing

◆ sendPreamble()

void tinymodem::AX25Encoder::sendPreamble ( int ms )

inlineprotected

Flags (IL2P: 0x55) for the indicated time.

◆ sendRawByte()

void tinymodem::AX25Encoder::sendRawByte ( uint8_t value )

inlineprotected

most significant bit first without NRZI: 1 = mark

◆ sendTone()

void tinymodem::AX25Encoder::sendTone ( )

inlineprotected

sends the current tone for one bit

◆ setAudioInfo()

void tinymodem::AX25Encoder::setAudioInfo ( audio_tools::AudioInfo info )

inlineoverride

Defines the sample rate and number of channels of the generated audio.

◆ startTransmission()

void tinymodem::AX25Encoder::startTransmission ( )

inlineprotected

◆ symbolRate()

float tinymodem::AX25Encoder::symbolRate ( )

inlineoverridevirtual

Bits per second.

Implements tinymodem::ModemEncoder.

◆ write()

size_t tinymodem::AX25Encoder::write	(	const uint8_t *	data,
		size_t	len )

inlineoverride

Provide the frames as text lines or KISS frames.

◆ writeFrame()

bool tinymodem::AX25Encoder::writeFrame	(	const uint8_t *	frame,
		size_t	len )

inline

Sends a frame (without FCS).

◆ writeFX25()

bool tinymodem::AX25Encoder::writeFX25	(	const uint8_t *	frame,
		size_t	len )

inlineprotected

FX.25: correlation tag and Reed-Solomon code word (NRZI, no stuffing).

◆ writeIdle()

bool tinymodem::AX25Encoder::writeIdle ( size_t nsamples )

inlineoverridevirtual

Sends flags for the indicated number of samples.

Reimplemented from tinymodem::ModemEncoder.

◆ writeIL2P()

bool tinymodem::AX25Encoder::writeIL2P	(	const uint8_t *	frame,
		size_t	len )

inlineprotected

IL2P: preamble, sync word and the encoded frame (no NRZI).

◆ writeKiss()

void tinymodem::AX25Encoder::writeKiss ( uint8_t ch )

inlineprotected

◆ writeText()

void tinymodem::AX25Encoder::writeText ( uint8_t ch )

inlineprotected

Member Data Documentation

◆ bit_index

uint64_t tinymodem::AX25Encoder::bit_index = 0

protected

◆ cfg

AX25Config tinymodem::AX25Encoder::cfg

protected

◆ frame

uint8_t tinymodem::AX25Encoder::frame[AX25Frame::MAX_FRAME]

protected

◆ frames

size_t tinymodem::AX25Encoder::frames = 0

protected

◆ input

char tinymodem::AX25Encoder::input[AX25Frame::MAX_FRAME+100]

protected

◆ input_len

int tinymodem::AX25Encoder::input_len = 0

protected

◆ is_active

bool tinymodem::AX25Encoder::is_active = false

protected

◆ kiss_data_frame

bool tinymodem::AX25Encoder::kiss_data_frame = false

protected

◆ kiss_state

KissState tinymodem::AX25Encoder::kiss_state = KissState::IDLE

protected

◆ nrzi_tone

bool tinymodem::AX25Encoder::nrzi_tone = true

protected

◆ ones

int tinymodem::AX25Encoder::ones = 0

protected

◆ samples_per_bit

double tinymodem::AX25Encoder::samples_per_bit = 40

protected

◆ transmitting

bool tinymodem::AX25Encoder::transmitting = false

protected

The documentation for this class was generated from the following file:

src/modem/AX25Encoder.h
