PSK modulator (compatible with fldigi): the written bytes are Varicode encoded and each symbol is a phase step with a cosine shaped transition from the previous phase. More...

#include <PSKEncoder.h>

Inheritance diagram for tinymodem::PSKEncoder:

[legend]

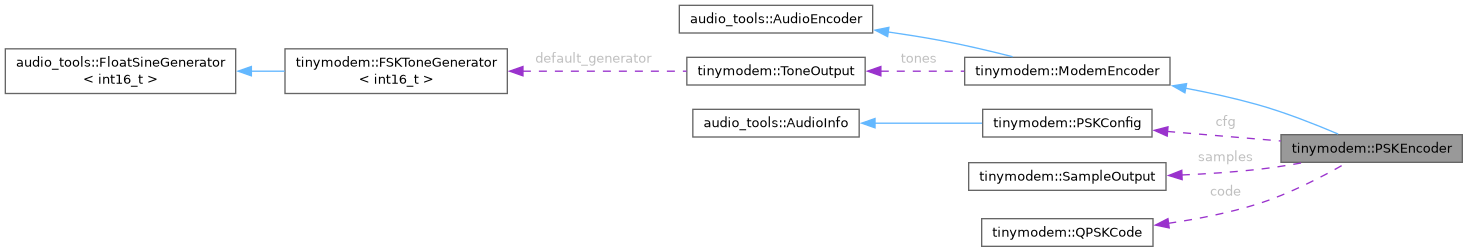

Collaboration diagram for tinymodem::PSKEncoder:

[legend]

Public Member Functions
	PSKEncoder ()=default
	PSKEncoder (Print &out)
PSKConfig	defaultConfig ()
	Provides a default configuration: psk31.
void	setOutput (Print &out) override
void	setAudioInfo (audio_tools::AudioInfo info) override
	Defines the sample rate and number of channels of the generated audio.
audio_tools::AudioInfo	audioInfo () override
bool	begin (PSKConfig config)
	Starts the processing with the indicated configuration.
bool	begin () override
void	end () override
size_t	write (const uint8_t *data, size_t len) override
	Modulates the bytes.
bool	endTransmission (size_t silence_samples=0) override
bool	writeIdle (size_t nsamples) override
bool	isTransmitting () override
	true between the first byte and endTransmission()
float	symbolRate () override
	Symbols per second.
PSKConfig &	config ()
	The configuration which was provided in begin().
	operator bool () override
Public Member Functions inherited from tinymodem::ModemEncoder
void	setOutput (Print &out) override
void	setGenerator (audio_tools::SoundGenerator< int16_t > &generator)
audio_tools::SoundGenerator< int16_t > &	getGenerator ()
	Provides the active tone generator.
void	writeSilence (size_t nsamples)
	Writes the indicated number of samples of silence.
void	writeTone (float freq, size_t nsamples)
	Writes a tone for the indicated number of samples.
void	flush ()
	Ends the transmission.
const char *	mime () override

Protected Types
enum class	Shape { TRANSITION , FADE_IN , FADE_OUT }

Protected Member Functions
void	startTransmission ()
void	sendChar (uint8_t ch)
void	sendBit (int bit)
void	sendStep (int step)
void	sendSymbol (int step, Shape shape)
void	nextCarrier ()

Protected Attributes
PSKConfig	cfg
SampleOutput	samples
QPSKCode	code
bool	is_active = false
bool	transmitting = false
double	samples_per_symbol = 0
uint64_t	symbol_index = 0
float	point_re = 1.0f
float	point_im = 0.0f
int	bits = 0
int	bit_count = 0
float	re = 1.0f
float	im = 0.0f
float	step_re = 1.0f
float	step_im = 0.0f
uint32_t	sample_count = 0
Protected Attributes inherited from tinymodem::ModemEncoder
ToneOutput	tones

Static Protected Attributes
static constexpr int	REVERSAL = 0
	phase steps as index of fldigi's 16 PSK positions (180 + n * 22.5 deg)
static constexpr int	STEADY = 8

Detailed Description

PSK modulator (compatible with fldigi): the written bytes are Varicode encoded and each symbol is a phase step with a cosine shaped transition from the previous phase.

BPSK (PSK31): the characters are separated by "00", a 0 bit is a phase reversal, a 1 bit keeps the phase. QPSK: each bit is encoded by a rate 1/2 convolutional code into a phase step of 0, 90, 180 or 270 degrees. 8PSK: the MFSK Varicode bits are sent in groups of 3 as phase steps of 45 degrees.

A transmission starts with phase reversals (preamble). Call endTransmission() (or flush()) when the data is complete: the postamble is sent (BPSK and 8PSK: steady carrier, QPSK: encoded 0 bits) and the signal fades out.

Copyright: GPLv3

Member Enumeration Documentation

◆ Shape

enum class tinymodem::PSKEncoder::Shape

strongprotected

Enumerator
TRANSITION
FADE_IN
FADE_OUT

Constructor & Destructor Documentation

◆ PSKEncoder() [1/2]

tinymodem::PSKEncoder::PSKEncoder ( )

default

◆ PSKEncoder() [2/2]

tinymodem::PSKEncoder::PSKEncoder ( Print & out )

inline

Member Function Documentation

◆ audioInfo()

audio_tools::AudioInfo tinymodem::PSKEncoder::audioInfo ( )

inlineoverride

◆ begin() [1/2]

bool tinymodem::PSKEncoder::begin ( )

inlineoverride

◆ begin() [2/2]

bool tinymodem::PSKEncoder::begin ( PSKConfig config )

inline

Starts the processing with the indicated configuration.

◆ config()

PSKConfig & tinymodem::PSKEncoder::config ( )

inline

The configuration which was provided in begin().

◆ defaultConfig()

PSKConfig tinymodem::PSKEncoder::defaultConfig ( )

inline

Provides a default configuration: psk31.

◆ end()

void tinymodem::PSKEncoder::end ( )

inlineoverride

◆ endTransmission()

bool tinymodem::PSKEncoder::endTransmission ( size_t silence_samples = 0 )

inlineoverridevirtual

Sends the postamble and fades out (and adds optional silence): returns true if a transmission was ended.

Implements tinymodem::ModemEncoder.

◆ isTransmitting()

bool tinymodem::PSKEncoder::isTransmitting ( )

inlineoverridevirtual

true between the first byte and endTransmission()

Implements tinymodem::ModemEncoder.

◆ nextCarrier()

void tinymodem::PSKEncoder::nextCarrier ( )

inlineprotected

◆ operator bool()

tinymodem::PSKEncoder::operator bool ( )

inlineoverride

◆ sendBit()

void tinymodem::PSKEncoder::sendBit ( int bit )

inlineprotected

◆ sendChar()

void tinymodem::PSKEncoder::sendChar ( uint8_t ch )

inlineprotected

◆ sendStep()

void tinymodem::PSKEncoder::sendStep ( int step )

inlineprotected

◆ sendSymbol()

void tinymodem::PSKEncoder::sendSymbol	(	int	step,
		Shape	shape )

inlineprotected

Moves the constellation point by the phase step (index of 180 + n * 22.5 degrees)

◆ setAudioInfo()

void tinymodem::PSKEncoder::setAudioInfo ( audio_tools::AudioInfo info )

inlineoverride

Defines the sample rate and number of channels of the generated audio.

◆ setOutput()

void tinymodem::PSKEncoder::setOutput ( Print & out )

inlineoverride

◆ startTransmission()

void tinymodem::PSKEncoder::startTransmission ( )

inlineprotected

◆ symbolRate()

float tinymodem::PSKEncoder::symbolRate ( )

inlineoverridevirtual

Symbols per second.

Implements tinymodem::ModemEncoder.

◆ write()

size_t tinymodem::PSKEncoder::write	(	const uint8_t *	data,
		size_t	len )

inlineoverride

Modulates the bytes.

◆ writeIdle()

bool tinymodem::PSKEncoder::writeIdle ( size_t nsamples )

inlineoverridevirtual

Sends the idle signal (BPSK and QPSK: 0 bits, 8PSK: the character 0) for the indicated number of samples

Reimplemented from tinymodem::ModemEncoder.

Member Data Documentation

◆ bit_count

int tinymodem::PSKEncoder::bit_count = 0

protected

◆ bits

int tinymodem::PSKEncoder::bits = 0

protected

◆ cfg

PSKConfig tinymodem::PSKEncoder::cfg

protected

◆ code

QPSKCode tinymodem::PSKEncoder::code

protected

◆ im

float tinymodem::PSKEncoder::im = 0.0f

protected

◆ is_active

bool tinymodem::PSKEncoder::is_active = false

protected

◆ point_im

float tinymodem::PSKEncoder::point_im = 0.0f

protected

◆ point_re

float tinymodem::PSKEncoder::point_re = 1.0f

protected

◆ re

float tinymodem::PSKEncoder::re = 1.0f

protected

◆ REVERSAL

int tinymodem::PSKEncoder::REVERSAL = 0

staticconstexprprotected

phase steps as index of fldigi's 16 PSK positions (180 + n * 22.5 deg)

◆ sample_count

uint32_t tinymodem::PSKEncoder::sample_count = 0

protected

◆ samples

SampleOutput tinymodem::PSKEncoder::samples

protected

◆ samples_per_symbol

double tinymodem::PSKEncoder::samples_per_symbol = 0

protected

◆ STEADY

int tinymodem::PSKEncoder::STEADY = 8

staticconstexprprotected

◆ step_im

float tinymodem::PSKEncoder::step_im = 0.0f

protected

◆ step_re

float tinymodem::PSKEncoder::step_re = 1.0f

protected

◆ symbol_index

uint64_t tinymodem::PSKEncoder::symbol_index = 0

protected

◆ transmitting

bool tinymodem::PSKEncoder::transmitting = false

protected

The documentation for this class was generated from the following file:

src/modem/PSKEncoder.h
