NBufferExt< T > Class Template Reference

A NBufferExt is a subclass of NBuffer which allows to use a direct access API to the BaseBuffer. More...

#include <CodecOpusOgg.h>

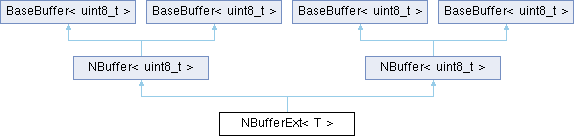

Inheritance diagram for NBufferExt< T >:

Public Member Functions
	NBufferExt (int size, int count)
	NBufferExt (int size, int count)
uint8_t *	address ()
	returns the address of the start of the actual physical read buffer
int	available ()
	determines the available entries for the current read buffer
int	availableForWrite ()
	determines the available entries for the write buffer
virtual int	bufferCountEmpty ()
	Provides the number of entries that are available to write.
virtual int	bufferCountFilled ()
	Provides the number of entries that are available to read.
void	clear ()
	same as reset
virtual int	clearArray (int len)
	Removes the next len entries.
void	flush ()
virtual float	freePercent ()
	Returns the free space of the buffer in %.
SingleBuffer< T > *	getBuffer (int id)
	Provides the buffer with the indicated id.
SingleBuffer< T > *	getBuffer (int id)
	Provides the buffer with the indicated id.
bool	isEmpty ()
bool	isFull ()
	checks if the buffer is full
virtual float	levelPercent ()
	Returns the level of the buffer in %.
bool	peek (uint8_t &result) override
	peeks the actual entry from the buffer
virtual bool	peek (uint8_t &result)=0
	peeks the actual entry from the buffer
bool	read (uint8_t &result) override
	reads an entry from the buffer
virtual bool	read (uint8_t &result)=0
	reads a single value
virtual int	readArray (uint8_t data[], int len)
	reads multiple values
int	readArray (uint8_t data[], int len) override
SingleBuffer< T > *	readEnd ()
SingleBuffer< T > *	readEnd ()
void	reset ()
	resets all buffers
virtual bool	resize (size_t bytes)
	Resize the buffer to the next multiple of buffer size.
unsigned long	sampleRate ()
	provides the actual sample rate
size_t	size ()
	Provides the total capacity (=buffer size * buffer count).
bool	write (uint8_t data)
	write add an entry to the buffer
virtual bool	write (uint8_t data)=0
	write add an entry to the buffer
virtual int	writeArray (const uint8_t data[], int len)
	Fills the buffer data.
virtual int	writeArrayOverwrite (const uint8_t data[], int len)
	Fills the buffer data and overwrites the oldest data if the buffer is full.
SingleBuffer< T > *	writeEnd ()
SingleBuffer< T > *	writeEnd ()

Protected Member Functions
virtual bool	addAvailableBuffer (BaseBuffer< uint8_t > *buffer)
virtual bool	addFilledBuffer (BaseBuffer< uint8_t > *buffer)
void	freeMemory ()
virtual BaseBuffer< uint8_t > *	getNextAvailableBuffer ()
virtual BaseBuffer< uint8_t > *	getNextFilledBuffer ()
void	resetCurrent ()

Protected Attributes
BaseBuffer< uint8_t > *	actual_read_buffer
BaseBuffer< uint8_t > *	actual_write_buffer
QueueFromVector< BaseBuffer< uint8_t > * >	available_buffers
size_t	buffer_count
int	buffer_size
QueueFromVector< BaseBuffer< uint8_t > * >	filled_buffers
unsigned long	sample_count
unsigned long	start_time

Detailed Description

template<typename T = uint8_t>
class audio_tools::audio_tools::NBufferExt< T >

A NBufferExt is a subclass of NBuffer which allows to use a direct access API to the BaseBuffer.

Template Parameters

T	buffered data type

Constructor & Destructor Documentation

NBufferExt() [1/2]

template<typename T = uint8_t>

NBufferExt ( int size, int count )

inline

NBufferExt() [2/2]

template<typename T = uint8_t>

NBufferExt ( int size, int count )

inline

Member Function Documentation

addAvailableBuffer()

virtual bool addAvailableBuffer ( BaseBuffer< uint8_t > * buffer )

inlineprotectedvirtualinherited

addFilledBuffer()

virtual bool addFilledBuffer ( BaseBuffer< uint8_t > * buffer )

inlineprotectedvirtualinherited

address()

uint8_t * address ( )

inlinevirtualinherited

returns the address of the start of the actual physical read buffer

Implements BaseBuffer< uint8_t >.

available()

int available ( )

inlinevirtualinherited

determines the available entries for the current read buffer

Implements BaseBuffer< uint8_t >.

availableForWrite()

int availableForWrite ( )

inlinevirtualinherited

determines the available entries for the write buffer

Implements BaseBuffer< uint8_t >.

bufferCountEmpty()

virtual int bufferCountEmpty ( )

inlinevirtualinherited

Provides the number of entries that are available to write.

Reimplemented from BaseBuffer< uint8_t >.

Reimplemented in SynchronizedNBufferRTOST< uint8_t >, and SynchronizedNBufferZephyrT< uint8_t >.

bufferCountFilled()

virtual int bufferCountFilled ( )

inlinevirtualinherited

Provides the number of entries that are available to read.

Reimplemented from BaseBuffer< uint8_t >.

Reimplemented in SynchronizedNBufferRTOST< uint8_t >, and SynchronizedNBufferZephyrT< uint8_t >.

clear()

void clear ( )

inlineinherited

same as reset

clearArray()

virtual int clearArray ( int len )

inlinevirtualinherited

Removes the next len entries.

flush()

void flush ( )

inlinevirtualinherited

Submit the partially-filled write buffer to the filled queue so the reader can access it immediately. Call after writeArray() when the writer won't add more data to the current block for a while.

Reimplemented from BaseBuffer< uint8_t >.

freeMemory()

void freeMemory ( )

inlineprotectedinherited

freePercent()

virtual float freePercent ( )

inlinevirtualinherited

Returns the free space of the buffer in %.

getBuffer() [1/2]

template<typename T = uint8_t>

SingleBuffer< T > * getBuffer ( int id )

inline

Provides the buffer with the indicated id.

getBuffer() [2/2]

template<typename T = uint8_t>

SingleBuffer< T > * getBuffer ( int id )

inline

Provides the buffer with the indicated id.

getNextAvailableBuffer()

virtual BaseBuffer< uint8_t > * getNextAvailableBuffer ( )

inlineprotectedvirtualinherited

Reimplemented in SynchronizedNBufferRTOST< uint8_t >, and SynchronizedNBufferZephyrT< uint8_t >.

getNextFilledBuffer()

virtual BaseBuffer< uint8_t > * getNextFilledBuffer ( )

inlineprotectedvirtualinherited

Reimplemented in SynchronizedNBufferRTOST< uint8_t >, and SynchronizedNBufferZephyrT< uint8_t >.

isEmpty()

bool isEmpty ( )

inlineinherited

isFull()

bool isFull ( )

inlinevirtualinherited

checks if the buffer is full

Reimplemented from BaseBuffer< uint8_t >.

levelPercent()

virtual float levelPercent ( )

inlinevirtualinherited

Returns the level of the buffer in %.

peek() [1/2]

bool peek ( uint8_t & result )

inlineoverridevirtualinherited

peeks the actual entry from the buffer

Implements BaseBuffer< uint8_t >.

peek() [2/2]

virtual bool peek ( uint8_t & result )

pure virtualinherited

peeks the actual entry from the buffer

read() [1/2]

bool read ( uint8_t & result )

inlineoverridevirtualinherited

reads an entry from the buffer

Implements BaseBuffer< uint8_t >.

read() [2/2]

virtual bool read ( uint8_t & result )

pure virtualinherited

reads a single value

readArray() [1/2]

virtual int readArray ( uint8_t data[], int len )

inlinevirtualinherited

reads multiple values

readArray() [2/2]

int readArray ( uint8_t data[], int len )

inlineoverridevirtualinherited

Reads up to len entries, spanning across multiple blocks. BaseBuffer::readArray stops at the first block boundary because it calls available() once. This override keeps reading across blocks.

Reimplemented from BaseBuffer< uint8_t >.

readEnd() [1/2]

template<typename T = uint8_t>

SingleBuffer< T > * readEnd ( )

inline

Alternative interface using address: provides access to the next read buffer

readEnd() [2/2]

template<typename T = uint8_t>

SingleBuffer< T > * readEnd ( )

inline

Alternative interface using address: provides access to the next read buffer

reset()

void reset ( )

inlinevirtualinherited

resets all buffers

Implements BaseBuffer< uint8_t >.

resetCurrent()

void resetCurrent ( )

inlineprotectedinherited

resize()

virtual bool resize ( size_t bytes )

inlinevirtualinherited

Resize the buffer to the next multiple of buffer size.

Reimplemented from BaseBuffer< uint8_t >.

sampleRate()

unsigned long sampleRate ( )

inlineinherited

provides the actual sample rate

size()

size_t size ( )

inlinevirtualinherited

Provides the total capacity (=buffer size * buffer count).

Implements BaseBuffer< uint8_t >.

Reimplemented in SynchronizedNBufferRTOST< uint8_t >, and SynchronizedNBufferZephyrT< uint8_t >.

write() [1/2]

bool write ( uint8_t data )

inlinevirtualinherited

write add an entry to the buffer

Implements BaseBuffer< uint8_t >.

write() [2/2]

virtual bool write ( uint8_t data )

pure virtualinherited

write add an entry to the buffer

writeArray()

virtual int writeArray ( const uint8_t data[], int len )

inlinevirtualinherited

Fills the buffer data.

writeArrayOverwrite()

virtual int writeArrayOverwrite ( const uint8_t data[], int len )

inlinevirtualinherited

Fills the buffer data and overwrites the oldest data if the buffer is full.

writeEnd() [1/2]

template<typename T = uint8_t>

SingleBuffer< T > * writeEnd ( )

inline

Alternative interface: Provides access to the next write buffer

writeEnd() [2/2]

template<typename T = uint8_t>

SingleBuffer< T > * writeEnd ( )

inline

Alternative interface: Provides access to the next write buffer

Member Data Documentation

actual_read_buffer

BaseBuffer< uint8_t > * actual_read_buffer

protectedinherited

actual_write_buffer

BaseBuffer< uint8_t > * actual_write_buffer

protectedinherited

available_buffers

QueueFromVector< BaseBuffer< uint8_t > * > available_buffers

protectedinherited

buffer_count

size_t buffer_count

protectedinherited

buffer_size

int buffer_size

protectedinherited

filled_buffers

QueueFromVector< BaseBuffer< uint8_t > * > filled_buffers

protectedinherited

sample_count

unsigned long sample_count

protectedinherited

start_time

unsigned long start_time

protectedinherited

---

The documentation for this class was generated from the following files:

• src/AudioTools/AudioCodecs/CodecOpusOgg.h
• src/AudioTools/AudioCodecs/CodecTSDemux.h
