ModemStreamRTOS.h File Reference

#include <atomic>
#include "AudioTools.h"
#include "AudioTools/Concurrency.h"
#include "ModemStream.h"

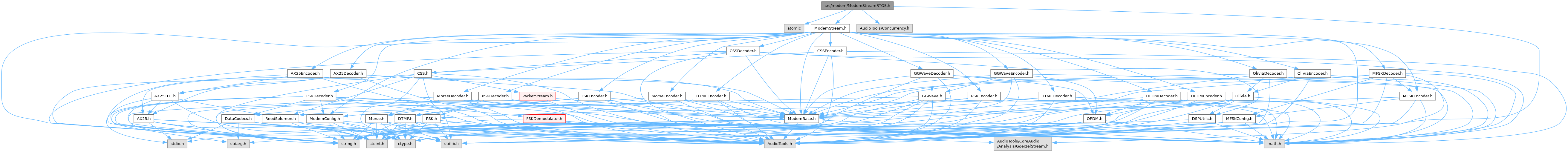

Include dependency graph for ModemStreamRTOS.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	tinymodem::BasicModemStreamRTOS< Base >
	BasicModemStream which receives in a separate task (FreeRTOS on ESP32 and RP2040, a std::thread on the desktop): the task reads the audio input and decodes it, so the decoding does not block your loop() and no audio is lost while loop() is busy. available(), read() and peek() only access the received data and can be called from any task. More...
struct	tinymodem::BasicModemStreamRTOS< Base >::LockedQueue
	Print which writes the decoded data into the queue with a lock. More...
class	tinymodem::ModemStreamRTOS
	ModemStream (FSK) which receives in a separate task. See BasicModemStreamRTOS. More...
class	tinymodem::MFSKStreamRTOS
	MFSKStream (multi-tone FSK) which receives in a separate task. See BasicModemStreamRTOS. More...
class	tinymodem::AX25StreamRTOS
	AX25Stream (APRS) which receives in a separate task. See BasicModemStreamRTOS. More...
class	tinymodem::PSKStreamRTOS
	PSKStream which receives in a separate task. See BasicModemStreamRTOS. More...
class	tinymodem::OFDMStreamRTOS
	OFDMStream which receives in a separate task. See BasicModemStreamRTOS. More...
class	tinymodem::GGWaveStreamRTOS
	GGWaveStream which receives in a separate task. See BasicModemStreamRTOS. More...
class	tinymodem::OliviaStreamRTOS
	OliviaStream which receives in a separate task. See BasicModemStreamRTOS. More...
class	tinymodem::CSSStreamRTOS
	CSSStream which receives in a separate task. See BasicModemStreamRTOS. More...
class	tinymodem::MorseStreamRTOS
	MorseStream which receives in a separate task. See BasicModemStreamRTOS. More...
class	tinymodem::DTMFStreamRTOS
	DTMFStream which receives in a separate task. See BasicModemStreamRTOS. More...

Namespaces
namespace	tinymodem
	TinyModem: software audio modems and packets with error correction.
