tinymodem::OliviaStream Class Reference

Arduino Stream API for the Olivia and Contestia modems (compatible with fldigi): print() transmits, flush() completes the last block, read() receives. See BasicModemStream. More...

#include <ModemStream.h>

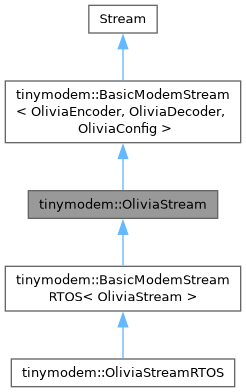

Inheritance diagram for tinymodem::OliviaStream:

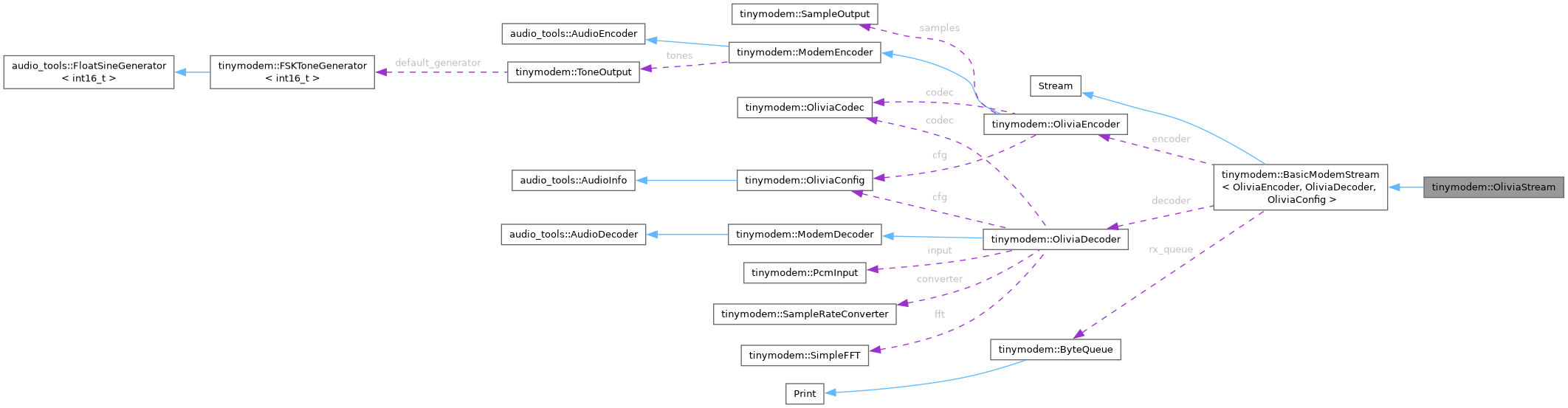

Collaboration diagram for tinymodem::OliviaStream:

Public Member Functions
	BasicModemStream ()=default
	BasicModemStream (Print &audio_out)
	transmit only
	BasicModemStream (Print &audio_out, Stream &audio_in)
	transmit and receive with separate output and input
	BasicModemStream (Stream &audio, audio_tools::RxTxMode mode)
Public Member Functions inherited from tinymodem::BasicModemStream< OliviaEncoder, OliviaDecoder, OliviaConfig >
	BasicModemStream ()=default
void	setOutput (Print &audio_out)
	Defines the audio output (transmitter).
void	setInput (Stream &audio_in)
	Defines the audio input (receiver).
void	setStatusOutput (Print &out)
	Defines the output for the ### CARRIER / ### NOCARRIER messages.
OliviaConfig	defaultConfig ()
bool	begin (OliviaConfig cfg, int rx_buffer_size=256)
void	end ()
size_t	write (uint8_t ch) override
void	flush () override
	Sends the trailer: call this at the end of a message.
int	available () override
int	read () override
int	peek () override
size_t	readBytes (uint8_t *data, size_t len)
	Reads the available data (does not wait for more data).
size_t	update ()
bool	isCarrier ()
	true while a carrier is detected
OliviaEncoder &	getEncoder ()
OliviaDecoder &	getDecoder ()

Additional Inherited Members
Public Types inherited from tinymodem::BasicModemStream< OliviaEncoder, OliviaDecoder, OliviaConfig >
using	ConfigType
Protected Types inherited from tinymodem::BasicModemStream< OliviaEncoder, OliviaDecoder, OliviaConfig >
using	ReceiveQueue
Protected Member Functions inherited from tinymodem::BasicModemStream< OliviaEncoder, OliviaDecoder, OliviaConfig >
size_t	readInput ()
	Reads the available audio input and feeds it to the decoder.
Protected Attributes inherited from tinymodem::BasicModemStream< OliviaEncoder, OliviaDecoder, OliviaConfig >
Print *	p_audio_out
Stream *	p_audio_in
OliviaEncoder	encoder
OliviaDecoder	decoder
ReceiveQueue	rx_queue
int	rx_limit
uint8_t	copy_buffer [256]

Detailed Description

Arduino Stream API for the Olivia and Contestia modems (compatible with fldigi): print() transmits, flush() completes the last block, read() receives. See BasicModemStream.

Copyright

GPLv3

Member Function Documentation

BasicModemStream() [1/4]

tinymodem::BasicModemStream< Encoder, Decoder, Config >::BasicModemStream ( )

default

BasicModemStream() [2/4]

tinymodem::BasicModemStream< Encoder, Decoder, Config >::BasicModemStream ( Print & audio_out )

inline

transmit only

BasicModemStream() [3/4]

tinymodem::BasicModemStream< Encoder, Decoder, Config >::BasicModemStream ( Print & audio_out, Stream & audio_in )

inline

transmit and receive with separate output and input

BasicModemStream() [4/4]

tinymodem::BasicModemStream< Encoder, Decoder, Config >::BasicModemStream ( Stream & audio, audio_tools::RxTxMode mode )

inline

use the same audio stream: TX_MODE (transmit only), RX_MODE (receive only) or RXTX_MODE (both)

---

The documentation for this class was generated from the following file:

• src/modem/ModemStream.h
