tinymodem::PSKStreamRTOS Class Reference

PSKStream which receives in a separate task. See BasicModemStreamRTOS. More...

#include <ModemStreamRTOS.h>

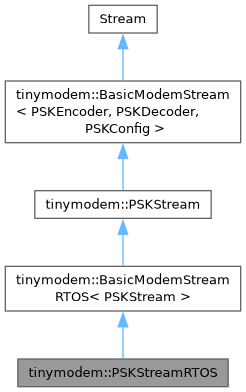

Inheritance diagram for tinymodem::PSKStreamRTOS:

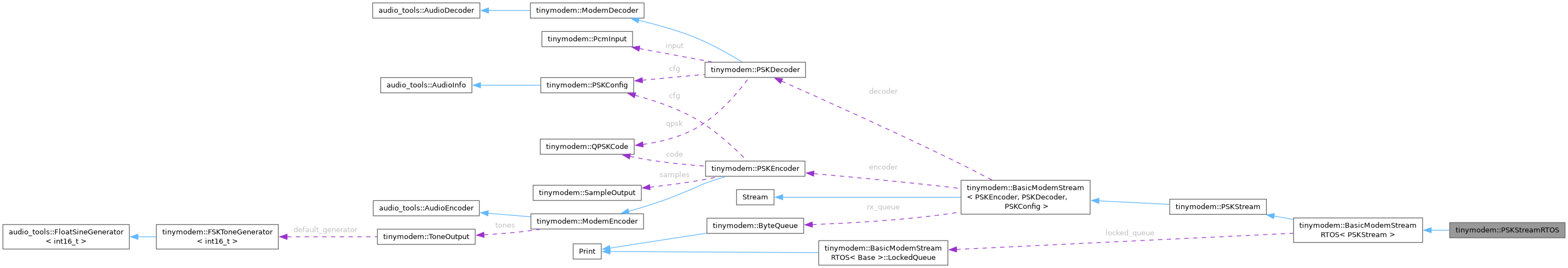

Collaboration diagram for tinymodem::PSKStreamRTOS:

Additional Inherited Members
Public Types inherited from tinymodem::BasicModemStreamRTOS< PSKStream >
using	Config
Public Types inherited from tinymodem::BasicModemStream< PSKEncoder, PSKDecoder, PSKConfig >
using	ConfigType
Public Member Functions inherited from tinymodem::BasicModemStreamRTOS< PSKStream >
	~BasicModemStreamRTOS ()
void	setTaskConfig (int stack_size, int priority=1, int core=-1)
bool	begin (Config cfg, int rx_buffer_size=256)
void	end ()
	Stops the receive task and the modem.
int	available () override
int	read () override
int	peek () override
size_t	update ()
	Not needed: the receive task processes the input.
bool	isRunning ()
	true while the receive task is running
Public Member Functions inherited from tinymodem::PSKStream
	BasicModemStream ()=default
	BasicModemStream (Print &audio_out)
	transmit only
	BasicModemStream (Print &audio_out, Stream &audio_in)
	transmit and receive with separate output and input
	BasicModemStream (Stream &audio, audio_tools::RxTxMode mode)
Public Member Functions inherited from tinymodem::BasicModemStream< PSKEncoder, PSKDecoder, PSKConfig >
	BasicModemStream ()=default
void	setOutput (Print &audio_out)
	Defines the audio output (transmitter).
void	setInput (Stream &audio_in)
	Defines the audio input (receiver).
void	setStatusOutput (Print &out)
	Defines the output for the ### CARRIER / ### NOCARRIER messages.
PSKConfig	defaultConfig ()
bool	begin (PSKConfig cfg, int rx_buffer_size=256)
void	end ()
size_t	write (uint8_t ch) override
void	flush () override
	Sends the trailer: call this at the end of a message.
int	available () override
int	read () override
int	peek () override
size_t	readBytes (uint8_t *data, size_t len)
	Reads the available data (does not wait for more data).
size_t	update ()
bool	isCarrier ()
	true while a carrier is detected
PSKEncoder &	getEncoder ()
PSKDecoder &	getDecoder ()
Protected Types inherited from tinymodem::BasicModemStreamRTOS< PSKStream >
using	Queue
Protected Types inherited from tinymodem::BasicModemStream< PSKEncoder, PSKDecoder, PSKConfig >
using	ReceiveQueue
Protected Member Functions inherited from tinymodem::BasicModemStreamRTOS< PSKStream >
void	receive ()
	One iteration of the receive task.
size_t	readInputLocked ()
	Reads the available audio input and feeds it to the decoder.
Protected Member Functions inherited from tinymodem::BasicModemStream< PSKEncoder, PSKDecoder, PSKConfig >
size_t	readInput ()
	Reads the available audio input and feeds it to the decoder.
Protected Attributes inherited from tinymodem::BasicModemStreamRTOS< PSKStream >
audio_tools::Task	task
audio_tools::Mutex	mutex
LockedQueue	locked_queue
int	task_stack_size
int	task_priority
int	task_core
bool	task_created
bool	is_task_active
std::atomic< bool >	is_running
std::atomic< bool >	is_idle
Protected Attributes inherited from tinymodem::BasicModemStream< PSKEncoder, PSKDecoder, PSKConfig >
Print *	p_audio_out
Stream *	p_audio_in
PSKEncoder	encoder
PSKDecoder	decoder
ReceiveQueue	rx_queue
int	rx_limit
uint8_t	copy_buffer [256]
Static Protected Attributes inherited from tinymodem::BasicModemStreamRTOS< PSKStream >
static constexpr int	DEFAULT_STACK_SIZE

Detailed Description

PSKStream which receives in a separate task. See BasicModemStreamRTOS.

Copyright

GPLv3

---

The documentation for this class was generated from the following file:

• src/modem/ModemStreamRTOS.h
