tinymodem::BasicModemStreamRTOS< Base > Class Template Reference

BasicModemStream which receives in a separate task (FreeRTOS on ESP32 and RP2040, a std::thread on the desktop): the task reads the audio input and decodes it, so the decoding does not block your loop() and no audio is lost while loop() is busy. available(), read() and peek() only access the received data and can be called from any task. More...

#include <ModemStreamRTOS.h>

Inheritance diagram for tinymodem::BasicModemStreamRTOS< Base >:

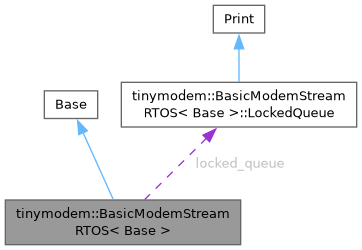

Collaboration diagram for tinymodem::BasicModemStreamRTOS< Base >:

Classes
struct	LockedQueue
	Print which writes the decoded data into the queue with a lock. More...

Public Types
using	Config = typename Base::ConfigType

Public Member Functions
	~BasicModemStreamRTOS ()
void	setTaskConfig (int stack_size, int priority=1, int core=-1)
bool	begin (Config cfg, int rx_buffer_size=256)
void	end ()
	Stops the receive task and the modem.
int	available () override
int	read () override
int	peek () override
size_t	update ()
	Not needed: the receive task processes the input.
bool	isRunning ()
	true while the receive task is running

Protected Types
using	Queue = typename Base::ReceiveQueue

Protected Member Functions
void	receive ()
	One iteration of the receive task.
size_t	readInputLocked ()
	Reads the available audio input and feeds it to the decoder.

Protected Attributes
audio_tools::Task	task
audio_tools::Mutex	mutex
LockedQueue	locked_queue
int	task_stack_size = DEFAULT_STACK_SIZE
int	task_priority = 1
int	task_core = -1
bool	task_created = false
bool	is_task_active = false
std::atomic< bool >	is_running {false}
std::atomic< bool >	is_idle {false}

Static Protected Attributes
static constexpr int	DEFAULT_STACK_SIZE = 2 * 1024

Detailed Description

template<class Base>
class tinymodem::BasicModemStreamRTOS< Base >

BasicModemStream which receives in a separate task (FreeRTOS on ESP32 and RP2040, a std::thread on the desktop): the task reads the audio input and decodes it, so the decoding does not block your loop() and no audio is lost while loop() is busy. available(), read() and peek() only access the received data and can be called from any task.

Transmitting (write(), print(), flush()) happens in the calling task like in the BasicModemStream. The status output (setStatusOutput()) is written by the receive task.

Template Parameters

Base	the BasicModemStream (e.g. ModemStream or MFSKStream)

Copyright

GPLv3

Member Typedef Documentation

Config

template<class Base>

using tinymodem::BasicModemStreamRTOS< Base >::Config = typename Base::ConfigType

Queue

template<class Base>

using tinymodem::BasicModemStreamRTOS< Base >::Queue = typename Base::ReceiveQueue

protected

Constructor & Destructor Documentation

~BasicModemStreamRTOS()

template<class Base>

tinymodem::BasicModemStreamRTOS< Base >::~BasicModemStreamRTOS ( )

inline

Member Function Documentation

available()

template<class Base>

int tinymodem::BasicModemStreamRTOS< Base >::available ( )

inlineoverride

begin()

template<class Base>

bool tinymodem::BasicModemStreamRTOS< Base >::begin ( Config cfg, int rx_buffer_size = 256 )

inline

Starts the modem and the receive task: the input is only read while less than rx_buffer_size decoded bytes are waiting to be read

end()

template<class Base>

void tinymodem::BasicModemStreamRTOS< Base >::end ( )

inline

Stops the receive task and the modem.

isRunning()

template<class Base>

bool tinymodem::BasicModemStreamRTOS< Base >::isRunning ( )

inline

true while the receive task is running

peek()

template<class Base>

int tinymodem::BasicModemStreamRTOS< Base >::peek ( )

inlineoverride

read()

template<class Base>

int tinymodem::BasicModemStreamRTOS< Base >::read ( )

inlineoverride

readInputLocked()

template<class Base>

size_t tinymodem::BasicModemStreamRTOS< Base >::readInputLocked ( )

inlineprotected

Reads the available audio input and feeds it to the decoder.

receive()

template<class Base>

void tinymodem::BasicModemStreamRTOS< Base >::receive ( )

inlineprotected

One iteration of the receive task.

setTaskConfig()

template<class Base>

void tinymodem::BasicModemStreamRTOS< Base >::setTaskConfig ( int stack_size, int priority = 1, int core = -1 )

inline

Defines the receive task parameters: call before begin(). The stack size is in bytes on ESP32 and in words on other FreeRTOS platforms.

update()

template<class Base>

size_t tinymodem::BasicModemStreamRTOS< Base >::update ( )

inline

Not needed: the receive task processes the input.

Member Data Documentation

DEFAULT_STACK_SIZE

template<class Base>

int tinymodem::BasicModemStreamRTOS< Base >::DEFAULT_STACK_SIZE = 2 * 1024

staticconstexprprotected

is_idle

template<class Base>

std::atomic<bool> tinymodem::BasicModemStreamRTOS< Base >::is_idle {false}

protected

is_running

template<class Base>

std::atomic<bool> tinymodem::BasicModemStreamRTOS< Base >::is_running {false}

protected

is_task_active

template<class Base>

bool tinymodem::BasicModemStreamRTOS< Base >::is_task_active = false

protected

locked_queue

template<class Base>

LockedQueue tinymodem::BasicModemStreamRTOS< Base >::locked_queue

protected

mutex

template<class Base>

audio_tools::Mutex tinymodem::BasicModemStreamRTOS< Base >::mutex

protected

task

template<class Base>

audio_tools::Task tinymodem::BasicModemStreamRTOS< Base >::task

protected

task_core

template<class Base>

int tinymodem::BasicModemStreamRTOS< Base >::task_core = -1

protected

task_created

template<class Base>

bool tinymodem::BasicModemStreamRTOS< Base >::task_created = false

protected

task_priority

template<class Base>

int tinymodem::BasicModemStreamRTOS< Base >::task_priority = 1

protected

task_stack_size

template<class Base>

int tinymodem::BasicModemStreamRTOS< Base >::task_stack_size = DEFAULT_STACK_SIZE

protected

---

The documentation for this class was generated from the following file:

• src/modem/ModemStreamRTOS.h
