#include <RZCodec.h>

Inheritance diagram for pulsewire::RZCodec:

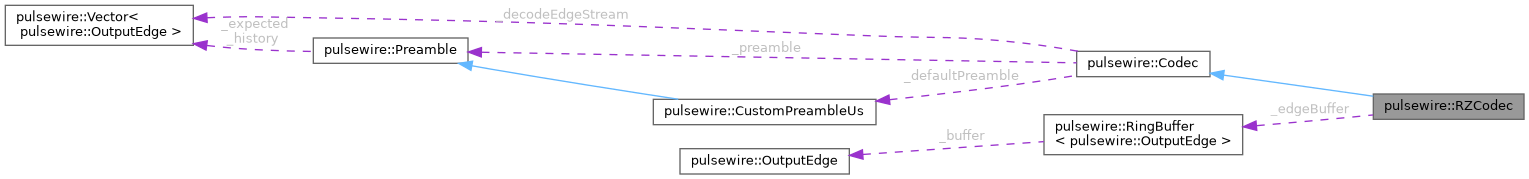

Collaboration diagram for pulsewire::RZCodec:

[legend]

Public Member Functions
	RZCodec (int stopBits=1)

	RZCodec (Preamble &preambleDetector, int stopBits=1)

CodecEnum	getCodecType () const override

bool	getIdleLevel () const override
	Provides the initial ldle state (low or hith)

size_t	getEdgeCount () const override
	Get the number of protocol symbols (bits, pulses, etc.) per encoded byte.

int	getEndOfFrameDelayUs () override

void	reset () override
	Reset the internal state of the codec.

size_t	encode (uint8_t byte, Vector< OutputEdge > &output) override
	Fill output vector with protocol-specific OutputSpec(s) for a byte.

bool	decodeEdge (uint32_t durationUs, bool level, uint8_t &result) override
	Edge-based decoding for protocol-agnostic RX drivers.

virtual void	init (Preamble &detector, uint32_t shortPulseUs=600, uint32_t longPulseUs=1200, uint32_t toleranceUs=200)

virtual bool	begin (uint32_t bitFrequencyHz)
	initialization method for codecs that require setup before use (e.g., loading PIO programs, configuring state machines).

void	setPreamble (Preamble &preamble)
	Set the Preamble Detector object.

Preamble &	getPreamble ()
	Get the preamble detector associated with this codec.

void	setFrameSize (uint16_t size)
	Set the Frame Size.

uint16_t	getFrameSize () const
	Get the configured frame size.

const char *	name () const
	Get the name of the codec type as a string (e.g., "PulseDistance", "Manchester").

size_t	encodePreamble (Vector< OutputEdge > &output)

virtual size_t	flushEncoder (Vector< OutputEdge > &output)
	Flush any pending encoder state at end of frame.

Protected Types
enum	{ WAIT_START , DATA_BITS , STOP_BITS }

Protected Member Functions
bool	isValidPeriod (uint32_t pulse, uint32_t target, uint32_t tolerance) const

bool	handleFrameStart (bool level, uint32_t durationUs)

bool	handleInFrameDecoding (uint32_t durationUs, bool level, uint8_t &result)

virtual void	encodeByte (uint8_t byte, std::vector< bool > &bits) const
	Encode a byte to protocol bitstream. Default implementation encodes to raw bits (MSB first), but can be overridden by protocols that require different bit formatting (e.g., Manchester). The output bits are stored in.

Protected Attributes
uint8_t	_stopBits = 1

uint8_t	_bitCount = 0

uint8_t	_byte = 0

RingBuffer< OutputEdge >	_edgeBuffer {32}

enum pulsewire::RZCodec:: { ... }	_rxState = WAIT_START

uint8_t	_rxDataBitCount = 0

uint8_t	_rxStopBitCount = 0

CustomPreambleUs	_defaultPreamble

Preamble *	_preamble = &_defaultPreamble

uint16_t	_bitFrequencyHz = 0

uint32_t	_bitPeriodUs = 0

Vector< OutputEdge >	_decodeEdgeStream

volatile bool	_inFrame = false

uint16_t	_frameSize = 0

Detailed Description

Return-to-Zero (RZ) Codec implementation. Each bit is represented by a pulse (high) for half the bit period, then zero (low) for the other half.

Definition at line 12 of file RZCodec.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

protected

Definition at line 111 of file RZCodec.h.

Constructor & Destructor Documentation

◆ RZCodec() [1/2]

pulsewire::RZCodec::RZCodec ( int stopBits = 1 )

inline

Definition at line 14 of file RZCodec.h.

◆ RZCodec() [2/2]

pulsewire::RZCodec::RZCodec	(	Preamble &	preambleDetector,
		int	stopBits = `1`
	)

inline

Definition at line 16 of file RZCodec.h.

Member Function Documentation

◆ begin()

virtual bool pulsewire::Codec::begin ( uint32_t bitFrequencyHz )

inlinevirtualinherited

initialization method for codecs that require setup before use (e.g., loading PIO programs, configuring state machines).

Reimplemented in pulsewire::RecorderCodec, pulsewire::DifferentialManchesterCodec, pulsewire::ManchesterCodec, pulsewire::PulseDistanceCodec, and pulsewire::PulseWidthCodec.

Definition at line 70 of file Codec.h.

◆ decodeEdge()

bool pulsewire::RZCodec::decodeEdge	(	uint32_t	durationUs,
		bool	level,
		uint8_t &	result
	)

inlineoverridevirtual

Edge-based decoding for protocol-agnostic RX drivers.

Called on each signal edge (duration since last edge, new level, minUs, maxUs). The codec maintains its own state and assembles frames internally.

Parameters

durationUs	Time in microseconds since last edge.
level	New logic level after the edge (true = HIGH, false = LOW).
frameBuffer	Output buffer for decoded frame (if available).
frameBufferSize	Size of frameBuffer (bytes).
frameLen	Set to decoded frame length if a frame is available.

Returns: True if a complete frame is decoded and available in frameBuffer.

Implements pulsewire::Codec.

Definition at line 81 of file RZCodec.h.

◆ encode()

size_t pulsewire::RZCodec::encode	(	uint8_t	byte,
		Vector< OutputEdge > &	output
	)

inlineoverridevirtual

Fill output vector with protocol-specific OutputSpec(s) for a byte.

Encodes the byte to protocol bits and appends OutputSpec(s) for each bit.

Parameters

byte	The byte to encode.
output	Vector to append OutputSpec(s).

Returns: Number of OutputSpec entries added.

Implements pulsewire::Codec.

Definition at line 39 of file RZCodec.h.

◆ encodeByte()

virtual void pulsewire::Codec::encodeByte	(	uint8_t	byte,
		std::vector< bool > &	bits
	)		const

inlineprotectedvirtualinherited

Encode a byte to protocol bitstream. Default implementation encodes to raw bits (MSB first), but can be overridden by protocols that require different bit formatting (e.g., Manchester). The output bits are stored in.

Parameters

byte	The input byte to encode.
bits	Output buffer for encoded bits (protocol-specific format).

Definition at line 204 of file Codec.h.

◆ encodePreamble()

size_t pulsewire::Codec::encodePreamble ( Vector< OutputEdge > & output )

inlineinherited

Definition at line 157 of file Codec.h.

◆ flushEncoder()

virtual size_t pulsewire::Codec::flushEncoder ( Vector< OutputEdge > & output )

inlinevirtualinherited

Flush any pending encoder state at end of frame.

Some codecs (e.g., Miller) accumulate pending duration that must be output at the end of the frame. This method outputs any remaining pending state. Default implementation does nothing.

Parameters

output Vector to append OutputSpec(s).

Returns: Number of OutputSpec entries added.

Reimplemented in pulsewire::MillerCodec.

Definition at line 185 of file Codec.h.

◆ getCodecType()

CodecEnum pulsewire::RZCodec::getCodecType ( ) const

inlineoverridevirtual

Get the codec type (e.g., PulseDistance, Manchester) for this Codec instance.

Implements pulsewire::Codec.

Definition at line 21 of file RZCodec.h.

◆ getEdgeCount()

size_t pulsewire::RZCodec::getEdgeCount ( ) const

inlineoverridevirtual

Get the number of protocol symbols (bits, pulses, etc.) per encoded byte.

Returns: Number of protocol symbols per byte.

Implements pulsewire::Codec.

Definition at line 25 of file RZCodec.h.

◆ getEndOfFrameDelayUs()

int pulsewire::RZCodec::getEndOfFrameDelayUs ( )

inlineoverridevirtual

Provide the end of frame delay in microseconds for this protocol, used by RX driver to

Implements pulsewire::Codec.

Definition at line 27 of file RZCodec.h.

◆ getFrameSize()

uint16_t pulsewire::Codec::getFrameSize ( ) const

inlineinherited

Get the configured frame size.

Definition at line 120 of file Codec.h.

◆ getIdleLevel()

bool pulsewire::RZCodec::getIdleLevel ( ) const

inlineoverridevirtual

Provides the initial ldle state (low or hith)

Reimplemented from pulsewire::Codec.

Definition at line 23 of file RZCodec.h.

◆ getPreamble()

Preamble & pulsewire::Codec::getPreamble ( )

inlineinherited

Get the preamble detector associated with this codec.

Returns: Reference to the Preamble instance used for preamble detection.

Definition at line 100 of file Codec.h.

◆ handleFrameStart()

bool pulsewire::RZCodec::handleFrameStart	(	bool	level,
		uint32_t	durationUs
	)

inlineprotected

Definition at line 122 of file RZCodec.h.

◆ handleInFrameDecoding()

bool pulsewire::RZCodec::handleInFrameDecoding	(	uint32_t	durationUs,
		bool	level,
		uint8_t &	result
	)

inlineprotected

Definition at line 141 of file RZCodec.h.

◆ init()

virtual void pulsewire::Codec::init	(	Preamble &	detector,
		uint32_t	shortPulseUs = `600`,
		uint32_t	longPulseUs = `1200`,
		uint32_t	toleranceUs = `200`
	)

inlinevirtualinherited

Used by IRTransceiver to initialize codec with protocol-specific parameters

Reimplemented in pulsewire::PulseWidthCodec, pulsewire::PulseDistanceCodec, and pulsewire::RecorderCodec.

Definition at line 63 of file Codec.h.

◆ isValidPeriod()

bool pulsewire::RZCodec::isValidPeriod	(	uint32_t	pulse,
		uint32_t	target,
		uint32_t	tolerance
	)		const

inlineprotected

Definition at line 116 of file RZCodec.h.

◆ name()

const char * pulsewire::Codec::name ( ) const

inlineinherited

Get the name of the codec type as a string (e.g., "PulseDistance", "Manchester").

Definition at line 135 of file Codec.h.

◆ reset()

void pulsewire::RZCodec::reset ( )

inlineoverridevirtual

Reset the internal state of the codec.

Reimplemented from pulsewire::Codec.

Definition at line 29 of file RZCodec.h.

◆ setFrameSize()

void pulsewire::Codec::setFrameSize ( uint16_t size )

inlineinherited

Set the Frame Size.

Parameters

size

Definition at line 114 of file Codec.h.

◆ setPreamble()

void pulsewire::Codec::setPreamble ( Preamble & preamble )

inlineinherited

Set the Preamble Detector object.

Parameters

preamble

Definition at line 94 of file Codec.h.

Field Documentation

◆ _bitCount

uint8_t pulsewire::RZCodec::_bitCount = 0

protected

Definition at line 108 of file RZCodec.h.

◆ _bitFrequencyHz

uint16_t pulsewire::Codec::_bitFrequencyHz = 0

protectedinherited

Definition at line 190 of file Codec.h.

◆ _bitPeriodUs

uint32_t pulsewire::Codec::_bitPeriodUs = 0

protectedinherited

Definition at line 191 of file Codec.h.

◆ _byte

uint8_t pulsewire::RZCodec::_byte = 0

protected

Definition at line 109 of file RZCodec.h.

◆ _decodeEdgeStream

Vector<OutputEdge> pulsewire::Codec::_decodeEdgeStream

protectedinherited

Definition at line 192 of file Codec.h.

◆ _defaultPreamble

CustomPreambleUs pulsewire::Codec::_defaultPreamble

protectedinherited

Definition at line 188 of file Codec.h.

◆ _edgeBuffer

RingBuffer<OutputEdge> pulsewire::RZCodec::_edgeBuffer {32}

protected

Definition at line 110 of file RZCodec.h.

◆ _frameSize

uint16_t pulsewire::Codec::_frameSize = 0

protectedinherited

Definition at line 194 of file Codec.h.

◆ _inFrame

volatile bool pulsewire::Codec::_inFrame = false

protectedinherited

Definition at line 193 of file Codec.h.

◆ _preamble

Preamble* pulsewire::Codec::_preamble = &_defaultPreamble

protectedinherited

Definition at line 189 of file Codec.h.

◆ _rxDataBitCount

uint8_t pulsewire::RZCodec::_rxDataBitCount = 0

protected

Definition at line 112 of file RZCodec.h.

◆ _rxStopBitCount

uint8_t pulsewire::RZCodec::_rxStopBitCount = 0

protected

Definition at line 113 of file RZCodec.h.

◆ _stopBits

uint8_t pulsewire::RZCodec::_stopBits = 1

protected

Definition at line 107 of file RZCodec.h.

The documentation for this class was generated from the following file:

src/pulse/codecs/RZCodec.h
