Differential Manchester encoding/decoding utility class for IR communication. More...

#include <DifferentialManchesterCodec.h>

Inheritance diagram for pulsewire::DifferentialManchesterCodec:

[legend]

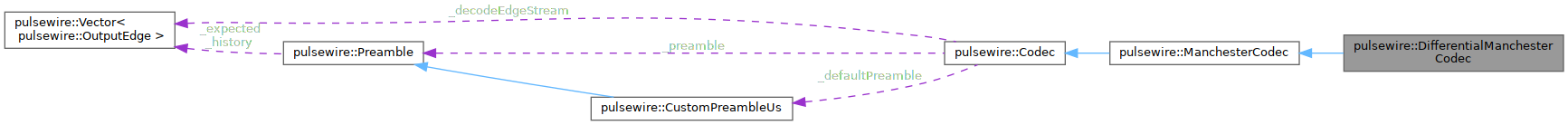

Collaboration diagram for pulsewire::DifferentialManchesterCodec:

[legend]

Public Member Functions
	DifferentialManchesterCodec (Preamble &preambleDetector)

bool	begin (uint32_t bitFrequencyHz) override
	initialization method for codecs that require setup before use (e.g., loading PIO programs, configuring state machines).

CodecEnum	getCodecType () const override

int	getEndOfFrameDelayUs () override
	Get delay to mark End Of Frame in us.

size_t	getEdgeCount () const override
	Get the number of edges used to encode a byte (16 for Manchester).

bool	decodeEdge (uint32_t durationUs, bool level, uint8_t &result) override
	Decode incoming edges to reconstruct bytes. Handles multiple edges per bit for noise tolerance by averaging edge durations and applying decodeEdge() logic to the average. This allows for robust decoding even in noisy environments where multiple edges may be detected.

virtual size_t	encode (uint8_t byte, Vector< OutputEdge > &output)
	Fill output vector with protocol-specific OutputSpec(s) for a byte.

virtual void	init (Preamble &detector, uint32_t shortPulseUs=600, uint32_t longPulseUs=1200, uint32_t toleranceUs=200)

void	setPreamble (Preamble &preamble)
	Set the Preamble Detector object.

Preamble &	getPreamble ()
	Get the preamble detector associated with this codec.

void	setFrameSize (uint16_t size)
	Set the Frame Size.

uint16_t	getFrameSize () const
	Get the configured frame size.

const char *	name () const
	Get the name of the codec type as a string (e.g., "PulseDistance", "Manchester").

size_t	encodePreamble (Vector< OutputEdge > &output)

virtual size_t	flushEncoder (Vector< OutputEdge > &output)
	Flush any pending encoder state at end of frame.

Protected Member Functions
size_t	encodeBit (bool bit, Vector< OutputEdge > &output)

bool	decodeByte (Vector< OutputEdge > &edges, uint8_t &result)

void	reset () override
	Reset the internal state of the codec.

bool	getIdleLevel () const override
	Provides the initial ldle state (low or hith)

bool	decodeEdgeInternal (uint32_t durationUs, bool level, uint8_t &result)

virtual void	encodeByte (uint8_t byte, std::vector< bool > &bits) const
	Encode a byte to protocol bitstream. Default implementation encodes to raw bits (MSB first), but can be overridden by protocols that require different bit formatting (e.g., Manchester). The output bits are stored in.

Protected Attributes
bool	_lastLevelEncode = false

bool	_lastLevelDecode = false

CustomPreambleUs	_defaultPreamble

Preamble *	_preamble = &_defaultPreamble

uint16_t	_bitFrequencyHz = 0

uint32_t	_bitPeriodUs = 0

Vector< OutputEdge >	_decodeEdgeStream

volatile bool	_inFrame = false

uint16_t	_frameSize = 0

Detailed Description

Differential Manchester encoding/decoding utility class for IR communication.

Each bit period has a transition in the middle.
Logical '0': transition at the start of the bit period.
Logical '1': no transition at the start of the bit period.

Definition at line 14 of file DifferentialManchesterCodec.h.

Constructor & Destructor Documentation

◆ DifferentialManchesterCodec()

pulsewire::DifferentialManchesterCodec::DifferentialManchesterCodec ( Preamble & preambleDetector )

inline

Definition at line 16 of file DifferentialManchesterCodec.h.

Member Function Documentation

◆ begin()

bool pulsewire::DifferentialManchesterCodec::begin ( uint32_t bitFrequencyHz )

inlineoverridevirtual

initialization method for codecs that require setup before use (e.g., loading PIO programs, configuring state machines).

Reimplemented from pulsewire::Codec.

Definition at line 19 of file DifferentialManchesterCodec.h.

◆ decodeByte()

bool pulsewire::DifferentialManchesterCodec::decodeByte	(	Vector< OutputEdge > &	edges,
		uint8_t &	result
	)

inlineprotected

Definition at line 58 of file DifferentialManchesterCodec.h.

◆ decodeEdge()

bool pulsewire::ManchesterCodec::decodeEdge	(	uint32_t	durationUs,
		bool	level,
		uint8_t &	result
	)

inlineoverridevirtualinherited

Decode incoming edges to reconstruct bytes. Handles multiple edges per bit for noise tolerance by averaging edge durations and applying decodeEdge() logic to the average. This allows for robust decoding even in noisy environments where multiple edges may be detected.

Parameters

durationUs
level
result

Returns: true; false

Implements pulsewire::Codec.

Definition at line 62 of file ManchesterCodec.h.

◆ decodeEdgeInternal()

bool pulsewire::ManchesterCodec::decodeEdgeInternal	(	uint32_t	durationUs,
		bool	level,
		uint8_t &	result
	)

inlineprotectedinherited

Definition at line 101 of file ManchesterCodec.h.

◆ encode()

virtual size_t pulsewire::ManchesterCodec::encode	(	uint8_t	byte,
		Vector< OutputEdge > &	output
	)

inlinevirtualinherited

Fill output vector with protocol-specific OutputSpec(s) for a byte.

Encodes the byte to protocol bits and appends OutputSpec(s) for each bit.

Parameters

byte	The byte to encode.
output	Vector to append OutputSpec(s).

Returns: Number of OutputSpec entries added.

Implements pulsewire::Codec.

Definition at line 89 of file ManchesterCodec.h.

◆ encodeBit()

size_t pulsewire::DifferentialManchesterCodec::encodeBit	(	bool	bit,
		Vector< OutputEdge > &	output
	)

inlineprotected

Definition at line 34 of file DifferentialManchesterCodec.h.

◆ encodeByte()

virtual void pulsewire::Codec::encodeByte	(	uint8_t	byte,
		std::vector< bool > &	bits
	)		const

inlineprotectedvirtualinherited

Encode a byte to protocol bitstream. Default implementation encodes to raw bits (MSB first), but can be overridden by protocols that require different bit formatting (e.g., Manchester). The output bits are stored in.

Parameters

byte	The input byte to encode.
bits	Output buffer for encoded bits (protocol-specific format).

Definition at line 204 of file Codec.h.

◆ encodePreamble()

size_t pulsewire::Codec::encodePreamble ( Vector< OutputEdge > & output )

inlineinherited

Definition at line 157 of file Codec.h.

◆ flushEncoder()

virtual size_t pulsewire::Codec::flushEncoder ( Vector< OutputEdge > & output )

inlinevirtualinherited

Flush any pending encoder state at end of frame.

Some codecs (e.g., Miller) accumulate pending duration that must be output at the end of the frame. This method outputs any remaining pending state. Default implementation does nothing.

Parameters

output Vector to append OutputSpec(s).

Returns: Number of OutputSpec entries added.

Reimplemented in pulsewire::MillerCodec.

Definition at line 185 of file Codec.h.

◆ getCodecType()

CodecEnum pulsewire::DifferentialManchesterCodec::getCodecType ( ) const

inlineoverridevirtual

Get the codec type (e.g., PulseDistance, Manchester) for this Codec instance.

Implements pulsewire::Codec.

Definition at line 24 of file DifferentialManchesterCodec.h.

◆ getEdgeCount()

size_t pulsewire::ManchesterCodec::getEdgeCount ( ) const

inlineoverridevirtualinherited

Get the number of edges used to encode a byte (16 for Manchester).

Implements pulsewire::Codec.

Definition at line 48 of file ManchesterCodec.h.

◆ getEndOfFrameDelayUs()

int pulsewire::ManchesterCodec::getEndOfFrameDelayUs ( )

inlineoverridevirtualinherited

Get delay to mark End Of Frame in us.

Returns: int

Implements pulsewire::Codec.

Definition at line 43 of file ManchesterCodec.h.

◆ getFrameSize()

uint16_t pulsewire::Codec::getFrameSize ( ) const

inlineinherited

Get the configured frame size.

Definition at line 120 of file Codec.h.

◆ getIdleLevel()

bool pulsewire::DifferentialManchesterCodec::getIdleLevel ( ) const

inlineoverrideprotectedvirtual

Provides the initial ldle state (low or hith)

Reimplemented from pulsewire::Codec.

Definition at line 87 of file DifferentialManchesterCodec.h.

◆ getPreamble()

Preamble & pulsewire::Codec::getPreamble ( )

inlineinherited

Get the preamble detector associated with this codec.

Returns: Reference to the Preamble instance used for preamble detection.

Definition at line 100 of file Codec.h.

◆ init()

virtual void pulsewire::Codec::init	(	Preamble &	detector,
		uint32_t	shortPulseUs = `600`,
		uint32_t	longPulseUs = `1200`,
		uint32_t	toleranceUs = `200`
	)

inlinevirtualinherited

Used by IRTransceiver to initialize codec with protocol-specific parameters

Reimplemented in pulsewire::PulseWidthCodec, pulsewire::PulseDistanceCodec, and pulsewire::RecorderCodec.

Definition at line 63 of file Codec.h.

◆ name()

const char * pulsewire::Codec::name ( ) const

inlineinherited

Get the name of the codec type as a string (e.g., "PulseDistance", "Manchester").

Definition at line 135 of file Codec.h.

◆ reset()

void pulsewire::DifferentialManchesterCodec::reset ( )

inlineoverrideprotectedvirtual

Reset the internal state of the codec.

Reimplemented from pulsewire::Codec.

Definition at line 81 of file DifferentialManchesterCodec.h.

◆ setFrameSize()

void pulsewire::Codec::setFrameSize ( uint16_t size )

inlineinherited

Set the Frame Size.

Parameters

size

Definition at line 114 of file Codec.h.

◆ setPreamble()

void pulsewire::Codec::setPreamble ( Preamble & preamble )

inlineinherited

Set the Preamble Detector object.

Parameters

preamble

Definition at line 94 of file Codec.h.

Field Documentation

◆ _bitFrequencyHz

uint16_t pulsewire::Codec::_bitFrequencyHz = 0

protectedinherited

Definition at line 190 of file Codec.h.

◆ _bitPeriodUs

uint32_t pulsewire::Codec::_bitPeriodUs = 0

protectedinherited

Definition at line 191 of file Codec.h.

◆ _decodeEdgeStream

Vector<OutputEdge> pulsewire::Codec::_decodeEdgeStream

protectedinherited

Definition at line 192 of file Codec.h.

◆ _defaultPreamble

CustomPreambleUs pulsewire::Codec::_defaultPreamble

protectedinherited

Definition at line 188 of file Codec.h.

◆ _frameSize

uint16_t pulsewire::Codec::_frameSize = 0

protectedinherited

Definition at line 194 of file Codec.h.

◆ _inFrame

volatile bool pulsewire::Codec::_inFrame = false

protectedinherited

Definition at line 193 of file Codec.h.

◆ _lastLevelDecode

bool pulsewire::DifferentialManchesterCodec::_lastLevelDecode = false

protected

Definition at line 30 of file DifferentialManchesterCodec.h.

◆ _lastLevelEncode

bool pulsewire::DifferentialManchesterCodec::_lastLevelEncode = false

protected

Definition at line 29 of file DifferentialManchesterCodec.h.

◆ _preamble

Preamble* pulsewire::Codec::_preamble = &_defaultPreamble

protectedinherited

Definition at line 189 of file Codec.h.

The documentation for this class was generated from the following file:

src/pulse/codecs/DifferentialManchesterCodec.h
