Abstract base class for preamble detection and generation. More...

#include <Preamble.h>

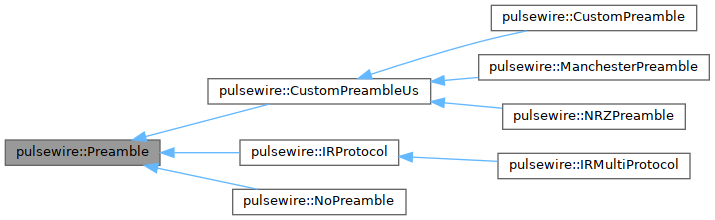

Inheritance diagram for pulsewire::Preamble:

[legend]

Collaboration diagram for pulsewire::Preamble:

Public Member Functions
virtual bool	begin (uint16_t bitFrequencyHz)

void	reset ()

virtual bool	detect (const OutputEdge &edge)
	Detects if the incoming edge matches the expected preamble pattern.

virtual int	getEdges (pulsewire::Vector< pulsewire::OutputEdge > &output) const =0
	Returns the expected preamble edges for this protocol.

virtual size_t	preambleLength () const =0

bool	inRange (uint32_t value, uint32_t target, uint32_t tolerance) const

Protected Attributes
pulsewire::Vector< pulsewire::OutputEdge >	_history

pulsewire::Vector< pulsewire::OutputEdge >	_expected

Detailed Description

Abstract base class for preamble detection and generation.

Provides an interface for detecting protocol-specific preambles in incoming pulse streams and generating preamble edges for transmission. This allows Codec classes to use different preamble detection strategies without coupling to specific implementations.

Definition at line 40 of file Preamble.h.

Member Function Documentation

◆ begin()

virtual bool pulsewire::Preamble::begin ( uint16_t bitFrequencyHz )

inlinevirtual

Definition at line 44 of file Preamble.h.

◆ detect()

virtual bool pulsewire::Preamble::detect ( const OutputEdge & edge )

inlinevirtual

Detects if the incoming edge matches the expected preamble pattern.

Reimplemented in pulsewire::IRMultiProtocol, and pulsewire::NoPreamble.

Definition at line 52 of file Preamble.h.

◆ getEdges()

virtual int pulsewire::Preamble::getEdges ( pulsewire::Vector< pulsewire::OutputEdge > & output ) const

pure virtual

Returns the expected preamble edges for this protocol.

Implemented in pulsewire::NoPreamble, pulsewire::IRProtocol, pulsewire::IRMultiProtocol, and pulsewire::CustomPreambleUs.

◆ inRange()

bool pulsewire::Preamble::inRange	(	uint32_t	value,
		uint32_t	target,
		uint32_t	tolerance
	)		const

inline

Utility function to check if a value is within a specified tolerance range of a target

Definition at line 95 of file Preamble.h.

◆ preambleLength()

virtual size_t pulsewire::Preamble::preambleLength ( ) const

pure virtual

Implemented in pulsewire::IRProtocol, and pulsewire::IRMultiProtocol.

◆ reset()

void pulsewire::Preamble::reset ( )

inline

Definition at line 49 of file Preamble.h.

Field Documentation

◆ _expected

pulsewire::Vector<pulsewire::OutputEdge> pulsewire::Preamble::_expected

protected

Definition at line 102 of file Preamble.h.

◆ _history

pulsewire::Vector<pulsewire::OutputEdge> pulsewire::Preamble::_history
