EncodedAudioOutput Class Reference

A more natural Print class to process encoded data (aac, wav, mp3...). Just define the output and the decoder and write the encoded data. More...

#include <CodecTSDemux.h>

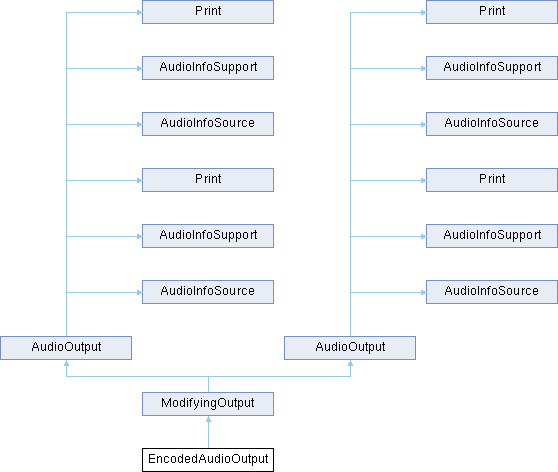

Inheritance diagram for EncodedAudioOutput:

Public Member Functions
	EncodedAudioOutput ()
	EncodedAudioOutput (AudioDecoder *decoder)
	EncodedAudioOutput (AudioEncoder *encoder)
	EncodedAudioOutput (AudioOutput *outputStream, AudioDecoder *decoder)
	EncodedAudioOutput (AudioOutput *outputStream, AudioEncoder *encoder)
	EncodedAudioOutput (AudioStream *outputStream, AudioDecoder *decoder)
	EncodedAudioOutput (AudioStream *outputStream, AudioEncoder *encoder)
	EncodedAudioOutput (Print *outputStream, AudioDecoder *decoder)
	EncodedAudioOutput (Print *outputStream, AudioEncoder *encoder)
virtual	~EncodedAudioOutput ()
void	addNotifyAudioChange (AudioInfoSupport &bi) override
	Define object which need to be notified if the basinfo is changing.
AudioInfo	audioInfo () override
	Provide audio info from decoder if relevant.
virtual AudioInfo	audioInfoOut ()
virtual AudioInfo	audioInfoOut ()
int	availableForWrite () override
bool	begin () override
	Starts the processing - sets the status to active.
virtual bool	begin (AudioInfo newInfo) override
	Starts the processing - sets the status to active.
virtual void	clearNotifyAudioChange ()
	Deletes all change notify subscriptions.
virtual void	clearNotifyAudioChange ()
	Deletes all change notify subscriptions.
AudioDecoder &	decoder ()
	Provides the initialized decoder.
AudioInfo	defaultConfig ()
AudioEncoder &	encoder ()
	Provides the initialized encoder.
void	end () override
	Ends the processing.
virtual void	flush ()
virtual void	flush ()
AudioDecoder *	getDecoder ()
AudioEncoder *	getEncoder ()
bool	isCheckAvailableForWrite ()
	Is Available for Write check activated ?
bool	isDecoder ()
virtual bool	isDeletable ()
	If true we need to release the related memory in the destructor.
virtual bool	isDeletable ()
	If true we need to release the related memory in the destructor.
bool	isEncoder ()
bool	isNotifyActive ()
	Checks if the automatic AudioInfo update is active.
bool	isNotifyActive ()
	Checks if the automatic AudioInfo update is active.
	operator bool () override
	Returns true if status is active and we still have data to be processed.
EncodedAudioOutput &	operator= (EncodedAudioOutput const &src)
virtual bool	removeNotifyAudioChange (AudioInfoSupport &bi)
	Removes a target in order not to be notified about audio changes.
virtual bool	removeNotifyAudioChange (AudioInfoSupport &bi)
	Removes a target in order not to be notified about audio changes.
virtual void	setAudioInfo (AudioInfo newInfo) override
	Defines the input AudioInfo.
void	setCheckAvailableForWrite (bool check)
	Activate/Deactivate the Available for Write check: if activated, the write.
void	setDecoder (AudioDecoder *decoder)
void	setEncoder (AudioEncoder *encoder)
void	setFrameSize (int size)
	defines the size of the decoded frame in bytes
void	setNotifyActive (bool flag)
	Deactivate/Reactivate automatic AudioInfo updates: (default is active).
void	setNotifyActive (bool flag)
	Deactivate/Reactivate automatic AudioInfo updates: (default is active).
void	setOutput (AudioOutput &outputStream)
void	setOutput (AudioOutput *out)
void	setOutput (AudioStream &outputStream)
void	setOutput (AudioStream *out)
void	setOutput (Print &outputStream) override
	Defines/Changes the output target.
void	setOutput (Print *outputStream)
	Defines the output.
virtual size_t	write (uint8_t ch) override
virtual size_t	write (const uint8_t *data, size_t len) override
	encoder decode the data
virtual void	writeSilence (size_t len)
virtual void	writeSilence (size_t len)

Protected Member Functions
void	notifyAudioChange (AudioInfo info)
void	notifyAudioChange (AudioInfo info)

Protected Attributes
int	_timeout = 10
bool	active = false
AudioInfo	cfg
bool	check_available_for_write = false
AudioDecoder *	decoder_ptr = undefined
AudioEncoder *	encoder_ptr = undefined
int	frame_size = 125
bool	is_active = false
bool	is_notify_active = true
Vector< AudioInfoSupport * >	notify_vector
Print *	ptr_out = nullptr
SingleBuffer< uint8_t >	tmp { 8 }
int	tmpPos = 0
AudioInfoSupport *	to_notify = nullptr
CodecNOP *	undefined = CodecNOP::instance()
AudioWriter *	writer_ptr = nullptr

Detailed Description

A more natural Print class to process encoded data (aac, wav, mp3...). Just define the output and the decoder and write the encoded data.

Author

Phil Schatzmann

Copyright

GPLv3

Constructor & Destructor Documentation

EncodedAudioOutput() [1/9]

EncodedAudioOutput ( )

inline

EncodedAudioOutput() [2/9]

EncodedAudioOutput ( AudioDecoder * decoder )

inline

EncodedAudioOutput() [3/9]

EncodedAudioOutput ( AudioEncoder * encoder )

inline

EncodedAudioOutput() [4/9]

EncodedAudioOutput ( AudioStream * outputStream, AudioDecoder * decoder )

inline

EncodedAudioOutput() [5/9]

EncodedAudioOutput ( AudioOutput * outputStream, AudioDecoder * decoder )

inline

EncodedAudioOutput() [6/9]

EncodedAudioOutput ( Print * outputStream, AudioDecoder * decoder )

inline

EncodedAudioOutput() [7/9]

EncodedAudioOutput ( Print * outputStream, AudioEncoder * encoder )

inline

EncodedAudioOutput() [8/9]

EncodedAudioOutput ( AudioOutput * outputStream, AudioEncoder * encoder )

inline

EncodedAudioOutput() [9/9]

EncodedAudioOutput ( AudioStream * outputStream, AudioEncoder * encoder )

inline

~EncodedAudioOutput()

virtual ~EncodedAudioOutput ( )

inlinevirtual

Member Function Documentation

addNotifyAudioChange()

void addNotifyAudioChange ( AudioInfoSupport & bi )

inlineoverridevirtual

Define object which need to be notified if the basinfo is changing.

Reimplemented from AudioInfoSource.

audioInfo()

AudioInfo audioInfo ( )

inlineoverridevirtual

Provide audio info from decoder if relevant.

Reimplemented from AudioOutput.

audioInfoOut() [1/2]

virtual AudioInfo audioInfoOut ( )

inlinevirtualinherited

provides the actual output AudioInfo: this is usually the same as audioInfo() unless we use a transforming stream

Reimplemented in ChannelFormatConverterStream, ChannelFormatConverterStreamT< T >, FormatConverterStream, MP3EncoderShine, NumberFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, Pipeline, PureDataStream, PWMAudioOutput< PWMDriverT >, ResampleStream, ResampleStreamT< TInterpolator >, and SupportedRatesStream.

audioInfoOut() [2/2]

virtual AudioInfo audioInfoOut ( )

inlinevirtualinherited

provides the actual output AudioInfo: this is usually the same as audioInfo() unless we use a transforming stream

Reimplemented in ChannelFormatConverterStream, ChannelFormatConverterStreamT< T >, FormatConverterStream, MP3EncoderShine, NumberFormatConverterStream, NumberFormatConverterStreamT< TFrom, TTo >, Pipeline, PureDataStream, PWMAudioOutput< PWMDriverT >, ResampleStream, ResampleStreamT< TInterpolator >, and SupportedRatesStream.

availableForWrite()

int availableForWrite ( )

inlineoverridevirtual

Reimplemented from AudioOutput.

begin() [1/2]

bool begin ( )

inlineoverridevirtual

Starts the processing - sets the status to active.

Reimplemented from AudioOutput.

begin() [2/2]

virtual bool begin ( AudioInfo newInfo )

inlineoverridevirtual

Starts the processing - sets the status to active.

Reimplemented from AudioOutput.

clearNotifyAudioChange() [1/2]

virtual void clearNotifyAudioChange ( )

inlinevirtualinherited

Deletes all change notify subscriptions.

Reimplemented in RTSPClient< TcpClient, UdpSocket >, RTSPClient< EthernetClient, EthernetUDP >, and RTSPClient< WiFiClient, WiFiUDP >.

clearNotifyAudioChange() [2/2]

virtual void clearNotifyAudioChange ( )

inlinevirtualinherited

Deletes all change notify subscriptions.

Reimplemented in RTSPClient< TcpClient, UdpSocket >, RTSPClient< EthernetClient, EthernetUDP >, and RTSPClient< WiFiClient, WiFiUDP >.

decoder()

AudioDecoder & decoder ( )

inline

Provides the initialized decoder.

defaultConfig()

AudioInfo defaultConfig ( )

inline

encoder()

AudioEncoder & encoder ( )

inline

Provides the initialized encoder.

end()

void end ( )

inlineoverridevirtual

Ends the processing.

Reimplemented from AudioOutput.

flush() [1/2]

virtual void flush ( )

inlinevirtualinherited

Reimplemented from Print.

Reimplemented in HexDumpOutput, HexDumpOutput, MultiOutput, HexDumpOutput, and MultiOutput.

flush() [2/2]

virtual void flush ( )

inlinevirtualinherited

Reimplemented from Print.

Reimplemented in HexDumpOutput, HexDumpOutput, MultiOutput, HexDumpOutput, and MultiOutput.

getDecoder()

AudioDecoder * getDecoder ( )

inline

getEncoder()

AudioEncoder * getEncoder ( )

inline

isCheckAvailableForWrite()

bool isCheckAvailableForWrite ( )

inline

Is Available for Write check activated ?

isDecoder()

bool isDecoder ( )

inline

isDeletable() [1/2]

virtual bool isDeletable ( )

inlinevirtualinherited

If true we need to release the related memory in the destructor.

Reimplemented in AdapterAudioStreamToAudioOutput, AdapterPrintToAudioOutput, AdapterAudioStreamToAudioOutput, and AdapterPrintToAudioOutput.

isDeletable() [2/2]

virtual bool isDeletable ( )

inlinevirtualinherited

If true we need to release the related memory in the destructor.

Reimplemented in AdapterAudioStreamToAudioOutput, AdapterPrintToAudioOutput, AdapterAudioStreamToAudioOutput, and AdapterPrintToAudioOutput.

isEncoder()

bool isEncoder ( )

inline

isNotifyActive() [1/2]

bool isNotifyActive ( )

inlineinherited

Checks if the automatic AudioInfo update is active.

isNotifyActive() [2/2]

bool isNotifyActive ( )

inlineinherited

Checks if the automatic AudioInfo update is active.

notifyAudioChange() [1/2]

void notifyAudioChange ( AudioInfo info )

inlineprotectedinherited

notifyAudioChange() [2/2]

void notifyAudioChange ( AudioInfo info )

inlineprotectedinherited

operator bool()

operator bool ( )

inlineoverridevirtual

Returns true if status is active and we still have data to be processed.

Reimplemented from AudioOutput.

operator=()

EncodedAudioOutput & operator= ( EncodedAudioOutput const & src )

inline

removeNotifyAudioChange() [1/2]

virtual bool removeNotifyAudioChange ( AudioInfoSupport & bi )

inlinevirtualinherited

Removes a target in order not to be notified about audio changes.

removeNotifyAudioChange() [2/2]

virtual bool removeNotifyAudioChange ( AudioInfoSupport & bi )

inlinevirtualinherited

Removes a target in order not to be notified about audio changes.

setAudioInfo()

virtual void setAudioInfo ( AudioInfo info )

inlineoverridevirtual

Defines the input AudioInfo.

Reimplemented from AudioOutput.

setCheckAvailableForWrite()

void setCheckAvailableForWrite ( bool check )

inline

Activate/Deactivate the Available for Write check: if activated, the write.

setDecoder()

void setDecoder ( AudioDecoder * decoder )

inline

setEncoder()

void setEncoder ( AudioEncoder * encoder )

inline

setFrameSize()

void setFrameSize ( int size )

inline

defines the size of the decoded frame in bytes

setNotifyActive() [1/2]

void setNotifyActive ( bool flag )

inlineinherited

Deactivate/Reactivate automatic AudioInfo updates: (default is active).

setNotifyActive() [2/2]

void setNotifyActive ( bool flag )

inlineinherited

Deactivate/Reactivate automatic AudioInfo updates: (default is active).

setOutput() [1/6]

void setOutput ( AudioOutput & outputStream )

inline

setOutput() [2/6]

void setOutput ( AudioOutput * out )

inline

setOutput() [3/6]

void setOutput ( AudioStream & outputStream )

inline

setOutput() [4/6]

void setOutput ( AudioStream * out )

inline

setOutput() [5/6]

void setOutput ( Print & out )

inlineoverridevirtual

Defines/Changes the output target.

Implements ModifyingOutput.

setOutput() [6/6]

void setOutput ( Print * outputStream )

inline

Defines the output.

write() [1/2]

virtual size_t write ( uint8_t ch )

inlineoverridevirtualinherited

Reimplemented in MultiOutput, MetaDataOutput, and MultiOutput.

write() [2/2]

virtual size_t write ( const uint8_t * data, size_t len )

inlineoverridevirtual

encoder decode the data

Implements AudioOutput.

writeSilence() [1/2]

virtual void writeSilence ( size_t len )

inlinevirtualinherited

Writes n 0 values (= silence)

Parameters

len

writeSilence() [2/2]

virtual void writeSilence ( size_t len )

inlinevirtualinherited

Writes n 0 values (= silence)

Parameters

len

Member Data Documentation

_timeout

int _timeout = 10

protectedinherited

active

bool active = false

protected

cfg

AudioInfo cfg

protectedinherited

check_available_for_write

bool check_available_for_write = false

protected

decoder_ptr

AudioDecoder* decoder_ptr = undefined

protected

encoder_ptr

AudioEncoder* encoder_ptr = undefined

protected

frame_size

int frame_size = 125

protected

is_active

bool is_active = false

protectedinherited

is_notify_active

bool is_notify_active = true

protectedinherited

notify_vector

Vector< AudioInfoSupport * > notify_vector

protectedinherited

ptr_out

Print* ptr_out = nullptr

protected

tmp

SingleBuffer< uint8_t > tmp { 8 }

protectedinherited

tmpPos

int tmpPos = 0

protectedinherited

to_notify

AudioInfoSupport* to_notify = nullptr

protected

undefined

CodecNOP* undefined = CodecNOP::instance()

protected

writer_ptr

AudioWriter* writer_ptr = nullptr

protected

---

The documentation for this class was generated from the following file:

• src/AudioTools/AudioCodecs/CodecTSDemux.h
