pulsewire::TxDriverRP2040 Class Reference

RP2040-specific TxDriver implementation that uses TxProtocolRP2040 for transmission. More...

#include <TxDriverRP2040.h>

Inheritance diagram for pulsewire::TxDriverRP2040:

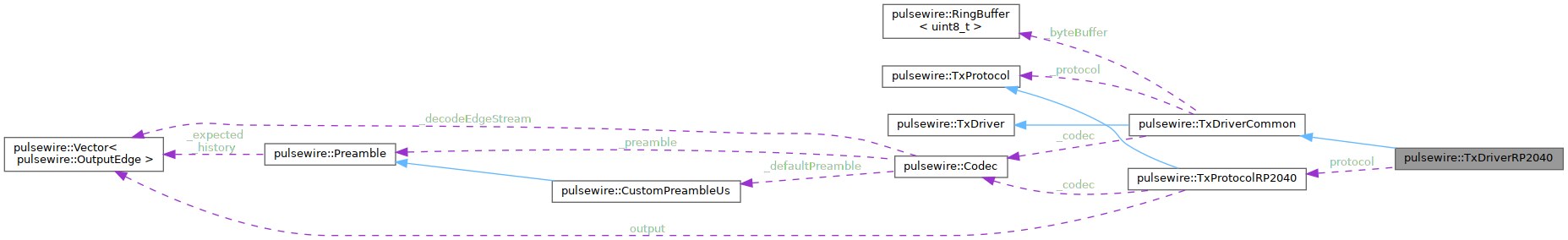

Collaboration diagram for pulsewire::TxDriverRP2040:

Public Member Functions
	TxDriverRP2040 (Codec &codec, uint8_t pin, uint32_t carrierHz=CARRIER_HZ, uint32_t freqHz=DEFAULT_BIT_FREQ_HZ, bool useChecksum=false)
bool	begin (Codec &codec, uint8_t pin, uint32_t carrierHz=CARRIER_HZ, uint32_t freqHz=DEFAULT_BIT_FREQ_HZ, bool useChecksum=false)
virtual void	init (TxProtocol &protocol, Codec &codec, uint8_t pin, bool useChecksum=false)
bool	begin (uint16_t bitFrequencyHz) override
void	setFrameSize (uint16_t size)
	Set the expected frame size for dynamic data transmission.
void	setFramingMode (FramingMode mode) override
int	write (uint8_t byte) override
size_t	write (const uint8_t *data, size_t len)
	Build frames in the buffer and send when full.
void	flush () override
virtual void	end ()

Protected Member Functions
void	sendPreamble ()
void	sendData (const uint8_t *data, uint8_t len)
void	sendEnd ()

Protected Attributes
TxProtocolRP2040	protocol
Codec *	_codec = nullptr
TxProtocol *	_protocol = nullptr
RingBuffer< uint8_t >	_byteBuffer
uint16_t	_frameSize = DEFAULT_FRAME_SIZE
FramingMode	_framingMode = FramingMode::WriteBytes
uint16_t	_bitFrequencyHz = DEFAULT_BIT_FREQ_HZ
bool	_useChecksum = false
uint8_t	check_sum = 0
uint8_t	_pin = -1

Detailed Description

RP2040-specific TxDriver implementation that uses TxProtocolRP2040 for transmission.

Definition at line 170 of file TxDriverRP2040.h.

Constructor & Destructor Documentation

TxDriverRP2040()

pulsewire::TxDriverRP2040::TxDriverRP2040 ( Codec &  codec, uint8_t  pin, uint32_t  carrierHz = CARRIER_HZ, uint32_t  freqHz = DEFAULT_BIT_FREQ_HZ, bool  useChecksum = false  )

inline

Definition at line 172 of file TxDriverRP2040.h.

Member Function Documentation

begin() [1/2]

bool pulsewire::TxDriverRP2040::begin ( Codec &  codec, uint8_t  pin, uint32_t  carrierHz = CARRIER_HZ, uint32_t  freqHz = DEFAULT_BIT_FREQ_HZ, bool  useChecksum = false  )

inline

Definition at line 178 of file TxDriverRP2040.h.

begin() [2/2]

bool pulsewire::TxDriverCommon::begin ( uint16_t  bitFrequencyHz )

inlineoverridevirtualinherited

Implements pulsewire::TxDriver.

Definition at line 62 of file TxDriverCommon.h.

end()

virtual void pulsewire::TxDriver::end ( )

inlinevirtualinherited

Definition at line 26 of file TxDriver.h.

flush()

void pulsewire::TxDriverCommon::flush ( )

inlineoverridevirtualinherited

Reimplemented from pulsewire::TxDriver.

Definition at line 133 of file TxDriverCommon.h.

init()

virtual void pulsewire::TxDriverCommon::init ( TxProtocol &  protocol, Codec &  codec, uint8_t  pin, bool  useChecksum = false  )

inlinevirtualinherited

Definition at line 52 of file TxDriverCommon.h.

sendData()

void pulsewire::TxDriverRP2040::sendData ( const uint8_t *  data, uint8_t  len  )

inlineprotected

Definition at line 196 of file TxDriverRP2040.h.

sendEnd()

void pulsewire::TxDriverRP2040::sendEnd ( )

inlineprotected

Definition at line 200 of file TxDriverRP2040.h.

sendPreamble()

void pulsewire::TxDriverRP2040::sendPreamble ( )

inlineprotected

Definition at line 194 of file TxDriverRP2040.h.

setFrameSize()

void pulsewire::TxDriverCommon::setFrameSize ( uint16_t  size )

inlinevirtualinherited

Set the expected frame size for dynamic data transmission.

Implements pulsewire::TxDriver.

Definition at line 72 of file TxDriverCommon.h.

setFramingMode()

void pulsewire::TxDriverCommon::setFramingMode ( FramingMode  mode )

inlineoverridevirtualinherited

Set the framing mode for how data is sent (e.g., fixed-size frames, immediate write, or flush)

Implements pulsewire::TxDriver.

Definition at line 82 of file TxDriverCommon.h.

write() [1/2]

size_t pulsewire::TxDriverCommon::write ( const uint8_t *  data, size_t  len  )

inlinevirtualinherited

Build frames in the buffer and send when full.

Implements pulsewire::TxDriver.

Definition at line 102 of file TxDriverCommon.h.

write() [2/2]

int pulsewire::TxDriverCommon::write ( uint8_t  byte )

inlineoverridevirtualinherited

Implements pulsewire::TxDriver.

Definition at line 84 of file TxDriverCommon.h.

Field Documentation

_bitFrequencyHz

uint16_t pulsewire::TxDriverCommon::_bitFrequencyHz = DEFAULT_BIT_FREQ_HZ

protectedinherited

Definition at line 148 of file TxDriverCommon.h.

_byteBuffer

RingBuffer<uint8_t> pulsewire::TxDriverCommon::_byteBuffer

protectedinherited

Definition at line 145 of file TxDriverCommon.h.

_codec

Codec* pulsewire::TxDriverCommon::_codec = nullptr

protectedinherited

Definition at line 143 of file TxDriverCommon.h.

_frameSize

uint16_t pulsewire::TxDriverCommon::_frameSize = DEFAULT_FRAME_SIZE

protectedinherited

Definition at line 146 of file TxDriverCommon.h.

_framingMode

FramingMode pulsewire::TxDriverCommon::_framingMode = FramingMode::WriteBytes

protectedinherited

Definition at line 147 of file TxDriverCommon.h.

_pin

uint8_t pulsewire::TxDriverCommon::_pin = -1

protectedinherited

Definition at line 151 of file TxDriverCommon.h.

_protocol

TxProtocol* pulsewire::TxDriverCommon::_protocol = nullptr

protectedinherited

Definition at line 144 of file TxDriverCommon.h.

_useChecksum

bool pulsewire::TxDriverCommon::_useChecksum = false

protectedinherited

Definition at line 149 of file TxDriverCommon.h.

check_sum

uint8_t pulsewire::TxDriverCommon::check_sum = 0

protectedinherited

Definition at line 150 of file TxDriverCommon.h.

protocol

TxProtocolRP2040 pulsewire::TxDriverRP2040::protocol

protected

Definition at line 192 of file TxDriverRP2040.h.

---

The documentation for this class was generated from the following file:

• src/sandbox/TxDriverRP2040.h
