pulsewire::TxDriverCommon Class Reference

Provides common logic for transmitting signals using various framing modes. More...

#include <TxDriverCommon.h>

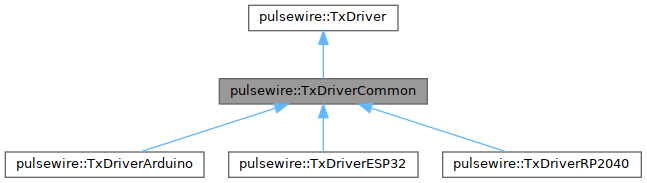

Inheritance diagram for pulsewire::TxDriverCommon:

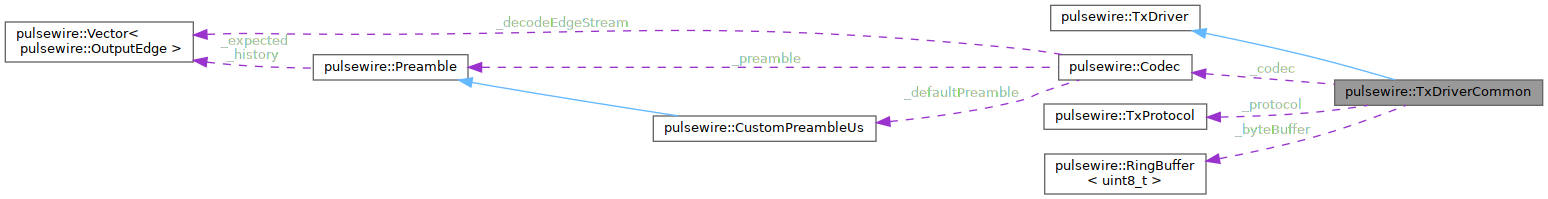

Collaboration diagram for pulsewire::TxDriverCommon:

Public Member Functions
	TxDriverCommon (TxProtocol &protocol, Codec &codec, uint8_t pin, bool useChecksum=false)
virtual void	init (TxProtocol &protocol, Codec &codec, uint8_t pin, bool useChecksum=false)
bool	begin (uint16_t bitFrequencyHz) override
void	setFrameSize (uint16_t size)
	Set the expected frame size for dynamic data transmission.
void	setFramingMode (FramingMode mode) override
int	write (uint8_t byte) override
size_t	write (const uint8_t *data, size_t len)
	Build frames in the buffer and send when full.
void	flush () override
virtual void	end ()

Protected Member Functions
void	sendPreamble ()
void	sendData (const uint8_t *data, uint8_t len)
void	sendEnd ()

Protected Attributes
Codec *	_codec = nullptr
TxProtocol *	_protocol = nullptr
RingBuffer< uint8_t >	_byteBuffer
uint16_t	_frameSize = DEFAULT_FRAME_SIZE
FramingMode	_framingMode = FramingMode::WriteBytes
uint16_t	_bitFrequencyHz = DEFAULT_BIT_FREQ_HZ
bool	_useChecksum = false
uint8_t	check_sum = 0
uint8_t	_pin = -1

Detailed Description

Provides common logic for transmitting signals using various framing modes.

The TxDriverCommon class is a foundational component for managing the transmission of signals. It integrates a specified TxProtocol and Codec implementation to handle the framing and buffering of data. The class is responsible for:

• Managing the framing modes for data transmission.
• Buffering data dynamically and sending frames when the buffer is full.
• Encoding bytes into signal edges and timings using the provided Codec.
• Sending preambles, data, and end signals based on the selected framing mode.

This class supports dynamic configuration of frame sizes, framing modes, and optional checksum appending for data integrity. It is designed to work with a specified transmission pin and bit frequency.

Note

The Codec handles the encoding of bytes into signal edges and timings, while the TxProtocol manages the protocol-specific details of the transmission.

Definition at line 36 of file TxDriverCommon.h.

Constructor & Destructor Documentation

TxDriverCommon()

pulsewire::TxDriverCommon::TxDriverCommon ( TxProtocol &  protocol, Codec &  codec, uint8_t  pin, bool  useChecksum = false  )

inline

Parameters

codec	IR codec
pin	TX pin
signal	Signal implementation
freqHz	Bit frequency
useChecksum	If true, append checksum to frame (default: false)

Definition at line 46 of file TxDriverCommon.h.

Member Function Documentation

begin()

bool pulsewire::TxDriverCommon::begin ( uint16_t  bitFrequencyHz )

inlineoverridevirtual

Implements pulsewire::TxDriver.

Definition at line 62 of file TxDriverCommon.h.

end()

virtual void pulsewire::TxDriver::end ( )

inlinevirtualinherited

Definition at line 26 of file TxDriver.h.

flush()

void pulsewire::TxDriverCommon::flush ( )

inlineoverridevirtual

Reimplemented from pulsewire::TxDriver.

Definition at line 133 of file TxDriverCommon.h.

init()

virtual void pulsewire::TxDriverCommon::init ( TxProtocol &  protocol, Codec &  codec, uint8_t  pin, bool  useChecksum = false  )

inlinevirtual

Definition at line 52 of file TxDriverCommon.h.

sendData()

void pulsewire::TxDriverCommon::sendData ( const uint8_t *  data, uint8_t  len  )

inlineprotected

Definition at line 158 of file TxDriverCommon.h.

sendEnd()

void pulsewire::TxDriverCommon::sendEnd ( )

inlineprotected

Definition at line 163 of file TxDriverCommon.h.

sendPreamble()

void pulsewire::TxDriverCommon::sendPreamble ( )

inlineprotected

Definition at line 153 of file TxDriverCommon.h.

setFrameSize()

void pulsewire::TxDriverCommon::setFrameSize ( uint16_t  size )

inlinevirtual

Set the expected frame size for dynamic data transmission.

Implements pulsewire::TxDriver.

Definition at line 72 of file TxDriverCommon.h.

setFramingMode()

void pulsewire::TxDriverCommon::setFramingMode ( FramingMode  mode )

inlineoverridevirtual

Set the framing mode for how data is sent (e.g., fixed-size frames, immediate write, or flush)

Implements pulsewire::TxDriver.

Definition at line 82 of file TxDriverCommon.h.

write() [1/2]

size_t pulsewire::TxDriverCommon::write ( const uint8_t *  data, size_t  len  )

inlinevirtual

Build frames in the buffer and send when full.

Implements pulsewire::TxDriver.

Definition at line 102 of file TxDriverCommon.h.

write() [2/2]

int pulsewire::TxDriverCommon::write ( uint8_t  byte )

inlineoverridevirtual

Implements pulsewire::TxDriver.

Definition at line 84 of file TxDriverCommon.h.

Field Documentation

_bitFrequencyHz

uint16_t pulsewire::TxDriverCommon::_bitFrequencyHz = DEFAULT_BIT_FREQ_HZ

protected

Definition at line 148 of file TxDriverCommon.h.

_byteBuffer

RingBuffer<uint8_t> pulsewire::TxDriverCommon::_byteBuffer

protected

Definition at line 145 of file TxDriverCommon.h.

_codec

Codec* pulsewire::TxDriverCommon::_codec = nullptr

protected

Definition at line 143 of file TxDriverCommon.h.

_frameSize

uint16_t pulsewire::TxDriverCommon::_frameSize = DEFAULT_FRAME_SIZE

protected

Definition at line 146 of file TxDriverCommon.h.

_framingMode

FramingMode pulsewire::TxDriverCommon::_framingMode = FramingMode::WriteBytes

protected

Definition at line 147 of file TxDriverCommon.h.

_pin

uint8_t pulsewire::TxDriverCommon::_pin = -1

protected

Definition at line 151 of file TxDriverCommon.h.

_protocol

TxProtocol* pulsewire::TxDriverCommon::_protocol = nullptr

protected

Definition at line 144 of file TxDriverCommon.h.

_useChecksum

bool pulsewire::TxDriverCommon::_useChecksum = false

protected

Definition at line 149 of file TxDriverCommon.h.

check_sum

uint8_t pulsewire::TxDriverCommon::check_sum = 0

protected

Definition at line 150 of file TxDriverCommon.h.

---

The documentation for this class was generated from the following file:

• src/pulse/TxDriverCommon.h
