Generic driver for transmitting data using a specified codec and signal implementation. More...

#include <TxDriverArduino.h>

Inheritance diagram for pulsewire::TxDriverArduino:

[legend]

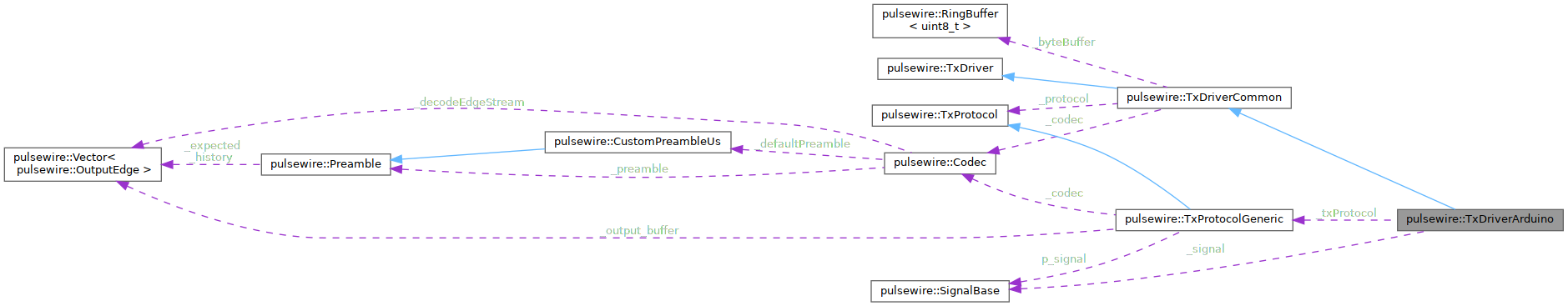

Collaboration diagram for pulsewire::TxDriverArduino:

[legend]

Public Member Functions
	TxDriverArduino (Codec &codec, uint8_t pin, SignalBase &signal, bool useChecksum=false)

void	init (TxProtocol &protocol, Codec &codec, uint8_t pin, bool useChecksum=false)

bool	begin (uint16_t bitFrequencyHz) override

void	setFrameSize (uint16_t size)
	Set the expected frame size for dynamic data transmission.

void	setFramingMode (FramingMode mode) override

int	write (uint8_t byte) override

size_t	write (const uint8_t *data, size_t len)
	Build frames in the buffer and send when full.

void	flush () override

virtual void	end ()

Protected Member Functions
void	sendPreamble ()

void	sendData (const uint8_t *data, uint8_t len)

void	sendEnd ()

Protected Attributes
TxProtocolGeneric	_txProtocol

SignalBase *	_signal = nullptr

Codec *	_codec = nullptr

TxProtocol *	_protocol = nullptr

RingBuffer< uint8_t >	_byteBuffer

uint16_t	_frameSize = DEFAULT_FRAME_SIZE

FramingMode	_framingMode = FramingMode::WriteBytes

uint16_t	_bitFrequencyHz = DEFAULT_BIT_FREQ_HZ

bool	_useChecksum = false

uint8_t	check_sum = 0

uint8_t	_pin = -1

Detailed Description

Generic driver for transmitting data using a specified codec and signal implementation.

The TxDriverArduino class extends the functionality of TxDriverCommon by providing a generic implementation for transmitting data. It integrates a Codec for encoding data and a SignalBase implementation for managing the transmission signal.

This class is responsible for:

Initializing the transmission protocol with the provided signal implementation.
Managing the transmission pin and configuring the signal for data transmission.
Supporting dynamic configuration of transmission parameters such as frequency and checksum usage.

Note: The TxProtocolGeneric is used to handle protocol-specific details, while the SignalBase implementation manages the physical signal transmission.

Definition at line 29 of file TxDriverArduino.h.

Constructor & Destructor Documentation

◆ TxDriverArduino()

pulsewire::TxDriverArduino::TxDriverArduino	(	Codec &	codec,
		uint8_t	pin,
		SignalBase &	signal,
		bool	useChecksum = `false`
	)

inline

Definition at line 32 of file TxDriverArduino.h.

Member Function Documentation

◆ begin()

bool pulsewire::TxDriverCommon::begin ( uint16_t bitFrequencyHz )

inlineoverridevirtualinherited

Implements pulsewire::TxDriver.

Definition at line 62 of file TxDriverCommon.h.

◆ end()

virtual void pulsewire::TxDriver::end ( )

inlinevirtualinherited

Definition at line 26 of file TxDriver.h.

◆ flush()

void pulsewire::TxDriverCommon::flush ( )

inlineoverridevirtualinherited

Reimplemented from pulsewire::TxDriver.

Definition at line 133 of file TxDriverCommon.h.

◆ init()

void pulsewire::TxDriverArduino::init	(	TxProtocol &	protocol,
		Codec &	codec,
		uint8_t	pin,
		bool	useChecksum = `false`
	)

inlinevirtual

Reimplemented from pulsewire::TxDriverCommon.

Definition at line 40 of file TxDriverArduino.h.

◆ sendData()

void pulsewire::TxDriverCommon::sendData	(	const uint8_t *	data,
		uint8_t	len
	)

inlineprotectedinherited

Definition at line 158 of file TxDriverCommon.h.

◆ sendEnd()

void pulsewire::TxDriverCommon::sendEnd ( )

inlineprotectedinherited

Definition at line 163 of file TxDriverCommon.h.

◆ sendPreamble()

void pulsewire::TxDriverCommon::sendPreamble ( )

inlineprotectedinherited

Definition at line 153 of file TxDriverCommon.h.

◆ setFrameSize()

void pulsewire::TxDriverCommon::setFrameSize ( uint16_t size )

inlinevirtualinherited

Set the expected frame size for dynamic data transmission.

Implements pulsewire::TxDriver.

Definition at line 72 of file TxDriverCommon.h.

◆ setFramingMode()

void pulsewire::TxDriverCommon::setFramingMode ( FramingMode mode )

inlineoverridevirtualinherited

Set the framing mode for how data is sent (e.g., fixed-size frames, immediate write, or flush)

Implements pulsewire::TxDriver.

Definition at line 82 of file TxDriverCommon.h.

◆ write() [1/2]

size_t pulsewire::TxDriverCommon::write	(	const uint8_t *	data,
		size_t	len
	)

inlinevirtualinherited

Build frames in the buffer and send when full.

Implements pulsewire::TxDriver.

Definition at line 102 of file TxDriverCommon.h.

◆ write() [2/2]

int pulsewire::TxDriverCommon::write ( uint8_t byte )

inlineoverridevirtualinherited

Implements pulsewire::TxDriver.

Definition at line 84 of file TxDriverCommon.h.

Field Documentation

◆ _bitFrequencyHz

uint16_t pulsewire::TxDriverCommon::_bitFrequencyHz = DEFAULT_BIT_FREQ_HZ

protectedinherited

Definition at line 148 of file TxDriverCommon.h.

◆ _byteBuffer

RingBuffer<uint8_t> pulsewire::TxDriverCommon::_byteBuffer

protectedinherited

Definition at line 145 of file TxDriverCommon.h.

◆ _codec

Codec* pulsewire::TxDriverCommon::_codec = nullptr

protectedinherited

Definition at line 143 of file TxDriverCommon.h.

◆ _frameSize

uint16_t pulsewire::TxDriverCommon::_frameSize = DEFAULT_FRAME_SIZE

protectedinherited

Definition at line 146 of file TxDriverCommon.h.

◆ _framingMode

FramingMode pulsewire::TxDriverCommon::_framingMode = FramingMode::WriteBytes

protectedinherited

Definition at line 147 of file TxDriverCommon.h.

◆ _pin

uint8_t pulsewire::TxDriverCommon::_pin = -1

protectedinherited

Definition at line 151 of file TxDriverCommon.h.

◆ _protocol

TxProtocol* pulsewire::TxDriverCommon::_protocol = nullptr

protectedinherited

Definition at line 144 of file TxDriverCommon.h.

◆ _signal

SignalBase* pulsewire::TxDriverArduino::_signal = nullptr

protected

Definition at line 51 of file TxDriverArduino.h.

◆ _txProtocol

TxProtocolGeneric pulsewire::TxDriverArduino::_txProtocol

protected

Definition at line 50 of file TxDriverArduino.h.

◆ _useChecksum

bool pulsewire::TxDriverCommon::_useChecksum = false

protectedinherited

Definition at line 149 of file TxDriverCommon.h.

◆ check_sum

uint8_t pulsewire::TxDriverCommon::check_sum = 0

protectedinherited

Definition at line 150 of file TxDriverCommon.h.

The documentation for this class was generated from the following file:

src/pulse/TxDriverArduino.h
