Generic implementation that is supported by all Arduino cores. More...

#include <TxProtocol.h>

Inheritance diagram for pulsewire::TxProtocolGeneric:

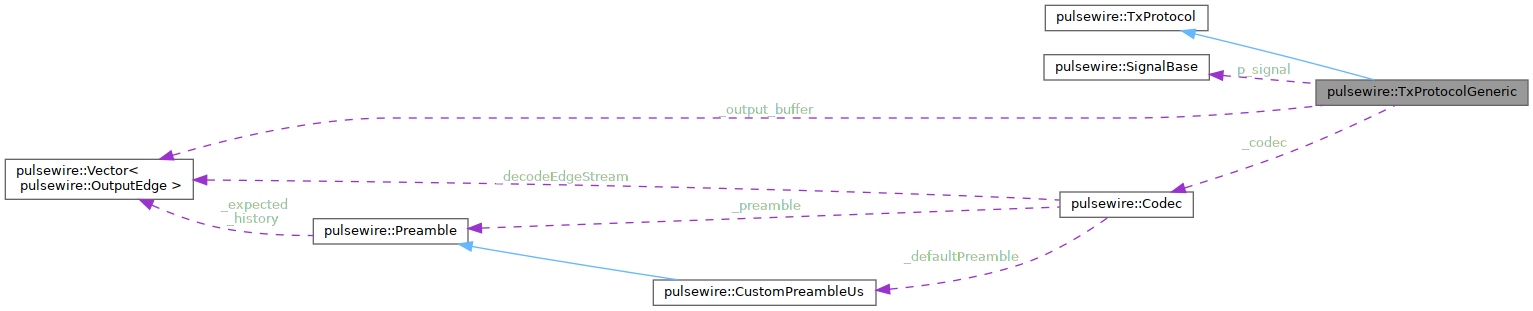

Collaboration diagram for pulsewire::TxProtocolGeneric:

[legend]

Public Member Functions
	TxProtocolGeneric (SignalBase *p_signal)
	Constructs a `TxProtocolGeneric` instance with the specified signal implementation.

bool	begin (uint16_t bitFrequencyHz, Codec *p_codec, uint8_t pin)
	Initializes the protocol with the specified codec and transmission pin.

void	setFrameSize (uint16_t size)
	Configures the size of the data to be transmitted.

void	sendPreamble ()
	Sends the preamble for the transmission.

void	sendData (const uint8_t *data, uint8_t len)
	Encodes and transmits the data.

void	sendEnd (bool &_useChecksum, bool isDelayAfterFrame)
	Sends the end signal for the transmission.

bool	isFrameClosed () const
	Checks whether the transmission frame is closed.

Protected Member Functions
void	delayUs (uint32_t us)

Protected Attributes
uint8_t	check_sum = 0
	Checksum for data integrity.

bool	is_frame_closed = true
	Indicates whether the frame is closed.

SignalBase *	p_signal = nullptr
	Pointer to the signal implementation.

Vector< OutputEdge >	_output_buffer
	Buffer for storing encoded signal edges.

Codec *	_codec = nullptr
	Pointer to the codec used for encoding data.

uint16_t	_bitFrequencyHz = 0

uint16_t	_bitPeriod = 0

Detailed Description

Generic implementation that is supported by all Arduino cores.

The TxProtocolGeneric class provides a concrete implementation of the TxProtocol interface, enabling the transmission of data using a specified SignalBase implementation. It handles the encoding of data, preamble, and checksum, and manages the state of the transmission frame.

Responsibilities of the TxProtocolGeneric class include:

Initializing the protocol with a codec and signal implementation.
Encoding and transmitting preambles, data, and optional checksums.
Managing the output buffer for storing encoded signal edges and timings.
Ensuring proper frame closure and adding delays to signify the end of a frame.

This class is designed to work with a SignalBase implementation for physical signal transmission and a Codec for encoding data into signal edges and timings.

Definition at line 154 of file TxProtocol.h.

Constructor & Destructor Documentation

◆ TxProtocolGeneric()

pulsewire::TxProtocolGeneric::TxProtocolGeneric ( SignalBase * p_signal )

inline

Constructs a TxProtocolGeneric instance with the specified signal implementation.

Parameters

p_signal Pointer to the SignalBase implementation for signal transmission.

Definition at line 162 of file TxProtocol.h.

Member Function Documentation

◆ begin()

bool pulsewire::TxProtocolGeneric::begin	(	uint16_t	bitFrequencyHz,
		Codec *	p_codec,
		uint8_t	pin
	)

inlinevirtual

Initializes the protocol with the specified codec and transmission pin.

Parameters

p_codec	Pointer to the `Codec` used for encoding data.
pin	Transmission pin for the signal.

Implements pulsewire::TxProtocol.

Definition at line 170 of file TxProtocol.h.

◆ delayUs()

void pulsewire::TxProtocolGeneric::delayUs ( uint32_t us )

inlineprotected

Definition at line 304 of file TxProtocol.h.

◆ isFrameClosed()

bool pulsewire::TxProtocolGeneric::isFrameClosed ( ) const

inlinevirtual

Checks whether the transmission frame is closed.

Returns: true if the frame is closed, false otherwise.

Implements pulsewire::TxProtocol.

Definition at line 292 of file TxProtocol.h.

◆ sendData()

void pulsewire::TxProtocolGeneric::sendData	(	const uint8_t *	data,
		uint8_t	len
	)

inlinevirtual

Encodes and transmits the data.

Parameters

data	Pointer to the data to be transmitted.
len	Length of the data in bytes.
bitPeriod	Duration of each bit in microseconds.

Implements pulsewire::TxProtocol.

Definition at line 224 of file TxProtocol.h.

◆ sendEnd()

void pulsewire::TxProtocolGeneric::sendEnd	(	bool &	_useChecksum,
		bool	isDelayAfterFrame
	)

inlinevirtual

Sends the end signal for the transmission.

Optionally includes a checksum and adds a delay to signify the end of the frame.

Parameters

_useChecksum	Whether to include the checksum in the transmission.
isDelayAfterFrame	Whether to add a delay after the frame.
bitPeriod	Duration of each bit in microseconds.

Implements pulsewire::TxProtocol.

Definition at line 254 of file TxProtocol.h.

◆ sendPreamble()

void pulsewire::TxProtocolGeneric::sendPreamble ( )

inlinevirtual

Sends the preamble for the transmission.

The preamble is encoded using the codec and transmitted using the signal implementation. The checksum is reset at the start of a new frame.

Implements pulsewire::TxProtocol.

Definition at line 195 of file TxProtocol.h.

◆ setFrameSize()

void pulsewire::TxProtocolGeneric::setFrameSize ( uint16_t size )

inlinevirtual

Configures the size of the data to be transmitted.

Parameters

size	The size of the data in bytes.

Implements pulsewire::TxProtocol.

Definition at line 183 of file TxProtocol.h.

Field Documentation

◆ _bitFrequencyHz

uint16_t pulsewire::TxProtocolGeneric::_bitFrequencyHz = 0

protected

Definition at line 301 of file TxProtocol.h.

◆ _bitPeriod

uint16_t pulsewire::TxProtocolGeneric::_bitPeriod = 0

protected

Definition at line 302 of file TxProtocol.h.

◆ _codec

Codec* pulsewire::TxProtocolGeneric::_codec = nullptr

protected

Pointer to the codec used for encoding data.

Definition at line 300 of file TxProtocol.h.

◆ _output_buffer

Vector<OutputEdge> pulsewire::TxProtocolGeneric::_output_buffer

protected

Buffer for storing encoded signal edges.

Definition at line 299 of file TxProtocol.h.

◆ check_sum

uint8_t pulsewire::TxProtocolGeneric::check_sum = 0

protected

Checksum for data integrity.

Definition at line 295 of file TxProtocol.h.

◆ is_frame_closed

bool pulsewire::TxProtocolGeneric::is_frame_closed = true

protected

Indicates whether the frame is closed.

Definition at line 296 of file TxProtocol.h.

◆ p_signal

SignalBase* pulsewire::TxProtocolGeneric::p_signal = nullptr

protected

Pointer to the signal implementation.

Definition at line 297 of file TxProtocol.h.

The documentation for this class was generated from the following file:

src/pulse/TxProtocol.h
