pulsewire::Trasmitter Class Reference

Transmitter class for communication. More...

#include <Transceiver.h>

Inheritance diagram for pulsewire::Trasmitter:

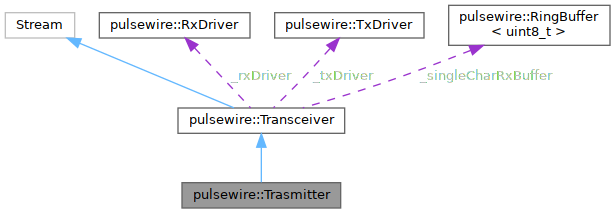

Collaboration diagram for pulsewire::Trasmitter:

Public Member Functions
	Trasmitter (TxDriver &tx)
void	setRxDriver (RxDriver *driver)
	Set the RX driver.
void	setTxDriver (TxDriver *driver)
	Set the TX driver.
void	setFrameSize (uint16_t size)
	Set the expected maximum frame size for RX/TX drivers and single-char buffer.
bool	setFramingMode (FramingMode mode)
void	setTimeout (uint32_t timeoutUs)
bool	begin (uint32_t bitFrequencyHz=DEFAULT_BIT_FREQ_HZ)
	Initialize the transceiver and drivers.
void	end ()
	End/stop the RX driver.
size_t	write (uint8_t byte) override
	Write a single byte to the TX driver.
size_t	write (const uint8_t *buffer, size_t size) override
	Write a buffer to the TX driver.
void	flush () override
	Not implemented.
int	availableForWrite () override
	Return the number of bytes available for writing (always 1024)
int	available () override
	Return the number of bytes available to read.
int	read () override
	Read a single byte from the buffer.
virtual size_t	readBytes (uint8_t *buffer, size_t length)
	Read bytes into the provided buffer, up to the specified length.
int	peek () override
	Peek at the next byte in the buffer without removing it.

Protected Member Functions
void	refillSingleCharBuffer ()

Protected Attributes
RxDriver *	_rxDriver = nullptr
TxDriver *	_txDriver = nullptr
RingBuffer< uint8_t >	_singleCharRxBuffer {64}
int	_frameSize = 0

Detailed Description

Transmitter class for communication.

The Trasmitter class is a specialized version of the Transceiver class designed for transmission-only operations. It provides a simplified interface for sending IR signals using a TX driver.

Definition at line 240 of file Transceiver.h.

Constructor & Destructor Documentation

Trasmitter()

pulsewire::Trasmitter::Trasmitter ( TxDriver &  tx )

inline

Definition at line 242 of file Transceiver.h.

Member Function Documentation

available()

int pulsewire::Transceiver::available ( )

inlineoverrideinherited

Return the number of bytes available to read.

Definition at line 177 of file Transceiver.h.

availableForWrite()

int pulsewire::Transceiver::availableForWrite ( )

inlineoverrideinherited

Return the number of bytes available for writing (always 1024)

Definition at line 172 of file Transceiver.h.

begin()

bool pulsewire::Transceiver::begin ( uint32_t  bitFrequencyHz = DEFAULT_BIT_FREQ_HZ )

inlineinherited

Initialize the transceiver and drivers.

Definition at line 115 of file Transceiver.h.

end()

void pulsewire::Transceiver::end ( )

inlineinherited

End/stop the RX driver.

Definition at line 140 of file Transceiver.h.

flush()

void pulsewire::Transceiver::flush ( )

inlineoverrideinherited

Not implemented.

Definition at line 163 of file Transceiver.h.

peek()

int pulsewire::Transceiver::peek ( )

inlineoverrideinherited

Peek at the next byte in the buffer without removing it.

Definition at line 211 of file Transceiver.h.

read()

int pulsewire::Transceiver::read ( )

inlineoverrideinherited

Read a single byte from the buffer.

Definition at line 184 of file Transceiver.h.

readBytes()

virtual size_t pulsewire::Transceiver::readBytes ( uint8_t *  buffer, size_t  length  )

inlinevirtualinherited

Read bytes into the provided buffer, up to the specified length.

Parameters

buffer
length

Returns

size_t

Definition at line 198 of file Transceiver.h.

refillSingleCharBuffer()

void pulsewire::Transceiver::refillSingleCharBuffer ( )

inlineprotectedinherited

Definition at line 222 of file Transceiver.h.

setFrameSize()

void pulsewire::Transceiver::setFrameSize ( uint16_t  size )

inlineinherited

Set the expected maximum frame size for RX/TX drivers and single-char buffer.

Definition at line 86 of file Transceiver.h.

setFramingMode()

bool pulsewire::Transceiver::setFramingMode ( FramingMode  mode )

inlineinherited

Definition at line 98 of file Transceiver.h.

setRxDriver()

void pulsewire::Transceiver::setRxDriver ( RxDriver *  driver )

inlineinherited

Set the RX driver.

Definition at line 75 of file Transceiver.h.

setTimeout()

void pulsewire::Transceiver::setTimeout ( uint32_t  timeoutUs )

inlineinherited

Definition at line 106 of file Transceiver.h.

setTxDriver()

void pulsewire::Transceiver::setTxDriver ( TxDriver *  driver )

inlineinherited

Set the TX driver.

Definition at line 80 of file Transceiver.h.

write() [1/2]

size_t pulsewire::Transceiver::write ( const uint8_t *  buffer, size_t  size  )

inlineoverrideinherited

Write a buffer to the TX driver.

Definition at line 154 of file Transceiver.h.

write() [2/2]

size_t pulsewire::Transceiver::write ( uint8_t  byte )

inlineoverrideinherited

Write a single byte to the TX driver.

Definition at line 149 of file Transceiver.h.

Field Documentation

_frameSize

int pulsewire::Transceiver::_frameSize = 0

protectedinherited

Definition at line 220 of file Transceiver.h.

_rxDriver

RxDriver* pulsewire::Transceiver::_rxDriver = nullptr

protectedinherited

Definition at line 217 of file Transceiver.h.

_singleCharRxBuffer

RingBuffer<uint8_t> pulsewire::Transceiver::_singleCharRxBuffer {64}

protectedinherited

Definition at line 219 of file Transceiver.h.

_txDriver

TxDriver* pulsewire::Transceiver::_txDriver = nullptr

protectedinherited

Definition at line 218 of file Transceiver.h.

---

The documentation for this class was generated from the following file:

• src/Transceiver.h
