Bi-directional IR transceiver class with Stream interface and driver abstraction. More...

#include <Transceiver.h>

Inheritance diagram for pulsewire::Transceiver:

[legend]

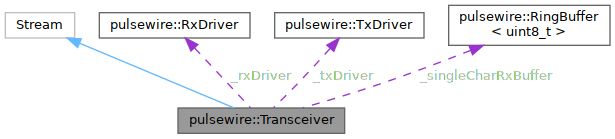

Collaboration diagram for pulsewire::Transceiver:

[legend]

Public Member Functions
	Transceiver ()=default
	Default constructor.

	Transceiver (RxDriver &rx, TxDriver &tx)
	Constructor with RX and TX drivers.

	Transceiver (RxDriver &rx)
	Constructor with RX driver.

	Transceiver (TxDriver &tx)
	Constructor with TX driver.

	Transceiver (RxDriver &rx, TxDriver &tx, FramingMode mode, size_t frameSize)
	Constructor with RX and TX drivers.

	Transceiver (RxDriver &rx, FramingMode mode, size_t frameSize)
	Constructor with RX driver.

	Transceiver (TxDriver &tx, FramingMode mode, size_t frameSize)
	Constructor with TX driver.

void	setRxDriver (RxDriver *driver)
	Set the RX driver.

void	setTxDriver (TxDriver *driver)
	Set the TX driver.

void	setFrameSize (uint16_t size)
	Set the expected maximum frame size for RX/TX drivers and single-char buffer.

bool	setFramingMode (FramingMode mode)

void	setTimeout (uint32_t timeoutUs)

bool	begin (uint32_t bitFrequencyHz=DEFAULT_BIT_FREQ_HZ)
	Initialize the transceiver and drivers.

void	end ()
	End/stop the RX driver.

size_t	write (uint8_t byte) override
	Write a single byte to the TX driver.

size_t	write (const uint8_t *buffer, size_t size) override
	Write a buffer to the TX driver.

void	flush () override
	Not implemented.

int	availableForWrite () override
	Return the number of bytes available for writing (always 1024)

int	available () override
	Return the number of bytes available to read.

int	read () override
	Read a single byte from the buffer.

virtual size_t	readBytes (uint8_t *buffer, size_t length)
	Read bytes into the provided buffer, up to the specified length.

int	peek () override
	Peek at the next byte in the buffer without removing it.

Protected Member Functions
void	refillSingleCharBuffer ()

Protected Attributes
RxDriver *	_rxDriver = nullptr

TxDriver *	_txDriver = nullptr

RingBuffer< uint8_t >	_singleCharRxBuffer {64}

int	_frameSize = 0

Detailed Description

Bi-directional IR transceiver class with Stream interface and driver abstraction.

This class provides a flexible, buffered interface for IR communication. It supports pluggable RX and TX drivers, frame size management, and integrates with the Arduino Stream API.

Definition at line 23 of file Transceiver.h.

Constructor & Destructor Documentation

◆ Transceiver() [1/6]

pulsewire::Transceiver::Transceiver	(	RxDriver &	rx,
		TxDriver &	tx
	)

inline

Constructor with RX and TX drivers.

Definition at line 33 of file Transceiver.h.

◆ Transceiver() [2/6]

pulsewire::Transceiver::Transceiver ( RxDriver & rx )

inline

Constructor with RX driver.

Definition at line 38 of file Transceiver.h.

◆ Transceiver() [3/6]

pulsewire::Transceiver::Transceiver ( TxDriver & tx )

inline

Constructor with TX driver.

Definition at line 43 of file Transceiver.h.

◆ Transceiver() [4/6]

pulsewire::Transceiver::Transceiver	(	RxDriver &	rx,
		TxDriver &	tx,
		FramingMode	mode,
		size_t	frameSize
	)

inline

Constructor with RX and TX drivers.

Definition at line 48 of file Transceiver.h.

◆ Transceiver() [5/6]

pulsewire::Transceiver::Transceiver	(	RxDriver &	rx,
		FramingMode	mode,
		size_t	frameSize
	)

inline

Constructor with RX driver.

Definition at line 57 of file Transceiver.h.

◆ Transceiver() [6/6]

pulsewire::Transceiver::Transceiver	(	TxDriver &	tx,
		FramingMode	mode,
		size_t	frameSize
	)

inline

Constructor with TX driver.

Definition at line 66 of file Transceiver.h.

Member Function Documentation

◆ available()

int pulsewire::Transceiver::available ( )

inlineoverride

Return the number of bytes available to read.

Definition at line 177 of file Transceiver.h.

◆ availableForWrite()

int pulsewire::Transceiver::availableForWrite ( )

inlineoverride

Return the number of bytes available for writing (always 1024)

Definition at line 172 of file Transceiver.h.

◆ begin()

bool pulsewire::Transceiver::begin ( uint32_t bitFrequencyHz = DEFAULT_BIT_FREQ_HZ )

inline

Initialize the transceiver and drivers.

Definition at line 115 of file Transceiver.h.

◆ end()

void pulsewire::Transceiver::end ( )

inline

End/stop the RX driver.

Definition at line 140 of file Transceiver.h.

◆ flush()

void pulsewire::Transceiver::flush ( )

inlineoverride

Not implemented.

Definition at line 163 of file Transceiver.h.

◆ peek()

int pulsewire::Transceiver::peek ( )

inlineoverride

Peek at the next byte in the buffer without removing it.

Definition at line 211 of file Transceiver.h.

◆ read()

int pulsewire::Transceiver::read ( )

inlineoverride

Read a single byte from the buffer.

Definition at line 184 of file Transceiver.h.

◆ readBytes()

virtual size_t pulsewire::Transceiver::readBytes	(	uint8_t *	buffer,
		size_t	length
	)

inlinevirtual

Read bytes into the provided buffer, up to the specified length.

Parameters

buffer
length

Returns: size_t

Definition at line 198 of file Transceiver.h.

◆ refillSingleCharBuffer()

void pulsewire::Transceiver::refillSingleCharBuffer ( )

inlineprotected

Definition at line 222 of file Transceiver.h.

◆ setFrameSize()

void pulsewire::Transceiver::setFrameSize ( uint16_t size )

inline

Set the expected maximum frame size for RX/TX drivers and single-char buffer.

Definition at line 86 of file Transceiver.h.

◆ setFramingMode()

bool pulsewire::Transceiver::setFramingMode ( FramingMode mode )

inline

Definition at line 98 of file Transceiver.h.

◆ setRxDriver()

void pulsewire::Transceiver::setRxDriver ( RxDriver * driver )

inline

Set the RX driver.

Definition at line 75 of file Transceiver.h.

◆ setTimeout()

void pulsewire::Transceiver::setTimeout ( uint32_t timeoutUs )

inline

Definition at line 106 of file Transceiver.h.

◆ setTxDriver()

void pulsewire::Transceiver::setTxDriver ( TxDriver * driver )

inline

Set the TX driver.

Definition at line 80 of file Transceiver.h.

◆ write() [1/2]

size_t pulsewire::Transceiver::write	(	const uint8_t *	buffer,
		size_t	size
	)

inlineoverride

Write a buffer to the TX driver.

Definition at line 154 of file Transceiver.h.

◆ write() [2/2]

size_t pulsewire::Transceiver::write ( uint8_t byte )

inlineoverride

Write a single byte to the TX driver.

Definition at line 149 of file Transceiver.h.

Field Documentation

◆ _frameSize

int pulsewire::Transceiver::_frameSize = 0

protected

Definition at line 220 of file Transceiver.h.

◆ _rxDriver

RxDriver* pulsewire::Transceiver::_rxDriver = nullptr

protected

Definition at line 217 of file Transceiver.h.

◆ _singleCharRxBuffer

RingBuffer<uint8_t> pulsewire::Transceiver::_singleCharRxBuffer {64}

protected

Definition at line 219 of file Transceiver.h.

◆ _txDriver

TxDriver* pulsewire::Transceiver::_txDriver = nullptr

protected

Definition at line 218 of file Transceiver.h.

The documentation for this class was generated from the following file:

src/Transceiver.h
