tiny_dlna::XMLParserPrint Class Reference

Helper class that implements a Print interface to accumulate XML data and then parse it using XMLParser. More...

#include <XMLParserPrint.h>

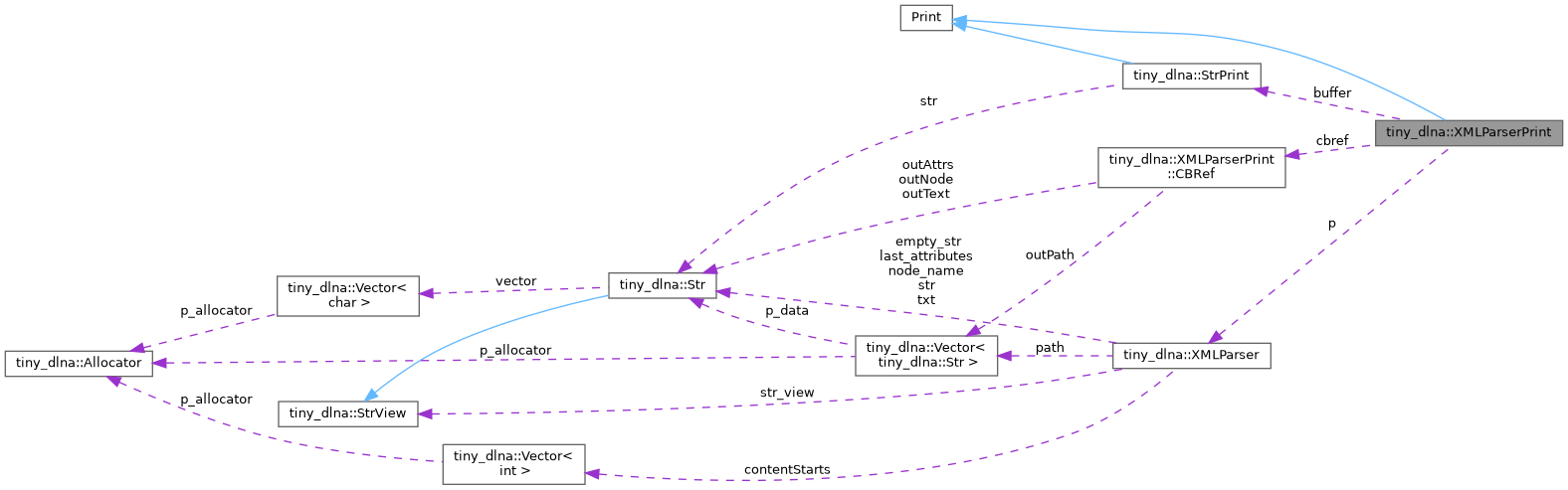

Inheritance diagram for tiny_dlna::XMLParserPrint:

Classes
struct	CBRef
	Internal callback reference used to capture the callback data from XMLParser and forward it to the caller. More...

Public Member Functions
	XMLParserPrint ()
	Constructor.
size_t	write (uint8_t ch) override
	Writes a single byte to the buffer (Print interface)
size_t	write (const uint8_t *data, size_t size) override
	Writes a block of data to the buffer (Print interface)
void	setExpandEncoded (bool flag)
	Forwards expand-entities setting to the underlying XMLParser.
bool	parse (Str &outNodeName, Vector< Str > &outPath, Str &outText, Str &outAttributes)
	Parses the accumulated XML data and returns results via output parameters.
void	end ()
	Resets the internal buffer.
const char *	c_str ()
	Returns the internal buffer as a C string.
size_t	length ()
	Returns the length of the internal buffer.

Static Protected Member Functions
static void	wrapperCallback (Str &nodeName, Vector< Str > &path, Str &text, Str &attributes, int start, int len, void *ref)
	Static wrapper used as XMLParser callback. Copies the first invocation's data into the CBRef and forwards the event to the user-provided callback if present.

Protected Attributes
StrPrint	buffer
	Internal buffer for accumulating XML data.
XMLParser	p
	XMLParser instance used for parsing.
struct tiny_dlna::XMLParserPrint::CBRef	cbref

Detailed Description

Helper class that implements a Print interface to accumulate XML data and then parse it using XMLParser.

This class allows you to write XML data using the Print interface, accumulate it in an internal buffer, and then parse the buffer using an XMLParser. The parsing result is returned via output parameters.

Constructor & Destructor Documentation

XMLParserPrint()

tiny_dlna::XMLParserPrint::XMLParserPrint ( )

inline

Constructor.

Member Function Documentation

c_str()

const char * tiny_dlna::XMLParserPrint::c_str ( )

inline

Returns the internal buffer as a C string.

Returns

Pointer to buffer data

end()

void tiny_dlna::XMLParserPrint::end ( )

inline

Resets the internal buffer.

length()

size_t tiny_dlna::XMLParserPrint::length ( )

inline

Returns the length of the internal buffer.

Returns

Buffer length

parse()

bool tiny_dlna::XMLParserPrint::parse ( Str &  outNodeName, Vector< Str > &  outPath, Str &  outText, Str &  outAttributes  )

inline

Parses the accumulated XML data and returns results via output parameters.

Parameters

outNodeName	Output: node name
outPath	Output: path vector
outText	Output: text content
outAttributes	Output: attributes string

Returns

True if parsing was successful, false otherwise

setExpandEncoded()

void tiny_dlna::XMLParserPrint::setExpandEncoded ( bool  flag )

inline

Forwards expand-entities setting to the underlying XMLParser.

Parameters

flag	If true, expand encoded entities

wrapperCallback()

static void tiny_dlna::XMLParserPrint::wrapperCallback ( Str &  nodeName, Vector< Str > &  path, Str &  text, Str &  attributes, int  start, int  len, void *  ref  )

inlinestaticprotected

Static wrapper used as XMLParser callback. Copies the first invocation's data into the CBRef and forwards the event to the user-provided callback if present.

Parameters

nodeName	Name of the node
path	Path vector
text	Text content
attributes	Attributes string
start	Start position
len	Length
ref	Reference to CBRef

write() [1/2]

size_t tiny_dlna::XMLParserPrint::write ( const uint8_t *  data, size_t  size  )

inlineoverride

Writes a block of data to the buffer (Print interface)

Parameters

data	Pointer to data
size	Number of bytes to write

Returns

Number of bytes written

write() [2/2]

size_t tiny_dlna::XMLParserPrint::write ( uint8_t  ch )

inlineoverride

Writes a single byte to the buffer (Print interface)

Parameters

ch	Byte to write

Returns

Number of bytes written

Member Data Documentation

buffer

StrPrint tiny_dlna::XMLParserPrint::buffer

protected

Internal buffer for accumulating XML data.

cbref

struct tiny_dlna::XMLParserPrint::CBRef tiny_dlna::XMLParserPrint::cbref

protected

p

XMLParser tiny_dlna::XMLParserPrint::p

protected

XMLParser instance used for parsing.

---

The documentation for this class was generated from the following file:

• src/dlna/xml/XMLParserPrint.h
