tiny_dlna::XMLParser Class Reference

Lightweight streaming XML parser. More...

#include <XMLParser.h>

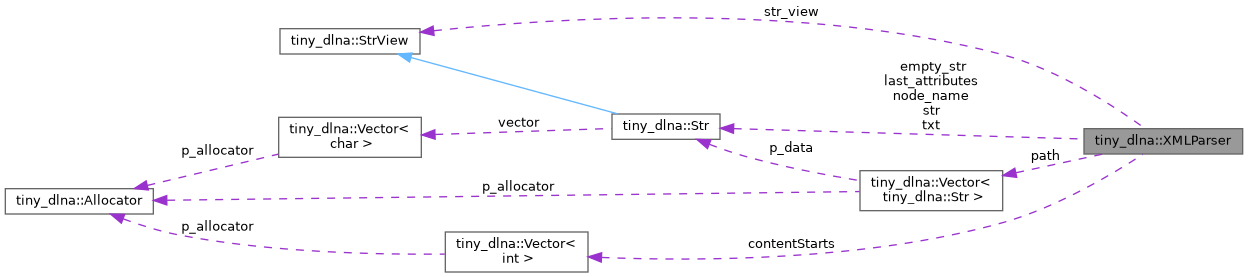

Collaboration diagram for tiny_dlna::XMLParser:

Public Member Functions
	XMLParser ()=default
	XMLParser (const char *xmlStr, void(*callback)(Str &nodeName, Vector< Str > &path, Str &text, Str &attributes, int start, int len, void *ref), bool textOnly=false)
	Construct with XML buffer and callback.
void	setReference (void *ref)
	Attach an opaque user pointer to the parser instance.
void	setXml (const char *xmlStr)
	Set the XML buffer to parse.
void	setCallback (void(*cb)(Str &nodeName, Vector< Str > &path, Str &text, Str &attributes, int start, int len, void *ref))
	Set the callback to be invoked for parsed fragments.
void	parse ()
	Parse the previously set XML buffer and invoke the callback.
bool	parseSingle ()
	Parse a single fragment (one callback invocation) from the previously set XML buffer.
void	resetParse ()
	Reset the internal parse position so subsequent parseSingle() calls start from the beginning of the buffer.
void	resetParser ()
	Fully reset parser state (parse position, path stack and content starts). Use this when the underlying buffer has been trimmed/changed so the parser's internal stacks do not retain state from the previous buffer view.
void	setReportTextOnly (bool flag)
	report only nodes with text
int	getParsePos ()
	Expose current parse position for incremental wrappers.

Protected Member Functions
int	findGt (const char *s, int start, int len)
void	emitTextSegment (const char *s, int ts, int te)
void	emitTagSegment (const char *s, int lt, int gt)
int	handleEndTag (const char *s, int lt, int gt)
void	handleStartTag (const char *s, int lt, int gt)
int	handleCommentOrPI (int lt, const char *s, int len)
bool	invokeCallback (Str &nodeName, Vector< Str > &fullPath, Str &text, Str &attributes, int start, int len)
void	do_parse ()
bool	do_parse_single ()

Protected Attributes
StrView	str_view
Vector< Str >	path {5}
Str	empty_str {0}
Str	node_name {40}
Str	txt {100}
Str	str {100}
Str	last_attributes
bool	report_text_only = true
void(*	callback )(Str &nodeName, Vector< Str > &path, Str &text, Str &attributes, int start, int len, void *ref) = nullptr
Vector< int >	contentStarts
void *	reference = nullptr
int	parsePos = 0

Detailed Description

Lightweight streaming XML parser.

XMLParser performs a single-pass, forgiving parse of a provided XML buffer and calls a user-provided callback for discovered fragments. It is intentionally small and suitable for embedded use-cases in this project (SCPD fragments, DIDL snippets, etc.). It does not implement the full XML specification (no DTDs, no entity decoding, minimal attribute handling).

The callback receives both a small copied Str for convenience and the numeric start/length offsets into the original buffer so callers can avoid additional copies when desired.

Threading / lifetime notes:

• The parser stores a non-owning StrView to the buffer provided via setXml(); that buffer must remain valid until parse() completes.

Constructor & Destructor Documentation

XMLParser() [1/2]

tiny_dlna::XMLParser::XMLParser ( )

default

Default constructor. Use setXml() and setCallback() before parse().

XMLParser() [2/2]

tiny_dlna::XMLParser::XMLParser ( const char *  xmlStr, void(*)(Str &nodeName, Vector< Str > &path, Str &text, Str &attributes, int start, int len, void *ref)  callback, bool  textOnly = false  )

inline

Construct with XML buffer and callback.

Parameters

xmlStr	Null-terminated XML buffer. The buffer is not copied; it must remain valid for the duration of parse().
callback	Function pointer invoked for node events. Signature: void callback(const Str& nodeName, const Vector<Str>& path, const Str& text, int start, int len, void* ref) nodeName: name of the current XML node (empty for no current node) path: current element path (top is the current element) text: element inner text for end-tag events (or trimmed text for text nodes) start,len: numeric offset/length in the original buffer for the reported fragment
textOnly	If true, only report nodes with text content.

Member Function Documentation

do_parse()

void tiny_dlna::XMLParser::do_parse ( )

inlineprotected

do_parse_single()

bool tiny_dlna::XMLParser::do_parse_single ( )

inlineprotected

emitTagSegment()

void tiny_dlna::XMLParser::emitTagSegment ( const char *  s, int  lt, int  gt  )

inlineprotected

emitTextSegment()

void tiny_dlna::XMLParser::emitTextSegment ( const char *  s, int  ts, int  te  )

inlineprotected

findGt()

int tiny_dlna::XMLParser::findGt ( const char *  s, int  start, int  len  )

inlineprotected

getParsePos()

int tiny_dlna::XMLParser::getParsePos ( )

inline

Expose current parse position for incremental wrappers.

handleCommentOrPI()

int tiny_dlna::XMLParser::handleCommentOrPI ( int  lt, const char *  s, int  len  )

inlineprotected

handleEndTag()

int tiny_dlna::XMLParser::handleEndTag ( const char *  s, int  lt, int  gt  )

inlineprotected

handleStartTag()

void tiny_dlna::XMLParser::handleStartTag ( const char *  s, int  lt, int  gt  )

inlineprotected

invokeCallback()

bool tiny_dlna::XMLParser::invokeCallback ( Str &  nodeName, Vector< Str > &  fullPath, Str &  text, Str &  attributes, int  start, int  len  )

inlineprotected

parse()

void tiny_dlna::XMLParser::parse ( )

inline

Parse the previously set XML buffer and invoke the callback.

The callback is invoked synchronously while parse() runs. After parse() returns there are no outstanding callbacks and the caller may reuse or free the XML buffer.

parseSingle()

bool tiny_dlna::XMLParser::parseSingle ( )

inline

Parse a single fragment (one callback invocation) from the previously set XML buffer.

This allows incremental parsing of a larger buffer by repeatedly calling parseSingle() until it returns false. The parser will resume from the last position between calls. Call resetParse() to start parsing from the beginning again.

Returns

true if a fragment was parsed and the callback invoked, false if no more parseable fragments are available.

resetParse()

void tiny_dlna::XMLParser::resetParse ( )

inline

Reset the internal parse position so subsequent parseSingle() calls start from the beginning of the buffer.

resetParser()

void tiny_dlna::XMLParser::resetParser ( )

inline

Fully reset parser state (parse position, path stack and content starts). Use this when the underlying buffer has been trimmed/changed so the parser's internal stacks do not retain state from the previous buffer view.

setCallback()

void tiny_dlna::XMLParser::setCallback ( void(*)(Str &nodeName, Vector< Str > &path, Str &text, Str &attributes, int start, int len, void *ref)  cb )

inline

Set the callback to be invoked for parsed fragments.

Parameters

cb	Function pointer with signature described in the constructor docs.

setReference()

void tiny_dlna::XMLParser::setReference ( void *  ref )

inline

Attach an opaque user pointer to the parser instance.

Parameters

ref	Arbitrary user data. The parser does not own or manipulate this pointer; it is provided for callbacks or external use.

setReportTextOnly()

void tiny_dlna::XMLParser::setReportTextOnly ( bool  flag )

inline

report only nodes with text

setXml()

void tiny_dlna::XMLParser::setXml ( const char *  xmlStr )

inline

Set the XML buffer to parse.

Parameters

xmlStr

Null-terminated XML buffer. The parser stores a non-owning view — the buffer must remain valid until parsing finishes.

Member Data Documentation

callback

void(* tiny_dlna::XMLParser::callback) (Str &nodeName, Vector< Str > &path, Str &text, Str &attributes, int start, int len, void *ref) = nullptr

protected

contentStarts

Vector<int> tiny_dlna::XMLParser::contentStarts

protected

empty_str

Str tiny_dlna::XMLParser::empty_str {0}

protected

last_attributes

Str tiny_dlna::XMLParser::last_attributes

protected

node_name

Str tiny_dlna::XMLParser::node_name {40}

protected

parsePos

int tiny_dlna::XMLParser::parsePos = 0

protected

path

Vector<Str> tiny_dlna::XMLParser::path {5}

protected

reference

void* tiny_dlna::XMLParser::reference = nullptr

protected

report_text_only

bool tiny_dlna::XMLParser::report_text_only = true

protected

str

Str tiny_dlna::XMLParser::str {100}

protected

str_view

StrView tiny_dlna::XMLParser::str_view

protected

txt

Str tiny_dlna::XMLParser::txt {100}

protected

---

The documentation for this class was generated from the following file:

• src/dlna/xml/XMLParser.h
