ESPNowStream Class Reference

ESPNow as Arduino Stream. When use_send_ack is true we prevent any buffer overflows by blocking writes until the previous packet has been confirmed. When no acknowledgments are used, you might need to throttle the send speed to prevent any buffer overflow on the receiver side. More...

#include <ESPNowStream.h>

Inheritance diagram for ESPNowStream:

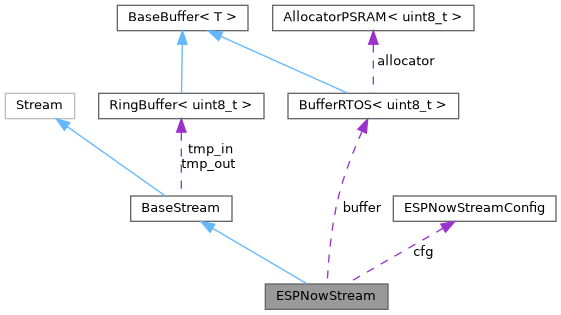

Collaboration diagram for ESPNowStream:

Public Member Functions
ESPNowStreamConfig	defaultConfig ()
const char *	macAddress ()
	Returns the mac address of the current ESP32.
void	setSendCallback (esp_now_send_cb_t cb)
	Defines an alternative send callback.
void	setReceiveCallback (esp_now_recv_cb_t cb)
bool	begin ()
	Initialization of ESPNow.
virtual bool	begin (ESPNowStreamConfig cfg)
	Initialization of ESPNow incl WIFI.
virtual void	end ()
	DeInitialization.
void	setChannel (uint8_t ch)
	Defines the WiFi Channel.
uint8_t	getChannel ()
	Provies the WiFi Channel.
bool	addPeer (esp_now_peer_info_t &peer)
	Adds a peer to which we can send info or from which we can receive info.
bool	addPeer (const uint8_t *address)
	Adds a peer to which we can send info or from which we can receive info.
bool	addPeer (const char *address)
	Adds a peer to which we can send info or from which we can receive info.
template<size_t size>
bool	addPeers (const char *(&array)[size])
	Adds an array of peers.
template<size_t N>
bool	addPeers (const uint8_t(&array)[N][6])
	Adds an array of peers.
bool	addBroadcastPeer ()
bool	clearPeers ()
	Deletes all registered peers.
size_t	write (const uint8_t *data, size_t len) override
	Writes the data - sends it to all registered peers.
size_t	write (const char *peer, const uint8_t *data, size_t len)
	Writes the data - sends it to all the indicated peer mac address string.
size_t	write (const uint8_t *peer, const uint8_t *data, size_t len)
	Writes the data - sends it to all the peers.
size_t	readBytes (uint8_t *data, size_t len) override
	Reeds the data from the peers.
int	available () override
int	availableForWrite () override
float	getBufferPercent ()
	provides how much the receive buffer is filled (in percent)
BufferRTOS< uint8_t > &	getBuffer ()
	provides access to the receive buffer
uint32_t	getLastIoSuccessTime () const
	time when we were able to send or receive the last packet successfully
Public Member Functions inherited from BaseStream
	BaseStream (BaseStream &)=default
BaseStream &	operator= (BaseStream &)=default
virtual bool	begin ()
virtual void	end ()
virtual size_t	readBytes (uint8_t *data, size_t len) STREAM_READ_OVERRIDE=0
virtual size_t	write (const uint8_t *data, size_t len) override=0
virtual size_t	write (uint8_t ch) override
virtual int	available ()
virtual int	availableForWrite ()
virtual void	flush () override
virtual size_t	readBytes (char *data, size_t len) STREAM_READCHAR_OVERRIDE
virtual int	read () override
virtual int	peek () override
void	setWriteBufferSize (int size)

Protected Member Functions
bool	setupMAC ()
bool	setupWiFi ()
void	setupSemaphore ()
void	setupReceiveBuffer ()
void	resetAvailableToWrite ()
virtual bool	sendPacket (const uint8_t *data, size_t len, int &retry_count, const uint8_t *destination=nullptr)
	Sends a single packet with retry logic.
bool	handleTransmissionResult (int &retry_count)
	Handles the result of packet transmission (after queuing)
bool	handleQueueError (esp_err_t rc, int &retry_count)
	Handles errors when queuing packets.
bool	isEncrypted ()
wifi_interface_t	getInterface ()
bool	setup ()
	Initialization.
bool	str2mac (const char *mac, uint8_t *values)
const char *	mac2str (const uint8_t *array)
virtual void	handle_recv_cb (const uint8_t *mac_addr, const uint8_t *data, int data_len, bool broadcast, uint8_t rssi)
virtual void	handle_send_cb (const uint8_t *mac_addr, esp_now_send_status_t status)
Protected Member Functions inherited from BaseStream
void	refillReadBuffer ()

Static Protected Member Functions
static int	bufferAvailableForWrite ()
static void	default_recv_cb (const esp_now_recv_info *info, const uint8_t *data, int data_len)
static void	default_send_cb (const wifi_tx_info_t *tx_info, esp_now_send_status_t status)

Protected Attributes
ESPNowStreamConfig	cfg
BufferRTOS< uint8_t >	buffer {0}
esp_now_recv_cb_t	receive = default_recv_cb
esp_now_send_cb_t	send = default_send_cb
volatile size_t	available_to_write = 0
volatile bool	last_send_success = true
bool	is_init = false
SemaphoreHandle_t	xSemaphore = nullptr
bool	has_peers = false
bool	read_ready = false
bool	is_broadcast = false
uint32_t	last_io_success_time = 0
Protected Attributes inherited from BaseStream
RingBuffer< uint8_t >	tmp_in {0}
RingBuffer< uint8_t >	tmp_out {0}
int	write_buffer_size = MAX_SINGLE_CHARS

Detailed Description

ESPNow as Arduino Stream. When use_send_ack is true we prevent any buffer overflows by blocking writes until the previous packet has been confirmed. When no acknowledgments are used, you might need to throttle the send speed to prevent any buffer overflow on the receiver side.

Note

If multiple receivers are in range, only the first one which sends an acknowledgment will be used as coordinator.

Author

Phil Schatzmann

Member Function Documentation

addBroadcastPeer()

bool addBroadcastPeer ( )

inline

Adds the broadcast peer (FF:FF:FF:FF:FF:FF) to send to all devices in range. Note: Broadcast does not support acknowledgments

available()

int available ( )

inlineoverridevirtual

Reimplemented from BaseStream.

availableForWrite()

int availableForWrite ( )

inlineoverridevirtual

Reimplemented from BaseStream.

begin()

bool begin ( )

inlinevirtual

Initialization of ESPNow.

Reimplemented from BaseStream.

end()

virtual void end ( )

inlinevirtual

DeInitialization.

Reimplemented from BaseStream.

readBytes()

size_t readBytes ( uint8_t *  data, size_t  len  )

inlineoverridevirtual

Reeds the data from the peers.

Implements BaseStream.

setReceiveCallback()

void setReceiveCallback ( esp_now_recv_cb_t  cb )

inline

Defines the Receive Callback - Deactivates the readBytes and available() methods!

write()

size_t write ( const uint8_t *  data, size_t  len  )

inlineoverridevirtual

Writes the data - sends it to all registered peers.

Implements BaseStream.

---

The documentation for this class was generated from the following file:

• src/TinyRobotics/communication/ESPNowStream.h
