BaseBuffer< T > Class Template Reference

Shared functionality of all buffers. More...

#include <Buffers.h>

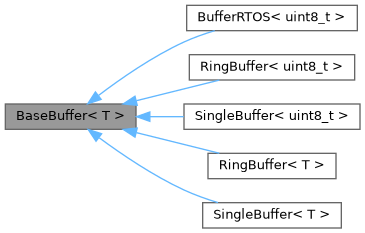

Inheritance diagram for BaseBuffer< T >:

Public Member Functions
	BaseBuffer (BaseBuffer &)=default
BaseBuffer &	operator= (BaseBuffer &)=default
virtual bool	read (T &result)=0
	reads a single value
virtual int	readArray (T data[], int len)
	reads multiple values
virtual int	clearArray (int len)
	Removes the next len entries.
virtual int	writeArray (const T data[], int len)
	Fills the buffer data.
virtual int	writeArrayOverwrite (const T data[], int len)
	Fills the buffer data and overwrites the oldest data if the buffer is full.
virtual bool	peek (T &result)=0
	peeks the actual entry from the buffer
virtual bool	isFull ()
	checks if the buffer is full
bool	isEmpty ()
virtual bool	write (T data)=0
	write add an entry to the buffer
virtual void	reset ()=0
	clears the buffer
void	clear ()
	same as reset
virtual int	available ()=0
	provides the number of entries that are available to read
virtual int	availableForWrite ()=0
	provides the number of entries that are available to write
virtual T *	address ()=0
	returns the address of the start of the physical read buffer
virtual size_t	size ()=0
virtual float	levelPercent ()
	Returns the level of the buffer in %.
virtual bool	resize (int bytes)
	Resizes the buffer if supported: returns false if not supported.

Detailed Description

template<typename T = int16_t>
class tinyrobotics::BaseBuffer< T >

Shared functionality of all buffers.

Author

Phil Schatzmann

Member Function Documentation

address()

virtual T * address ( )

pure virtual

returns the address of the start of the physical read buffer

Implemented in BufferRP2040T< T >, BufferRTOS< T, TAllocator >, BufferRTOS< uint8_t >, SynchronizedBuffer< T >, SingleBuffer< T >, SingleBuffer< T >, SingleBuffer< uint8_t >, RingBuffer< T >, and RingBuffer< uint8_t >.

available()

virtual int available ( )

pure virtual

provides the number of entries that are available to read

Implemented in BufferRP2040T< T >, BufferRTOS< T, TAllocator >, BufferRTOS< uint8_t >, SynchronizedBuffer< T >, SingleBuffer< T >, SingleBuffer< T >, SingleBuffer< uint8_t >, RingBuffer< T >, and RingBuffer< uint8_t >.

availableForWrite()

virtual int availableForWrite ( )

pure virtual

provides the number of entries that are available to write

Implemented in BufferRP2040T< T >, BufferRTOS< T, TAllocator >, BufferRTOS< uint8_t >, SynchronizedBuffer< T >, SingleBuffer< T >, SingleBuffer< T >, SingleBuffer< uint8_t >, RingBuffer< T >, and RingBuffer< uint8_t >.

clearArray()

virtual int clearArray ( int  len )

inlinevirtual

Removes the next len entries.

Reimplemented in SingleBuffer< T >, SingleBuffer< T >, and SingleBuffer< uint8_t >.

isFull()

virtual bool isFull ( )

inlinevirtual

checks if the buffer is full

Reimplemented in BufferRP2040T< T >, BufferRTOS< T, TAllocator >, BufferRTOS< uint8_t >, SynchronizedBuffer< T >, SingleBuffer< T >, SingleBuffer< T >, SingleBuffer< uint8_t >, RingBuffer< T >, and RingBuffer< uint8_t >.

peek()

virtual bool peek ( T &  result )

pure virtual

peeks the actual entry from the buffer

Implemented in BufferRP2040T< T >, BufferRTOS< T, TAllocator >, SynchronizedBuffer< T >, SingleBuffer< T >, SingleBuffer< T >, and RingBuffer< T >.

read()

virtual bool read ( T &  result )

pure virtual

reads a single value

Implemented in BufferRP2040T< T >, BufferRTOS< T, TAllocator >, SynchronizedBuffer< T >, SingleBuffer< T >, SingleBuffer< T >, and RingBuffer< T >.

readArray()

virtual int readArray ( T  data[], int  len  )

inlinevirtual

reads multiple values

Reimplemented in BufferRTOS< T, TAllocator >, SynchronizedBuffer< T >, and BufferRP2040T< T >.

reset()

virtual void reset ( )

pure virtual

clears the buffer

Implemented in BufferRP2040T< T >, BufferRTOS< T, TAllocator >, BufferRTOS< uint8_t >, SynchronizedBuffer< T >, SingleBuffer< T >, SingleBuffer< T >, SingleBuffer< uint8_t >, RingBuffer< T >, and RingBuffer< uint8_t >.

resize()

virtual bool resize ( int  bytes )

inlinevirtual

Resizes the buffer if supported: returns false if not supported.

Reimplemented in RingBuffer< T >, RingBuffer< uint8_t >, SingleBuffer< T >, SingleBuffer< T >, and SingleBuffer< uint8_t >.

size()

virtual size_t size ( )

pure virtual

Implemented in RingBuffer< T >, and RingBuffer< uint8_t >.

write()

virtual bool write ( T  data )

pure virtual

write add an entry to the buffer

Implemented in BufferRP2040T< T >, BufferRTOS< T, TAllocator >, SynchronizedBuffer< T >, RingBuffer< T >, SingleBuffer< T >, and SingleBuffer< T >.

writeArray()

virtual int writeArray ( const T  data[], int  len  )

inlinevirtual

Fills the buffer data.

Reimplemented in BufferRTOS< T, TAllocator >, SynchronizedBuffer< T >, BufferRP2040T< T >, SingleBuffer< T >, and SingleBuffer< T >.

---

The documentation for this class was generated from the following file:

• src/TinyRobotics/utils/Buffers.h
