tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES > Class Template Reference

Reliable data transfer over any Stream (e.g. a ModemStream, an MFSKStream or a Serial): the written data is sent in packets with CRC-16 and Reed-Solomon forward error correction, and only correct data can be read. Corrupted packets which can't be corrected are dropped. More...

#include <PacketStream.h>

Inheritance diagram for tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >:

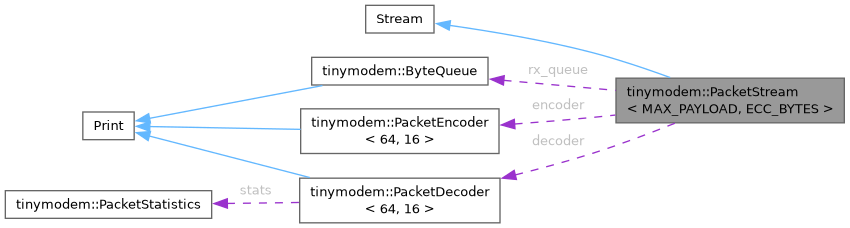

Collaboration diagram for tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >:

Public Member Functions
	PacketStream ()
	PacketStream (Stream &io)
	send and receive
	PacketStream (Print &out)
	send only
void	setStream (Stream &io)
	Defines the stream for sending and receiving.
void	setOutput (Print &out)
	Defines the output (send only).
bool	begin ()
	Resets the receive state and the statistics.
size_t	write (uint8_t ch) override
size_t	write (const uint8_t *data, size_t len) override
void	flush () override
	Sends the buffered data as packet and flushes the underlying stream.
int	available () override
int	read () override
int	peek () override
size_t	readBytes (uint8_t *data, size_t len)
	Reads the available data (does not wait for more data).
size_t	readBytes (char *data, size_t len)
void	update ()
	Reads the available data from the underlying stream.
const PacketStatistics &	statistics () const
	Statistics of the received packets.

Protected Attributes
Print *	p_out = nullptr
Stream *	p_in = nullptr
PacketEncoder< MAX_PAYLOAD, ECC_BYTES >	encoder
PacketDecoder< MAX_PAYLOAD, ECC_BYTES >	decoder
ByteQueue	rx_queue

Detailed Description

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>
class tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >

Reliable data transfer over any Stream (e.g. a ModemStream, an MFSKStream or a Serial): the written data is sent in packets with CRC-16 and Reed-Solomon forward error correction, and only correct data can be read. Corrupted packets which can't be corrected are dropped.

A packet is sent when MAX_PAYLOAD bytes were written or when you call flush(), which also calls flush() of the underlying stream (which ends the transmission of a modem). Both sides must use the same template parameters.

Template Parameters

MAX_PAYLOAD	maximum number of data bytes per packet
ECC_BYTES	number of Reed-Solomon parity bytes: up to ECC_BYTES / 2 wrong bytes per packet are corrected

Copyright

GPLv3

Constructor & Destructor Documentation

PacketStream() [1/3]

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::PacketStream ( )

inline

PacketStream() [2/3]

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::PacketStream ( Stream & io )

inline

send and receive

PacketStream() [3/3]

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::PacketStream ( Print & out )

inline

send only

Member Function Documentation

available()

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

int tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::available ( )

inlineoverride

begin()

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

bool tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::begin ( )

inline

Resets the receive state and the statistics.

flush()

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

void tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::flush ( )

inlineoverride

Sends the buffered data as packet and flushes the underlying stream.

peek()

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

int tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::peek ( )

inlineoverride

read()

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

int tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::read ( )

inlineoverride

readBytes() [1/2]

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

size_t tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::readBytes ( char * data, size_t len )

inline

readBytes() [2/2]

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

size_t tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::readBytes ( uint8_t * data, size_t len )

inline

Reads the available data (does not wait for more data).

setOutput()

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

void tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::setOutput ( Print & out )

inline

Defines the output (send only).

setStream()

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

void tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::setStream ( Stream & io )

inline

Defines the stream for sending and receiving.

statistics()

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

const PacketStatistics & tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::statistics ( ) const

inline

Statistics of the received packets.

update()

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

void tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::update ( )

inline

Reads the available data from the underlying stream.

write() [1/2]

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

size_t tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::write ( const uint8_t * data, size_t len )

inlineoverride

write() [2/2]

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

size_t tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::write ( uint8_t ch )

inlineoverride

Member Data Documentation

decoder

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

PacketDecoder<MAX_PAYLOAD, ECC_BYTES> tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::decoder

protected

encoder

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

PacketEncoder<MAX_PAYLOAD, ECC_BYTES> tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::encoder

protected

p_in

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

Stream* tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::p_in = nullptr

protected

p_out

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

Print* tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::p_out = nullptr

protected

rx_queue

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

ByteQueue tinymodem::PacketStream< MAX_PAYLOAD, ECC_BYTES >::rx_queue

protected

---

The documentation for this class was generated from the following file:

• src/modem/PacketStream.h
