tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES > Class Template Reference

Receives the packets of a PacketEncoder: the written bytes (e.g. the output of a modem decoder) are deframed, corrected and checked, and the payload of the valid packets is written to the output. More...

#include <PacketStream.h>

Inheritance diagram for tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >:

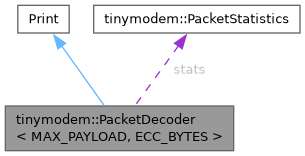

Collaboration diagram for tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >:

Public Member Functions
	PacketDecoder ()=default
	PacketDecoder (Print &out)
void	setOutput (Print &out)
size_t	write (uint8_t ch) override
size_t	write (const uint8_t *data, size_t len) override
const PacketStatistics &	statistics () const
	Statistics of the received packets.
void	reset ()
	Resets the statistics and drops an incomplete frame.

Protected Member Functions
void	processFrame ()

Protected Attributes
Print *	p_out = nullptr
uint8_t	frame [MAX_FRAME]
int	frame_len = 0
bool	overflow = false
bool	escaped = false
PacketStatistics	stats
RS::ReedSolomon< MSG_LEN, ECC_BYTES >	rs

Static Protected Attributes
static constexpr int	MSG_LEN = MAX_PAYLOAD + PacketFormat::CRC_BYTES
static constexpr int	MAX_FRAME = MSG_LEN + ECC_BYTES

Detailed Description

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>
class tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >

Receives the packets of a PacketEncoder: the written bytes (e.g. the output of a modem decoder) are deframed, corrected and checked, and the payload of the valid packets is written to the output.

Template Parameters

MAX_PAYLOAD	must be the same as in the PacketEncoder
ECC_BYTES	must be the same as in the PacketEncoder

Copyright

GPLv3

Constructor & Destructor Documentation

PacketDecoder() [1/2]

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >::PacketDecoder ( )

default

PacketDecoder() [2/2]

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >::PacketDecoder ( Print & out )

inline

Member Function Documentation

processFrame()

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

void tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >::processFrame ( )

inlineprotected

reset()

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

void tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >::reset ( )

inline

Resets the statistics and drops an incomplete frame.

setOutput()

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

void tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >::setOutput ( Print & out )

inline

statistics()

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

const PacketStatistics & tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >::statistics ( ) const

inline

Statistics of the received packets.

write() [1/2]

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

size_t tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >::write ( const uint8_t * data, size_t len )

inlineoverride

write() [2/2]

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

size_t tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >::write ( uint8_t ch )

inlineoverride

Member Data Documentation

escaped

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

bool tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >::escaped = false

protected

frame

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

uint8_t tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >::frame[MAX_FRAME]

protected

frame_len

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

int tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >::frame_len = 0

protected

MAX_FRAME

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

int tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >::MAX_FRAME = MSG_LEN + ECC_BYTES

staticconstexprprotected

MSG_LEN

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

int tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >::MSG_LEN = MAX_PAYLOAD + PacketFormat::CRC_BYTES

staticconstexprprotected

overflow

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

bool tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >::overflow = false

protected

p_out

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

Print* tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >::p_out = nullptr

protected

rs

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

RS::ReedSolomon<MSG_LEN, ECC_BYTES> tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >::rs

protected

stats

template<uint8_t MAX_PAYLOAD = 64, uint8_t ECC_BYTES = 16>

PacketStatistics tinymodem::PacketDecoder< MAX_PAYLOAD, ECC_BYTES >::stats

protected

---

The documentation for this class was generated from the following file:

• src/modem/PacketStream.h
