In-memory 1-bit (monochrome) bitmap surface with 2D drawing and text rendering. More...

#include <SurfaceMonochrome.h>

Inheritance diagram for SurfaceMonochrome:

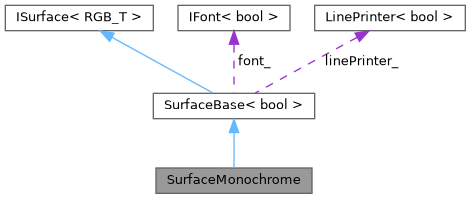

Collaboration diagram for SurfaceMonochrome:

[legend]

Public Member Functions
	SurfaceMonochrome ()=default
	Default constructor. Creates an empty monochrome surface.

	SurfaceMonochrome (size_t w, size_t h, IFont< bool > &font)
	Constructs a monochrome surface with the given width, height, and font.

void	setPixel (size_t x, size_t y, bool color) override
	Sets the pixel at (x, y) to the specified color (on/off).

bool	getPixel (size_t x, size_t y) const override
	Gets the value of the pixel at (x, y).

bool	resizeBuffer (size_t w, size_t h) override
	Resizes the internal bit-packed buffer to the specified width and height.

const uint8_t *	data () const override
	Returns a pointer to the raw bit-packed data as bytes.

size_t	size () const override
	Returns the size of the buffer in bytes.

Public Member Functions inherited from SurfaceBase< bool >
	SurfaceBase ()=default
	Default constructor.

	SurfaceBase (size_t width, size_t height, IFont< bool > &font)
	Construct with width, height, and font.

bool	begin ()
	Initializes the surface by resizing it to the current dimensions.

void	end ()
	Clears the surface and releases any allocated resources.

	~SurfaceBase () override=default
	Virtual destructor.

void	setPixel (size_t x, size_t y, bool color) override=0
	Abstract method: set a pixel at (x, y) to the specified color.

bool	getPixel (size_t x, size_t y) const override=0
	Abstract method: get the pixel color at (x, y).

void	setFont (IFont< bool > &font)
	Set the font for text rendering.

IFont< bool > &	font () override
	Get the current font (mutable).

const IFont< bool > &	font () const
	Get the current font (const).

bool	resize (size_t newWidth, size_t newHeight) override
	Resize the surface to new dimensions.

size_t	width () const override
	Get the width of the surface.

size_t	height () const override
	Get the height of the surface.

virtual bool	resizeBuffer (size_t, size_t)=0

void	clear (bool color=bool()) override
	Clears the framebuffer with a single color.

void	scroll (int dx, int dy)
	Scroll the surface content by (dx, dy) pixels.

void	drawLine (size_t x0, size_t y0, size_t x1, size_t y1, bool color) override
	Draw a line from (x0, y0) to (x1, y1) with the given color.

void	drawRect (size_t x, size_t y, size_t w, size_t h, bool color) override
	Draw a rectangle outline at (x, y) with width w, height h, and color.

void	fillRect (size_t x, size_t y, size_t w, size_t h, bool color) override
	Fill a rectangle at (x, y) with width w, height h, and color.

void	drawCircle (size_t x, size_t y, size_t r, bool color) override
	Draw a circle outline centered at (x, y) with radius r and color.

void	fillCircle (size_t x, size_t y, size_t r, bool color) override
	Fill a circle centered at (x, y) with radius r and color.

void	drawSprite (size_t x, size_t y, const ISurface< bool > &sprite, bool invisibleColor=bool()) override
	Draw a sprite at (x, y), skipping pixels matching invisibleColor.

void	clearSprite (size_t x, size_t y, ISurface< bool > &sprite, bool clearColor=bool()) override
	Clear the region covered by a sprite at (x, y) to clearColor.

void	copySprite (size_t x, size_t y, const ISurface< bool > &sprite) override
	Copy the framebuffer region at (x, y) into the sprite.

void	drawText (int16_t x, int16_t y, const char *text, bool foreground, bool background=bool(), bool opaque=false, uint8_t scale=1, uint8_t spacing=1, uint8_t lineSpacing=1) override

LinePrinter< bool > &	linePrinter ()
	Get the line printer for this surface.

bool	isInBounds (size_t x, size_t y) const
	Returns true if (x, y) is within the surface bounds.

void	setPixelClipped (size_t x, size_t y, bool color)
	Set a pixel only if (x, y) is in bounds.

void	drawHorizontalLineClipped (int x0, int x1, int y, bool color)
	Draw a horizontal line from x0 to x1 at y, clipped to bounds.

Public Member Functions inherited from ISurface< RGB_T >
virtual	~ISurface ()=default
	Destroys the framebuffer interface.

virtual bool	begin ()=0
	Initializes the framebuffer surface.

virtual void	end ()=0
	Closes the framebuffer and releases resources.

virtual bool	resize (size_t newWidth, size_t newHeight)=0
	Resizes the framebuffer surface.

virtual void	setPixel (size_t x, size_t y, RGB_T color)=0
	Sets a pixel at the given position.

virtual RGB_T	getPixel (size_t x, size_t y) const =0
	Returns the pixel at the given position.

virtual void	scroll (int dx, int dy)=0
	Scrolls the framebuffer content by the specified offsets.

virtual void	clear (RGB_T color=RGB_T(0))=0
	Clears the framebuffer with a single color.

virtual void	drawLine (size_t x0, size_t y0, size_t x1, size_t y1, RGB_T color)=0
	Draws a line between two points.

virtual void	drawRect (size_t x, size_t y, size_t w, size_t h, RGB_T color)=0
	Draws a rectangle outline.

virtual void	fillRect (size_t x, size_t y, size_t w, size_t h, RGB_T color)=0
	Fills a rectangle.

virtual void	drawCircle (size_t x, size_t y, size_t r, RGB_T color)=0
	Draws a circle outline.

virtual void	fillCircle (size_t x, size_t y, size_t r, RGB_T color)=0
	Fills a circle.

virtual void	drawSprite (size_t x, size_t y, const ISurface< RGB_T > &sprite, RGB_T invisibleColor=RGB_T(0))=0
	Draws a sprite using an optional transparent color.

virtual void	clearSprite (size_t x, size_t y, ISurface< RGB_T > &sprite, RGB_T clearColor=RGB_T(0))=0
	Clears the area covered by a sprite.

virtual void	copySprite (size_t x, size_t y, const ISurface< RGB_T > &sprite)=0
	Copies pixels from the framebuffer into a sprite.

virtual size_t	width () const =0
	Returns the framebuffer width in pixels.

virtual size_t	height () const =0
	Returns the framebuffer height in pixels.

virtual void	drawText (int16_t x, int16_t y, const char *text, RGB_T foreground, RGB_T background=RGB_T(0), bool opaque=false, uint8_t scale=1, uint8_t spacing=1, uint8_t lineSpacing=1)=0
	Draws UTF-8 text using the configured font.

virtual IFont< RGB_T > &	font ()=0
	Returns the currently set font for text rendering.

virtual const uint8_t *	data () const =0
	Provides access to the framebuffer as a byte buffer.

virtual size_t	size () const =0
	Provides the total data size in bytes.

Protected Attributes
Vector< uint8_t >	buffer

Protected Attributes inherited from SurfaceBase< bool >
size_t	width_

size_t	height_

IFont< bool > *	font_

LinePrinter< bool >	linePrinter_

Detailed Description

In-memory 1-bit (monochrome) bitmap surface with 2D drawing and text rendering.

SurfaceMonochrome stores pixels in a bit-packed buffer for efficient memory usage. It provides the same drawing and text API as color surfaces, but only supports two pixel values (on/off).

This class is ideal for displays or images where only black/white (or on/off) is needed.

Constructor & Destructor Documentation

◆ SurfaceMonochrome() [1/2]

SurfaceMonochrome ( )

default

Default constructor. Creates an empty monochrome surface.

◆ SurfaceMonochrome() [2/2]

SurfaceMonochrome	(	size_t	w,
		size_t	h,
		IFont< bool > &	font
	)

inline

Constructs a monochrome surface with the given width, height, and font.

Parameters

w	Surface width in pixels
h	Surface height in pixels
font	Reference to the font used for text rendering

Member Function Documentation

◆ data()

const uint8_t * data ( ) const

inlineoverridevirtual

Returns a pointer to the raw bit-packed data as bytes.

Returns: Pointer to the buffer as uint8_t

Implements ISurface< RGB_T >.

◆ getPixel()

bool getPixel	(	size_t	x,
		size_t	y
	)		const

inlineoverridevirtual

Gets the value of the pixel at (x, y).

Parameters

x	X coordinate
y	Y coordinate

Returns: Pixel value (true=on, false=off)

Implements SurfaceBase< bool >.

◆ resizeBuffer()

bool resizeBuffer	(	size_t	w,
		size_t	h
	)

inlineoverridevirtual

Resizes the internal bit-packed buffer to the specified width and height.

Parameters

w	New width
h	New height

Implements SurfaceBase< bool >.

◆ setPixel()

void setPixel	(	size_t	x,
		size_t	y,
		bool	color
	)

inlineoverridevirtual

Sets the pixel at (x, y) to the specified color (on/off).

Parameters

x	X coordinate
y	Y coordinate
color	Pixel value (true=on, false=off)

Implements SurfaceBase< bool >.

◆ size()

size_t size ( ) const

inlineoverridevirtual

Returns the size of the buffer in bytes.

Returns: Buffer size in bytes

Implements ISurface< RGB_T >.

Member Data Documentation

◆ buffer

Vector<uint8_t> buffer

protected

The documentation for this class was generated from the following file:

src/TinyGPU/SurfaceMonochrome.h
