Surface< RGB_T > Class Template Reference

In-memory bitmap surface with basic 2D drawing and text rendering. More...

#include <Surface.h>

Inheritance diagram for Surface< RGB_T >:

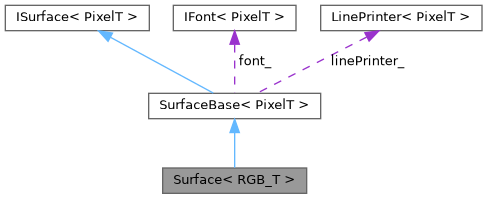

Collaboration diagram for Surface< RGB_T >:

Public Member Functions
	Surface ()=default
	Default constructor. Creates an empty surface.
	Surface (size_t w, size_t h, IFont< RGB_T > &font)
	Constructs a surface with the given width, height, and font.
void	setPixel (size_t x, size_t y, RGB_T color) override
	Sets the pixel at (x, y) to the specified color.
RGB_T	getPixel (size_t x, size_t y) const override
	Gets the color of the pixel at (x, y).
bool	resizeBuffer (size_t w, size_t h) override
	Resizes the internal pixel buffer to the specified width and height.
const uint8_t *	data () const override
	Returns a pointer to the raw data as bytes.
size_t	size () const override
	Returns the size of the buffer in bytes.
Public Member Functions inherited from SurfaceBase< PixelT >
	SurfaceBase ()=default
	Default constructor.
	SurfaceBase (size_t width, size_t height, IFont< PixelT > &font)
	Construct with width, height, and font.
bool	begin ()
	Initializes the surface by resizing it to the current dimensions.
void	end ()
	Clears the surface and releases any allocated resources.
	~SurfaceBase () override=default
	Virtual destructor.
void	setPixel (size_t x, size_t y, PixelT color) override=0
	Abstract method: set a pixel at (x, y) to the specified color.
PixelT	getPixel (size_t x, size_t y) const override=0
	Abstract method: get the pixel color at (x, y).
void	setFont (IFont< PixelT > &font)
	Set the font for text rendering.
IFont< PixelT > &	font () override
	Get the current font (mutable).
const IFont< PixelT > &	font () const
	Get the current font (const).
bool	resize (size_t newWidth, size_t newHeight) override
	Resize the surface to new dimensions.
size_t	width () const override
	Get the width of the surface.
size_t	height () const override
	Get the height of the surface.
virtual bool	resizeBuffer (size_t, size_t)=0
void	clear (PixelT color=PixelT()) override
	Clears the framebuffer with a single color.
void	scroll (int dx, int dy)
	Scroll the surface content by (dx, dy) pixels.
void	drawLine (size_t x0, size_t y0, size_t x1, size_t y1, PixelT color) override
	Draw a line from (x0, y0) to (x1, y1) with the given color.
void	drawRect (size_t x, size_t y, size_t w, size_t h, PixelT color) override
	Draw a rectangle outline at (x, y) with width w, height h, and color.
void	fillRect (size_t x, size_t y, size_t w, size_t h, PixelT color) override
	Fill a rectangle at (x, y) with width w, height h, and color.
void	drawCircle (size_t x, size_t y, size_t r, PixelT color) override
	Draw a circle outline centered at (x, y) with radius r and color.
void	fillCircle (size_t x, size_t y, size_t r, PixelT color) override
	Fill a circle centered at (x, y) with radius r and color.
void	drawSprite (size_t x, size_t y, const ISurface< PixelT > &sprite, PixelT invisibleColor=PixelT()) override
	Draw a sprite at (x, y), skipping pixels matching invisibleColor.
void	clearSprite (size_t x, size_t y, ISurface< PixelT > &sprite, PixelT clearColor=PixelT()) override
	Clear the region covered by a sprite at (x, y) to clearColor.
void	copySprite (size_t x, size_t y, const ISurface< PixelT > &sprite) override
	Copy the framebuffer region at (x, y) into the sprite.
void	drawText (int16_t x, int16_t y, const char *text, PixelT foreground, PixelT background=PixelT(), bool opaque=false, uint8_t scale=1, uint8_t spacing=1, uint8_t lineSpacing=1) override
LinePrinter< PixelT > &	linePrinter ()
	Get the line printer for this surface.
bool	isInBounds (size_t x, size_t y) const
	Returns true if (x, y) is within the surface bounds.
void	setPixelClipped (size_t x, size_t y, PixelT color)
	Set a pixel only if (x, y) is in bounds.
void	drawHorizontalLineClipped (int x0, int x1, int y, PixelT color)
	Draw a horizontal line from x0 to x1 at y, clipped to bounds.
Public Member Functions inherited from ISurface< PixelT >
virtual	~ISurface ()=default
	Destroys the framebuffer interface.
virtual bool	begin ()=0
	Initializes the framebuffer surface.
virtual void	end ()=0
	Closes the framebuffer and releases resources.
virtual bool	resize (size_t newWidth, size_t newHeight)=0
	Resizes the framebuffer surface.
virtual void	setPixel (size_t x, size_t y, PixelT color)=0
	Sets a pixel at the given position.
virtual PixelT	getPixel (size_t x, size_t y) const=0
	Returns the pixel at the given position.
virtual void	scroll (int dx, int dy)=0
	Scrolls the framebuffer content by the specified offsets.
virtual void	clear (PixelT color=PixelT(0))=0
	Clears the framebuffer with a single color.
virtual void	drawLine (size_t x0, size_t y0, size_t x1, size_t y1, PixelT color)=0
	Draws a line between two points.
virtual void	drawRect (size_t x, size_t y, size_t w, size_t h, PixelT color)=0
	Draws a rectangle outline.
virtual void	fillRect (size_t x, size_t y, size_t w, size_t h, PixelT color)=0
	Fills a rectangle.
virtual void	drawCircle (size_t x, size_t y, size_t r, PixelT color)=0
	Draws a circle outline.
virtual void	fillCircle (size_t x, size_t y, size_t r, PixelT color)=0
	Fills a circle.
virtual void	drawSprite (size_t x, size_t y, const ISurface< PixelT > &sprite, PixelT invisibleColor=PixelT(0))=0
	Draws a sprite using an optional transparent color.
virtual void	clearSprite (size_t x, size_t y, ISurface< PixelT > &sprite, PixelT clearColor=PixelT(0))=0
	Clears the area covered by a sprite.
virtual void	copySprite (size_t x, size_t y, const ISurface< PixelT > &sprite)=0
	Copies pixels from the framebuffer into a sprite.
virtual size_t	width () const=0
	Returns the framebuffer width in pixels.
virtual size_t	height () const=0
	Returns the framebuffer height in pixels.
virtual void	drawText (int16_t x, int16_t y, const char *text, PixelT foreground, PixelT background=PixelT(0), bool opaque=false, uint8_t scale=1, uint8_t spacing=1, uint8_t lineSpacing=1)=0
	Draws UTF-8 text using the configured font.
virtual IFont< PixelT > &	font ()=0
	Returns the currently set font for text rendering.
virtual const uint8_t *	data () const=0
	Provides access to the framebuffer as a byte buffer.
virtual size_t	size () const=0
	Provides the total data size in bytes.

Protected Attributes
Vector< RGB_T >	buffer
Protected Attributes inherited from SurfaceBase< PixelT >
size_t	width_ = 0
size_t	height_ = 0
IFont< PixelT > *	font_ = nullptr
LinePrinter< PixelT >	linePrinter_

Detailed Description

template<typename RGB_T = RGB565>
class tinygpu::Surface< RGB_T >

In-memory bitmap surface with basic 2D drawing and text rendering.

Template Parameters

RGB_T

The pixel color type. Can be RGB565, RGB666, RGB888, etc.

The class stores pixel data in a contiguous buffer and provides helpers for drawing lines, rectangles, circles, sprites, and UTF-8 text.

Example usage: Surface<RGB565> surf565(240, 320); Surface<RGB666> surf666(240, 320); Surface<RGB888> surf888(240, 320);

Constructor & Destructor Documentation

Surface() [1/2]

Surface ( )

default

Default constructor. Creates an empty surface.

Surface() [2/2]

Surface ( size_t  w, size_t  h, IFont< RGB_T > &  font  )

inline

Constructs a surface with the given width, height, and font.

Parameters

w	Surface width in pixels
h	Surface height in pixels
font	Reference to the font used for text rendering

Member Function Documentation

data()

const uint8_t * data ( ) const

inlineoverridevirtual

Returns a pointer to the raw data as bytes.

Returns

Pointer to the buffer as uint8_t

Implements ISurface< PixelT >.

getPixel()

RGB_T getPixel ( size_t  x, size_t  y  ) const

inlineoverridevirtual

Gets the color of the pixel at (x, y).

Parameters

x	X coordinate
y	Y coordinate

Returns

Pixel color value

Implements SurfaceBase< PixelT >.

resizeBuffer()

bool resizeBuffer ( size_t  w, size_t  h  )

inlineoverridevirtual

Resizes the internal pixel buffer to the specified width and height.

Parameters

w	New width
h	New height

Implements SurfaceBase< PixelT >.

setPixel()

void setPixel ( size_t  x, size_t  y, RGB_T  color  )

inlineoverride

Sets the pixel at (x, y) to the specified color.

Parameters

x	X coordinate
y	Y coordinate
color	Pixel color value

size()

size_t size ( ) const

inlineoverridevirtual

Returns the size of the buffer in bytes.

Returns

Buffer size in bytes

Implements ISurface< PixelT >.

Member Data Documentation

buffer

Vector<RGB_T> buffer

protected

---

The documentation for this class was generated from the following file:

• src/TinyGPU/Surface.h
