Driver for ST7789 8-bit parallel display controller, driven via ESP32's LCD_CAM/I80 or PARLIO peripheral (see DisplayDriverParallel8ESP32). More...

Inheritance diagram for ST7789Driver8080ESP32< RGB_T >:

[legend]

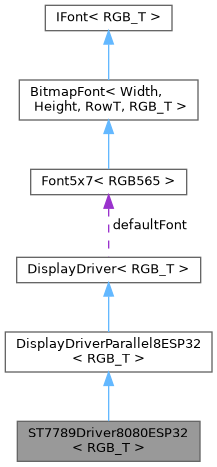

Collaboration diagram for ST7789Driver8080ESP32< RGB_T >:

[legend]

Public Member Functions
	ST7789Driver8080ESP32 (int8_t d0, int8_t d1, int8_t d2, int8_t d3, int8_t d4, int8_t d5, int8_t d6, int8_t d7, int8_t wr, int8_t dc, int8_t cs, size_t width=240, size_t height=320, uint32_t pclkHz=20000000)

bool	begin () override

Public Member Functions inherited from DisplayDriverParallel8ESP32< RGB_T >
	DisplayDriverParallel8ESP32 (int8_t d0, int8_t d1, int8_t d2, int8_t d3, int8_t d4, int8_t d5, int8_t d6, int8_t d7, int8_t wr, int8_t dc, int8_t cs, size_t width=240, size_t height=320, uint32_t pclkHz=20000000)

void	end () override

	~DisplayDriverParallel8ESP32 () override

size_t	width () const override

size_t	height () const override

bool	writeData (ISurface< RGB_T > &surface) override

bool	writeData (ISurface< RGB_T > &surface, size_t x, size_t y) override

Public Member Functions inherited from DisplayDriver< RGB_T >
virtual	~DisplayDriver ()=default

virtual bool	begin ()=0

virtual void	end ()

virtual bool	writeData (ISurface< RGB_T > &surface)=0

virtual bool	writeData (ISurface< RGB_T > &surface, size_t x, size_t y)=0

virtual void	setRotation (DisplayRotation rotation)

virtual size_t	width () const =0

virtual size_t	height () const =0

void	writeColor (size_t width, size_t height, RGB_T color)

Additional Inherited Members
Protected Member Functions inherited from DisplayDriverParallel8ESP32< RGB_T >
bool	beginBus ()

bool	writeCommand (uint8_t cmd, const uint8_t *param=nullptr, size_t len=0)

bool	writeCommand (uint8_t cmd, std::initializer_list< uint8_t > data)

bool	setAddressWindow (size_t x, size_t y, size_t w, size_t h) override

virtual bool	setAddressWindow (size_t x, size_t y, size_t w, size_t h)=0

Protected Attributes inherited from DisplayDriverParallel8ESP32< RGB_T >
int8_t	d_ [8]

int8_t	wr_

int8_t	dc_

int8_t	cs_

size_t	width_

size_t	height_

uint32_t	pclkHz_

esp_lcd_panel_io_handle_t	io_ = nullptr

esp_lcd_i80_bus_handle_t	bus_ = nullptr

uint8_t *	scratch_ = nullptr

size_t	scratchCapacity_ = 0

volatile bool	colorTransPending_ = false

Protected Attributes inherited from DisplayDriver< RGB_T >
Font5x7< RGB_T >	defaultFont

Static Protected Attributes inherited from DisplayDriverParallel8ESP32< RGB_T >
static constexpr uint8_t	kCmdRamWrite = 0x2C

Detailed Description

template<typename RGB_T = RGB565>
class tinygpu::ST7789Driver8080ESP32< RGB_T >

Driver for ST7789 8-bit parallel display controller, driven via ESP32's LCD_CAM/I80 or PARLIO peripheral (see DisplayDriverParallel8ESP32).

Constructor & Destructor Documentation

inline

bool begin ( )

inlineoverridevirtual

The documentation for this class was generated from the following file:
