Hardware-accelerated 8-bit parallel ("Intel 8080"-style) TFT display driver for ESP32-family targets, built on ESP-IDF's esp_lcd panel-IO layer - the same layer DisplayDriverQSPI.h uses for QSPI, just pointed at a different underlying peripheral. Where DisplayDriverSPI.h's hardware-parallel counterpart (DisplayDriverParallel8.h) bit-bangs D0-D7 one digitalWrite() per bit, this class drives the bus via DMA through whichever peripheral the target actually has: More...

#include <DisplayDriverParallel8ESP32.h>

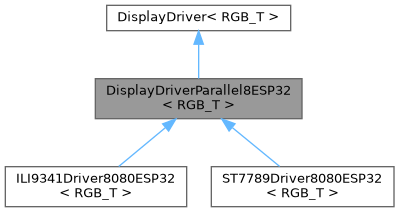

Inheritance diagram for DisplayDriverParallel8ESP32< RGB_T >:

[legend]

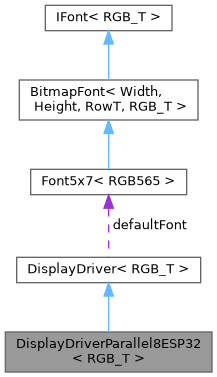

Collaboration diagram for DisplayDriverParallel8ESP32< RGB_T >:

[legend]

Public Member Functions
	DisplayDriverParallel8ESP32 (int8_t d0, int8_t d1, int8_t d2, int8_t d3, int8_t d4, int8_t d5, int8_t d6, int8_t d7, int8_t wr, int8_t dc, int8_t cs, size_t width=240, size_t height=320, uint32_t pclkHz=20000000)

void	end () override

	~DisplayDriverParallel8ESP32 () override

size_t	width () const override

size_t	height () const override

bool	writeData (ISurface< RGB_T > &surface) override

bool	writeData (ISurface< RGB_T > &surface, size_t x, size_t y) override

Public Member Functions inherited from DisplayDriver< RGB_T >
virtual	~DisplayDriver ()=default

virtual bool	begin ()=0

virtual void	end ()

virtual bool	writeData (ISurface< RGB_T > &surface)=0

virtual bool	writeData (ISurface< RGB_T > &surface, size_t x, size_t y)=0

virtual void	setRotation (DisplayRotation rotation)

virtual size_t	width () const =0

virtual size_t	height () const =0

void	writeColor (size_t width, size_t height, RGB_T color)

Protected Member Functions
bool	beginBus ()

bool	writeCommand (uint8_t cmd, const uint8_t *param=nullptr, size_t len=0)

bool	writeCommand (uint8_t cmd, std::initializer_list< uint8_t > data)

bool	setAddressWindow (size_t x, size_t y, size_t w, size_t h) override

virtual bool	setAddressWindow (size_t x, size_t y, size_t w, size_t h)=0

Protected Attributes
int8_t	d_ [8]

int8_t	wr_

int8_t	dc_

int8_t	cs_

size_t	width_

size_t	height_

uint32_t	pclkHz_

esp_lcd_panel_io_handle_t	io_ = nullptr

esp_lcd_i80_bus_handle_t	bus_ = nullptr

uint8_t *	scratch_ = nullptr

size_t	scratchCapacity_ = 0

volatile bool	colorTransPending_ = false

Protected Attributes inherited from DisplayDriver< RGB_T >
Font5x7< RGB_T >	defaultFont

Static Protected Attributes
static constexpr uint8_t	kCmdRamWrite = 0x2C

Detailed Description

template<typename RGB_T = RGB565>
class tinygpu::DisplayDriverParallel8ESP32< RGB_T >

Hardware-accelerated 8-bit parallel ("Intel 8080"-style) TFT display driver for ESP32-family targets, built on ESP-IDF's esp_lcd panel-IO layer - the same layer DisplayDriverQSPI.h uses for QSPI, just pointed at a different underlying peripheral. Where DisplayDriverSPI.h's hardware-parallel counterpart (DisplayDriverParallel8.h) bit-bangs D0-D7 one digitalWrite() per bit, this class drives the bus via DMA through whichever peripheral the target actually has:

SOC_LCD_I80_SUPPORTED targets (ESP32, ESP32-S2, ESP32-S3): the LCD_CAM peripheral's I80 mode, via esp_lcd_new_i80_bus() + esp_lcd_new_panel_io_i80().
SOC_PARLIO_SUPPORTED targets (ESP32-C6, ESP32-H2, ESP32-P4, ..., which have no LCD_CAM): the PARLIO peripheral's 8-bit parallel LCD mode, via esp_lcd_new_panel_io_parl().

Which backend compiles is decided automatically from the target's soc_caps.h (TINYGPU_PARALLEL8_BACKEND_I80 / _PARLIO, set above) - the public API (constructor, writeCommand()/writeData()/setAddressWindow()) is identical either way, so concrete panel drivers below don't need to know or care which peripheral is underneath.

Build-verified (compiles and links) for the I80 backend via arduino-cli against esp32:esp32 3.3.10 on an ESP32-S3 target (esp32:esp32:adafruit_metro_esp32s3). The PARLIO backend's source compiles cleanly against the same core/version on an ESP32-C6 target (esp32:esp32:esp32c6), but fails to link there: esp_lcd_new_panel_io_parl is declared in that core's esp_lcd headers but missing from its prebuilt esp32-arduino-libs static libraries for C6 - an SDK-packaging gap in that specific core version, not a bug in this file. Verify linking against whatever core version you actually build with before relying on the PARLIO path; a plain ESP-IDF build (rather than arduino-esp32) may not have this gap.

Subclasses call the inherited beginBus() first thing in their begin() (setting up the bus/panel-IO), then send their chip's own init register sequence via writeCommand() - the same division of labor DisplayDriverQSPI.h's beginBus()/writeCommand() split uses.

Constructor & Destructor Documentation

◆ DisplayDriverParallel8ESP32()

DisplayDriverParallel8ESP32	(	int8_t	d0,
		int8_t	d1,
		int8_t	d2,
		int8_t	d3,
		int8_t	d4,
		int8_t	d5,
		int8_t	d6,
		int8_t	d7,
		int8_t	wr,
		int8_t	dc,
		int8_t	cs,
		size_t	width = `240`,
		size_t	height = `320`,
		uint32_t	pclkHz = `20000000`
	)

inline

Parameters

d0..d7	the 8 data lines, D0 = least significant bit.
wr	write-strobe pin (WR on I80, wired to PARLIO's clk_gpio_num on PARLIO targets - PARLIO calls the same physical strobe line "clk").
dc	data/command ("RS") select pin.
cs	chip-select pin, or -1 to declare exclusive bus ownership (I80 backend only - the PARLIO backend always wants a real CS pin).
width/height	the panel's addressable resolution - subclasses with a rotation concept (e.g. ILI9341Driver8080ESP32) override width()/height() themselves instead and can ignore these.

◆ ~DisplayDriverParallel8ESP32()

~DisplayDriverParallel8ESP32 ( )

inlineoverride

Member Function Documentation

◆ beginBus()

bool beginBus ( )

inlineprotected

Sets up the bus (I80 or PARLIO, picked at compile time above) and the panel-IO layer. Subclasses call this first thing in their begin(), then send their chip's own init register sequence via writeCommand() before returning.

◆ end()

void end ( )

inlineoverridevirtual

Reimplemented from DisplayDriver< RGB_T >.

◆ height()

size_t height ( ) const

inlineoverridevirtual

Implements DisplayDriver< RGB_T >.

Reimplemented in ILI9341Driver8080ESP32< RGB_T >.

◆ setAddressWindow()

bool setAddressWindow	(	size_t	x,
		size_t	y,
		size_t	w,
		size_t	h
	)

inlineoverrideprotectedvirtual

Implements DisplayDriver< RGB_T >.

◆ width()

size_t width ( ) const

inlineoverridevirtual

Current addressable panel width/height in pixels - for a driver that supports setRotation(), these reflect the current rotation (landscape vs portrait swaps them; see isLandscapeFamily()), not necessarily the panel's native/physical orientation. Callers that need to lay out content (e.g. OutputTinyGPU's scale_to_fit target, or clearScreen()'s band loop) should read these fresh rather than caching their own copy, so a setRotation() call is picked up automatically without needing separate bookkeeping.

Implements DisplayDriver< RGB_T >.

Reimplemented in ILI9341Driver8080ESP32< RGB_T >.

◆ writeCommand() [1/2]

bool writeCommand	(	uint8_t	cmd,
		const uint8_t *	param = `nullptr`,
		size_t	len = `0`
	)

inlineprotected

◆ writeCommand() [2/2]

bool writeCommand	(	uint8_t	cmd,
		std::initializer_list< uint8_t >	data
	)

inlineprotected

Convenience for an init sequence's fixed, short parameter lists - mirrors DisplayDriverSPI::writeDataN()/DisplayDriverQSPI's inline {data} calls, just spelled as one call instead of N.

◆ writeData() [1/2]

bool writeData ( ISurface< RGB_T > & surface )

inlineoverridevirtual

Implements DisplayDriver< RGB_T >.

◆ writeData() [2/2]

bool writeData	(	ISurface< RGB_T > &	surface,
		size_t	x,
		size_t	y
	)

inlineoverridevirtual

Implements DisplayDriver< RGB_T >.

Member Data Documentation

◆ bus_

esp_lcd_i80_bus_handle_t bus_ = nullptr

protected

◆ colorTransPending_

volatile bool colorTransPending_ = false

protected

◆ cs_

int8_t cs_

protected

◆ d_

int8_t d_[8]

protected

◆ dc_

int8_t dc_

protected

◆ height_

size_t height_

protected

◆ io_

esp_lcd_panel_io_handle_t io_ = nullptr

protected

◆ kCmdRamWrite

constexpr uint8_t kCmdRamWrite = 0x2C

staticconstexprprotected

◆ pclkHz_

uint32_t pclkHz_

protected

◆ scratch_

uint8_t* scratch_ = nullptr

protected

◆ scratchCapacity_

size_t scratchCapacity_ = 0

protected

◆ width_

size_t width_

protected

◆ wr_

int8_t wr_

protected

The documentation for this class was generated from the following file:

src/TinyGPU/Drivers/DisplayDriverParallel8ESP32.h
