Driver for the New Vision NV3041A QSPI TFT controller (480x272 panels on Guition/Sunton JC4827W543-class ESP32-S3 boards). More...
#include <DisplayDriverQSPI.h>
Public Member Functions | |
| NV3041ADriver (int8_t cs, int8_t sclk, int8_t d0, int8_t d1, int8_t d2, int8_t d3, size_t width=480, size_t height=272, uint32_t pclkHz=32000000) | |
| NV3041ADriver (IQSPIBus &bus, size_t width=480, size_t height=272) | |
| Bus-injection constructor - see DisplayDriverQSPI's equivalent. | |
| bool | begin () override |
 Public Member Functions inherited from DisplayDriverQSPI< RGB_T > | |
| DisplayDriverQSPI (int8_t cs, int8_t sclk, int8_t d0, int8_t d1, int8_t d2, int8_t d3, size_t width, size_t height, uint32_t pclkHz=40000000, spi_host_device_t host=SPI3_HOST) | |
| DisplayDriverQSPI (IQSPIBus &bus, size_t width, size_t height) | |
| void | end () override |
| ~DisplayDriverQSPI () override | |
| size_t | width () const override |
| size_t | height () const override |
| bool | writeData (ISurface< RGB_T > &surface) override |
| bool | writeData (ISurface< RGB_T > &surface, size_t x, size_t y) override |
| Public Member Functions inherited from DisplayDriver< RGB_T > | |
| virtual | ~DisplayDriver ()=default |
| virtual bool | begin ()=0 |
| virtual void | end () |
| virtual bool | writeData (ISurface< RGB_T > &surface)=0 |
| virtual bool | writeData (ISurface< RGB_T > &surface, size_t x, size_t y)=0 |
| virtual void | setRotation (DisplayRotation rotation) |
| virtual size_t | width () const =0 |
| virtual size_t | height () const =0 |
| void | writeColor (size_t width, size_t height, RGB_T color) |
Additional Inherited Members | |
| Protected Member Functions inherited from DisplayDriverQSPI< RGB_T > | |
| bool | beginBus () |
| bool | writeCommand (uint8_t cmd, const uint8_t *param=nullptr, size_t len=0) |
| bool | setAddressWindow (size_t x, size_t y, size_t w, size_t h) override |
| virtual bool | setAddressWindow (size_t x, size_t y, size_t w, size_t h)=0 |
| Protected Attributes inherited from DisplayDriverQSPI< RGB_T > | |
| IQSPIBus * | bus_ = nullptr |
| size_t | width_ |
| size_t | height_ |
| Protected Attributes inherited from DisplayDriver< RGB_T > | |
| Font5x7< RGB_T > | defaultFont |
| Static Protected Attributes inherited from DisplayDriverQSPI< RGB_T > | |
| static constexpr uint8_t | kCmdRamWrite = 0x2C |

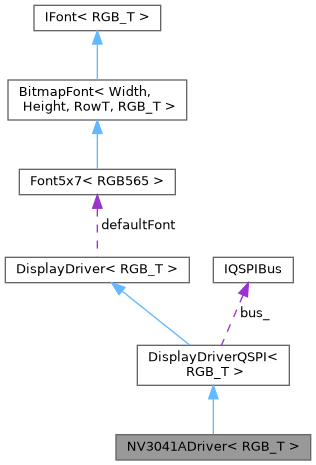

Detailed Description
class tinygpu::NV3041ADriver< RGB_T >
Driver for the New Vision NV3041A QSPI TFT controller (480x272 panels on Guition/Sunton JC4827W543-class ESP32-S3 boards).
The full vendor register-unlock/gate/source-timing/gamma init sequence, confirmed against real hardware (ported from moononournation/Arduino_GFX's Arduino_NV3041A driver - an earlier minimal sleep-out/pixel-format/MADCTL/display-on sequence produced a rotated color channel mapping: red rendered as blue, green as red, blue as green). Register 0x3A (pixel format) uses a chip-specific encoding on this part, not the standard MIPI-DCS one: 0x01 selects 16bpp RGB565 here, not the commonly-documented 0x55.
Platform-independent: works over any IQSPIBus, so the same class covers ESP32 (QSPIBusESP32, hardware/DMA), RP2040 and STM32 (QSPIBusBitBang, software) - see DisplayDriverQSPI's class comment. Only bring-up on ESP32 has been confirmed against real hardware; the RP2040/STM32 bit-bang path follows the same documented wire protocol but has not been run on real hardware.
Constructor & Destructor Documentation
◆ NV3041ADriver() [1/2]
|
inline |
◆ NV3041ADriver() [2/2]
|
inline |
Bus-injection constructor - see DisplayDriverQSPI's equivalent.
Member Function Documentation
◆ begin()
|
inlineoverridevirtual |
Implements DisplayDriver< RGB_T >.
The documentation for this class was generated from the following file:
- src/TinyGPU/Drivers/DisplayDriverQSPI.h
