Framebuffer with sprite placement and background restoration support. More...

#include <FrameBuffer.h>

Inheritance diagram for FrameBuffer< RGB_T, SurfaceT >:

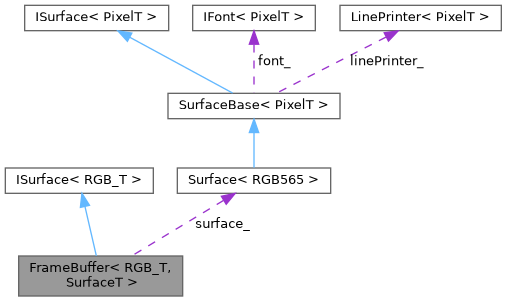

Collaboration diagram for FrameBuffer< RGB_T, SurfaceT >:

[legend]

Public Member Functions
	FrameBuffer ()=default
	Creates an empty framebuffer.

	FrameBuffer (size_t width, size_t height, IFont< RGB_T > &font)
	Creates a framebuffer with the specified size and font.

bool	begin () override
	Initializes the framebuffer surface.

void	end () override
	Closes the framebuffer and releases resources.

void	setTouchDriver (TouchDriver &touch)

SpriteInfo< RGB_T, SurfaceT > &	addSprite (size_t x, size_t y, const ISurface< RGB_T > &sprite, RGB_T invisibleColor=RGB_T(0))
	Adds a sprite to the framebuffer and draws it at the given position.

SpriteInfo< RGB_T, SurfaceT > &	addSprite (size_t x, size_t y, size_t maxX, size_t maxY, const ISurface< RGB_T > &sprite, RGB_T invisibleColor=RGB_T(0))
	Adds a sprite with a preallocated max buffer size for transformations.

void	removeSprite (SpriteInfo< RGB_T, SurfaceT > &spriteInfo)
	Removes a sprite and restores the pixels behind it.

SpriteInfo< RGB_T, SurfaceT > *	getSprite (size_t x, size_t y)
	Returns a pointer to the sprite at the given position, if any.

size_t	getSpriteCount () const
	Returns the number of sprites currently managed by the framebuffer.

SpriteInfo< RGB_T, SurfaceT > *	getSprite (int idx)
	Returns a pointer to the sprite at the given index, if valid.

SpriteInfo< RGB_T, SurfaceT > *	getSpritePtr (int idx)

void	moveSprite (SpriteInfo< RGB_T, SurfaceT > &spriteInfo, size_t newX, size_t newY)
	Moves a sprite to a new position and redraws it.

void	scaleSprite (SpriteInfo< RGB_T, SurfaceT > &spriteInfo, float scale)

void	rotateSprite (SpriteInfo< RGB_T, SurfaceT > &spriteInfo, float angleDegrees)

void	setPixel (size_t x, size_t y, RGB_T color) override
	ISurface<RGB_T> interface delegation.

RGB_T	getPixel (size_t x, size_t y) const override
	Returns the pixel at the given position.

bool	resize (size_t w, size_t h) override
	Resizes the framebuffer surface.

size_t	width () const override
	Returns the framebuffer width in pixels.

size_t	height () const override
	Returns the framebuffer height in pixels.

void	setFont (IFont< RGB_T > &font)
	Sets the font for text rendering.

IFont< RGB_T > &	font ()
	Returns the currently set font for text rendering.

void	clear (RGB_T color=RGB_T())
	Clears the framebuffer with a single color.

void	scroll (int dx, int dy) override
	Scrolls the framebuffer content by the specified offsets.

void	drawLine (size_t x0, size_t y0, size_t x1, size_t y1, RGB_T color)
	Draws a line between two points.

void	drawRect (size_t x, size_t y, size_t w, size_t h, RGB_T color)
	Draws a rectangle outline.

void	fillRect (size_t x, size_t y, size_t w, size_t h, RGB_T color)
	Fills a rectangle.

void	drawCircle (size_t x, size_t y, size_t r, RGB_T color)
	Draws a circle outline.

void	fillCircle (size_t x, size_t y, size_t r, RGB_T color)
	Fills a circle.

void	drawSprite (size_t x, size_t y, const ISurface< RGB_T > &sprite, RGB_T invisibleColor=RGB_T())
	Draws a sprite.

void	clearSprite (size_t x, size_t y, ISurface< RGB_T > &sprite, RGB_T clearColor=RGB_T())
	Clears a sprite.

void	copySprite (size_t x, size_t y, const ISurface< RGB_T > &sprite)
	Copies a sprite.

void	drawText (int16_t x, int16_t y, const char *text, RGB_T foreground, RGB_T background=RGB_T(), bool opaque=false, uint8_t scale=1, uint8_t spacing=1, uint8_t lineSpacing=1)
	Draws UTF-8 text.

LinePrinter< RGB_T > &	linePrinter ()
	Returns the line printer for text rendering.

bool	isInBounds (size_t x, size_t y) const
	Checks if the given coordinates are within the surface bounds.

void	setPixelClipped (size_t x, size_t y, RGB_T color)
	Sets a pixel with clipping.

void	drawHorizontalLineClipped (int x0, int x1, int y, RGB_T color)
	Draws a horizontal line with clipping.

const uint8_t *	data () const override
	Returns the raw pixel buffer as bytes.

size_t	size () const override
	Returns the size of the buffer in bytes.

bool	setData (uint8_t *data, size_t dataSize)
	Sets the framebuffer pixel data directly, replacing the current content.

bool	contains (size_t x, size_t y) override
	checks if the given coordinates are within the surface bounds.

void	processTouch ()
	Processes touch input and dispatches events to sprites if touched.

Public Member Functions inherited from ISurface< RGB_T >
virtual	~ISurface ()=default
	Destroys the framebuffer interface.

virtual bool	begin ()=0
	Initializes the framebuffer surface.

virtual void	end ()=0
	Closes the framebuffer and releases resources.

virtual bool	resize (size_t newWidth, size_t newHeight)=0
	Resizes the framebuffer surface.

virtual void	setPixel (size_t x, size_t y, RGB_T color)=0
	Sets a pixel at the given position.

virtual RGB_T	getPixel (size_t x, size_t y) const =0
	Returns the pixel at the given position.

virtual void	scroll (int dx, int dy)=0
	Scrolls the framebuffer content by the specified offsets.

virtual void	clear (RGB_T color=RGB_T(0))=0
	Clears the framebuffer with a single color.

virtual void	drawLine (size_t x0, size_t y0, size_t x1, size_t y1, RGB_T color)=0
	Draws a line between two points.

virtual void	drawRect (size_t x, size_t y, size_t w, size_t h, RGB_T color)=0
	Draws a rectangle outline.

virtual void	fillRect (size_t x, size_t y, size_t w, size_t h, RGB_T color)=0
	Fills a rectangle.

virtual void	drawCircle (size_t x, size_t y, size_t r, RGB_T color)=0
	Draws a circle outline.

virtual void	fillCircle (size_t x, size_t y, size_t r, RGB_T color)=0
	Fills a circle.

virtual void	drawRoundRect (size_t x, size_t y, size_t w, size_t h, size_t radius, RGB_T color)

virtual void	fillRoundRect (size_t x, size_t y, size_t w, size_t h, size_t radius, RGB_T color)

virtual void	drawArc (size_t cx, size_t cy, size_t r, float startDeg, float endDeg, RGB_T color, uint8_t thickness=1)

virtual void	drawSprite (size_t x, size_t y, const ISurface< RGB_T > &sprite, RGB_T invisibleColor=RGB_T(0))=0
	Draws a sprite using an optional transparent color.

virtual void	clearSprite (size_t x, size_t y, ISurface< RGB_T > &sprite, RGB_T clearColor=RGB_T(0))=0
	Clears the area covered by a sprite.

virtual void	copySprite (size_t x, size_t y, const ISurface< RGB_T > &sprite)=0
	Copies pixels from the framebuffer into a sprite.

virtual size_t	width () const =0
	Returns the framebuffer width in pixels.

virtual size_t	height () const =0
	Returns the framebuffer height in pixels.

virtual void	drawText (int16_t x, int16_t y, const char *text, RGB_T foreground, RGB_T background=RGB_T(0), bool opaque=false, uint8_t scale=1, uint8_t spacing=1, uint8_t lineSpacing=1)=0
	Draws UTF-8 text using the configured font.

virtual IFont< RGB_T > &	font ()=0
	Returns the currently set font for text rendering.

virtual const uint8_t *	data () const =0
	Provides access to the framebuffer as a byte buffer.

virtual size_t	size () const =0
	Provides the total data size in bytes.

virtual bool	contains (size_t x, size_t y)=0
	Checks if the given coordinates are within the surface bounds.

virtual void	pushClipRect (size_t x, size_t y, size_t w, size_t h)

virtual void	popClipRect ()

virtual bool	isClipVisible (size_t x, size_t y) const

Protected Member Functions
IFont< RGB_T > &	activeFont ()
	Returns the currently active font used by the framebuffer.

void	applyTransformedSprite (SpriteInfo< RGB_T, SurfaceT > &spriteInfo, Surface< RGB_T > &&transformedSprite)

void	restoreFullBounds (const SpriteInfo< RGB_T, SurfaceT > &spriteInfo, const Rect &oldBounds)

void	drawSpriteRegion (const ISurface< RGB_T > &source, size_t sourceX, size_t sourceY, size_t destX, size_t destY, size_t width, size_t height)
	Draws a rectangular region from a source surface onto the framebuffer.

void	captureFramebufferRegion (Surface< RGB_T > &destination, size_t destX, size_t destY, size_t sourceX, size_t sourceY, size_t width, size_t height)

void	restoreOriginalPixels (const SpriteInfo< RGB_T, SurfaceT > &spriteInfo)
	Restores the original background pixels behind a sprite.

Static Protected Member Functions
static size_t	centeredCoordinate (size_t oldPosition, size_t oldSize, size_t newSize)

Protected Attributes
SurfaceT	surface_

TouchDriver *	p_touchDriver = nullptr

Vector< std::unique_ptr< SpriteInfo< RGB_T, SurfaceT > > >	sprites_

Detailed Description

template<typename RGB_T = RGB565, typename SurfaceT = Surface<RGB_T>>
class tinygpu::FrameBuffer< RGB_T, SurfaceT >

Framebuffer with sprite placement and background restoration support.

The class extends TinyGPU with sprite bookkeeping so sprites can be added, moved, scaled, and removed while preserving the pixels behind them.

Constructor & Destructor Documentation

◆ FrameBuffer() [1/2]

FrameBuffer ( )

default

Creates an empty framebuffer.

◆ FrameBuffer() [2/2]

FrameBuffer	(	size_t	width,
		size_t	height,
		IFont< RGB_T > &	font
	)

inline

Creates a framebuffer with the specified size and font.

Member Function Documentation

◆ activeFont()

IFont< RGB_T > & activeFont ( )

inlineprotected

Returns the currently active font used by the framebuffer.

◆ addSprite() [1/2]

SpriteInfo< RGB_T, SurfaceT > & addSprite	(	size_t	x,
		size_t	y,
		const ISurface< RGB_T > &	sprite,
		RGB_T	invisibleColor = `RGB_T(0)`
	)

inline

Adds a sprite to the framebuffer and draws it at the given position.

◆ addSprite() [2/2]

SpriteInfo< RGB_T, SurfaceT > & addSprite	(	size_t	x,
		size_t	y,
		size_t	maxX,
		size_t	maxY,
		const ISurface< RGB_T > &	sprite,
		RGB_T	invisibleColor = `RGB_T(0)`
	)

inline

Adds a sprite with a preallocated max buffer size for transformations.

◆ applyTransformedSprite()

void applyTransformedSprite	(	SpriteInfo< RGB_T, SurfaceT > &	spriteInfo,
		Surface< RGB_T > &&	transformedSprite
	)

inlineprotected

Applies a transformed sprite image to the framebuffer and updates bookkeeping.

◆ begin()

bool begin ( )

inlineoverridevirtual

Initializes the framebuffer surface.

Implements ISurface< RGB_T >.

◆ captureFramebufferRegion()

void captureFramebufferRegion	(	Surface< RGB_T > &	destination,
		size_t	destX,
		size_t	destY,
		size_t	sourceX,
		size_t	sourceY,
		size_t	width,
		size_t	height
	)

inlineprotected

Captures a rectangular region from the framebuffer into a destination surface.

◆ centeredCoordinate()

static size_t centeredCoordinate	(	size_t	oldPosition,
		size_t	oldSize,
		size_t	newSize
	)

inlinestaticprotected

Calculates the coordinate to center a new size over an old position/size.

◆ clear()

void clear ( RGB_T color = RGB_T() )

inlinevirtual

Clears the framebuffer with a single color.

Implements ISurface< RGB_T >.

◆ clearSprite()

void clearSprite	(	size_t	x,
		size_t	y,
		ISurface< RGB_T > &	sprite,
		RGB_T	clearColor = `RGB_T()`
	)

inlinevirtual

Clears a sprite.

Implements ISurface< RGB_T >.

◆ contains()

bool contains	(	size_t	x,
		size_t	y
	)

inlineoverridevirtual

checks if the given coordinates are within the surface bounds.

Implements ISurface< RGB_T >.

◆ copySprite()

void copySprite	(	size_t	x,
		size_t	y,
		const ISurface< RGB_T > &	sprite
	)

inlinevirtual

Copies a sprite.

Implements ISurface< RGB_T >.

◆ data()

const uint8_t * data ( ) const

inlineoverridevirtual

Returns the raw pixel buffer as bytes.

Implements ISurface< RGB_T >.

◆ drawCircle()

void drawCircle	(	size_t	x,
		size_t	y,
		size_t	r,
		RGB_T	color
	)

inlinevirtual

Draws a circle outline.

Implements ISurface< RGB_T >.

◆ drawHorizontalLineClipped()

void drawHorizontalLineClipped	(	int	x0,
		int	x1,
		int	y,
		RGB_T	color
	)

inline

Draws a horizontal line with clipping.

◆ drawLine()

void drawLine	(	size_t	x0,
		size_t	y0,
		size_t	x1,
		size_t	y1,
		RGB_T	color
	)

inlinevirtual

Draws a line between two points.

Implements ISurface< RGB_T >.

◆ drawRect()

void drawRect	(	size_t	x,
		size_t	y,
		size_t	w,
		size_t	h,
		RGB_T	color
	)

inlinevirtual

Draws a rectangle outline.

Implements ISurface< RGB_T >.

◆ drawSprite()

void drawSprite	(	size_t	x,
		size_t	y,
		const ISurface< RGB_T > &	sprite,
		RGB_T	invisibleColor = `RGB_T()`
	)

inlinevirtual

Draws a sprite.

Implements ISurface< RGB_T >.

◆ drawSpriteRegion()

void drawSpriteRegion	(	const ISurface< RGB_T > &	source,
		size_t	sourceX,
		size_t	sourceY,
		size_t	destX,
		size_t	destY,
		size_t	width,
		size_t	height
	)

inlineprotected

Draws a rectangular region from a source surface onto the framebuffer.

◆ drawText()

void drawText	(	int16_t	x,
		int16_t	y,
		const char *	text,
		RGB_T	foreground,
		RGB_T	background = `RGB_T()`,
		bool	opaque = `false`,
		uint8_t	scale = `1`,
		uint8_t	spacing = `1`,
		uint8_t	lineSpacing = `1`
	)

inlinevirtual

Draws UTF-8 text.

Implements ISurface< RGB_T >.

◆ end()

void end ( )

inlineoverridevirtual

Closes the framebuffer and releases resources.

Implements ISurface< RGB_T >.

◆ fillCircle()

void fillCircle	(	size_t	x,
		size_t	y,
		size_t	r,
		RGB_T	color
	)

inlinevirtual

Fills a circle.

Implements ISurface< RGB_T >.

◆ fillRect()

void fillRect	(	size_t	x,
		size_t	y,
		size_t	w,
		size_t	h,
		RGB_T	color
	)

inlinevirtual

Fills a rectangle.

Implements ISurface< RGB_T >.

◆ font()

IFont< RGB_T > & font ( )

inlinevirtual

Returns the currently set font for text rendering.

Implements ISurface< RGB_T >.

◆ getPixel()

RGB_T getPixel	(	size_t	x,
		size_t	y
	)		const

inlineoverridevirtual

Returns the pixel at the given position.

Implements ISurface< RGB_T >.

◆ getSprite() [1/2]

SpriteInfo< RGB_T, SurfaceT > * getSprite ( int idx )

inline

Returns a pointer to the sprite at the given index, if valid.

◆ getSprite() [2/2]

SpriteInfo< RGB_T, SurfaceT > * getSprite	(	size_t	x,
		size_t	y
	)

inline

Returns a pointer to the sprite at the given position, if any.

◆ getSpriteCount()

size_t getSpriteCount ( ) const

inline

Returns the number of sprites currently managed by the framebuffer.

◆ getSpritePtr()

SpriteInfo< RGB_T, SurfaceT > * getSpritePtr ( int idx )

inline

◆ height()

size_t height ( ) const

inlineoverridevirtual

Returns the framebuffer height in pixels.

Implements ISurface< RGB_T >.

◆ isInBounds()

bool isInBounds	(	size_t	x,
		size_t	y
	)		const

inline

Checks if the given coordinates are within the surface bounds.

◆ linePrinter()

LinePrinter< RGB_T > & linePrinter ( )

inline

Returns the line printer for text rendering.

◆ moveSprite()

void moveSprite	(	SpriteInfo< RGB_T, SurfaceT > &	spriteInfo,
		size_t	newX,
		size_t	newY
	)

inline

Moves a sprite to a new position and redraws it.

◆ processTouch()

void processTouch ( )

inline

Processes touch input and dispatches events to sprites if touched.

◆ removeSprite()

void removeSprite ( SpriteInfo< RGB_T, SurfaceT > & spriteInfo )

inline

Removes a sprite and restores the pixels behind it.

◆ resize()

bool resize	(	size_t	w,
		size_t	h
	)

inlineoverridevirtual

Resizes the framebuffer surface.

Implements ISurface< RGB_T >.

◆ restoreFullBounds()

void restoreFullBounds	(	const SpriteInfo< RGB_T, SurfaceT > &	spriteInfo,
		const Rect &	oldBounds
	)

inlineprotected

Unconditionally restores the entire old sprite footprint to its saved background pixels.

This used to be an optimization that only restored the "ring" of oldBounds exposed by moving/transforming a sprite, reasoning that the geometric overlap between oldBounds and newBounds didn't need restoring since the upcoming drawSprite() call would cover it anyway. That's only true if the sprite's content is unchanged there - but scaling/rotating can turn a pixel that was opaque at some position within the overlap into a background/invisible one (e.g. scaling down shrinks the opaque area), and drawSprite() skips writing wherever the new image is background-colored. Any such pixel was never restored, so it stayed stuck showing the old, larger sprite's color - visible as the old and new sprite sizes overlaid on top of each other. Always restoring the full footprint costs a few dozen extra pixel writes (bounded by the sprite's small max size) in exchange for being correct regardless of what changed.

◆ restoreOriginalPixels()

void restoreOriginalPixels ( const SpriteInfo< RGB_T, SurfaceT > & spriteInfo )

inlineprotected

Restores the original background pixels behind a sprite.

◆ rotateSprite()

void rotateSprite	(	SpriteInfo< RGB_T, SurfaceT > &	spriteInfo,
		float	angleDegrees
	)

inline

Rotates a sprite image and redraws it at its current position. Always re-renders from the pristine original at (currentScale, angleDegrees)

see renderTransformedSprite() in SpriteInfo.h for why.

◆ scaleSprite()

void scaleSprite	(	SpriteInfo< RGB_T, SurfaceT > &	spriteInfo,
		float	scale
	)

inline

Scales a sprite image and redraws it at its current position. Always re-renders from the pristine original at (scale, currentAngleDegrees)

see renderTransformedSprite() in SpriteInfo.h for why.

◆ scroll()

void scroll	(	int	dx,
		int	dy
	)

inlineoverridevirtual

Scrolls the framebuffer content by the specified offsets.

Implements ISurface< RGB_T >.

◆ setData()

bool setData	(	uint8_t *	data,
		size_t	dataSize
	)

inline

Sets the framebuffer pixel data directly, replacing the current content.

◆ setFont()

void setFont ( IFont< RGB_T > & font )

inline

Sets the font for text rendering.

◆ setPixel()

void setPixel	(	size_t	x,
		size_t	y,
		RGB_T	color
	)

inlineoverridevirtual

ISurface<RGB_T> interface delegation.

Implements ISurface< RGB_T >.

◆ setPixelClipped()

void setPixelClipped	(	size_t	x,
		size_t	y,
		RGB_T	color
	)

inline

Sets a pixel with clipping.

◆ setTouchDriver()

void setTouchDriver ( TouchDriver & touch )

inline

◆ size()

size_t size ( ) const

inlineoverridevirtual

Returns the size of the buffer in bytes.

Implements ISurface< RGB_T >.

◆ width()

size_t width ( ) const

inlineoverridevirtual

Returns the framebuffer width in pixels.

Implements ISurface< RGB_T >.

Member Data Documentation

◆ p_touchDriver

TouchDriver* p_touchDriver = nullptr

protected

◆ sprites_

Vector<std::unique_ptr<SpriteInfo<RGB_T, SurfaceT> > > sprites_

protected

◆ surface_

SurfaceT surface_

protected

The documentation for this class was generated from the following file:

src/TinyGPU/Surface/FrameBuffer.h

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ FrameBuffer() [1/2]

◆ FrameBuffer() [2/2]

Member Function Documentation

◆ activeFont()

◆ addSprite() [1/2]

◆ addSprite() [2/2]

◆ applyTransformedSprite()

◆ begin()

◆ captureFramebufferRegion()

◆ centeredCoordinate()

◆ clear()

◆ clearSprite()

◆ contains()

◆ copySprite()

◆ data()

◆ drawCircle()

◆ drawHorizontalLineClipped()

◆ drawLine()

◆ drawRect()

◆ drawSprite()

◆ drawSpriteRegion()

◆ drawText()

◆ end()

◆ fillCircle()

◆ fillRect()

◆ font()

◆ getPixel()

◆ getSprite() [1/2]

◆ getSprite() [2/2]

◆ getSpriteCount()

◆ getSpritePtr()

◆ height()

◆ isInBounds()

◆ linePrinter()

◆ moveSprite()

◆ processTouch()

◆ removeSprite()

◆ resize()

◆ restoreFullBounds()

◆ restoreOriginalPixels()

◆ rotateSprite()

◆ scaleSprite()

◆ scroll()

◆ setData()

◆ setFont()

◆ setPixel()

◆ setPixelClipped()

◆ setTouchDriver()

◆ size()

◆ width()

Member Data Documentation

◆ p_touchDriver

◆ sprites_

◆ surface_
