DisplayDriverSPI< RGB_T > Class Template Reference

Common base class for SPI-based display drivers. More...

#include <DisplayDriverSPI.h>

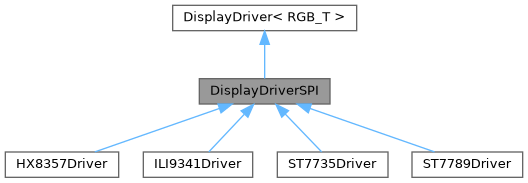

Inheritance diagram for DisplayDriverSPI< RGB_T >:

Collaboration diagram for DisplayDriverSPI< RGB_T >:

Public Member Functions
	DisplayDriverSPI (SPIClass &spi, int8_t cs, int8_t dc, int8_t rst=-1, size_t xOffset=0, size_t yOffset=0, uint32_t frequencyHz=40000000, uint32_t readFrequencyHz=15000000, size_t width=240, size_t height=320)
size_t	width () const override
size_t	height () const override
bool	writeData (ISurface< RGB_T > &surface) override
void	setSwapOutputBytes (bool swap)
bool	writeData (ISurface< RGB_T > &surface, size_t x, size_t y) override
bool	readData (ISurface< RGB_T > &surface, size_t x, size_t y)
Public Member Functions inherited from DisplayDriver< RGB_T >
virtual	~DisplayDriver ()=default
virtual bool	begin ()=0
virtual void	end ()
virtual bool	writeData (ISurface< RGB_T > &surface)=0
virtual bool	writeData (ISurface< RGB_T > &surface, size_t x, size_t y)=0
virtual void	setRotation (DisplayRotation rotation)
virtual size_t	width () const =0
virtual size_t	height () const =0
void	writeColor (size_t width, size_t height, RGB_T color)

Protected Member Functions
void	setColumnRowAddress (size_t x, size_t y, size_t w, size_t h)
bool	setAddressWindow (size_t x, size_t y, size_t w, size_t h) override
void	setupPinsAndReset ()
void	writeCommand (uint8_t cmd)
void	writeData16 (uint16_t d1, uint16_t d2)
void	writeData8 (uint8_t data)
void	writeDataN (std::initializer_list< uint8_t > bytes)
virtual bool	setAddressWindow (size_t x, size_t y, size_t w, size_t h)=0

Protected Attributes
SPIClass &	spi_
int8_t	cs_
int8_t	dc_
int8_t	rst_
size_t	xOffset_
size_t	yOffset_
uint32_t	frequencyHz_
uint32_t	readFrequencyHz_
size_t	width_
size_t	height_
bool	swapOutputBytes_ = false
Protected Attributes inherited from DisplayDriver< RGB_T >
Font5x7< RGB_T >	defaultFont

Detailed Description

template<typename RGB_T = RGB565>
class tinygpu::DisplayDriverSPI< RGB_T >

Common base class for SPI-based display drivers.

Constructor & Destructor Documentation

DisplayDriverSPI()

DisplayDriverSPI ( SPIClass &  spi, int8_t  cs, int8_t  dc, int8_t  rst = -1, size_t  xOffset = 0, size_t  yOffset = 0, uint32_t  frequencyHz = 40000000, uint32_t  readFrequencyHz = 15000000, size_t  width = 240, size_t  height = 320  )

inline

Parameters

width/height

the panel's addressable resolution, as reported by width()/height() - subclasses with a rotation concept (e.g. ILI9341Driver) override width()/height() themselves instead and can ignore these.

Member Function Documentation

height()

size_t height ( ) const

inlineoverridevirtual

Implements DisplayDriver< RGB_T >.

Reimplemented in ILI9341Driver< RGB_T >, ILI9341Driver< tinygpu::RGB565 >, and ILI9342Driver< RGB_T >.

readData()

bool readData ( ISurface< RGB_T > &  surface, size_t  x, size_t  y  )

inline

setAddressWindow()

bool setAddressWindow ( size_t  x, size_t  y, size_t  w, size_t  h  )

inlineoverrideprotectedvirtual

Implements DisplayDriver< RGB_T >.

setColumnRowAddress()

void setColumnRowAddress ( size_t  x, size_t  y, size_t  w, size_t  h  )

inlineprotected

setSwapOutputBytes()

void setSwapOutputBytes ( bool  swap )

inline

Swaps each pixel's two bytes right before they go out over SPI (see writeData()) - off by default, since RGB_T (RGB565) already stores values pre-swapped to the wire order most panels expect (see RGB565.h). Some panels/wiring combinations expect the opposite of that default (symptom: colors come out scrambled/inverted-looking - e.g. a purple app bar rendering green, a light background rendering black - across everything drawn, not just images); this is the one place all pixel data funnels through before hitting the wire, so flipping it here fixes fills/text/images uniformly instead of needing a per-source fix (contrast JPEGParser::setSwapBytes(), which only affects decoded images).

setupPinsAndReset()

void setupPinsAndReset ( )

inlineprotected

width()

size_t width ( ) const

inlineoverridevirtual

Current addressable panel width/height in pixels - for a driver that supports setRotation(), these reflect the current rotation (landscape vs portrait swaps them; see isLandscapeFamily()), not necessarily the panel's native/physical orientation. Callers that need to lay out content (e.g. OutputTinyGPU's scale_to_fit target, or clearScreen()'s band loop) should read these fresh rather than caching their own copy, so a setRotation() call is picked up automatically without needing separate bookkeeping.

Implements DisplayDriver< RGB_T >.

Reimplemented in ILI9341Driver< RGB_T >, ILI9341Driver< tinygpu::RGB565 >, and ILI9342Driver< RGB_T >.

writeCommand()

void writeCommand ( uint8_t  cmd )

inlineprotected

writeData() [1/2]

bool writeData ( ISurface< RGB_T > &  surface )

inlineoverridevirtual

Implements DisplayDriver< RGB_T >.

writeData() [2/2]

bool writeData ( ISurface< RGB_T > &  surface, size_t  x, size_t  y  )

inlineoverridevirtual

Implements DisplayDriver< RGB_T >.

writeData16()

void writeData16 ( uint16_t  d1, uint16_t  d2  )

inlineprotected

writeData8()

void writeData8 ( uint8_t  data )

inlineprotected

writeDataN()

void writeDataN ( std::initializer_list< uint8_t >  bytes )

inlineprotected

Writes each byte as a separate writeData8() call - a convenience for sending a command's multi-byte parameter list during init sequences.

Member Data Documentation

cs_

int8_t cs_

protected

dc_

int8_t dc_

protected

frequencyHz_

uint32_t frequencyHz_

protected

height_

size_t height_

protected

readFrequencyHz_

uint32_t readFrequencyHz_

protected

rst_

int8_t rst_

protected

spi_

SPIClass& spi_

protected

swapOutputBytes_

bool swapOutputBytes_ = false

protected

width_

size_t width_

protected

xOffset_

size_t xOffset_

protected

yOffset_

size_t yOffset_

protected

---

The documentation for this class was generated from the following file:

• src/TinyGPU/Drivers/DisplayDriverSPI.h
