High-performance RP2040 IR RX driver using PIO for edge capture. More...

#include <RxDriverRP2040.h>

Inheritance diagram for pulsewire::RxDriverRP2040:

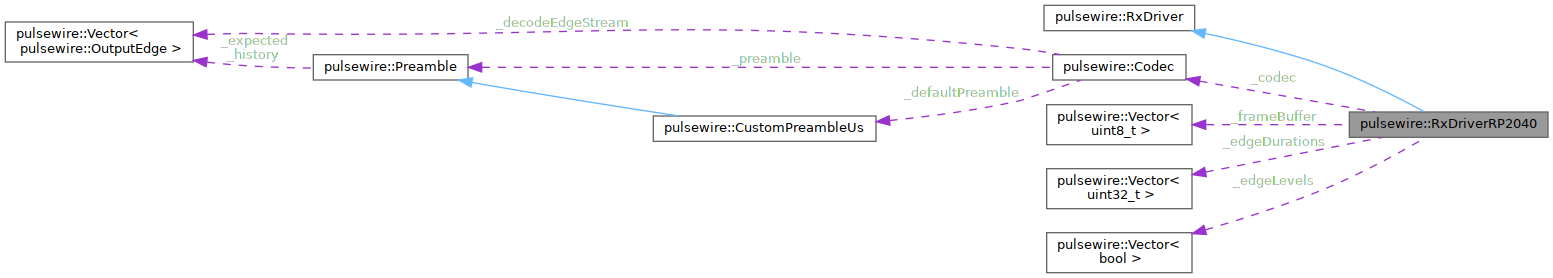

Collaboration diagram for pulsewire::RxDriverRP2040:

[legend]

Public Member Functions
	RxDriverRP2040 (Codec &codec, uint8_t pin, uint32_t freqHz=1000, bool useChecksum=false, uint32_t timeoutUs=1000000)

void	setFrameSize (uint8_t size) override

bool	begin (uint8_t frameSize) override

bool	begin () override

void	pollPIO ()

void	checkTimeout ()

size_t	readBytes (uint8_t *buffer, size_t length) override

int	available () override
	Get the number of bytes available in the internal buffer.

virtual void	setFrameSize (uint16_t size)=0
	Set the expected frame size for dynamic data reception.

virtual bool	begin (uint16_t bitFrequencyHz)=0
	Start the receiver.

virtual void	end ()=0
	Stop the receiver.

virtual void	setRxBufferSize (size_t size)=0
	Set the size of the internal RX buffer.

Protected Member Functions
bool	decodeFrame (uint8_t *buffer, size_t frameSize)

Protected Attributes
Codec &	_codec

uint8_t	_rxPin

uint32_t	_freqHz

uint16_t	_frameSize = 20

Vector< uint8_t >	_frameBuffer

Vector< uint32_t >	_edgeDurations

Vector< bool >	_edgeLevels

uint32_t	dmaBuf [DMA_BUF_SIZE]

volatile size_t	dmaBufHead = 0

int	dmaChannel = -1

bool	_useChecksum = false

uint32_t	_timeoutUs = 1000000

uint32_t	_lastEdgeTime = 0

Static Protected Attributes
static constexpr size_t	DMA_BUF_SIZE = 128

static const uint16_t	ir_rx_program [4]

Detailed Description

High-performance RP2040 IR RX driver using PIO for edge capture.

Uses a PIO state machine to capture IR signal edges and their timing. Buffers edge durations and levels for protocol-agnostic decoding. Compatible with modular Codec/Preamble architecture.

Note: Supports sending and receiving on the same microcontroller without conflicts.

Definition at line 19 of file RxDriverRP2040.h.

Constructor & Destructor Documentation

◆ RxDriverRP2040()

pulsewire::RxDriverRP2040::RxDriverRP2040	(	Codec &	codec,
		uint8_t	pin,
		uint32_t	freqHz = `1000`,
		bool	useChecksum = `false`,
		uint32_t	timeoutUs = `1000000`
	)

inline

Parameters

codec	IR codec
pin	RX pin
freqHz	Bit frequency
useChecksum	If true, validate checksum (default: false)
timeoutUs	Timeout in microseconds to flush frame if no edge received (default: 1000000)

Definition at line 29 of file RxDriverRP2040.h.

Member Function Documentation

◆ available()

int pulsewire::RxDriverRP2040::available ( )

inlineoverridevirtual

Get the number of bytes available in the internal buffer.

Implements pulsewire::RxDriver.

Definition at line 134 of file RxDriverRP2040.h.

◆ begin() [1/3]

bool pulsewire::RxDriverRP2040::begin ( )

inlineoverride

Definition at line 46 of file RxDriverRP2040.h.

◆ begin() [2/3]

virtual bool pulsewire::RxDriver::begin ( uint16_t bitFrequencyHz )

pure virtualinherited

Start the receiver.

Implemented in pulsewire::RxDriverArduino.

◆ begin() [3/3]

bool pulsewire::RxDriverRP2040::begin ( uint8_t frameSize )

inlineoverride

Definition at line 41 of file RxDriverRP2040.h.

◆ checkTimeout()

void pulsewire::RxDriverRP2040::checkTimeout ( )

inline

Definition at line 90 of file RxDriverRP2040.h.

◆ decodeFrame()

bool pulsewire::RxDriverRP2040::decodeFrame	(	uint8_t *	buffer,
		size_t	frameSize
	)

inlineprotected

Definition at line 165 of file RxDriverRP2040.h.

◆ end()

virtual void pulsewire::RxDriver::end ( )

pure virtualinherited

Stop the receiver.

Implemented in pulsewire::RxDriverArduino, and pulsewire::RxDriverESP32.

◆ pollPIO()

void pulsewire::RxDriverRP2040::pollPIO ( )

inline

Definition at line 76 of file RxDriverRP2040.h.

◆ readBytes()

size_t pulsewire::RxDriverRP2040::readBytes	(	uint8_t *	data,
		size_t	size
	)

inlineoverridevirtual

Read up to 'size' bytes from the internal buffer into 'data'. Returns number of bytes read.

Implements pulsewire::RxDriver.

Definition at line 118 of file RxDriverRP2040.h.

◆ setFrameSize() [1/2]

virtual void pulsewire::RxDriver::setFrameSize ( uint16_t size )

pure virtualinherited

Set the expected frame size for dynamic data reception.

Implemented in pulsewire::RxDriverArduino.

◆ setFrameSize() [2/2]

void pulsewire::RxDriverRP2040::setFrameSize ( uint8_t size )

inlineoverride

Definition at line 39 of file RxDriverRP2040.h.

◆ setRxBufferSize()

virtual void pulsewire::RxDriver::setRxBufferSize ( size_t size )

pure virtualinherited

Set the size of the internal RX buffer.

Implemented in pulsewire::RxDriverArduino, and pulsewire::RxDriverESP32.

Field Documentation

◆ _codec

Codec& pulsewire::RxDriverRP2040::_codec

protected

Definition at line 141 of file RxDriverRP2040.h.

◆ _edgeDurations

Vector<uint32_t> pulsewire::RxDriverRP2040::_edgeDurations

protected

Definition at line 146 of file RxDriverRP2040.h.

◆ _edgeLevels

Vector<bool> pulsewire::RxDriverRP2040::_edgeLevels

protected

Definition at line 147 of file RxDriverRP2040.h.

◆ _frameBuffer

Vector<uint8_t> pulsewire::RxDriverRP2040::_frameBuffer

protected

Definition at line 145 of file RxDriverRP2040.h.

◆ _frameSize

uint16_t pulsewire::RxDriverRP2040::_frameSize = 20

protected

Definition at line 144 of file RxDriverRP2040.h.

◆ _freqHz

uint32_t pulsewire::RxDriverRP2040::_freqHz

protected

Definition at line 143 of file RxDriverRP2040.h.

◆ _lastEdgeTime

uint32_t pulsewire::RxDriverRP2040::_lastEdgeTime = 0

protected

Definition at line 155 of file RxDriverRP2040.h.

◆ _rxPin

uint8_t pulsewire::RxDriverRP2040::_rxPin

protected

Definition at line 142 of file RxDriverRP2040.h.

◆ _timeoutUs

uint32_t pulsewire::RxDriverRP2040::_timeoutUs = 1000000

protected

Definition at line 154 of file RxDriverRP2040.h.

◆ _useChecksum

bool pulsewire::RxDriverRP2040::_useChecksum = false

protected

Definition at line 153 of file RxDriverRP2040.h.

◆ DMA_BUF_SIZE

constexpr size_t pulsewire::RxDriverRP2040::DMA_BUF_SIZE = 128

staticconstexprprotected

Definition at line 149 of file RxDriverRP2040.h.

◆ dmaBuf

uint32_t pulsewire::RxDriverRP2040::dmaBuf[DMA_BUF_SIZE]

protected

Definition at line 150 of file RxDriverRP2040.h.

◆ dmaBufHead

volatile size_t pulsewire::RxDriverRP2040::dmaBufHead = 0

protected

Definition at line 151 of file RxDriverRP2040.h.

◆ dmaChannel

int pulsewire::RxDriverRP2040::dmaChannel = -1

protected

Definition at line 152 of file RxDriverRP2040.h.

◆ ir_rx_program

const uint16_t pulsewire::RxDriverRP2040::ir_rx_program[4]

staticprotected

Initial value:

Definition at line 157 of file RxDriverRP2040.h.

The documentation for this class was generated from the following file:

src/sandbox/RxDriverRP2040.h
