IRMultiProtocol: Handles detection and delegation for multiple IR protocols. More...

#include <IRProtocol.h>

Inheritance diagram for pulsewire::IRMultiProtocol:

[legend]

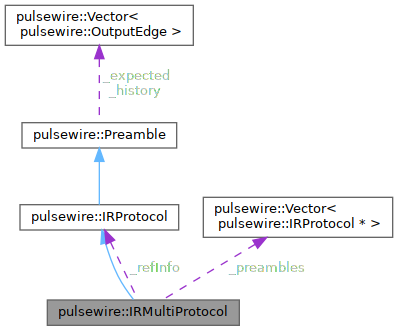

Collaboration diagram for pulsewire::IRMultiProtocol:

[legend]

Public Member Functions
	IRMultiProtocol (IRProtocol &defaultInfo)

IRProtocolEnum	getProtocolID () const override
	Returns the protocol enum identifier for this IR protocol.

int	getEdges (Vector< OutputEdge > &output) const override
	Returns the preamble edges for this protocol.

size_t	preambleLength () const override
	Returns the number of edges in the preamble.

uint32_t	frequency () const
	Returns the carrier frequency in Hz.

size_t	dataLength () const
	Returns the expected data length in bytes (not including preamble)

uint32_t	shortPulseUs () const
	Returns the duration of the short pulse in microseconds.

uint32_t	longPulseUs () const
	Returns the duration of the long pulse in microseconds.

uint32_t	toleranceUs () const
	Tolerance in microseconds for pulse duration matching during detection.

void	copyFrom (const IRProtocol &other)

void	begin (IRProtocolEnum proto, uint32_t frequency, size_t dataLength, uint32_t shortPulse, uint32_t longPulse, uint32_t tolerance, Vector< OutputEdge > edges)

bool	detect (const OutputEdge &edge) override
	Detects if the incoming edge matches the expected preamble pattern.

void	setCallback (void(callback)(IRProtocolEnum, IRProtocol &, void ref), void *ref)

IRProtocol &	getProtocol () const
	Provides the active protocol.

IRProtocol &	getProtocolByID (IRProtocolEnum proto) const
	Provides a protocol by its enum ID, or a default if not found.

void	addProtocol (IRProtocol &protocol)

void	setActualProtocol (IRProtocol &proto)

void	begin (IRProtocolEnum proto, uint32_t frequency, size_t dataLength, uint32_t shortPulse, uint32_t longPulse, uint32_t tolerance, Vector< OutputEdge > edges, CodecEnum codecType=CodecEnum::PulseDistance)
	Set all fields for this IR protocol, including preamble edges.

virtual bool	begin (uint16_t bitFrequencyHz)

const char *	name () const

virtual Codec &	codec ()
	Provides the codec associated with this protocol.

void	reset ()

bool	inRange (uint32_t value, uint32_t target, uint32_t tolerance) const

Protected Attributes
IRProtocol *	_refInfo = &IRProtocolNEC

Vector< IRProtocol * >	_preambles

void(*	_callback )(IRProtocolEnum, IRProtocol &, void *ref) = nullptr

void *	_ref = nullptr

pulsewire::Vector< pulsewire::OutputEdge >	_history

pulsewire::Vector< pulsewire::OutputEdge >	_expected

Detailed Description

IRMultiProtocol: Handles detection and delegation for multiple IR protocols.

This class manages a collection of known IR protocol definitions and attempts to detect which protocol is present in an incoming signal. It delegates all IR protocol-specific method calls to a reference protocol instance (_refInfo), which is updated upon successful detection. This allows seamless switching and handling of multiple IR protocols within a single interface. The class also supports callback registration for protocol detection events.

Definition at line 316 of file IRProtocol.h.

Constructor & Destructor Documentation

◆ IRMultiProtocol() [1/2]

pulsewire::IRMultiProtocol::IRMultiProtocol ( )

inline

Definition at line 318 of file IRProtocol.h.

◆ IRMultiProtocol() [2/2]

pulsewire::IRMultiProtocol::IRMultiProtocol ( IRProtocol & defaultInfo )

inline

Definition at line 340 of file IRProtocol.h.

Member Function Documentation

◆ addProtocol()

void pulsewire::IRMultiProtocol::addProtocol ( IRProtocol & protocol )

inline

Definition at line 398 of file IRProtocol.h.

◆ begin() [1/3]

void pulsewire::IRMultiProtocol::begin	(	IRProtocolEnum	proto,
		uint32_t	frequency,
		size_t	dataLength,
		uint32_t	shortPulse,
		uint32_t	longPulse,
		uint32_t	tolerance,
		Vector< OutputEdge >	edges
	)

inline

Definition at line 358 of file IRProtocol.h.

◆ begin() [2/3]

void pulsewire::IRProtocol::begin	(	IRProtocolEnum	proto,
		uint32_t	frequency,
		size_t	dataLength,
		uint32_t	shortPulse,
		uint32_t	longPulse,
		uint32_t	tolerance,
		Vector< OutputEdge >	edges,
		CodecEnum	codecType = `CodecEnum::PulseDistance`
	)

inlineinherited

Set all fields for this IR protocol, including preamble edges.

Definition at line 148 of file IRProtocol.h.

◆ begin() [3/3]

virtual bool pulsewire::Preamble::begin ( uint16_t bitFrequencyHz )

inlinevirtualinherited

Definition at line 44 of file Preamble.h.

◆ codec()

virtual Codec & pulsewire::IRProtocol::codec ( )

inlinevirtualinherited

Provides the codec associated with this protocol.

Definition at line 205 of file IRProtocol.h.

◆ copyFrom()

void pulsewire::IRMultiProtocol::copyFrom ( const IRProtocol & other )

inline

Definition at line 357 of file IRProtocol.h.

◆ dataLength()

size_t pulsewire::IRMultiProtocol::dataLength ( ) const

inlinevirtual

Returns the expected data length in bytes (not including preamble)

Reimplemented from pulsewire::IRProtocol.

Definition at line 351 of file IRProtocol.h.

◆ detect()

bool pulsewire::IRMultiProtocol::detect ( const OutputEdge & edge )

inlineoverridevirtual

Detects if the incoming edge matches the expected preamble pattern.

Reimplemented from pulsewire::Preamble.

Definition at line 365 of file IRProtocol.h.

◆ frequency()

uint32_t pulsewire::IRMultiProtocol::frequency ( ) const

inlinevirtual

Returns the carrier frequency in Hz.

Reimplemented from pulsewire::IRProtocol.

Definition at line 350 of file IRProtocol.h.

◆ getEdges()

int pulsewire::IRMultiProtocol::getEdges ( Vector< OutputEdge > & output ) const

inlineoverridevirtual

Returns the preamble edges for this protocol.

Reimplemented from pulsewire::IRProtocol.

Definition at line 346 of file IRProtocol.h.

◆ getProtocol()

IRProtocol & pulsewire::IRMultiProtocol::getProtocol ( ) const

inline

Provides the active protocol.

Definition at line 385 of file IRProtocol.h.

◆ getProtocolByID()

IRProtocol & pulsewire::IRMultiProtocol::getProtocolByID ( IRProtocolEnum proto ) const

inline

Provides a protocol by its enum ID, or a default if not found.

Definition at line 388 of file IRProtocol.h.

◆ getProtocolID()

IRProtocolEnum pulsewire::IRMultiProtocol::getProtocolID ( ) const

inlineoverridevirtual

Returns the protocol enum identifier for this IR protocol.

Reimplemented from pulsewire::IRProtocol.

Definition at line 343 of file IRProtocol.h.

◆ inRange()

bool pulsewire::Preamble::inRange	(	uint32_t	value,
		uint32_t	target,
		uint32_t	tolerance
	)		const

inlineinherited

Utility function to check if a value is within a specified tolerance range of a target

Definition at line 95 of file Preamble.h.

◆ longPulseUs()

uint32_t pulsewire::IRMultiProtocol::longPulseUs ( ) const

inlinevirtual

Returns the duration of the long pulse in microseconds.

Reimplemented from pulsewire::IRProtocol.

Definition at line 353 of file IRProtocol.h.

◆ name()

const char * pulsewire::IRProtocol::name ( ) const

inlineinherited

Definition at line 182 of file IRProtocol.h.

◆ preambleLength()

size_t pulsewire::IRMultiProtocol::preambleLength ( ) const

inlineoverridevirtual

Returns the number of edges in the preamble.

Reimplemented from pulsewire::IRProtocol.

Definition at line 349 of file IRProtocol.h.

◆ reset()

void pulsewire::Preamble::reset ( )

inlineinherited

Definition at line 49 of file Preamble.h.

◆ setActualProtocol()

void pulsewire::IRMultiProtocol::setActualProtocol ( IRProtocol & proto )

inline

Definition at line 409 of file IRProtocol.h.

◆ setCallback()

void pulsewire::IRMultiProtocol::setCallback	(	void()(IRProtocolEnum, IRProtocol &, void ref)	callback,
		void *	ref
	)

inline

You can registre a callback that will be executed when the protocol changes

Definition at line 378 of file IRProtocol.h.

◆ shortPulseUs()

uint32_t pulsewire::IRMultiProtocol::shortPulseUs ( ) const

inlinevirtual

Returns the duration of the short pulse in microseconds.

Reimplemented from pulsewire::IRProtocol.

Definition at line 352 of file IRProtocol.h.

◆ toleranceUs()

uint32_t pulsewire::IRMultiProtocol::toleranceUs ( ) const

inlinevirtual

Tolerance in microseconds for pulse duration matching during detection.

Reimplemented from pulsewire::IRProtocol.

Definition at line 354 of file IRProtocol.h.

Field Documentation

◆ _callback

void(* pulsewire::IRMultiProtocol::_callback) (IRProtocolEnum, IRProtocol &, void *ref) = nullptr

protected

Definition at line 419 of file IRProtocol.h.

◆ _expected

pulsewire::Vector<pulsewire::OutputEdge> pulsewire::Preamble::_expected

protectedinherited

Definition at line 102 of file Preamble.h.

◆ _history

pulsewire::Vector<pulsewire::OutputEdge> pulsewire::Preamble::_history

protectedinherited

Definition at line 101 of file Preamble.h.

◆ _preambles

Vector<IRProtocol*> pulsewire::IRMultiProtocol::_preambles

protected

Definition at line 418 of file IRProtocol.h.

◆ _ref

void* pulsewire::IRMultiProtocol::_ref = nullptr

protected

Definition at line 420 of file IRProtocol.h.

◆ _refInfo

IRProtocol* pulsewire::IRMultiProtocol::_refInfo = &IRProtocolNEC

protected

Definition at line 417 of file IRProtocol.h.

The documentation for this class was generated from the following file:

src/pulse/IRProtocol.h
