pulsewire::IRProtocolDetector Class Reference

ProtocolDetector: Uses interrupt edge logic to detect IR protocol by testing all known preambles. More...

#include <IRProtocolDetector.h>

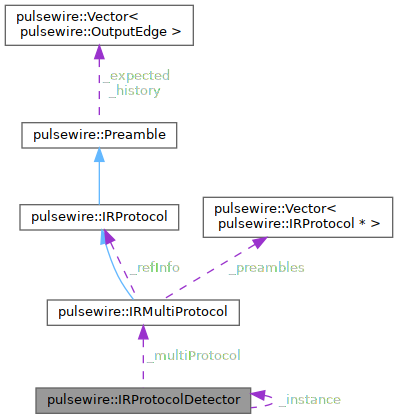

Collaboration diagram for pulsewire::IRProtocolDetector:

Public Member Functions
bool	begin (uint8_t pin)
	Starts protocol detection by attaching an interrupt to the specified pin.
void	end ()
	Stops protocol detection by detaching the interrupt.
IRProtocolEnum	getDetectedProtocol () const
const char *	getDetectedProtocolStr () const
void	reset ()

Protected Member Functions
void	handleInterrupt ()

Static Protected Member Functions
static void	interruptHandler ()
static void	onProtocolDetected (IRProtocolEnum proto, IRProtocol &info, void *ref)

Protected Attributes
uint8_t	_pin = -1
IRMultiProtocol	_multiProtocol
volatile IRProtocolEnum	_detectedProtocol = IRProtocolEnum::Unknown
volatile uint32_t	_lastEdge = 0

Static Protected Attributes
static IRProtocolDetector *	_instance = nullptr

Detailed Description

ProtocolDetector: Uses interrupt edge logic to detect IR protocol by testing all known preambles.

This class listens for IR edges and feeds them to all known preamble detectors. When a preamble is detected, it returns the protocol as an enum.

Definition at line 15 of file IRProtocolDetector.h.

Constructor & Destructor Documentation

IRProtocolDetector()

pulsewire::IRProtocolDetector::IRProtocolDetector ( )

inline

Definition at line 17 of file IRProtocolDetector.h.

Member Function Documentation

begin()

bool pulsewire::IRProtocolDetector::begin ( uint8_t  pin )

inline

Starts protocol detection by attaching an interrupt to the specified pin.

Definition at line 24 of file IRProtocolDetector.h.

end()

void pulsewire::IRProtocolDetector::end ( )

inline

Stops protocol detection by detaching the interrupt.

Definition at line 33 of file IRProtocolDetector.h.

getDetectedProtocol()

IRProtocolEnum pulsewire::IRProtocolDetector::getDetectedProtocol ( ) const

inline

Definition at line 38 of file IRProtocolDetector.h.

getDetectedProtocolStr()

const char * pulsewire::IRProtocolDetector::getDetectedProtocolStr ( ) const

inline

Definition at line 40 of file IRProtocolDetector.h.

handleInterrupt()

void pulsewire::IRProtocolDetector::handleInterrupt ( )

inlineprotected

Definition at line 62 of file IRProtocolDetector.h.

interruptHandler()

static void pulsewire::IRProtocolDetector::interruptHandler ( )

inlinestaticprotected

Definition at line 51 of file IRProtocolDetector.h.

onProtocolDetected()

static void pulsewire::IRProtocolDetector::onProtocolDetected ( IRProtocolEnum  proto, IRProtocol &  info, void *  ref  )

inlinestaticprotected

Definition at line 55 of file IRProtocolDetector.h.

reset()

void pulsewire::IRProtocolDetector::reset ( )

inline

Definition at line 42 of file IRProtocolDetector.h.

Field Documentation

_detectedProtocol

volatile IRProtocolEnum pulsewire::IRProtocolDetector::_detectedProtocol = IRProtocolEnum::Unknown

protected

Definition at line 48 of file IRProtocolDetector.h.

_instance

IRProtocolDetector * pulsewire::IRProtocolDetector::_instance = nullptr

staticprotected

Definition at line 45 of file IRProtocolDetector.h.

_lastEdge

volatile uint32_t pulsewire::IRProtocolDetector::_lastEdge = 0

protected

Definition at line 49 of file IRProtocolDetector.h.

_multiProtocol

IRMultiProtocol pulsewire::IRProtocolDetector::_multiProtocol

protected

Definition at line 47 of file IRProtocolDetector.h.

_pin

uint8_t pulsewire::IRProtocolDetector::_pin = -1

protected

Definition at line 46 of file IRProtocolDetector.h.

---

The documentation for this class was generated from the following file:

• src/pulse/IRProtocolDetector.h
