esp_h264_enc_param.c File Reference

#include "esp_h264_enc_param.h"
#include "esp_h264_check.h"

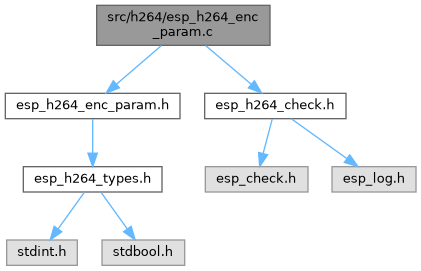

Include dependency graph for esp_h264_enc_param.c:

Functions
esp_h264_err_t	esp_h264_enc_get_resolution (esp_h264_enc_param_handle_t handle, esp_h264_resolution_t *out_res)
	This function retrieves the resolution of the video encoder specified by the handle parameter The encoder's resolution is stored in the res, which is of type esp_h264_resolution_t.
esp_h264_err_t	esp_h264_enc_set_fps (esp_h264_enc_param_handle_t handle, uint8_t fps)
	This function sets the frames per second (FPS) parameter for the H.264 encoder.
esp_h264_err_t	esp_h264_enc_get_fps (esp_h264_enc_param_handle_t handle, uint8_t *out_fps)
	This function is used to retrieve the frames per second (FPS) from the encoder.
esp_h264_err_t	esp_h264_enc_set_gop (esp_h264_enc_param_handle_t handle, uint8_t gop)
	This function sets the group of picture(GOP) parameter for the H.264 encoder.
esp_h264_err_t	esp_h264_enc_get_gop (esp_h264_enc_param_handle_t handle, uint8_t *out_gop)
	This function is used to retrieve the group of picture(GOP) from the encoder.
esp_h264_err_t	esp_h264_enc_set_bitrate (esp_h264_enc_param_handle_t handle, uint32_t bitrate)
	This function sets the bitrate parameter for the H.264 encoder.
esp_h264_err_t	esp_h264_enc_get_bitrate (esp_h264_enc_param_handle_t handle, uint32_t *out_bitrate)
	This function is used to retrieve the bitrate from the encoder.

Function Documentation

esp_h264_enc_get_bitrate()

esp_h264_err_t esp_h264_enc_get_bitrate	(	esp_h264_enc_param_handle_t	handle,
		uint32_t *	out_bitrate
	)

This function is used to retrieve the bitrate from the encoder.

Parameters

[in]	handle	It is a pointer to the H.264 encoding parameters structure
[out]	out_bitrate	Pointer to a variable to store the retrieved bitrate value

Returns

• ESP_H264_ERR_OK Succeeded
• ESP_H264_ERR_ARG Invalid arguments passed
• ESP_H264_ERR_UNSUPPORTED Get bitrate feature is not supported by the encoder

esp_h264_enc_get_fps()

esp_h264_err_t esp_h264_enc_get_fps	(	esp_h264_enc_param_handle_t	handle,
		uint8_t *	out_fps
	)

This function is used to retrieve the frames per second (FPS) from the encoder.

Parameters

[in]	handle	It is a pointer to the H.264 encoding parameters structure
[out]	out_fps	Pointer to a variable to store the retrieved FPS value

Returns

• ESP_H264_ERR_OK Succeeded
• ESP_H264_ERR_ARG Invalid arguments passed
• ESP_H264_ERR_UNSUPPORTED Get FPS feature is not supported by the encoder

esp_h264_enc_get_gop()

esp_h264_err_t esp_h264_enc_get_gop	(	esp_h264_enc_param_handle_t	handle,
		uint8_t *	out_gop
	)

This function is used to retrieve the group of picture(GOP) from the encoder.

Parameters

[in]	handle	It is a pointer to the H.264 encoding parameters structure.
[out]	out_gop	Pointer to a variable to store the retrieved GOP value

Returns

• ESP_H264_ERR_OK Succeeded
• ESP_H264_ERR_ARG Invalid arguments passed
• ESP_H264_ERR_UNSUPPORTED Get GOP feature is not supported by the encoder

esp_h264_enc_get_resolution()

esp_h264_err_t esp_h264_enc_get_resolution	(	esp_h264_enc_param_handle_t	handle,
		esp_h264_resolution_t *	out_res
	)

This function retrieves the resolution of the video encoder specified by the handle parameter The encoder's resolution is stored in the res, which is of type esp_h264_resolution_t.

Parameters

[in]	handle	It is a pointer to the H.264 encoding parameters structure
[out]	out_res	A pointer to the resolution structure where the encoder's resolution will be stored

Returns

• ESP_H264_ERR_OK Succeeded
• ESP_H264_ERR_ARG Invalid arguments passed
• ESP_H264_ERR_UNSUPPORTED Get resolution feature is not supported by the encoder

esp_h264_enc_set_bitrate()

esp_h264_err_t esp_h264_enc_set_bitrate	(	esp_h264_enc_param_handle_t	handle,
		uint32_t	bitrate
	)

This function sets the bitrate parameter for the H.264 encoder.

Parameters

[in]	handle	It is a pointer to the H.264 encoding parameters structure
[in]	bitrate	The desired bitrate value

Returns

• ESP_H264_ERR_OK Succeeded
• ESP_H264_ERR_ARG Invalid arguments passed
• ESP_H264_ERR_UNSUPPORTED Set bitrate feature is not supported by the encoder

esp_h264_enc_set_fps()

esp_h264_err_t esp_h264_enc_set_fps	(	esp_h264_enc_param_handle_t	handle,
		uint8_t	fps
	)

This function sets the frames per second (FPS) parameter for the H.264 encoder.

Note

The higher FPS, the more coherent and realistic the video. When FPS is greater than 24, the general video seems coherent. When FPS is greater than 30, the game video seems coherent. When FPS is greater than 75, increase FPS, the video fluency improvement isn't obvious. Ensure the fps value is within the range of 1 to 255. This function may return ESP_H264_ERR_ARG if fps value is out of range.

Parameters

[in]	handle	It is a pointer to the H.264 encoding parameters structure
[in]	fps	The desired FPS value (a single byte)

Returns

• ESP_H264_ERR_OK Succeeded
• ESP_H264_ERR_ARG Invalid arguments passed
• ESP_H264_ERR_UNSUPPORTED Set FPS feature is not supported by the encoder

esp_h264_enc_set_gop()

esp_h264_err_t esp_h264_enc_set_gop	(	esp_h264_enc_param_handle_t	handle,
		uint8_t	gop
	)

This function sets the group of picture(GOP) parameter for the H.264 encoder.

Note

GOP is usually set to the number of frames per second output by the encoder, that is, the GOP, which is generally 25 or 30, but other values can also be set. Ensure the gop value is within the range of 1 to 255. This function may return ESP_H264_ERR_ARG if gop value is out of range.

Parameters

[in]	handle	It is a pointer to the H.264 encoding parameters structure.
[in]	gop	The desired GOP value (a single byte)

Returns

• ESP_H264_ERR_OK Succeeded
• ESP_H264_ERR_ARG Invalid arguments passed
• ESP_H264_ERR_UNSUPPORTED Set GOP feature is not supported by the encoder
