esp_h264_enc_dual.c File Reference

#include "esp_h264_enc_dual.h"
#include "esp_h264_check.h"

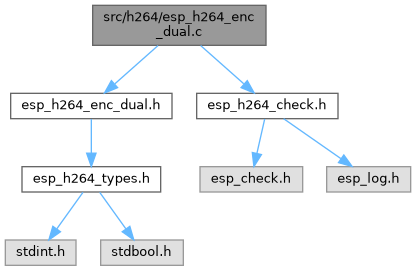

Include dependency graph for esp_h264_enc_dual.c:

Functions
esp_h264_err_t	esp_h264_enc_dual_open (esp_h264_enc_dual_handle_t enc)
	This function opens an H.264 encoder in dual streams.
esp_h264_err_t	esp_h264_enc_dual_process (esp_h264_enc_dual_handle_t enc, esp_h264_enc_in_frame_t *in_frame[2], esp_h264_enc_out_frame_t *out_frame[2])
	This function performs dual encoding of H.264 video frames. The encoder supports dual channels where each channel can have a different configuration. It allows for one image encoder per channel and cannot code multiple images consecutively per channel. For IDR frame, the encoder will automatically add SPS and PPS NALU.
esp_h264_err_t	esp_h264_enc_dual_close (esp_h264_enc_dual_handle_t enc)
	This function closes the H.264 dual encoder instance specified by enc
esp_h264_err_t	esp_h264_enc_dual_del (esp_h264_enc_dual_handle_t enc)
	This function is used to delete an H.264 dual encoder.

Function Documentation

esp_h264_enc_dual_close()

esp_h264_err_t esp_h264_enc_dual_close

(

esp_h264_enc_dual_handle_t

enc

)

This function closes the H.264 dual encoder instance specified by enc

Parameters

[in]

enc

A pointer to the H.264 dual encoder instance

Returns

• ESP_H264_ERR_OK Succeeded
• ESP_H264_ERR_ARG Invalid arguments passed
• ESP_H264_ERR_UNSUPPORTED Close feature is not supported by the encoder

esp_h264_enc_dual_del()

esp_h264_err_t esp_h264_enc_dual_del

(

esp_h264_enc_dual_handle_t

enc

)

This function is used to delete an H.264 dual encoder.

Parameters

[in]

enc

A pointer to the H.264 dual encoder instance

Returns

• ESP_H264_ERR_OK Succeeded
• ESP_H264_ERR_ARG Invalid arguments passed.
• ESP_H264_ERR_UNSUPPORTED Delete feature is not supported by the encoder

esp_h264_enc_dual_open()

esp_h264_err_t esp_h264_enc_dual_open

(

esp_h264_enc_dual_handle_t

enc

)

This function opens an H.264 encoder in dual streams.

Parameters

[in]

enc

A pointer to the H.264 dual encoder instance

Returns

• ESP_H264_ERR_OK Succeeded
• ESP_H264_ERR_FAIL Failed
• ESP_H264_ERR_ARG Invalid arguments passed
• ESP_H264_ERR_UNSUPPORTED Open feature is not supported by the encoder

esp_h264_enc_dual_process()

esp_h264_err_t esp_h264_enc_dual_process	(	esp_h264_enc_dual_handle_t	enc,
		esp_h264_enc_in_frame_t *	in_frame[2],
		esp_h264_enc_out_frame_t *	out_frame[2]
	)

This function performs dual encoding of H.264 video frames. The encoder supports dual channels where each channel can have a different configuration. It allows for one image encoder per channel and cannot code multiple images consecutively per channel. For IDR frame, the encoder will automatically add SPS and PPS NALU.

Note

The function will return ESP_H264_ERR_TIMEOUT, if out_frame.raw_data.len is less than actual encoded data length using hardware encoder. If the width or height of image is not multi of 16, please do the follow operation. width = ((width +15) >> 4 << 4); height = ((height+15) >> 4 << 4); in_frame.raw_data.len = ( width * height + (width * height >> 1)); in_frame.raw_data.buffer = heap_caps_aligned_calloc(16, 1, in_frame.raw_data.len, &in_frame.raw_data.len, MALLOC_CAP_DEFAULT); The out_frame.raw_data.buffer should be allocated by the user for in_frame.raw_data.len bytes to avoid the encoded image size exceeding the out_frame.raw_data.buffer size. If the encoder image size is larger than out_frame.raw_data.buffer, it will result in ESP_H264_ERR_MEM.

Parameters

[in]	enc	A pointer to the H.264 dual encoder instance
[in]	in_frame	An array of two pointers to unencoded input frames
	[in/out]	out_frame An array of two pointers to encoded output frames

Returns

• ESP_H264_ERR_OK Succeeded
• ESP_H264_ERR_ARG Invalid arguments passed
• ESP_H264_ERR_MEM Insufficient memory
• ESP_H264_ERR_FAIL Failed
• ESP_H264_ERR_TIMEOUT Timeout
• ESP_H264_ERR_OVERFLOW The size of encoder image is greater than in_frame.raw_data.len
• ESP_H264_ERR_UNSUPPORTED Process feature is not supported by the encoder
