esp_h264_dec_sw.c File Reference

#include <stdio.h>
#include <string.h>
#include "esp_h264_dec.h"
#include "h264bsd_decoder.h"
#include "esp_h264_check.h"
#include "esp_h264_alloc.h"
#include "esp_h264_dec_sw.h"

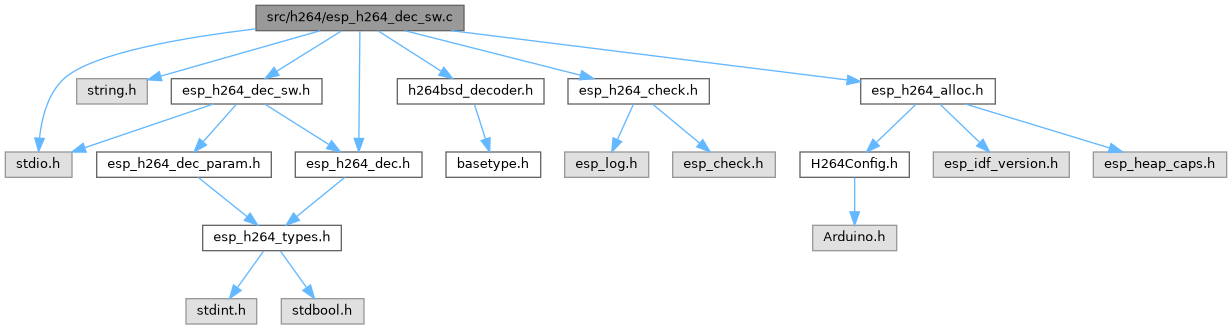

Include dependency graph for esp_h264_dec_sw.c:

Classes
struct	esp_h264_dec_sw_handle

Typedefs
typedef struct esp_h264_dec_sw_handle	esp_h264_dec_sw_handle_t

Functions
esp_h264_err_t	esp_h264_dec_sw_new (const esp_h264_dec_cfg_sw_t *cfg, esp_h264_dec_handle_t *out_dec)
	This function is used to create a new instance of the esp_h264_dec_t data structure, which represents a single-streams H.264 decoder in software. The decoder is from tinyh264.
esp_h264_err_t	esp_h264_dec_sw_get_param_hd (esp_h264_dec_handle_t dec, esp_h264_dec_param_sw_handle_t *out_param)
	This function returns a pointer to the software-decoded parameter structure associated with the given esp_h264_dec_t decoder.

Typedef Documentation

esp_h264_dec_sw_handle_t

typedef struct esp_h264_dec_sw_handle esp_h264_dec_sw_handle_t

Function Documentation

esp_h264_dec_sw_get_param_hd()

esp_h264_err_t esp_h264_dec_sw_get_param_hd	(	esp_h264_dec_handle_t	dec,
		esp_h264_dec_param_sw_handle_t *	out_param
	)

This function returns a pointer to the software-decoded parameter structure associated with the given esp_h264_dec_t decoder.

Parameters

[in]	dec	The decoder instance that is from esp_h264_dec_hw_new
[out]	out_param	The parameter set handle

Returns

• ESP_H264_ERR_OK Succeeded
• ESP_H264_ERR_ARG Invalid arguments passed

esp_h264_dec_sw_new()

esp_h264_err_t esp_h264_dec_sw_new	(	const esp_h264_dec_cfg_sw_t *	cfg,
		esp_h264_dec_handle_t *	out_dec
	)

This function is used to create a new instance of the esp_h264_dec_t data structure, which represents a single-streams H.264 decoder in software. The decoder is from tinyh264.

Note

The group of picture(GOP) will be updated in intra frame

Parameters

[in]	cfg	It is a pointer to the esp_h264_dec_cfg_sw_t structure, which contains the configuration settings for the decoder
[out]	out_dec	It is a double pointer to the esp_h264_dec_t structure, which will store the created decoder instance

Returns

• ESP_H264_ERR_OK Succeeded
• ESP_H264_ERR_ARG Invalid arguments passed
• ESP_H264_ERR_MEM Insufficient memory

Create decoder handle

Encoder handle configure

Delete the decoder handle
