#include "esp_h264_types.h"
Include dependency graph for esp_h264_dec_param.h:

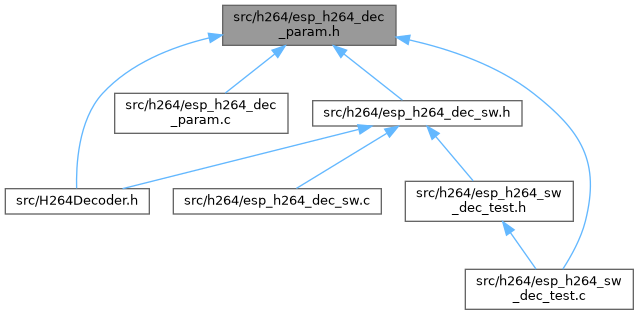

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| struct | esp_h264_dec_param_if |
| The H.264 decoder parameter interface. More... | |
Typedefs | |
| typedef struct esp_h264_dec_param_if * | esp_h264_dec_param_handle_t |
| It is a pointer to the H.264 decoding parameters structure. | |
| typedef struct esp_h264_dec_param_if | esp_h264_dec_param_t |
| The H.264 decoder parameter interface. | |
Functions | |
| esp_h264_err_t | esp_h264_dec_get_resolution (esp_h264_dec_param_handle_t handle, esp_h264_resolution_t *out_res) |
This function retrieves the resolution of the video decoder specified by the handle parameter The decoder's resolution is stored in the res, which is of type esp_h264_resolution_t | |
Typedef Documentation
◆ esp_h264_dec_param_handle_t
| typedef struct esp_h264_dec_param_if* esp_h264_dec_param_handle_t |
It is a pointer to the H.264 decoding parameters structure.
◆ esp_h264_dec_param_t
| typedef struct esp_h264_dec_param_if esp_h264_dec_param_t |
The H.264 decoder parameter interface.
Function Documentation
◆ esp_h264_dec_get_resolution()
| esp_h264_err_t esp_h264_dec_get_resolution | ( | esp_h264_dec_param_handle_t | handle, |
| esp_h264_resolution_t * | out_res | ||
| ) |
This function retrieves the resolution of the video decoder specified by the handle parameter The decoder's resolution is stored in the res, which is of type esp_h264_resolution_t
- Parameters
-
[in] handle It is a pointer to the H.264 decoding parameters structure [out] out_res A pointer to the resolution structure where the decoder's resolution will be stored
- Returns
- ESP_H264_ERR_OK Succeeded
- ESP_H264_ERR_ARG Invalid arguments
- ESP_H264_ERR_UNSUPPORTED Get resolution feature is not supported by the decoder
