esp_h264_alloc.h File Reference

#include "H264Config.h"
#include "esp_idf_version.h"
#include "esp_heap_caps.h"

Include dependency graph for esp_h264_alloc.h:

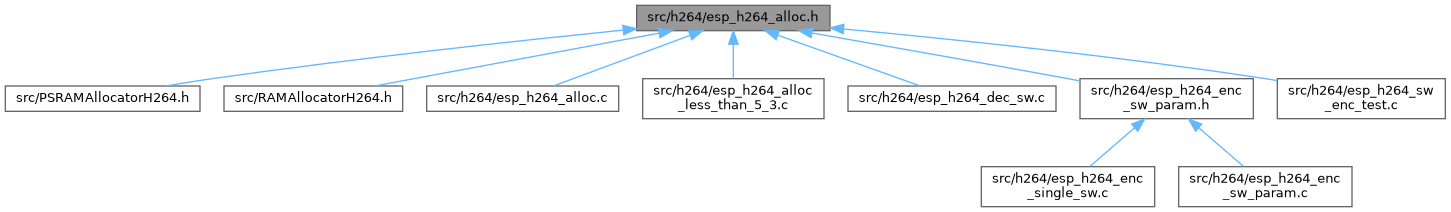

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	ESP_H264_MEM_INTERNAL   MALLOC_CAP_INTERNAL
#define	ESP_H264_MEM_SPIRAM   MALLOC_CAP_SPIRAM
#define	ALIGN_UP(num, align)   (((num) + ((align) - 1)) & ~((align) - 1))
#define	esp_h264_free   heap_caps_free
	Free memory previously allocated.

Functions
void *	esp_h264_aligned_calloc (uint32_t alignment, uint32_t n, uint32_t size, uint32_t *actual_size, uint32_t caps)
	Allocate an aligned chunk of memory which has the given capabilities.
void *	esp_h264_calloc_prefer (uint32_t n, uint32_t size, uint32_t *actual_size, uint32_t caps1, uint32_t caps2)
	Allocate a chunk of memory as preference in decreasing order. And helper function for calloc a cache aligned data memory buffer.

Macro Definition Documentation

ALIGN_UP

#define ALIGN_UP	(		num,
			align
	)		(((num) + ((align) - 1)) & ~((align) - 1))

esp_h264_free

#define esp_h264_free   heap_caps_free

Free memory previously allocated.

ESP_H264_MEM_INTERNAL

#define ESP_H264_MEM_INTERNAL   MALLOC_CAP_INTERNAL

ESP_H264_MEM_SPIRAM

#define ESP_H264_MEM_SPIRAM   MALLOC_CAP_SPIRAM

Function Documentation

esp_h264_aligned_calloc()

void * esp_h264_aligned_calloc	(	uint32_t	alignment,
		uint32_t	n,
		uint32_t	size,
		uint32_t *	actual_size,
		uint32_t	caps
	)

Allocate an aligned chunk of memory which has the given capabilities.

Parameters

[in]	alignment	How the pointer received needs to be aligned must be a power of two. If the value is less than cache line size, the value will be forced cache line size.
[in]	n	Number of continuing chunks of memory to allocate
[in]	size	Size, in bytes, of a chunk of memory to allocate
[in]	caps	ESP_H264_MEM_INTERNAL or ESP_H264_MEM_SPIRAM

Returns

• NULL Failure
• others A pointer to the memory allocated on success

esp_h264_calloc_prefer()

void * esp_h264_calloc_prefer	(	uint32_t	n,
		uint32_t	size,
		uint32_t *	actual_size,
		uint32_t	caps1,
		uint32_t	caps2
	)

Allocate a chunk of memory as preference in decreasing order. And helper function for calloc a cache aligned data memory buffer.

Parameters

[in]	n	Number of continuing chunks of memory to allocate
[in]	size	Size, in bytes, of a chunk of memory to allocate
[in]	caps1	ESP_H264_MEM_INTERNAL or ESP_H264_MEM_SPIRAM
[in]	caps2	ESP_H264_MEM_INTERNAL or ESP_H264_MEM_SPIRAM

Returns

• NULL Failure
• others A pointer to the memory allocated on success
