codec_def.h File Reference
#include <stdint.h>
Include dependency graph for codec_def.h:

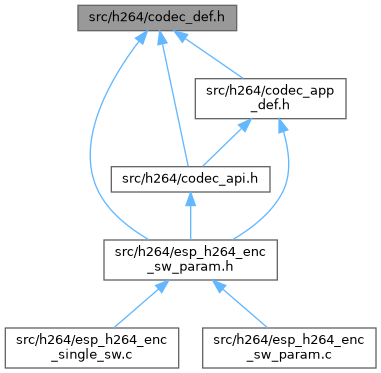

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  SliceInformation
 Information of coded Slice(=NAL)(s) More...

struct  SRateThresholds
 thresholds of the initial, maximal and minimal rate More...

struct  TagSysMemBuffer
 Structure for decoder memery. More...

struct  TagBufferInfo
 Buffer info. More...


Macros

#define IS_PARAMETER_SET_NAL(eNalRefIdc, eNalType)   ( (eNalRefIdc == NAL_PRIORITY_HIGHEST) && (eNalType == (NAL_SPS|NAL_PPS) || eNalType == NAL_SPS) )

#define IS_IDR_NAL(eNalRefIdc, eNalType)   ( (eNalRefIdc == NAL_PRIORITY_HIGHEST) && (eNalType == NAL_SLICE_IDR) )

#define FRAME_NUM_PARAM_SET   (-1)

#define FRAME_NUM_IDR   0

#define DEBLOCKING_OFFSET   (6)

#define DEBLOCKING_OFFSET_MINUS   (-6)


Typedefs

typedef unsigned short ERR_TOOL

typedef struct SliceInformation SliceInfo
 Information of coded Slice(=NAL)(s)

typedef struct SliceInformationPSliceInfo

typedef struct SRateThresholdsPRateThresholds

typedef struct TagSysMemBuffer SSysMEMBuffer
 Structure for decoder memery.

typedef struct TagBufferInfo SBufferInfo
 Buffer info.


Enumerations

enum  EVideoFormatType {
  videoFormatRGB = 1 , videoFormatRGBA = 2 , videoFormatRGB555 = 3 , videoFormatRGB565 = 4 ,
  videoFormatBGR = 5 , videoFormatBGRA = 6 , videoFormatABGR = 7 , videoFormatARGB = 8 ,
  videoFormatYUY2 = 20 , videoFormatYVYU = 21 , videoFormatUYVY = 22 , videoFormatI420 = 23 ,
  videoFormatYV12 = 24 , videoFormatInternal = 25 , videoFormatNV12 = 26 , videoFormatVFlip = 0x80000000
}
 Enumerate the type of video format. More...

enum  EVideoFrameType {
  videoFrameTypeInvalid = -1 , videoFrameTypeIDR = 0 , videoFrameTypeI = 1 , videoFrameTypeP = 2 ,
  videoFrameTypeSKIP = 3 , videoFrameTypeIPMixed = 4
}
 Enumerate video frame type. More...

enum  CM_RETURN {
  cmResultSuccess , cmInitParaError , cmUnknownReason , cmMallocMemeError ,
  cmInitExpected , cmUnsupportedData
}
 Enumerate return type. More...

enum  ENalUnitType {
  NAL_UNKNOWN = 0 , NAL_SLICE = 1 , NAL_SLICE_DPA = 2 , NAL_SLICE_DPB = 3 ,
  NAL_SLICE_DPC = 4 , NAL_SLICE_IDR = 5 , NAL_SEI = 6 , NAL_SPS = 7 ,
  NAL_PPS = 8
}
 Enumulate the nal unit type. More...

enum  ENalPriority { NAL_PRIORITY_DISPOSABLE = 0 , NAL_PRIORITY_LOW = 1 , NAL_PRIORITY_HIGH = 2 , NAL_PRIORITY_HIGHEST = 3 }
 NRI: eNalRefIdc. More...

enum  { DEBLOCKING_IDC_0 = 0 , DEBLOCKING_IDC_1 = 1 , DEBLOCKING_IDC_2 = 2 }
 eDeblockingIdc More...

enum  {
  ET_NONE = 0x00 , ET_IP_SCALE = 0x01 , ET_FMO = 0x02 , ET_IR_R1 = 0x04 ,
  ET_IR_R2 = 0x08 , ET_IR_R3 = 0x10 , ET_FEC_HALF = 0x20 , ET_FEC_FULL = 0x40 ,
  ET_RFS = 0x80
}
 to do More...


Detailed Description

\copy Copyright (c) 2013, Cisco Systems All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Macro Definition Documentation

◆ DEBLOCKING_OFFSET

#define DEBLOCKING_OFFSET   (6)

◆ DEBLOCKING_OFFSET_MINUS

#define DEBLOCKING_OFFSET_MINUS   (-6)

◆ FRAME_NUM_IDR

#define FRAME_NUM_IDR   0

◆ FRAME_NUM_PARAM_SET

#define FRAME_NUM_PARAM_SET   (-1)

◆ IS_IDR_NAL

#define IS_IDR_NAL (   eNalRefIdc,
  eNalType
)    ( (eNalRefIdc == NAL_PRIORITY_HIGHEST) && (eNalType == NAL_SLICE_IDR) )

◆ IS_PARAMETER_SET_NAL

#define IS_PARAMETER_SET_NAL (   eNalRefIdc,
  eNalType
)    ( (eNalRefIdc == NAL_PRIORITY_HIGHEST) && (eNalType == (NAL_SPS|NAL_PPS) || eNalType == NAL_SPS) )

Typedef Documentation

◆ ERR_TOOL

typedef unsigned short ERR_TOOL

◆ PRateThresholds

typedef struct SRateThresholds * PRateThresholds

◆ PSliceInfo

typedef struct SliceInformation * PSliceInfo

◆ SBufferInfo

typedef struct TagBufferInfo SBufferInfo

Buffer info.

◆ SliceInfo

typedef struct SliceInformation SliceInfo

Information of coded Slice(=NAL)(s)

◆ SSysMEMBuffer

Structure for decoder memery.

Enumeration Type Documentation

◆ anonymous enum

anonymous enum

eDeblockingIdc

Enumerator
DEBLOCKING_IDC_0
DEBLOCKING_IDC_1
DEBLOCKING_IDC_2

◆ anonymous enum

anonymous enum

to do

Enumerator
ET_NONE

NONE Error Tools.

ET_IP_SCALE

IP Scalable.

ET_FMO

Flexible Macroblock Ordering.

ET_IR_R1

Intra Refresh in predifined 2% MB.

ET_IR_R2

Intra Refresh in predifined 5% MB.

ET_IR_R3

Intra Refresh in predifined 10% MB.

ET_FEC_HALF

Forward Error Correction in 50% redundency mode.

ET_FEC_FULL

Forward Error Correction in 100% redundency mode.

ET_RFS

Reference Frame Selection.

◆ CM_RETURN

enum CM_RETURN

Enumerate return type.

Enumerator
cmResultSuccess

successful

cmInitParaError

parameters are invalid

cmUnknownReason
cmMallocMemeError

malloc a memory error

cmInitExpected

initial action is expected

cmUnsupportedData

◆ ENalPriority

NRI: eNalRefIdc.

Enumerator
NAL_PRIORITY_DISPOSABLE
NAL_PRIORITY_LOW
NAL_PRIORITY_HIGH
NAL_PRIORITY_HIGHEST

◆ ENalUnitType

Enumulate the nal unit type.

Enumerator
NAL_UNKNOWN
NAL_SLICE
NAL_SLICE_DPA
NAL_SLICE_DPB
NAL_SLICE_DPC
NAL_SLICE_IDR

ref_idc != 0

NAL_SEI

ref_idc == 0

NAL_SPS
NAL_PPS

ref_idc == 0 for 6,9,10,11,12

◆ EVideoFormatType

Enumerate the type of video format.

Enumerator
videoFormatRGB

rgb color formats

videoFormatRGBA
videoFormatRGB555
videoFormatRGB565
videoFormatBGR
videoFormatBGRA
videoFormatABGR
videoFormatARGB
videoFormatYUY2

yuv color formats

videoFormatYVYU
videoFormatUYVY
videoFormatI420

the same as IYUV

videoFormatYV12
videoFormatInternal

only used in SVC decoder testbed

videoFormatNV12

new format for output by DXVA decoding

videoFormatVFlip

◆ EVideoFrameType

Enumerate video frame type.

Enumerator
videoFrameTypeInvalid

encoder not ready or parameters are invalidate

videoFrameTypeIDR

IDR frame in H.264.

videoFrameTypeI

I frame type.

videoFrameTypeP

P frame type.

videoFrameTypeSKIP

skip the frame based encoder kernel

videoFrameTypeIPMixed

a frame where I and P slices are mixing, not supported yet
